TechSoft RouterCAM Range

Powerful, High Speed, Large Format, 3D Capable Routers

TechSoft RouterCAM Range

Direct Control
Direct TechSoft Design Control
RouterCAMs are the only large format routers to be DIRECTLY CONTROLLED through TechSoft Design V3

TechSoft RouterCAM Range

Prices
(excluding VAT)
Machines
Recommended Extras
Recommended Software
TechSoft Design V3More Info
SOLIDWORKSMore Info
Included Accessories
  • Fully Interlocked Safety Case (T690S, 1313M)
    or Perimeter Enclosure (M1S)
  • Vacuum Table compressor
  • Brush foot
  • Machine tools and a selection of cutters/collets
What's Included?
The cost of the RouterCAM also includes commissioning and training on the same day (UK Mainland only).
Product Description
Affordable Full-Size Routing
Full-size furniture projects have a long tradition in Design and Technology, but it can be difficult for students to include CAD/CAM when making them. Available CNC machinery is often too complex to operate, too expensive to buy, or simply not up to the scale required. To meet this need TechSoft are pleased to offer four industrial quality machines that will accept even the largest of student projects, yet remain straightforward to operate and are fully compliant with safety requirements for education. The machines are built for continuous commercial production, so are more than tough enough to stand the rigours of educational use. A quality/capacity/price comparison reveals that these machines also represent exceptional value for money.

Easy Set-up and Control

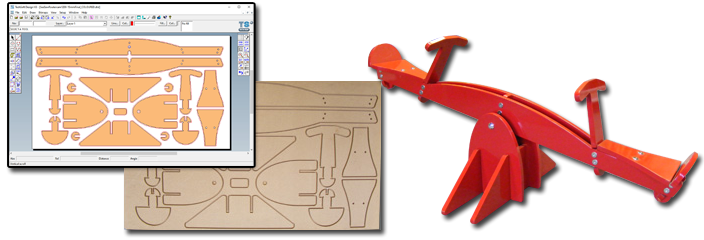

TechSoft Design V3 is the ideal tool to produce drawings for the RouterCAM and output is largely through the familiar TechSoft output dialog box where feeds, speeds and cutting depths are assigned to colour-coded toolpaths. 3D output is achieved in the same way but from files processed in TechSoft Visual Toolpath. In both cases data is transferred to the machine’s own hand controller via USB. Datums can be set manually or (in the case of Z0) by using the sensor unit provided. A Delta inverter-driven 2.2kW air cooled spindle takes care of cutting duties while XYZ cutting speeds go up to an astonishing 160mm/sec (10m/min). The specification of the M1S increases yet again with a 4.5kW water cooled spindle and XYZ speeds of up to 400mm/sec (25m/min)! This means you will always have performance in reserve to get the best results for any given combination of material and cutter diameter. Although designed primarily for machining timber-based panel material, a RouterCAM will also handle suitable plastics, light alloy and even slate, marble, etc.

Work Holding and Extraction

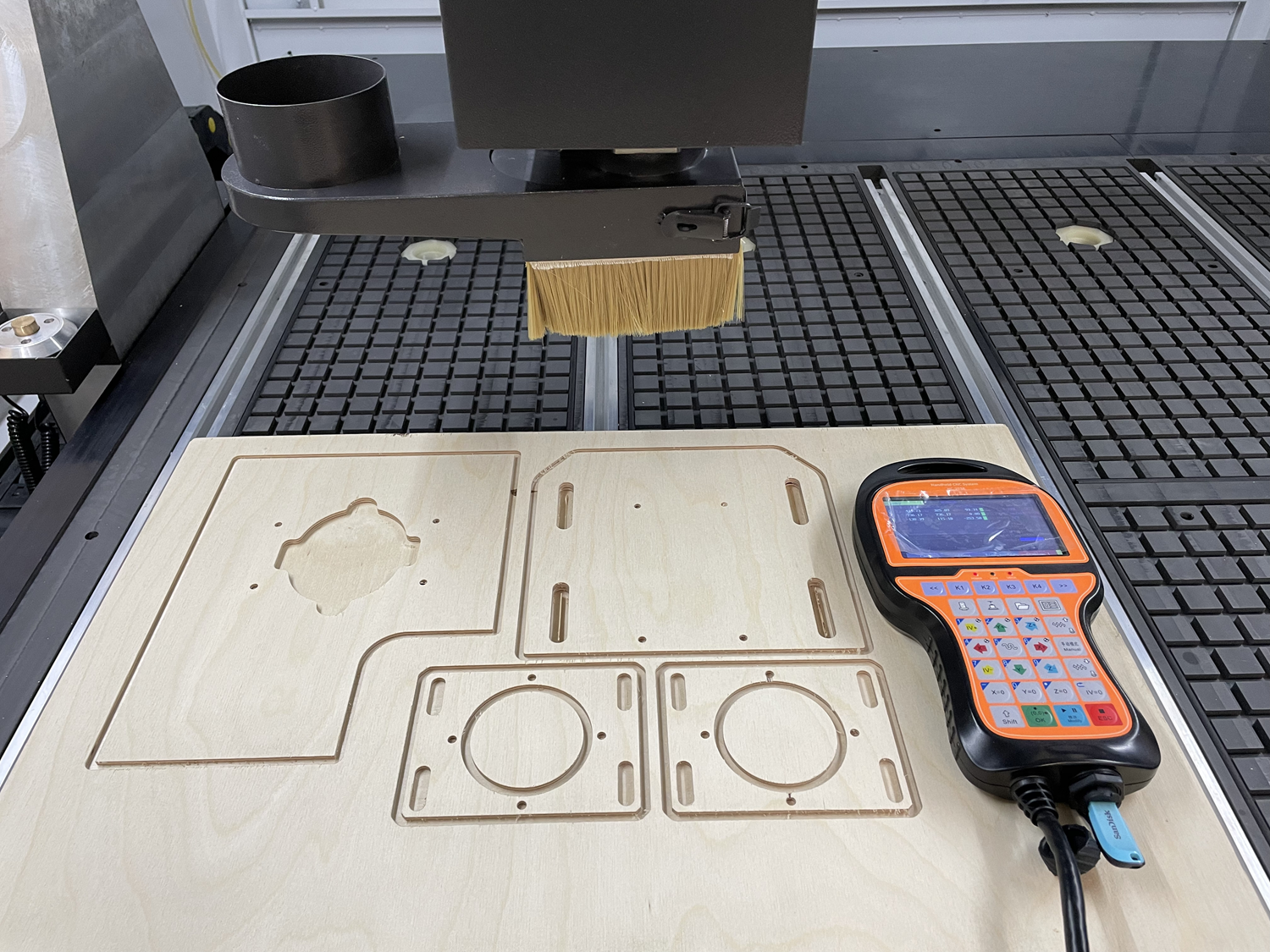

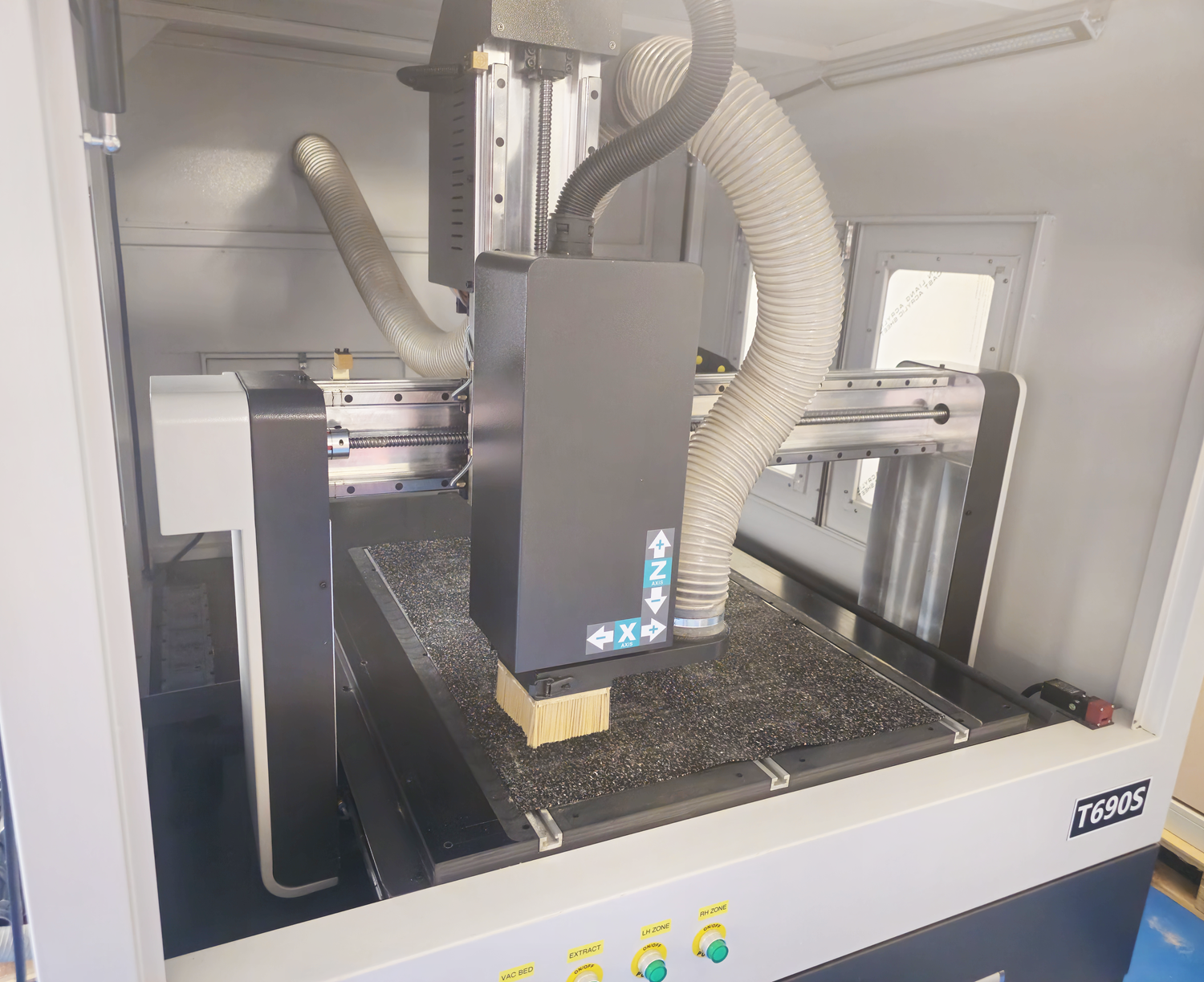

The machines feature an integral vacuum bed for work-holding via a replaceable diffuser sheet. Machines are supplied with the necessary side channel pump for the vacuum bed, using pneumatic switching to actuate working zones for maximum efficiency. A ‘brush-foot’ extraction attachment is provided and this effectively collects and contains airborne waste. One of our free-standing workshop extractors will provide sufficient power to remove waste or, alternatively, customers may wish to connect to an existing ‘ducted’ workshop system.

Why Choose a RouterCAM?
A RouterCAM is clearly a high power machine for large scale work, but it is still a versatile tool for general workshop duties. A class–set of lower school work can be quickly machined; small individual projects in 2D or 3D can be produced accurately and in detail. Needless to say, a RouterCAM is fully compatible with TechSoft Design V3 for 2D/2.5D work, and Visual Toolpath for 3D work.

TechSoft RouterCAM

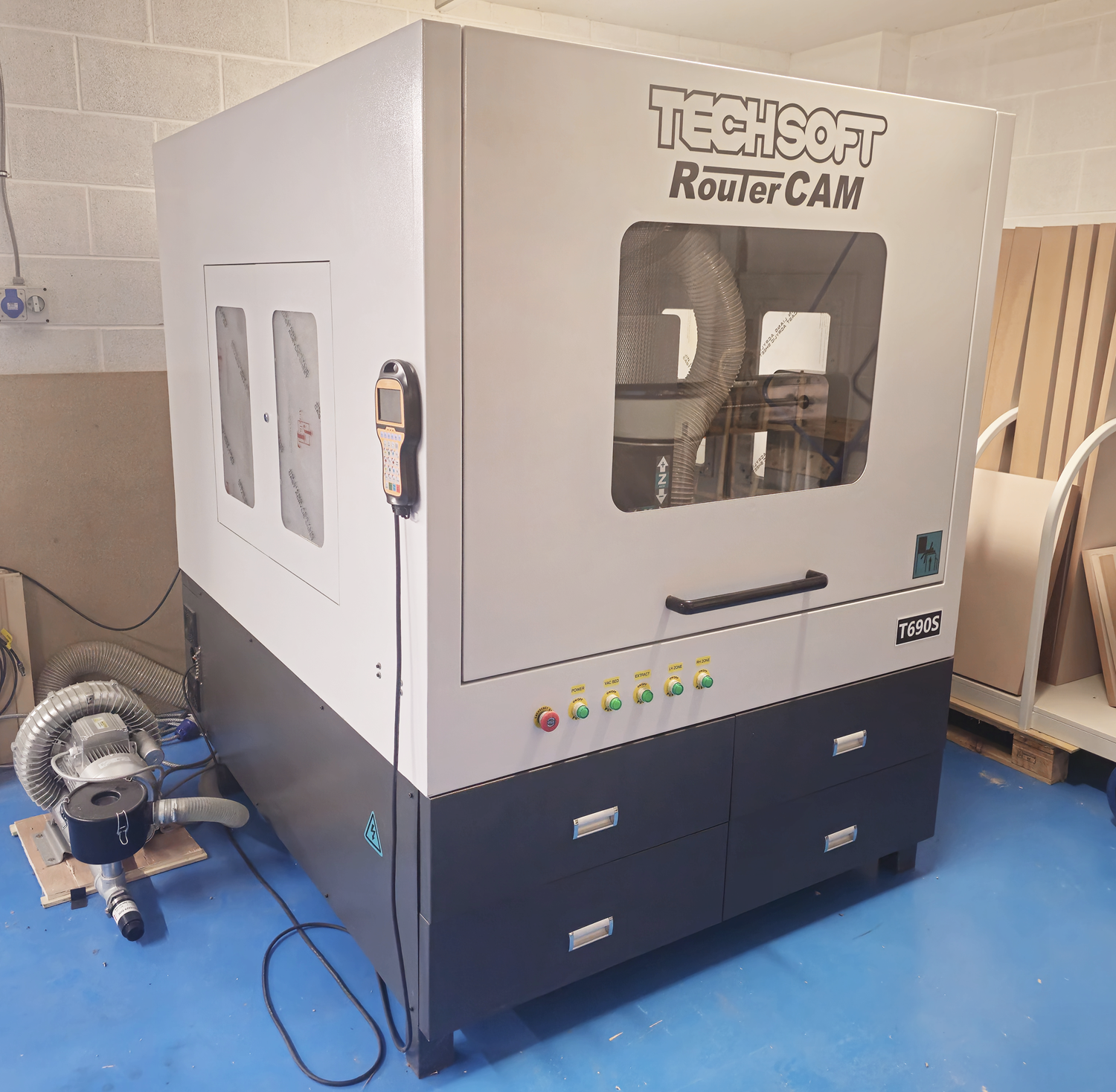

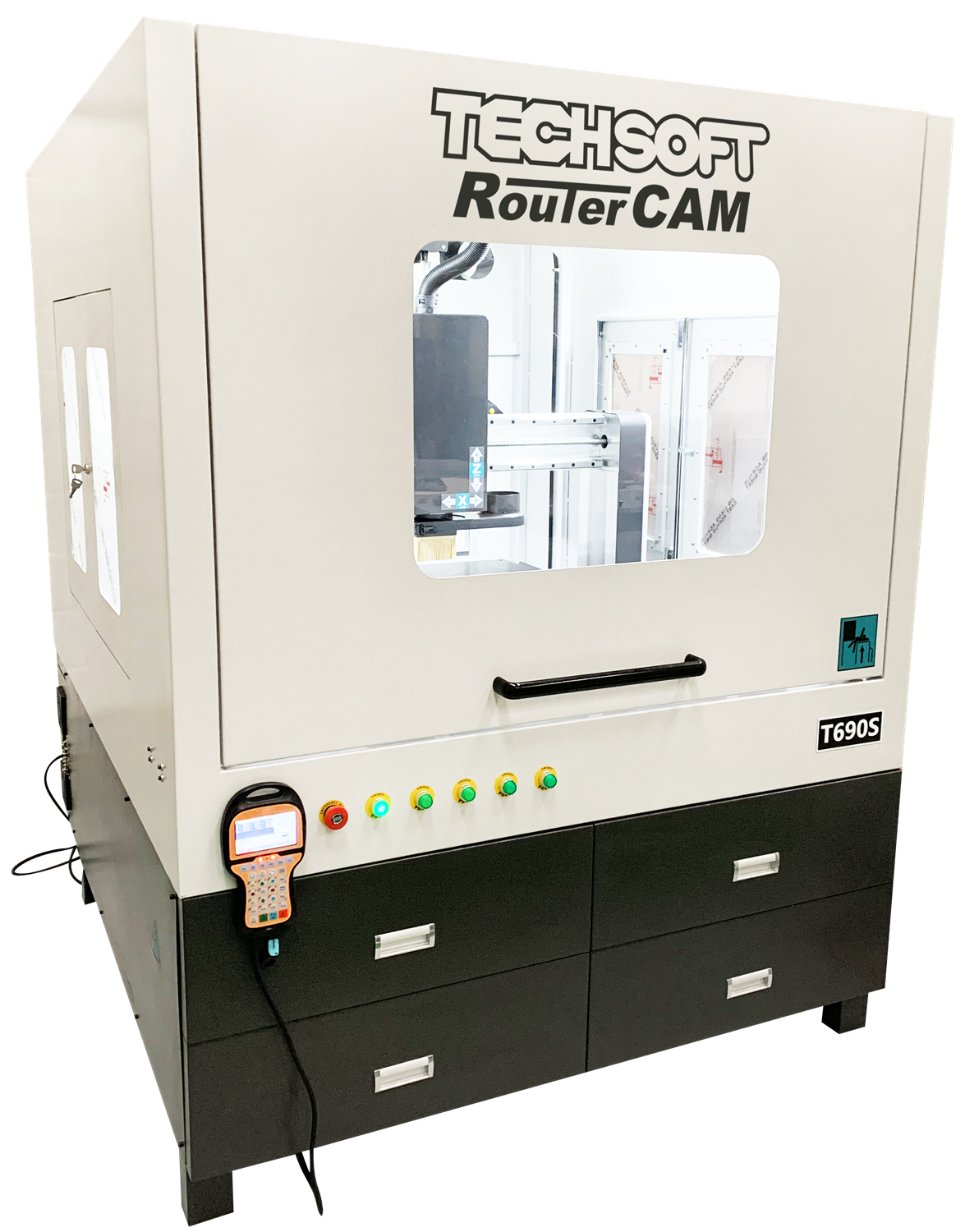

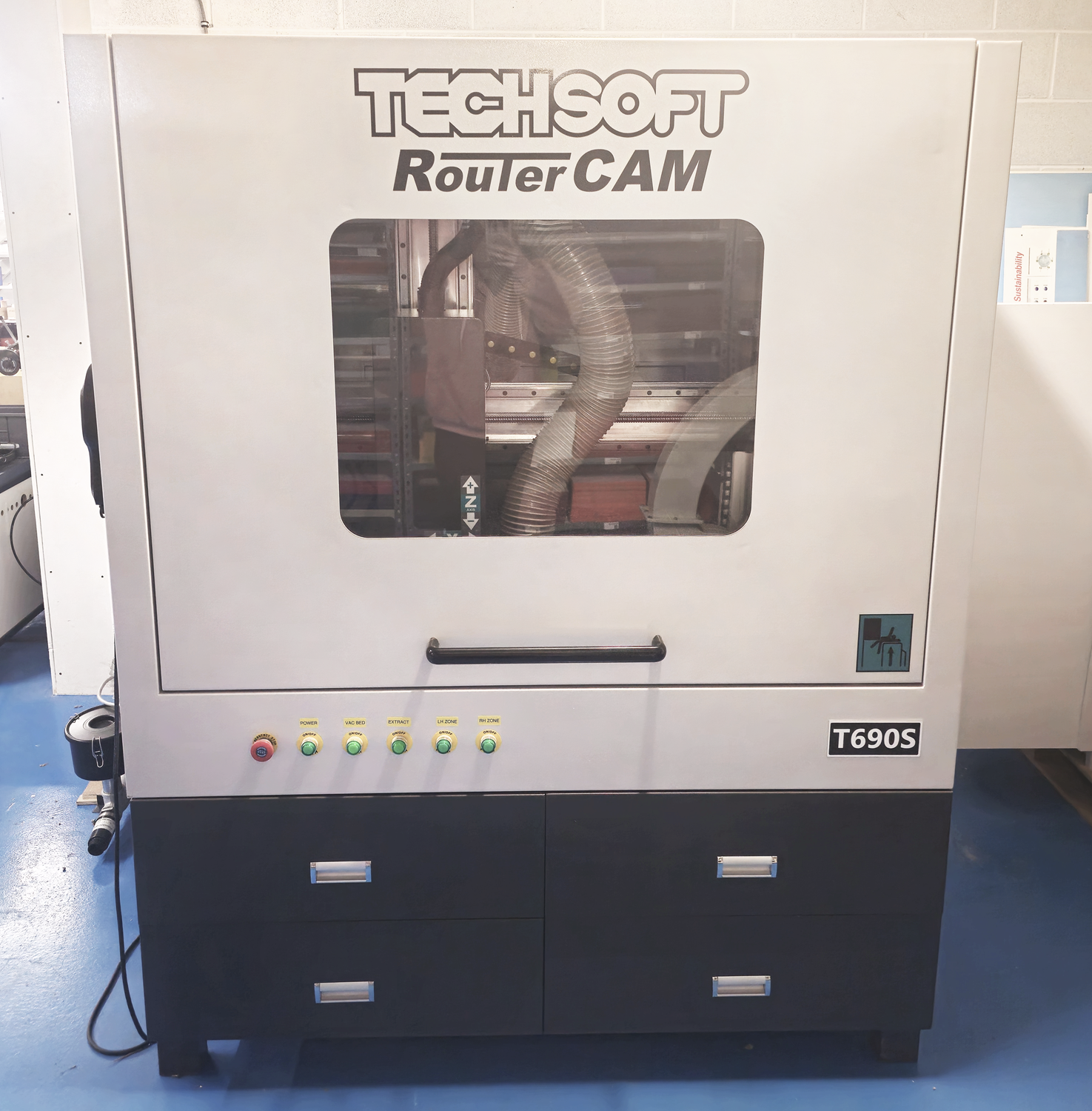

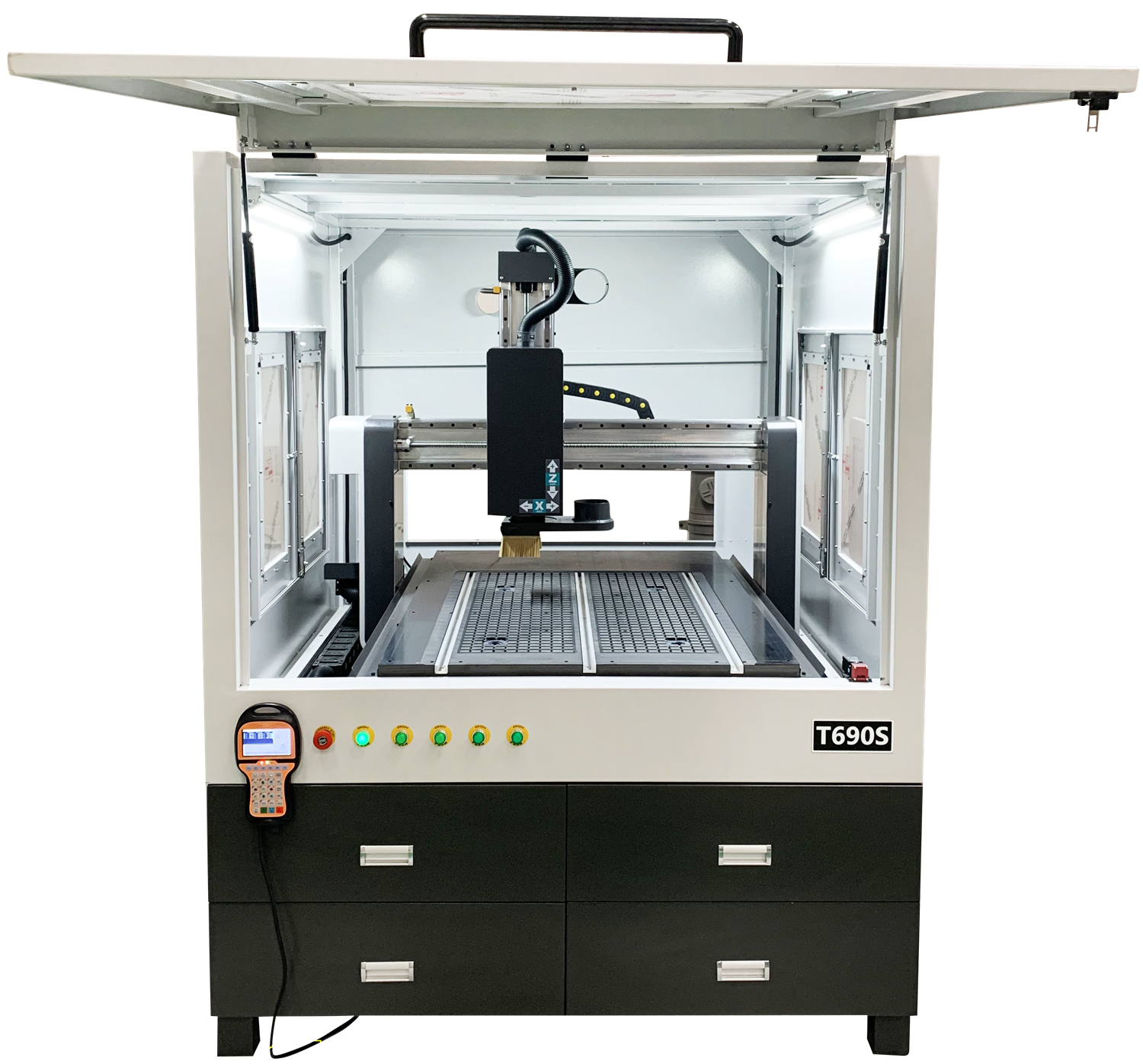

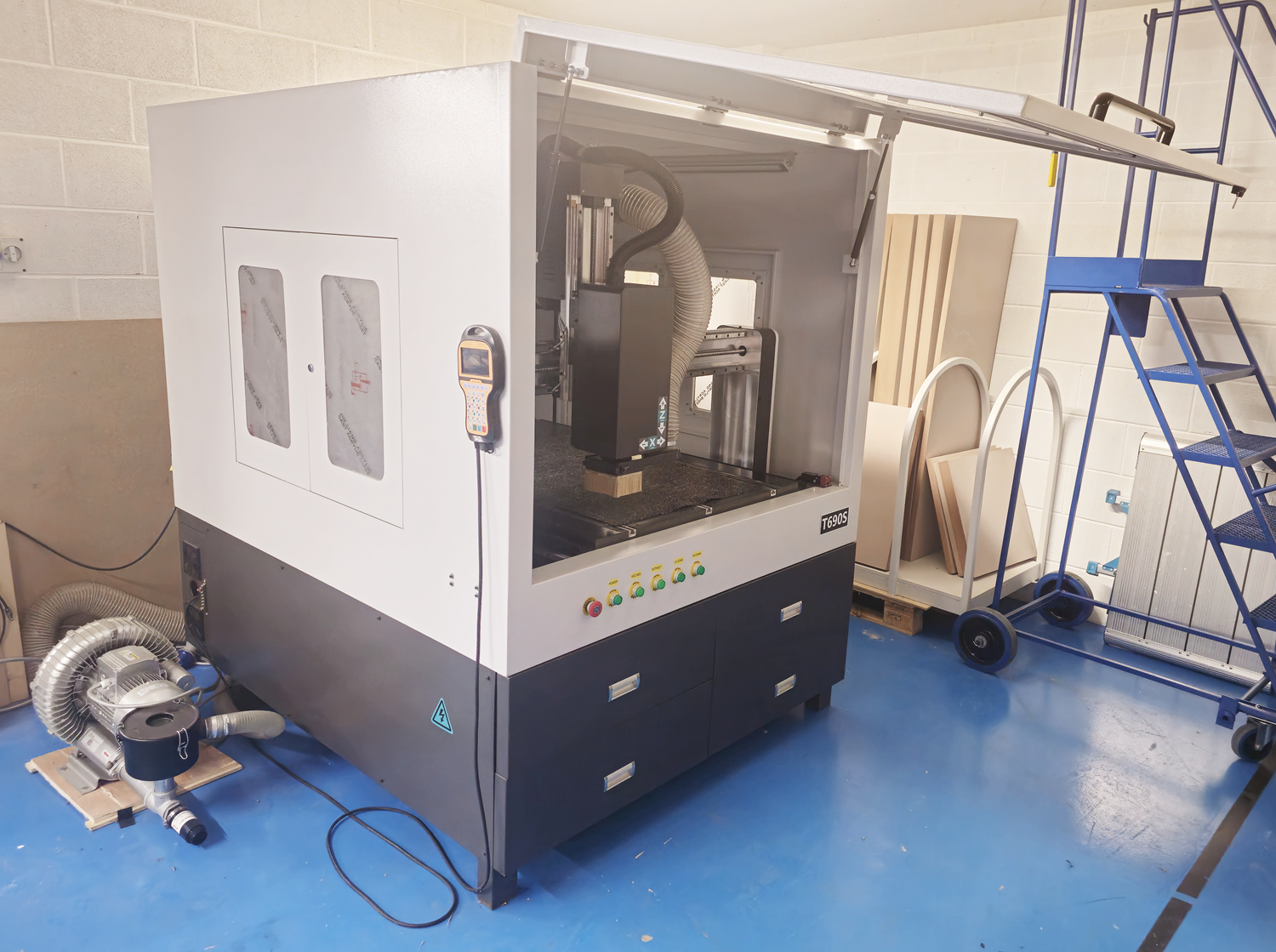

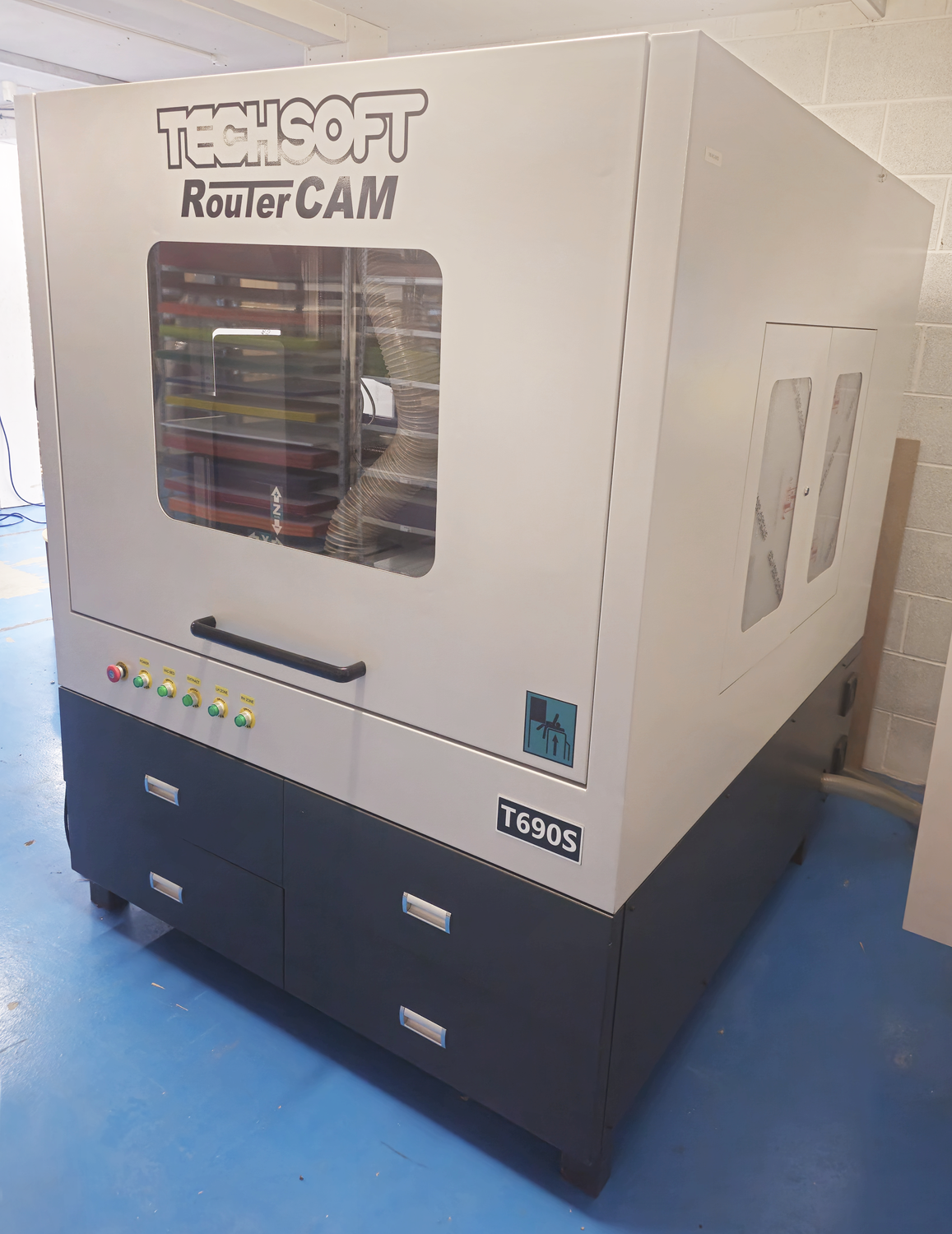

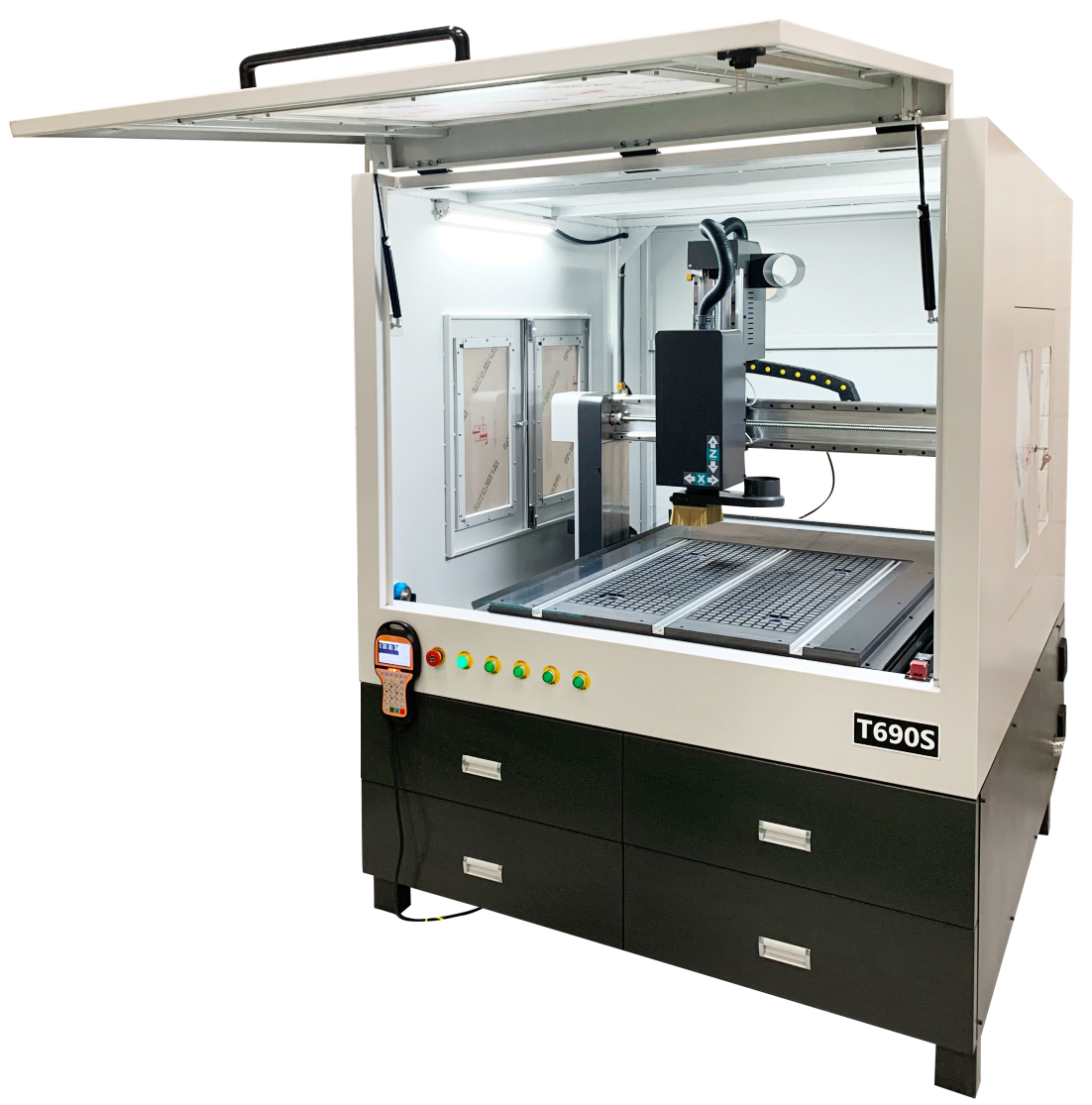

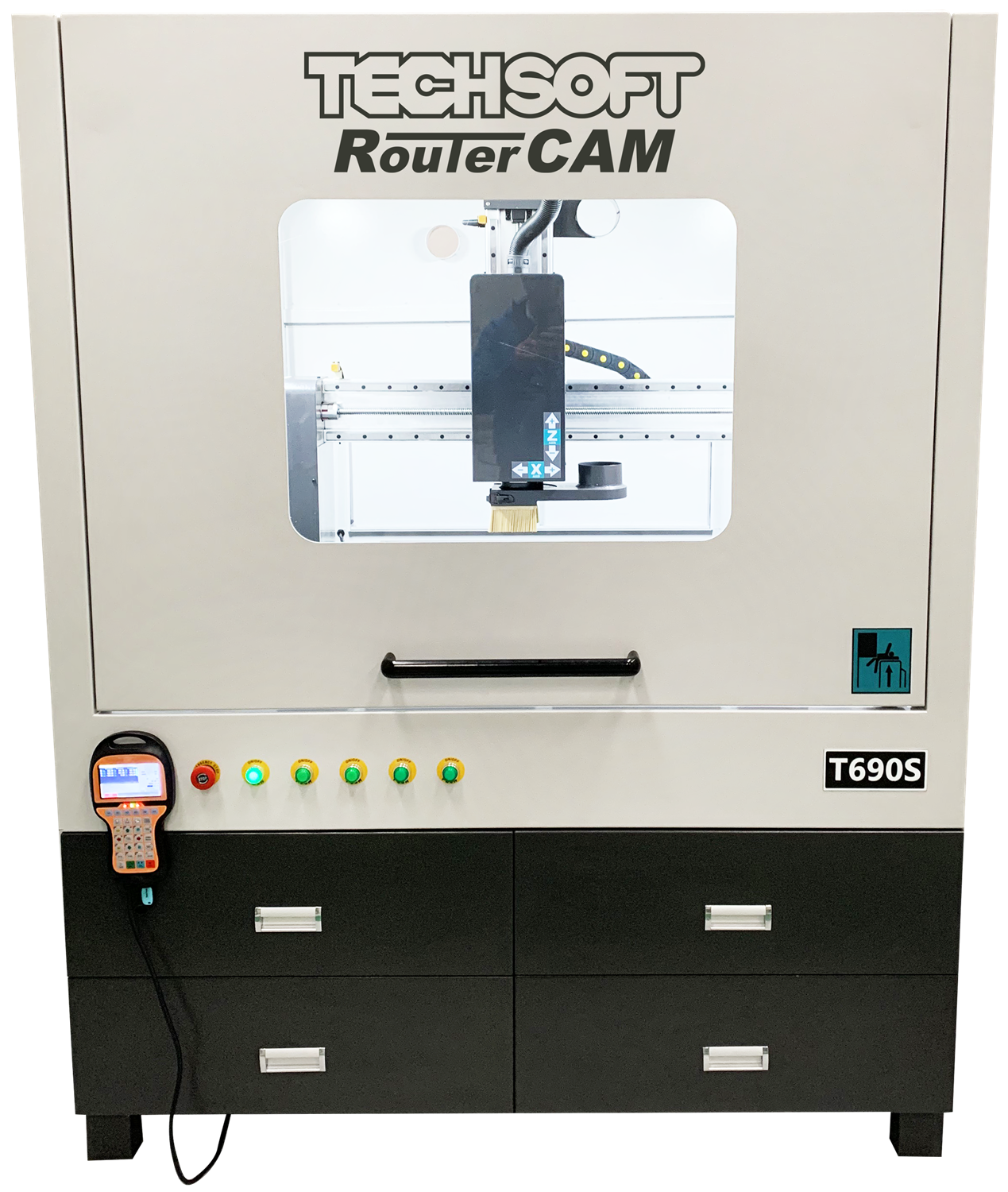

TechSoft RouterCAM T690S
With all the benefits of the larger machines, this compact enclosed routing centre is the perfect choice where space is at a premium, or high power routing capability is essential for rapid production of large scale 3D prototypes from solid models.

Working Area: 600 x 900 x 305mm
Machine Package
ProductsPriceBuy
RouterCAM T690S Package
Includes machine with fully interlocked safety case, vacuum bed with vacuum pump, Visual Toolpath software, TechSoft Design V3 Machine Extension, brush foot. Commissioning and 2hrs training on day of installation (UK Mainland only).
Order Code: MP-RC-690S
£21,700.00
RouterCAM T690S with Automatic Tool Changer Package
Includes machine with fully interlocked safety case, vacuum bed with vacuum pump, Visual Toolpath software, TechSoft Design V3 Machine Extension, brush foot. Commissioning and 2hrs training on day of installation (UK Mainland only).
Order Code: MP-RC-690A
£25,900.00
Essential Extraction
Tooling

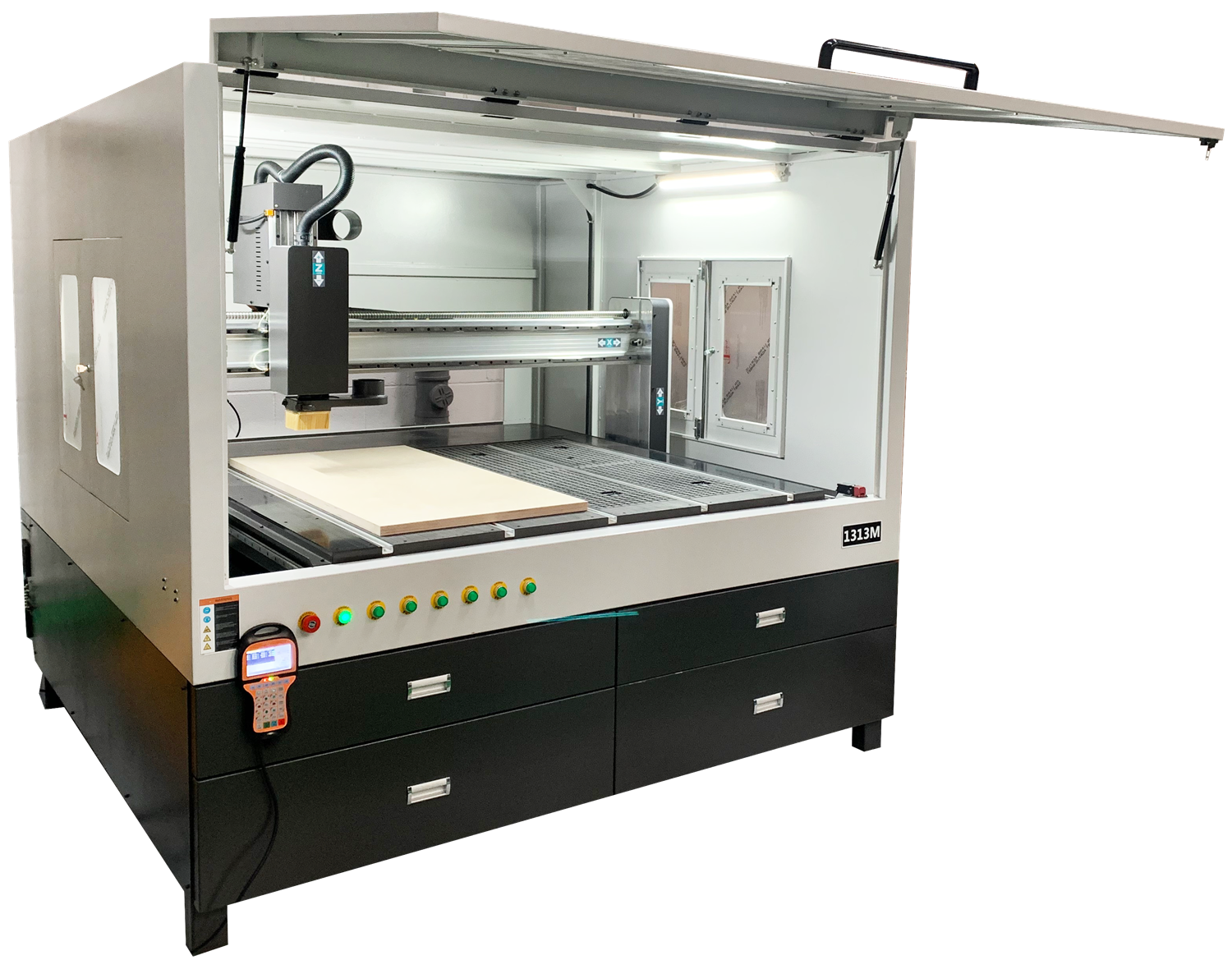

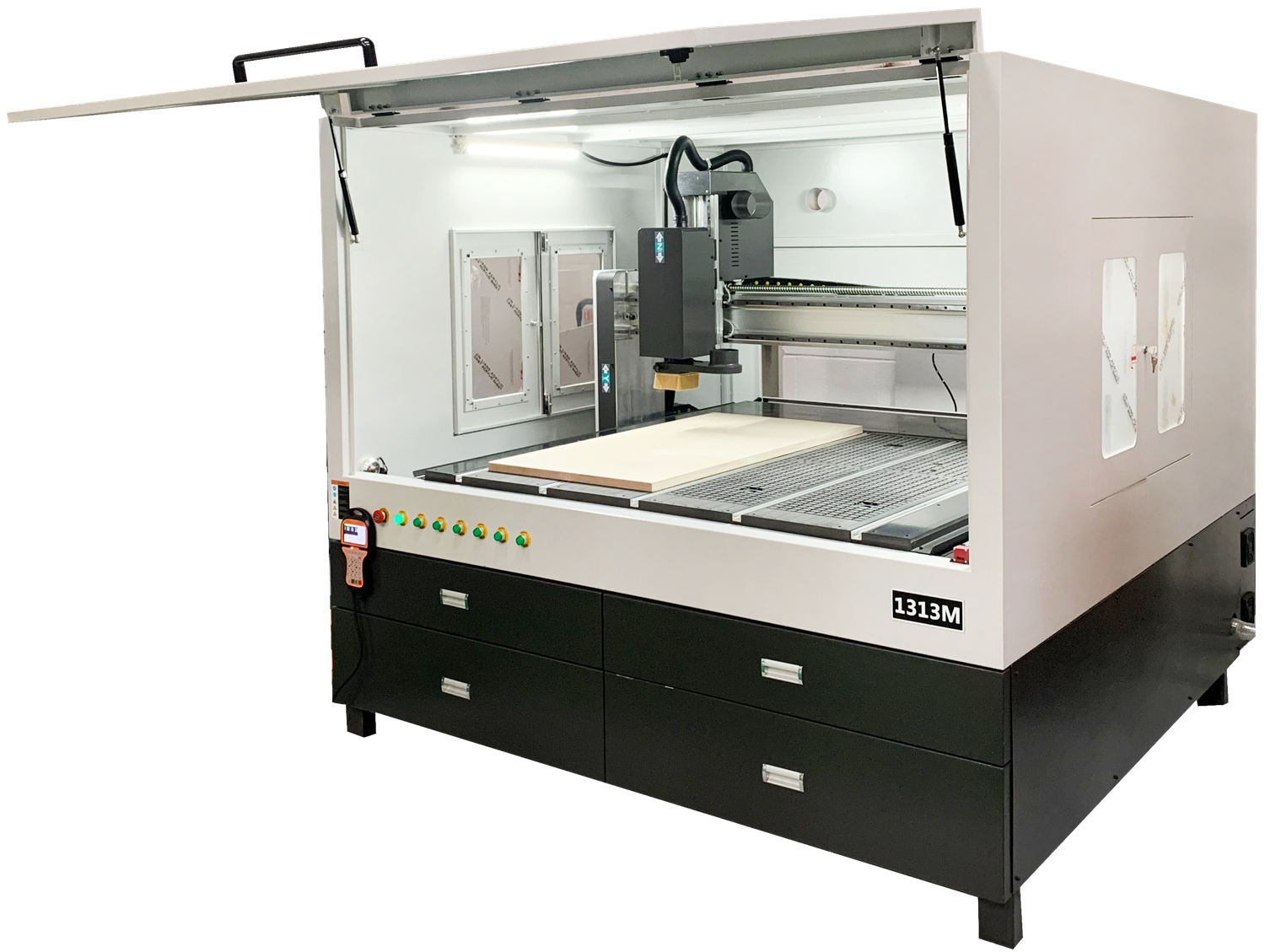

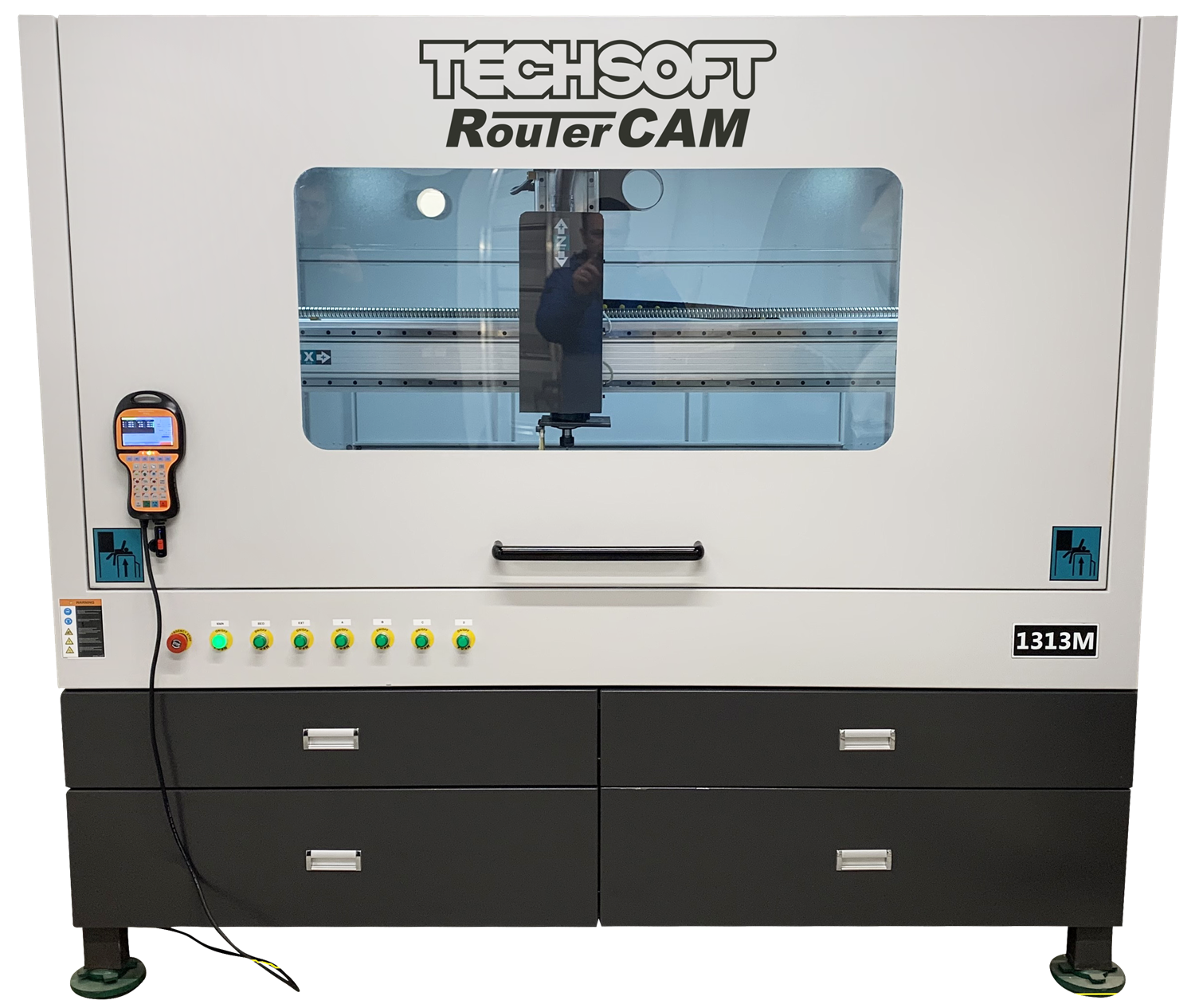

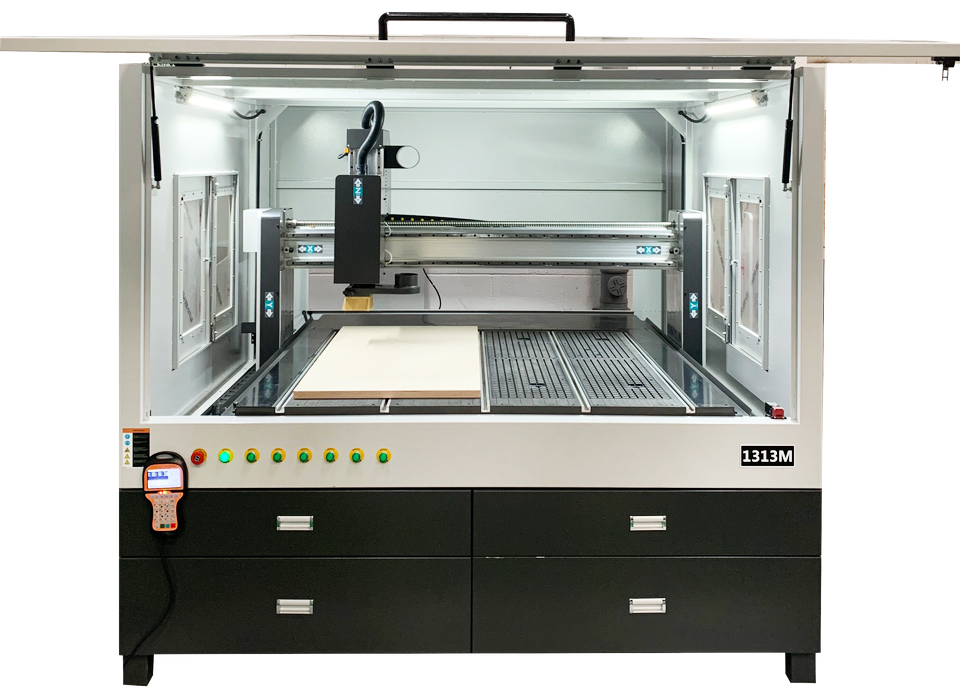

TechSoft RouterCAM 1313M
With the ability to cut a half-sheet of material (4’ x 4’), this model is the first choice for maximum productivity with large scale projects in schools and colleges.

Working Area: 1300 x 1300 x 305mm
Machine Package
ProductsPriceBuy
RouterCAM 1313M Package
Includes machine with fully interlocked safety case, vacuum bed with vacuum pump, Visual Toolpath software, TechSoft Design V3 Machine Extension, brush foot. Commissioning and 2hrs training on day of installation (UK Mainland only)
Order Code: MP-RC-1313M
£24,520.00
RouterCAM 1313M with Automatic Tool Changer Package
Includes machine with fully interlocked safety case, vacuum bed with vacuum pump, Visual Toolpath software, TechSoft Design V3 Machine Extension, brush foot. Commissioning and 2hrs training on day of installation (UK Mainland only)
Order Code: MP-RC-1313A
£28,760.00
Essential Extraction
Tooling

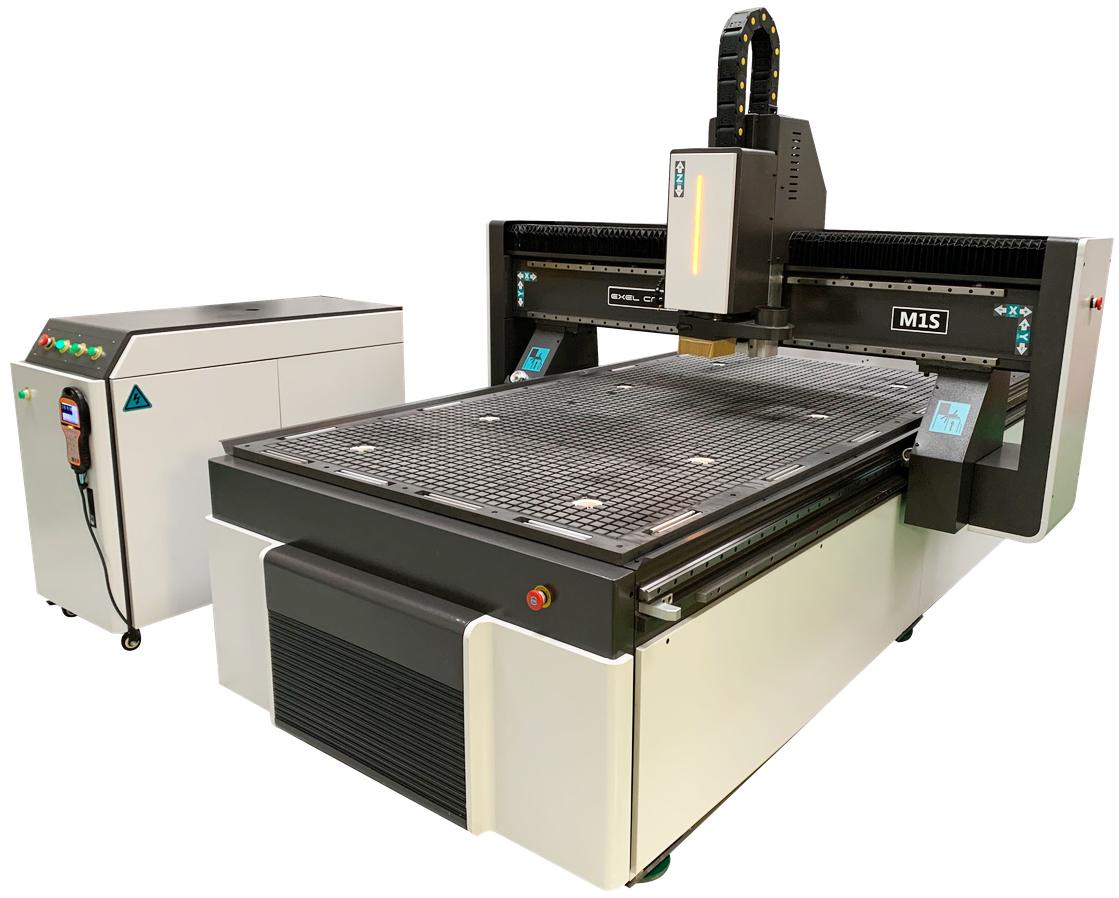

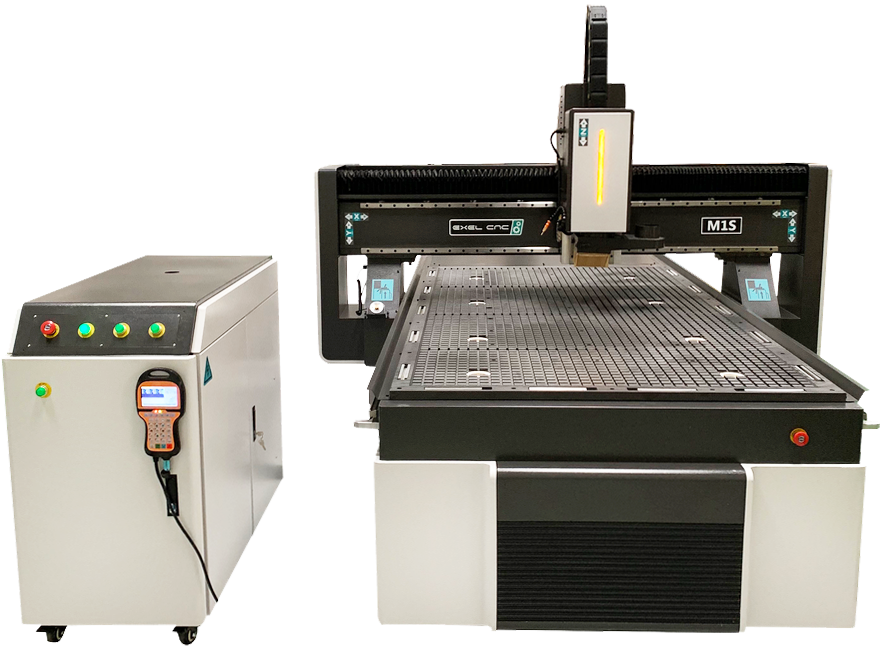

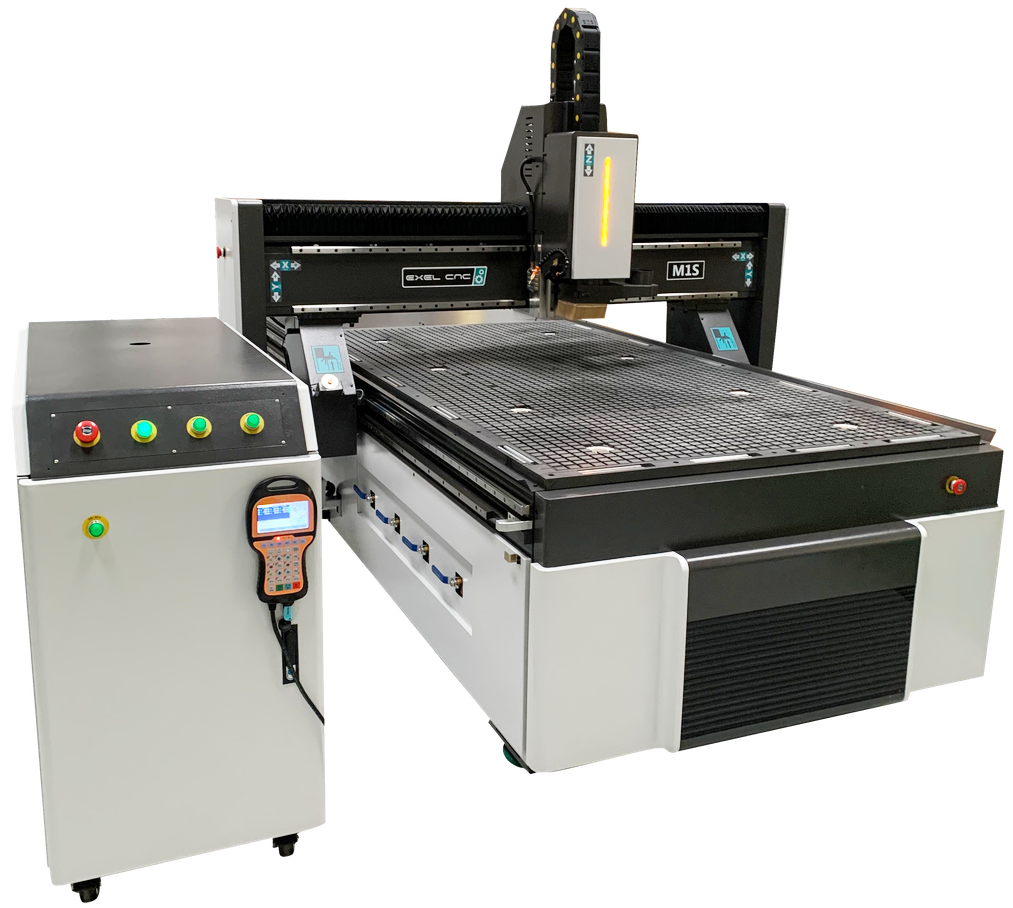

TechSoft RouterCAM M1S
The RouterCAM M1S is built for production and refined for education. With the capacity to machine full 1220 x 2440mm sheets at tremendous speeds this model is perfect for fast paced college and university workshops. The machine is supplied with a full perimeter enclosure with a light beam guarding system across the loading side.

Working Area: 1220 x 2440 x 180mm
Machine Package
ProductsPriceBuy
RouterCAM M1S Package
Includes machine with interlocked safety guarding, vacuum bed with vacuum pump, Visual Toolpath software, TechSoft Design V3 Machine Extension, brush foot. Commissioning and 2hrs training on day of installation (UK Mainland only)
Order Code: MP-RC-1224S
£33,625.00
RouterCAM M1S with Automatic Tool Changer Package
Includes machine with interlocked safety guarding, vacuum bed with vacuum pump, Visual Toolpath software, TechSoft Design V3 Machine Extension, brush foot. Commissioning and 2hrs training on day of installation (UK Mainland only)
Order Code: MP-RC-1224A
£40,685.00
Essential Extraction
Tooling
Product Specifications
Specifications
Model:RouterCAM T690SRouterCAM 1313MRouterCAM M1S
Working Area (X Y Z):600 x 900 x 305mm
(2ft x 3ft)
1300 x 1300 x 305mm
(4.25ft x 4.25ft)
1220 x 2440 x 180mm
(8ft x 4ft)
Data transfer:USBUSBUSB
Spindle:Braked 2.2kW air cooled, ER25, 18k rpmBraked 2.2kW air cooled, ER25, 18k rpmBraked 5.5kW water cooled, ER25, 24k rpm
Accuracy/repeatability:+/-0.025mm (0.001")+/-0.025mm (0.001")+/-0.025mm (0.001")
Max working speed:167mm/sec (10m/min)167mm/sec (10m/min)333mm/sec (20m/min)
Max rapid speed:333mm/sec (20m/min)333mm/sec (20m/min)1000mm/sec (60m/min)
Workholding:Vacuum table with integrated T-slot stripsVacuum table with integrated T-slot stripsVacuum table with integrated T-slot strips
Vacuum pump:2.2kW2.2kW7.5kW
Toolsetter:YesYesYes
Drive system:Ball screwBall screwX/Y: German Helical rack, gear reducer
Z: Ballscrew, Taiwan
Linear rail:20mm linear square rail20mm linear square rail25mm linear square rail
Motors:ServoServoServo
Weight:1000kg1400kg1800kg
Dimensions:1500(W) x 1800(D) x 2000(H)mm – not including ancillaries2100(W) x 2163(D) x 2017(H)mm – not including ancillaries2200(W) x 3400(D) x 1900(H)mm – not including ancillaries
Power Requirements:230V 1 phase, 11.4kW230V 1 phase, 11.4kW400V 3 phase, 20.3kW
Warranty:UK Mainland:
1 Year On-Site

Elsewhere:
1 Year Return and Collect
UK Mainland:
1 Year On-Site

Elsewhere:
1 Year Return and Collect
UK Mainland:
1 Year On-Site

Elsewhere:
1 Year Return and Collect

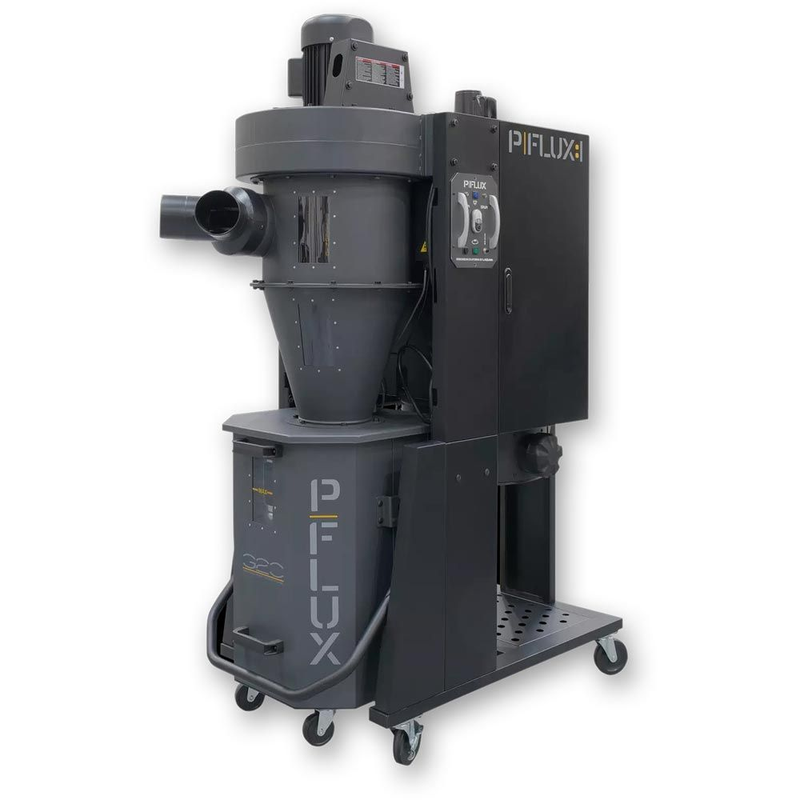

Extraction
Local Exhaust Ventilation must be installed with this machine. These machines produce large quantities of waste in the form of dust and/or chips. To preserve a healthy working environment and to comply with COSHH regulations within HSE guidance, airborne contaminates such as this must be controlled.
Extraction for T690S / 1313M
MM-EXTRACTION32
ProductsPriceBuy
Order Code: MM-EXTRACTION32
£945.00
Extraction for M1S
MM-EXTRACTION80
ProductsPriceBuy
Order Code: MM-EXTRACTION80
£4,380.00
Tooling
Collet Set
Recommended if you are planning to use the machine with a variety of different tools.
ProductsPriceBuy
15 piece ER25 Collet Set. To hold tools from 2mm to 16mm shank.
Order Code: TA-RCOLL-PK4
£125.00
General Purpose Starter Tool Pack
Collets not included - see above.
ProductsPriceBuy
RouterCAM/Startech Starter Tool Pack of General Purpose Tools (Save £6)
Contains:
4mm two flute spiral up cut (RC-SD2X4X4-1)
6mm two flute spiral up cut (TS-SDEA-6)
6mm two flute spiral up cut long reach (RC-SD2X6X6-1)
4mm two flute ball nose up cut (RC-BN2X4X4-2)
6mm two flute ball nose up cut (RC-BN2X6X6-2)
4mm single flute router (RC-SD1X4X4-1)
6mm single flute router (RC-SD1X6X6-1)
30 deg engraving V bit cutter (RC-EC6X30-1)
90 deg V groove cutter (RC-GC6X90-1)

N.B. The collet set appropriate to your machine should be ordered with these tools
Order Code: TP-RC-START1
£181.00
Router Starter Tool Pack
Collets not included - see above.
ProductsPriceBuy
RouterCAM/Startech Starter Tool Pack of Milling/Routing Tools (Save £6)
Contains:
4mm two flute spiral up cut (RC-SD2X4X4-1)
6mm two flute spiral up cut RC-SD2X6X6-1)
10mm two flute spiral up cut (RC-SD2X10X10-1)

N.B. Requires collets for 4mm, 6mm and 10mm tools
Order Code: TP-RC-ROUT1
£132.00
3D Starter Tool Pack
Collets not included - see above.
ProductsPriceBuy
RouterCAM/Startech Starter Tool Pack of 3D Modelling Tools (Save £6)
Contains:
4mm two flute ball nose up cut (RC-BN2X4X4-1)
6mm two flute ball nose up cut (RC-BN2X6X6-1)
10mm two flute ball nose up cut (RC-BN2X10X10-1)

N.B. Requires collets for 4mm, 6mm and 10mm tools
Order Code: TP-RC-3D1
£132.00
