You are here: Home > Products > Laser Cutting > TechSoft LaserCAM GT Series

TechSoft LaserCAM GT Series

Water-Cooled Glass Tube Laser Cutters

TechSoft LaserCAM GT Series

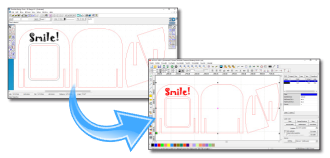

Direct Output from TechSoft Software
Direct TechSoft Design Control

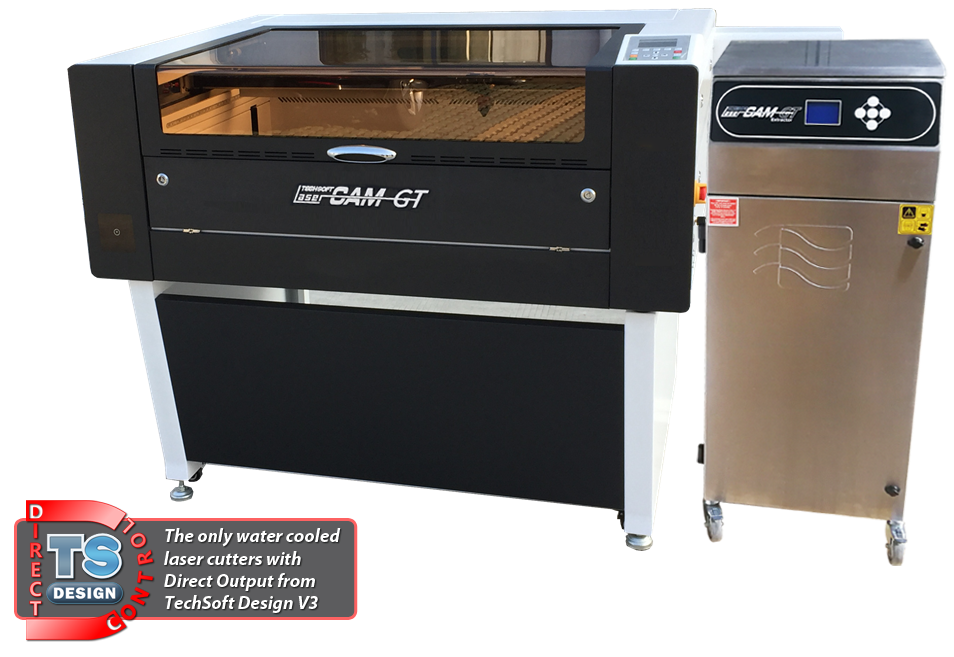

LaserCAM GT is the only water-cooled laser cutting & engraving machine with guaranteed direct output from TechSoft Design V3 (formerly called 2D Design V2)

TechSoft LaserCAM GT Series

Prices
(excluding VAT)
Complete Machine Packages
ProductsPriceBuy
TechSoft LaserCAM GT A2+ 75W Package
Working area 700 x 450mm. Includes Training Pack, software extension to Design V3 for direct output, Lightburn software and camera, stand, honeycomb table, extraction unit, commissioning and training on same day
Order Code: MP-LGTA2PC-80NR
£9,325.00
TechSoft LaserCAM GT A1+ 100W Package
Working area 900 x 600mm. Includes Training Pack, software extension to Design V3 for direct output, Lightburn software and camera, stand, honeycomb table, extraction unit, commissioning and training on same day
Order Code: MP-LGTA1PC-100NR
£11,550.00
Recommended Software
TechSoft Design V3 is a separate purchase. The TechSoft Design V3 software extension in the machine packages only works if you have already purchased TechSoft Design V3.
TechSoft Design V3More Info
Recommended Extras
Summary
LaserCAM GT Range:
  • Water-Cooled Glass Laser Tube
  • Built-in Water Cooler
  • Built-in Air Assist Compressor
  • Direct Output from TechSoft Design V3
What's Included
Complete Extraction System
High capacity, auto-switching extraction unit. Self-regulating for optimum flow rate. LCD display to monitor filter condition.

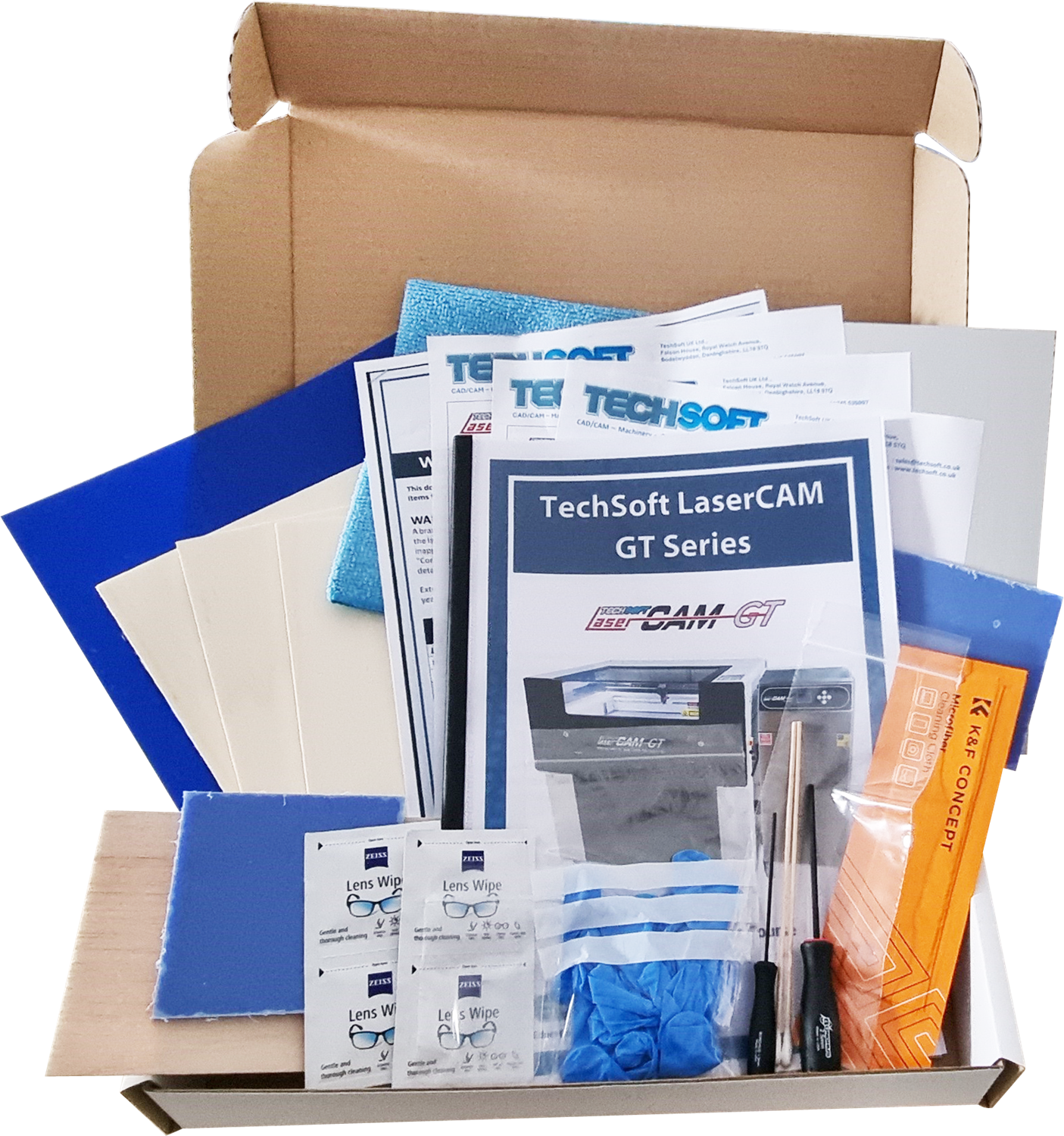

Free TechSoft Education Training Pack
The TechSoft Training Pack gives you everything you need to reinforce the training provided on installation and to have the machine earning its keep in the shortest time possible. We have distilled key information into a series of tutorials that will guide you through a series of projects that illustrate the full potential of the machine.
Commissioning & Training
The cost of the LaserCAM GT also includes commissioning and training on the same day (UK mainland only).
Product Videos
Product Description
Why Invest in a LaserCAM System?
Lasers are about the simplest way possible to get from CAD drawing to finished product. They work with extraordinary accuracy and delicacy, are quick to produce results, and the finished edge is usually just that - finished. With a few important exceptions, lasers will cut and engrave a huge variety of materials, so just about every area of Design and Technology is able to get the benefit. LaserCAM is, essentially, a 2D machine so it will find its place alongside milling and knife cutting machines, to give students a realistic experience of real-world practice, and to give them the right mix of tools for specific applications.

The TechSoft Advantage
TechSoft have an exclusive arrangement to supply LaserCAM and we work closely with the manufacturers to ensure that the machines meet all necessary standards for price, safety and quality. TechSoft will install your machine, provide training, and be your first point of contact in case of a problem, so any issues will be dealt with quickly. We are proud of our reputation for excellent customer service and person-to-person contact is an important feature of this. In addition, you will have unlimited access to technical support by phone or email.

LaserCAM GT Range (Water-Cooled Glass Tubes)

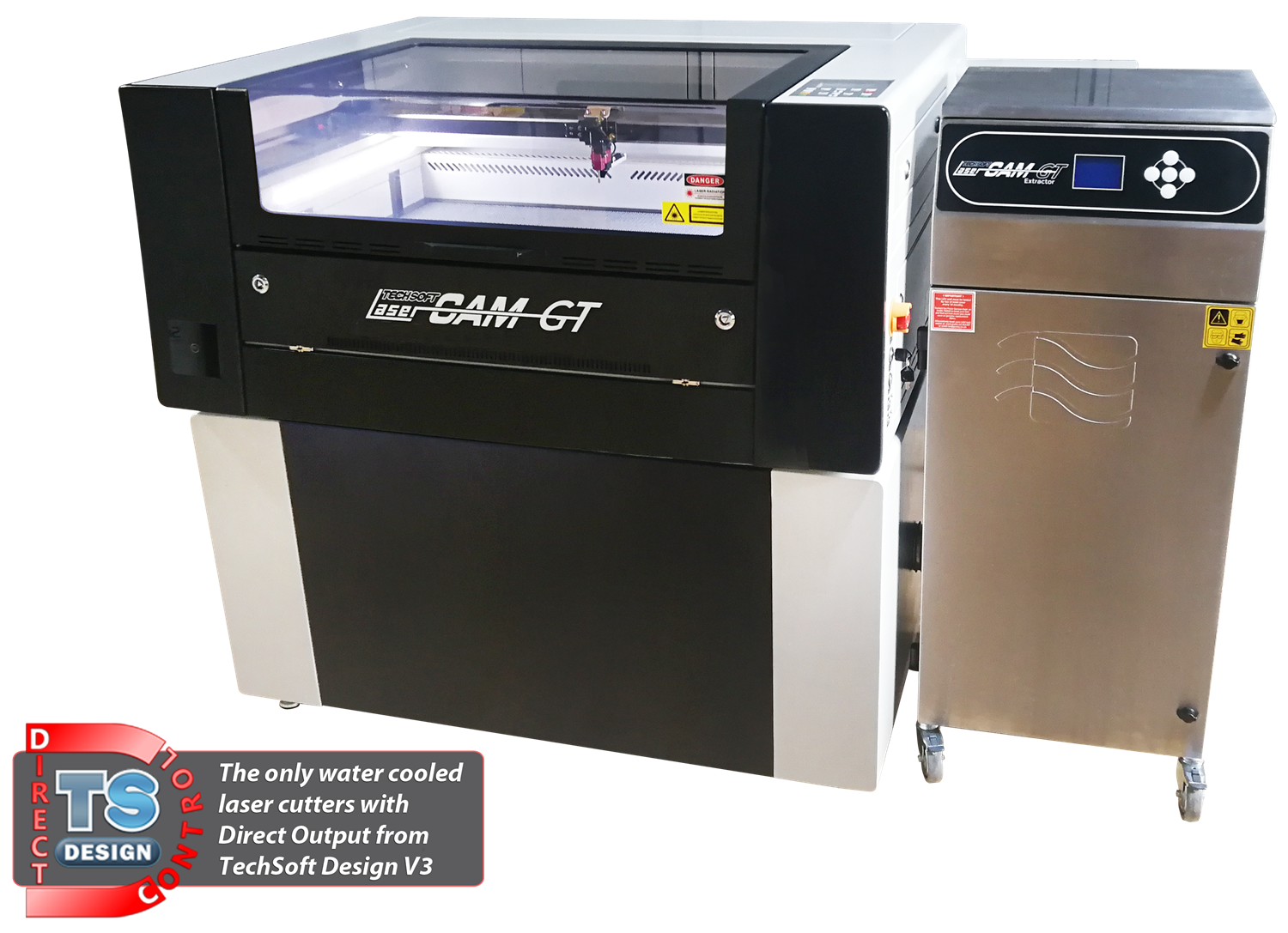

The TechSoft LaserCAM GT Range of water-cooled glass tube laser cutters benefits from a level of engineering unheard of in machines within this price bracket. With the water chiller and the air assist compressor built into the machine cabinet there are no unsightly cables and hoses to trip over. Together with the large viewing window, carefully thought out optics and advanced motion system, this sleek-looking machine is ready for action in any design department.

So What Can I Cut With a LaserCAM?
Apart from metals and vinyls, most workshop plastics, textiles and graphic materials are fine. Some timber products give inconsistent results due to density, or the resins used in manufacture. There’s no harm in experimenting with ‘stock’ material but for reliable results TechSoft supply laser-quality plywood and MDF in a range of thicknesses. Suitable material up to 12 - 15mm thick will cut well and the power of the laser will largely dictate speed of cut rather than ultimate depth.

Buy with Confidence
A TechSoft LaserCAM package is supplied and installed with everything you need so laser cutting and engraving can start right away. TechSoft have been supplying LaserCAM to schools for over twelve years and remain committed to providing the best technology and the highest level of service needed to secure your investment for the long term.
LaserCAM GT A2+
TechSoft LaserCAM GT A2+
This machine is the smallest in the range but still has a working area of 700 x 450mm. The machine, with extractor and pipework, occupies a floor space of 1500 x 1100mm so offers a good balance between work area, cost and space needed in the workshop or studio.

Minimum wheelable door width access is 900mm. Please contact us if your doorway is smaller.
Complete Package
ProductsPriceBuy
TechSoft LaserCAM GT A2+ 75W Package
Working area 700 x 450mm. Includes Training Pack, software extension to Design V3 for direct output, Lightburn software and camera, stand, honeycomb table, extraction unit, commissioning and training on same day
Order Code: MP-LGTA2PC-80NR
£9,325.00
Package without Extraction
Please note that if you wish to use a different extraction unit, you will need to purchase the connection kit (please see details below).
ProductsPriceBuy
TechSoft LaserCAM GT, A2+ (working area 700 x 450mm) 75W Package. Includes Training Pack, software extension to Design V3 for direct output, Lightburn software and camera, stand, honeycomb table, commissioning and training on same day. (N.B. Excludes extraction unit)
Order Code: MP-LGTA2PC-80NRNE
£7,550.00
Connection Kit and Extraction Hose for LaserCAM GT Machines.

Includes 150mm to 80mm reducer, a length of 3.3m extraction hose, and jubilee clips.
Order Code: TMA-EXT12-CK1
£196.00

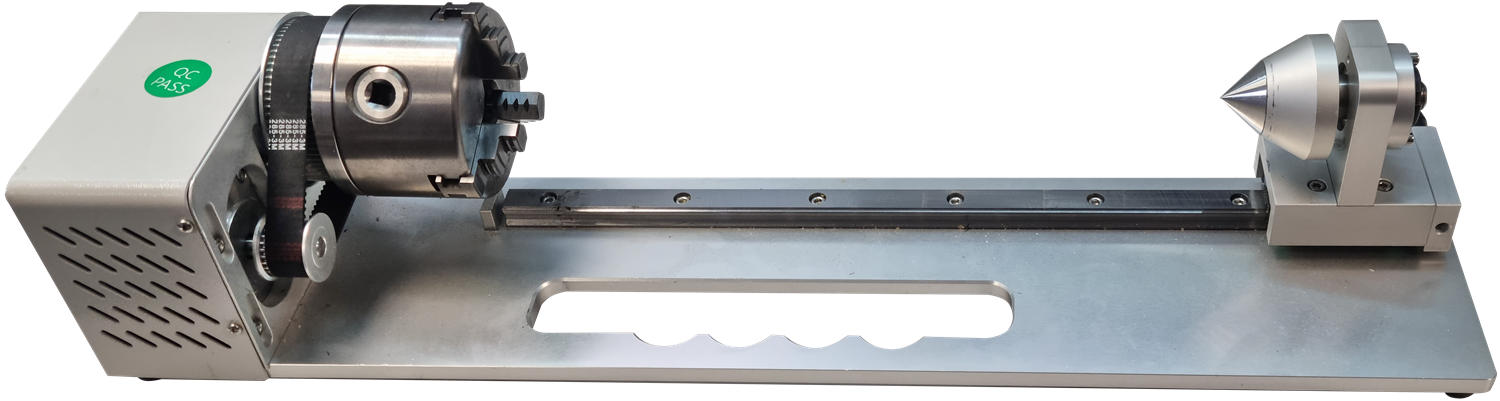

Chuck Rotary Attachment
The Rotary Attachment is perfect for engraving bottles, glasses, torches and other cylindrical items.
ProductsPriceBuy
Rotary Chuck Attachment for LaserCAM GT Series
Order Code: TMA-LGTA-RC
£550.00
LaserCAM GT A1+
TechSoft LaserCAM GT A1+
With a working area of 900 x 600mm this model will cover most needs for large scale work at an incredibly low price. The machine comes with a 100W glass laser tube to achieve maximum throughput for large projects.

Minimum wheelable door width access is 1060mm. Please contact us if your doorway is smaller.
Complete Package
ProductsPriceBuy
TechSoft LaserCAM GT A1+ 100W Package
Working area 900 x 600mm. Includes Training Pack, software extension to Design V3 for direct output, Lightburn software and camera, stand, honeycomb table, extraction unit, commissioning and training on same day
Order Code: MP-LGTA1PC-100NR
£11,550.00
Package without Extraction
Please note that if you wish to use a different extraction unit, you will need to purchase the connection kit (please see details below).
ProductsPriceBuy
TechSoft LaserCAM GT, A1+ (working area 900 x 600mm) 100W Package. Includes Training Pack, software extension to Design V3 for direct output, Lightburn software and camera, stand, honeycomb table, commissioning and training on same day. (N.B. Excludes extraction unit)
Order Code: MP-LGTA1PC-100NRNE
£9,810.00
Connection Kit and Extraction Hose for LaserCAM GT Machines.

Includes 150mm to 80mm reducer, a length of 3.3m extraction hose, and jubilee clips.
Order Code: TMA-EXT12-CK1
£196.00
Chuck Rotary Attachment
The Rotary Attachment is perfect for engraving bottles, glasses, torches and other cylindrical items.
ProductsPriceBuy
Rotary Chuck Attachment for LaserCAM GT Series
Order Code: TMA-LGTA-RC
£550.00
Product Specifications
Specifications
Model:LaserCAM GT A2+LaserCAM GT A1+
Laser Type:Water-Cooled CO₂, Glass TubeWater-Cooled CO₂, Glass Tube
Laser Power:75W100W
XY Travel:700 x 450mm900 x 600mm
Max Head Speed:1200mm/sec1200mm/sec
Max Resolution:4000dpi4000dpi
Focus:AutoAuto
Positioning:Red Beam PointerRed Beam Pointer
Interface:USB/Wi-Fi/Ethernet
When Wi-Fi or Ethernet connected, no internet is available on the computer as it joins to the lasers own network.
USB/Wi-Fi/Ethernet
When Wi-Fi or Ethernet connected, no internet is available on the computer as it joins to the lasers own network.
Weight:165kg (LaserCAM only without stand)
70kg (Extractor only)
220kg (LaserCAM only without stand)
70kg (Extractor only)
Dimensions:1750(W) x 1100(D) x 1100(H)mm
(footprint including stand, extraction and pipework)

1400(W) x 900(D) x 1100(H)mm
(machine and stand only)
1950(W) x 1300(D) x 1100(H)mm
(footprint including stand, extraction and pipework)

1650(W) x 1060(D) x 1100(H)mm
(machine and stand only)
Minimum Door Width Access:900mm
(please contact us if your doorway is smaller)
1060mm
(please contact us if your doorway is smaller)
Extractor:Included in packageIncluded in package
Extractor On/Off:ManualManual
Warranty:UK Mainland:
1 Year On-Site (Machine & Tube)
See further information

Elsewhere:
1 Year Return and Collect (Machine & Tube)
UK Mainland:
1 Year On-Site (Machine & Tube)
See further information

Elsewhere:
1 Year Return and Collect (Machine & Tube)
Accessories, Consumables and Materials
Recommended Accessories and Consumables
View Full Range of Accessories and Consumables
Recommended Materials
ProductsPriceBuy
Mixed Materials Pack for LaserCAM A2+/A2 (Save £20)
Contains 3 sheets laser engraving laminate (2 standard, 1 metallic); 11 sheets polypropylene; 5 sheets laser grade ply; 5 sheets medite; 17 sheets 3mm acrylic (9 colour, 1 clear, 7 transparent); 10 sheets 5mm acrylic (9 colour, 1 clear), 8 sheets 4mm plastazote, 2 sheets 12mm plastazote. All sheets 600 x 400mm. Mixed colours.
Order Code: TPM5-LC2
£560.00
Mixed Materials Pack for LaserCAM GT A1+ (Save £25)
Contains 3 sheets laser engraving laminate (2 standard, 1 metallic); 11 sheets polypropylene; 5 sheets laser grade ply; 5 sheets medite; 17 sheets 3mm acrylic (9 colour, 1 clear, 7 transparent); 8 sheets 4mm plastazote, 2 sheets 12mm plastazote. All sheets 900 x 600mm (800 x 600mm for engraving laminate). Mixed colours.
Order Code: TPM5-LC1B
£985.00
View Full Range of Materials
