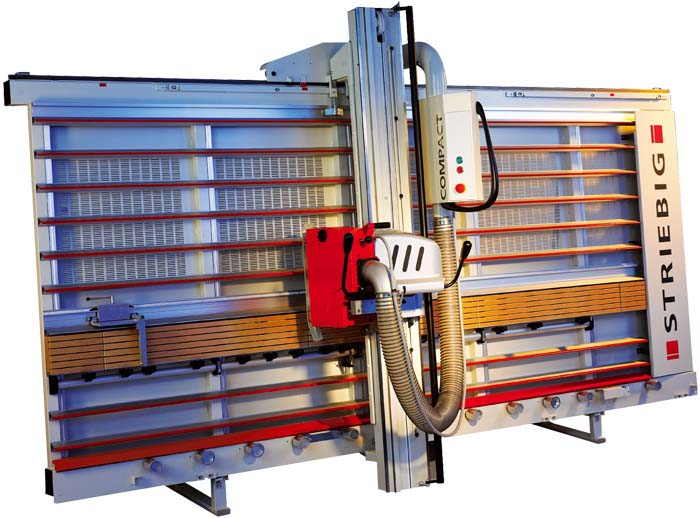

Striebig Compact Saw

Striebig Compact Saw

Striebig Compact Saw
Swiss company, Striebig AG have been established for over 50 years and specialise in the supply of vertical panel saws for demanding commercial users. Striebig machines are finely engineered to give a perfectly clean saw edge and absolute parallelism. The Compact 4164 is supplied with comprehensive accessories to allow for floor or wall mounting, extraction ports for efficient dust capture and a strip cutting attachment for safe cutting of smaller pieces. Cutting capacity will easily cope with a standard 2440 x 1220mm sheet. The Striebig Compact is inherently safe to use with a fully enclosed blade, braked support rollers and an integral trapping device to prevent material movement. The optional Digital Measuring System (DMS) provides a convenient way to set up cuts to within 0.1mm and the scoring saw attachment is well worth considering. This provides an extra, smaller blade which is fractionally wider to pre-cut into the surface of the material. A scoring cut eliminates break-out resulting in clean, crisp edges on both sides of the board - even when cross-cutting veneered or laminated material.
Specifications
Model:Striebig Compact Saw
Blade Diameter:250mm
Max Horizontal Cut:3100mm
Max Vertical Cut:1644mm
Cutting depth at 90°:60mm
Motor:3.9kW (5.2hp)
Motor Speed:5,250rpm
Weight:815kg
Dimensions:4216(W) x 1435(D) x 2390(H)mm (free-standing)
Power Requirements:415V 4.8kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

Striebig Compact Saw
ProductsPriceBuy
Striebig COMPACT 4164 Vertical Panel Saw
(Complete with strip cutting attachment up to 400mm + legs for floor fixing + Key Switch + Emergency Stop + delivery and installation by a Striebig Approved Engineer to UK Mainland)
Order Code: MM-PANELSAW5P
£22,050.00
Digital Measuring System (DMS) for x and y axis
Order Code: MM-PANELSAW5A
£4,745.00
Scoring Saw Unit for MM-PANELSAW5
Order Code: MM-PANELSAW5B
£2,965.00
Additional Aluminium Small-Piece Supports for MM-PANELSAW5
Order Code: MM-PANELSAW5C
£235.00
Essential Extras

Extraction is essential when using a panel saw. We offer a range of extractors to suit all budgets/requirements.

Centralised Vac Extraction System (see details):
Fixed Local Extraction System (see details):
ProductsPriceBuy
TS105 Extractor (3ph) with attachment fittings for Panel Saw (manual switch)
Order Code: MM-EXTRACT105P2T
£2,820.00
Auto-switched upgrade for fixed 3ph extractor, fitted to machine at time of purchase
Order Code: MM-SWITCH10T
£120.00
Mobile Extraction System (see details):
ProductsPriceBuy
Minimax Dust Extractor with 1 bag (3 phase) - See Dust Extraction.
Order Code: MM-EXTRACTION70T
£1,060.00
Integrated auto-switched socket for extractor MM-EXTRACTION70S/P1S/P2S (fitted to machine at time of purchase)
Order Code: MM-SWITCH7
£510.00
