Minimax Dust Extractor

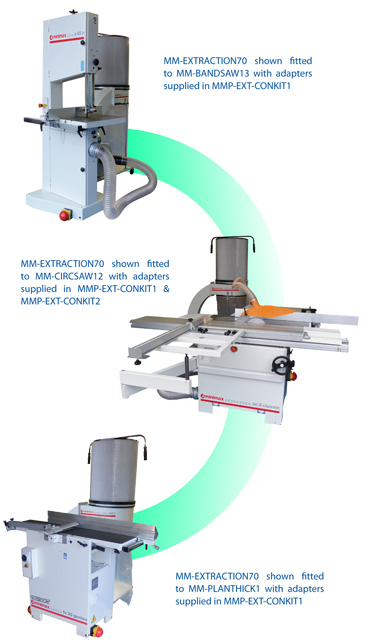

If a centralised extraction system is not available then this simple bag-extraction unit provides an economical solution for larger machines in a preparation area. The powerful fan unit will extract fine dust and chips from any of the Minimax machines. These share common extraction port details so swapping from one machine to another is simply a matter of transferring a pipe.
To provide total control, TechSoft have upgraded the main top filter to a compact cartridge type. This will capture even the finest of particulates and will ensure a clean, healthy working environment at all times. When approaching full, the lower collection bag is removed in its entirety for disposal. With care to tie the bag and remove it carefully, the system allows for safe, mess-free, waste removal.
A manually-operated internal brush keeps the filters clear. A couple of turns of the handle after each use is all that is needed to maintain filter efficiency.
Specifications
Model: | Minimax Dust Extractor |
Extraction Motor: | 1 phase: 1.5kW (2.1hp) 3 phase: 1.5kW(2.1hp) |
Extraction Bag Capacity: | 100 litres |
Airflow: | 700 litres per second |
Hose Connection: | 125mm (inc 2 x 100m adapter) |
Weight: | 51kg |
Dimensions: | 890(W) x 570(D) x 1830(H)mm |
Power Requirements: | 415V 1.5kW or 240V 1.5kW Lockable rotary isolator |
Warranty: | UK Mainland: 1 Year Return to Base Elsewhere: 1 Year Return and Collect |
ESTA Dustomat-10
The ESTA Dustomat-10 is the premium option where a centralised system is not possible. This unit can be used in a fixed position, or (where necessary) can be moved around between several machines (eg., bandsaw, circular saw, planer/thicknesser, etc.) with ease thanks to its heavy-duty lockable castors. The cleanable permanent filter cartridge ensures low operating costs, whilst even the finest of particulates are captured to maintain a clean and healthy working environment at all times. ESTA’s patented tiltable filter housing allows quick, safe and mess-free disposal of collected material. A high performance motor, fan and seals ensure that noise levels within the working environment are significantly lower than other system of this type.
Specifications
Model: | ESTA Dustomat-10 |
Extraction Motor: | 1.3kW |
Extraction Bag Capacity: | 100 litres |
Max Airflow: | 720m3/hr |
Max Neg. Pressure: | 2.800Pa |
Hose Diameter: | 100mm |
Weight: | 120kg |
Dimensions: | 530(W) x 1165(D) x 1636(H)mm |
Power Requirements: | 240V 1.3kW, 16A CEEFORM Socket |
Warranty: | 1 Year Return and Collect (UK Mainland) 1 Year Return and Collect (Elsewhere) |
Prices (excluding VAT)
Minimax Dust Extractor
Products | Price | Buy |
Order Code: MM-EXTRACTION70S | £1,165.00 | |
Order Code: MM-EXTRACTION70T | £1,130.00 | |
125mm to 100mm Steel Reducer with Ducting and Clips Order Code: MMP-EXT-CONKIT1 | £113.00 | |
100mm to 60mm Steel Reducer with Ducting and Clips Order Code: MMP-EXT-CONKIT2 | £88.00 | |
Pack of 10 Heavy Duty Waste Sacks for MM-EXTRACTION70 Order Code: MMP-EXT-SACK1-10 | £14.60 | |
Pack of 100 Heavy Duty Waste Sacks for MM-EXTRACTION70 Order Code: MMP-EXT-SACK1-100 | £132.00 | |
ESTA Dustomat-10
Products | Price | Buy |
Order Code: MM-EXTRACTION80 | £3,645.00 | |
