Education Fretsaws

High Quality Fretsaws, Ideal for Educational Use

Loading Image
Hegner Multicut 1/1V - EDUHegner Multicut 2S/2SV - EDUHegner Multicut SE - EDUHegner Multicut QK - EDUFretsaws CAD Drawings


Education Fretsaws

Prices
(excluding VAT)
Machines
ProductsPriceBuy
Fretsaw, Hegner Multicut 1-EDU
Order Code: MM-FRETSAW6
£865.00
Fretsaw, Hegner Multicut 1-EDU Variable Speed
Order Code: MM-FRETSAW1
£875.00
Fretsaw, Hegner Multicut 2S-EDU
Order Code: MM-FRETSAW7
£1,020.00
Fretsaw, Hegner Multicut 2SV-EDU Variable Speed
Order Code: MM-FRETSAW2
£1,210.00
Fretsaw, Hegner Multicut SE-EDU Variable Speed
Order Code: MM-FRETSAW8
£1,450.00
Fretsaw, Hegner Multicut QK-EDU Quick Variable Speed
Order Code: MM-FRETSAW4
£1,765.00
Recommended Extras
ProductsPriceBuy
Footswitch for Hegner Fretsaw
Order Code: MM-FRETSAW1D
£94.00
Essential Extras
Extraction is essential when using a fretsaw. We offer a range of extractors to suit all budgets/requirements.
Stands and Workstations with Extractors
See Fretsaws Stands/Workstations
Product Description
Unique design details and superb build-quality have established Hegner as the leading manufacturer of precision fretsaws (or scroll saws) for professional and educational use. The Multicut 1 and 2S models feature alloy worktables and sufficient rigidity for general workshop use in timber and plastics. The SEV and Quick models are more heavily constructed with cast iron precision-ground tables and will be ideal for more demanding applications in terms of precision and workload. Each machine is sold with an instruction book and all necessary tools.

N.B. Will require connection via foot-operated switch and ducting for dust extraction.

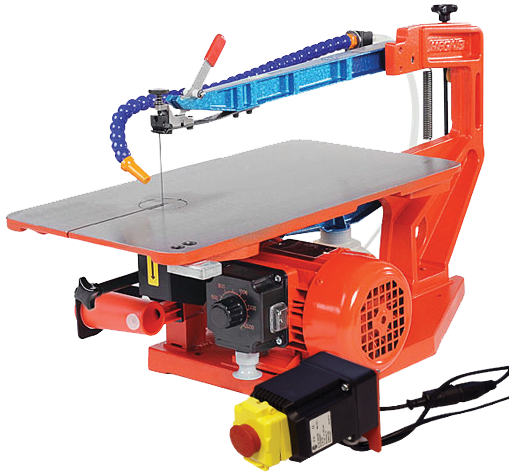

Multicut 1/1V - EDU
Hegner Multicut 1/1V - EDU

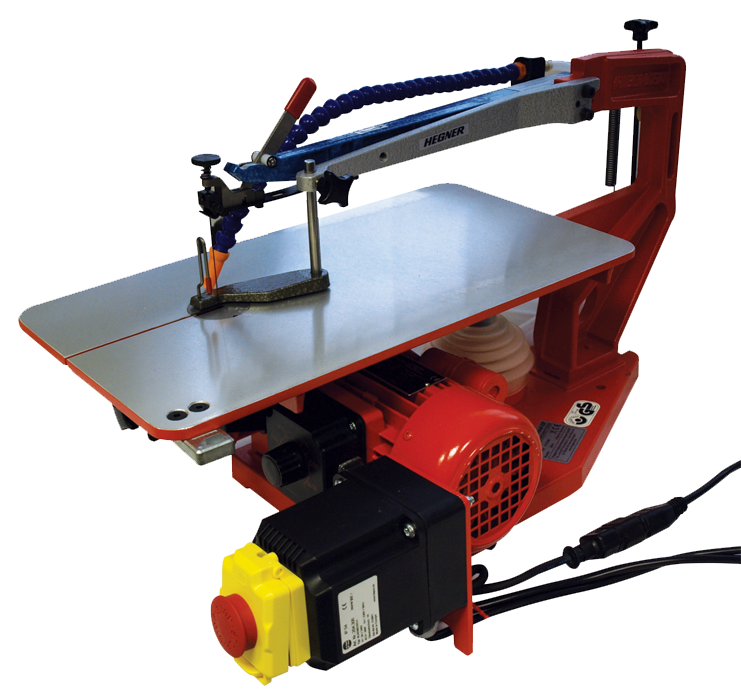

Multicut 2S/2SV - EDU
Hegner Multicut 2S/2SV - EDU
Multicut SE - EDU
Hegner Multicut SE - EDU

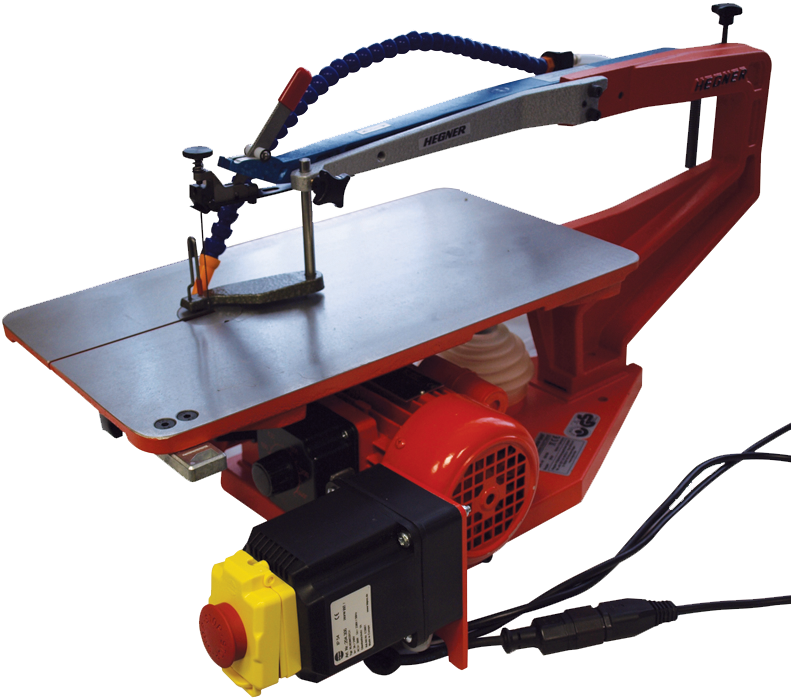

Multicut QK - EDU
Hegner Multicut QK - EDU
Extraction Options
Extraction is essential when using a fretsaw. We offer a range of extractors to suit all budgets/requirements.
Centralised Vac Extraction System (see details):
ProductsPriceBuy
Centralised Wood Dust Vacuum System
Order Code: BESPOKE-CVAC
More Info
Fixed Local Extraction System (see details):
ProductsPriceBuy
TS101 Underbench Extractor with attachment fittings for Hegner Fretsaw (manual switch)
Order Code: MM-EXTRACT101P
£1,585.00
TS101 Underbench Extractor with attachment fittings for Two Hegner Fretsaws (manual switch)
Order Code: MM-EXTRACT101P2
£1,785.00
Auto Switch Box with integral overload - one socket only for extractor, connection block to connect to mains
Order Code: MM-SWITCH9
£205.00
Mobile Extraction System (see details):
ProductsPriceBuy
TS104 Mobile Extractor (1ph) with attachment fittings for small machine (manual switch)
Order Code: MM-EXTRACT104PS
£1,405.00
Auto Switch Box with integral overload - one socket only for extractor, connection block to connect to mains
Order Code: MM-SWITCH9
£205.00
Product Specifications
Specifications
Model:Multicut 1/1V - EDUMulticut 2S/2SV - EDUMulticut SE - EDUMulticut QK - EDU
Table Size:375 x 175mm440 x 225mm440 x 225mm440 x 225mm
Table Tilt:45° RH45° RH to 12° LH45° RH to 12° LH45° RH to 12° LH
Throat Width:365mm460mm460mm560mm
No-load speed:1440spm (1-EDU)
400-1440spm (1V-EDU)
1440spm (2S-EDU)
400-1440spm (2SV-EDU)
400-1440spm400-1440spm
Stroke Length:10mm16mm16mm16mm
Motor:80W (1-EDU)
100W (1V-EDU)
100W100W100W
Weight:17kg21kg25kg28kg
Dimensions:270(W) x 520(D) x 400(H)mm280(W) x 610(D) X 450(H)mm280(W) x 610(D) X 450(H)mm290(W) x 730(D) X 450(H)mm
Power Requirements:240V 3A
Lockable rotary isolator
240V 3A
Lockable rotary isolator
240V 3A
Lockable rotary isolator
240V 3A
Lockable rotary isolator
Warranty:UK Mainland: 3 Years Return to Base
Elsewhere: 3 Years Return and Collect
UK Mainland: 3 Years Return to Base
Elsewhere: 3 Years Return and Collect
UK Mainland: 3 Years Return to Base
Elsewhere: 3 Years Return and Collect
UK Mainland: 3 Years Return to Base
Elsewhere: 3 Years Return and Collect

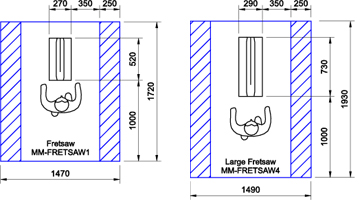

CAD Drawing (with Safe Working Area)
Fretsaws CAD Drawings
Available on request in DXF, DWG & DTD (2D Design) formats.
