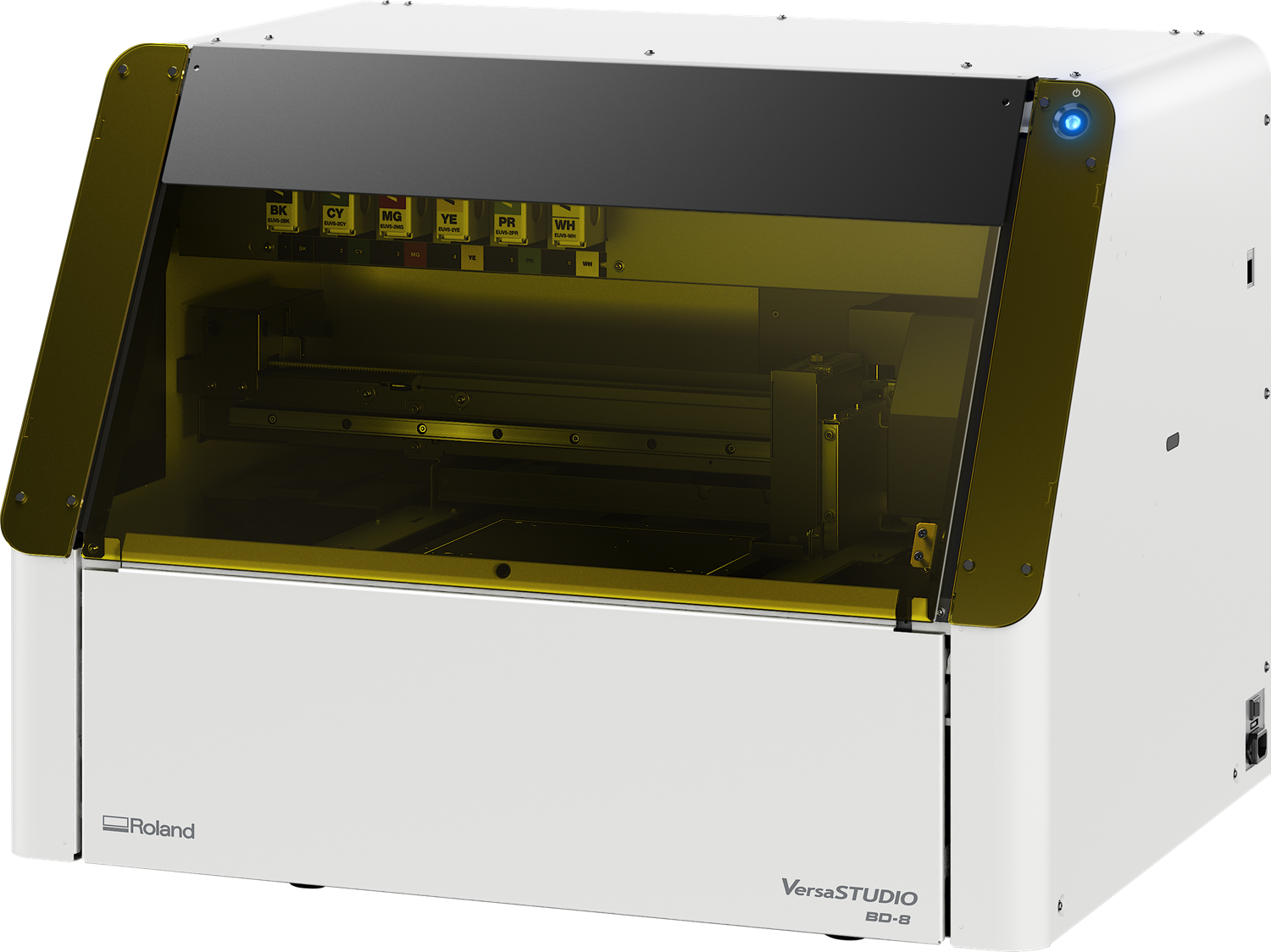

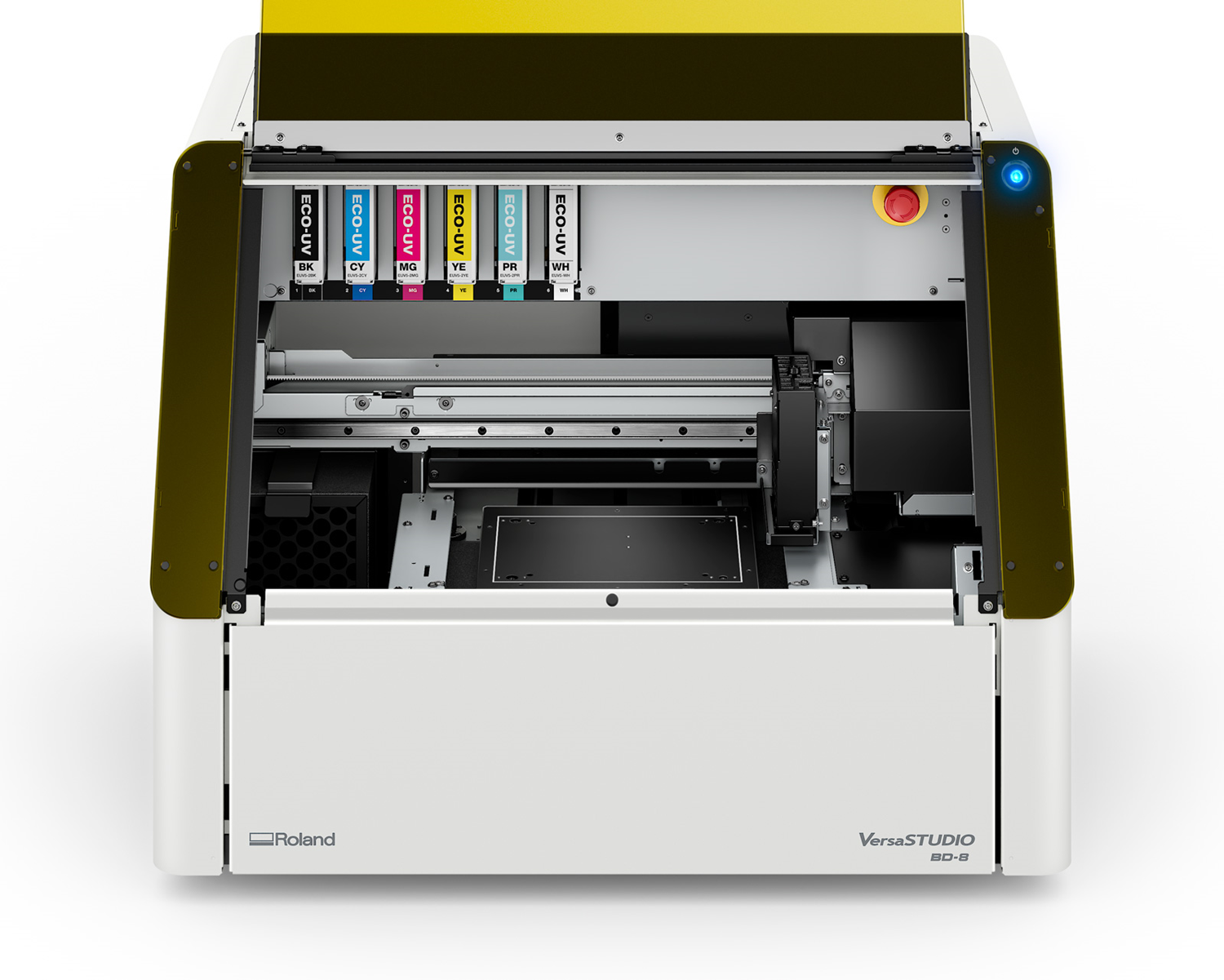

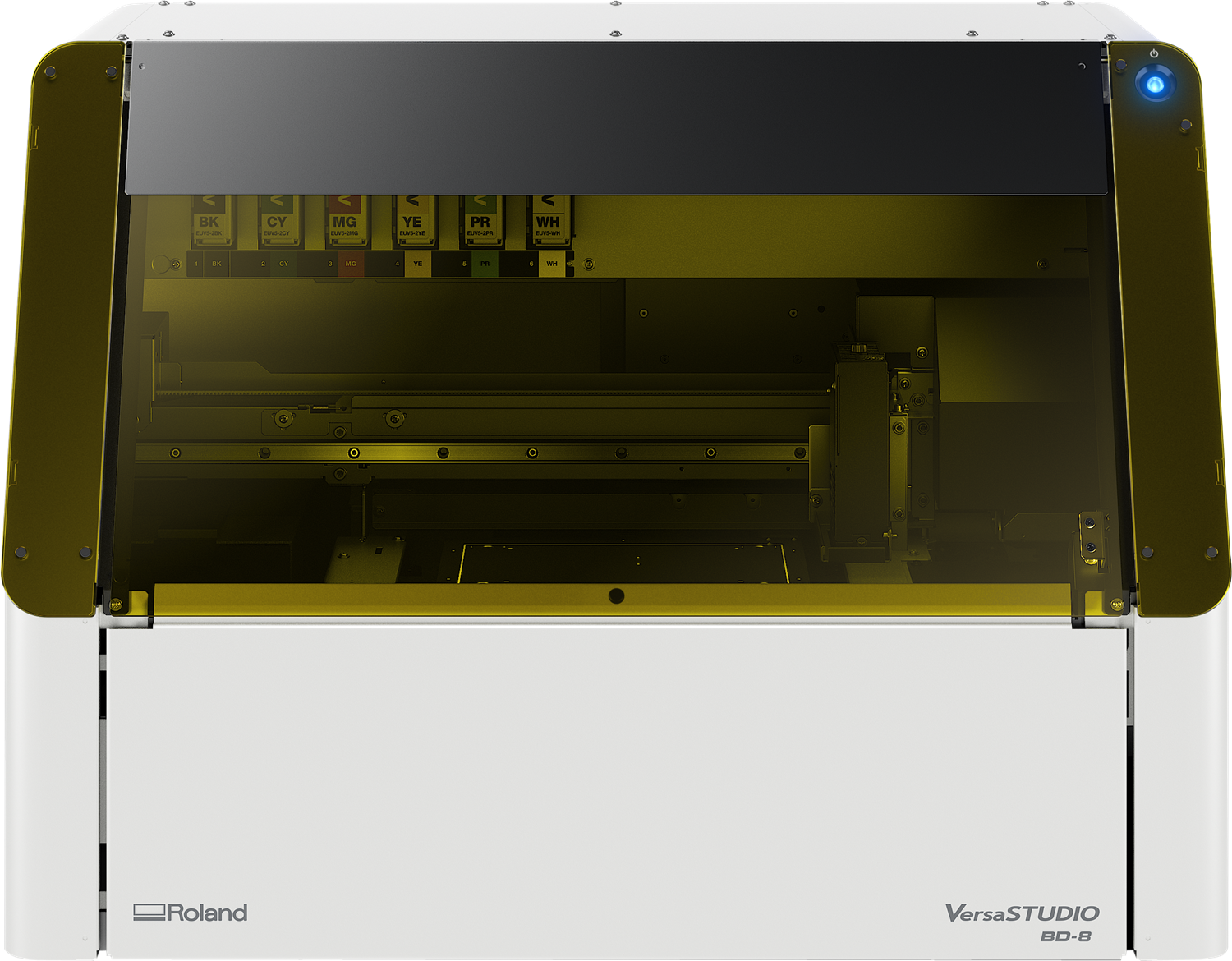

Roland VersaSTUDIO BD-8

A Desktop UV Printer for Flat and Three-Dimensional Objects

Prices
(excluding VAT)
Machine
ProductsPriceBuy
Roland VersaSTUDIO BD-8 Package
Includes Roland VersaSTUDIO BD-8 Flatbed UV Printer + full set of 220cc inks.
Order Code: MP-UV-BD8
£11,040.00
Recommended Extras
TechSoft Design V3More Info
Product Videos
Product Description

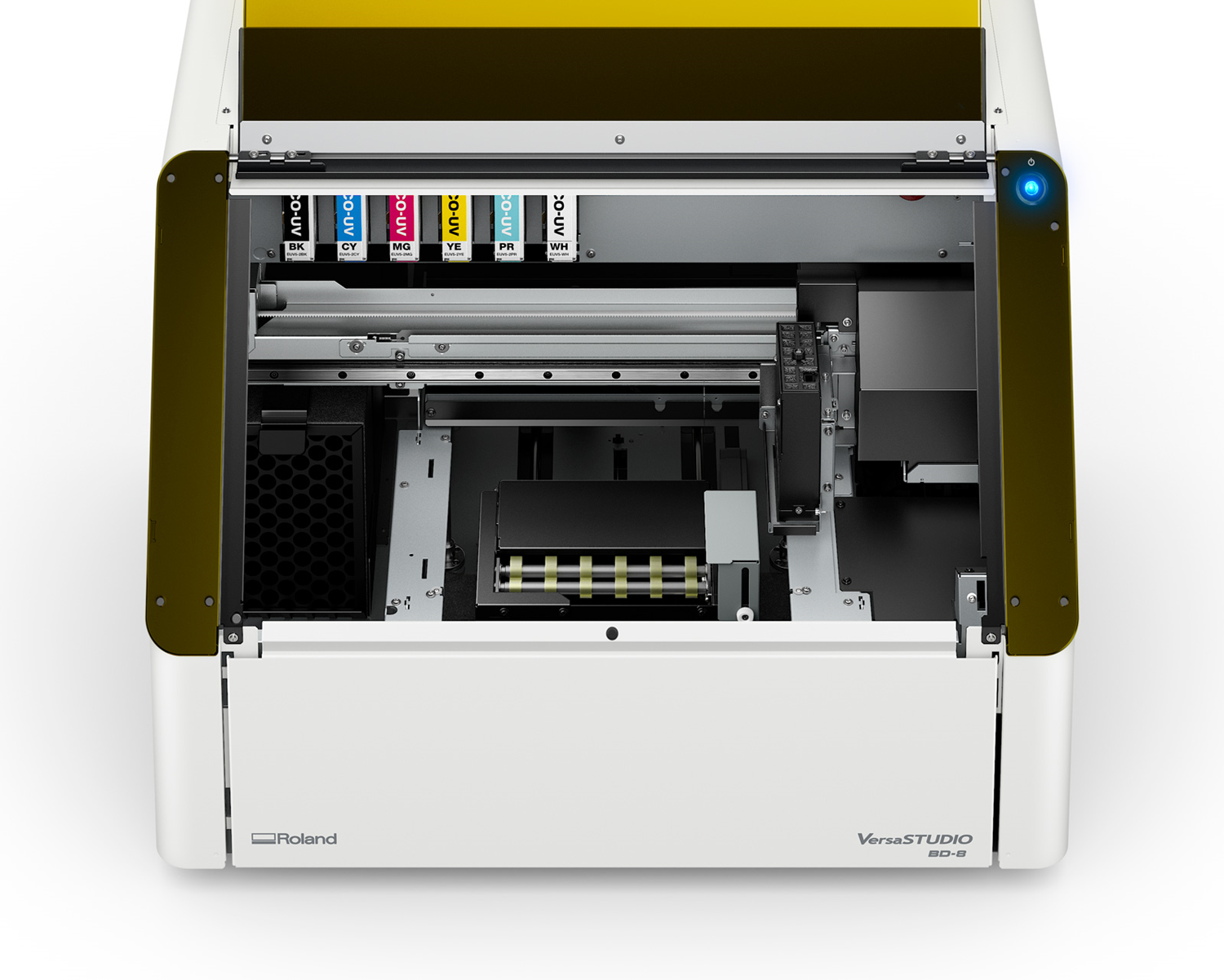

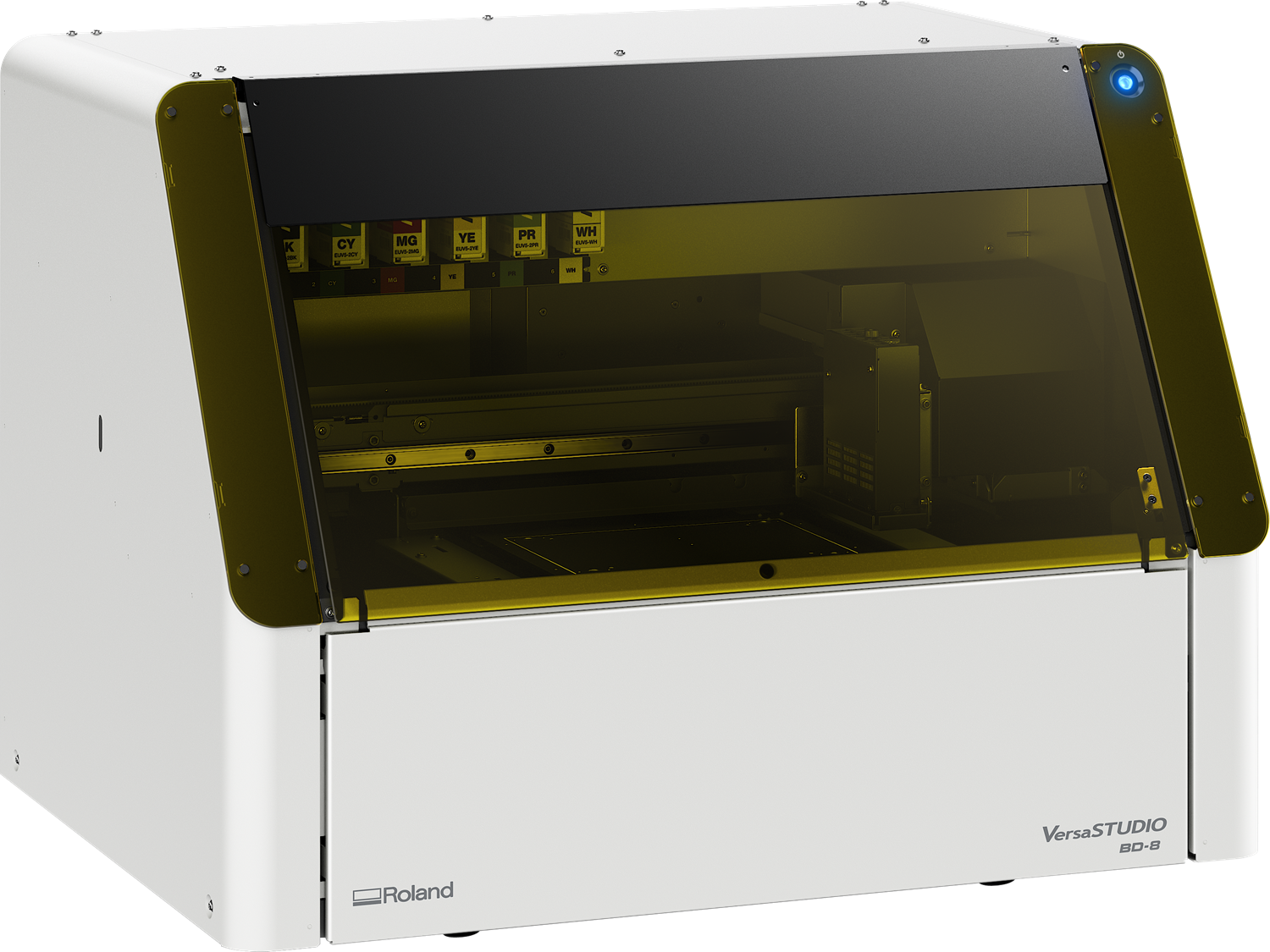

VersaSTUDIO BD-8
The VersaSTUDIO BD-8 is the perfect entry-level Desktop UV Flatbed Printer for customising objects. It's a compact device which prints directly onto a huge range of items and the possibilites are virtually endless. It is ideal for schools, small home offices, retail shops, and maker spaces.

Customise 3D Objects
The BD-8 allows you to print directly onto a wide variety of materials including plastics, paper, leather and wood. Even glass and metal can be printed on using the onboard primer ink.

The prints are vibrant with detailed graphics and text. As well as printing directly onto a vast array of materials, these 3D objects can be up to 101mm thick.

High Print Quality
With the use of advanced UV printing technology, including a high-definition print head, stunning graphics and detailed text can be effortlessly created. UV technology prints beautifully and graphics adhere well to a wide variety of substrates.

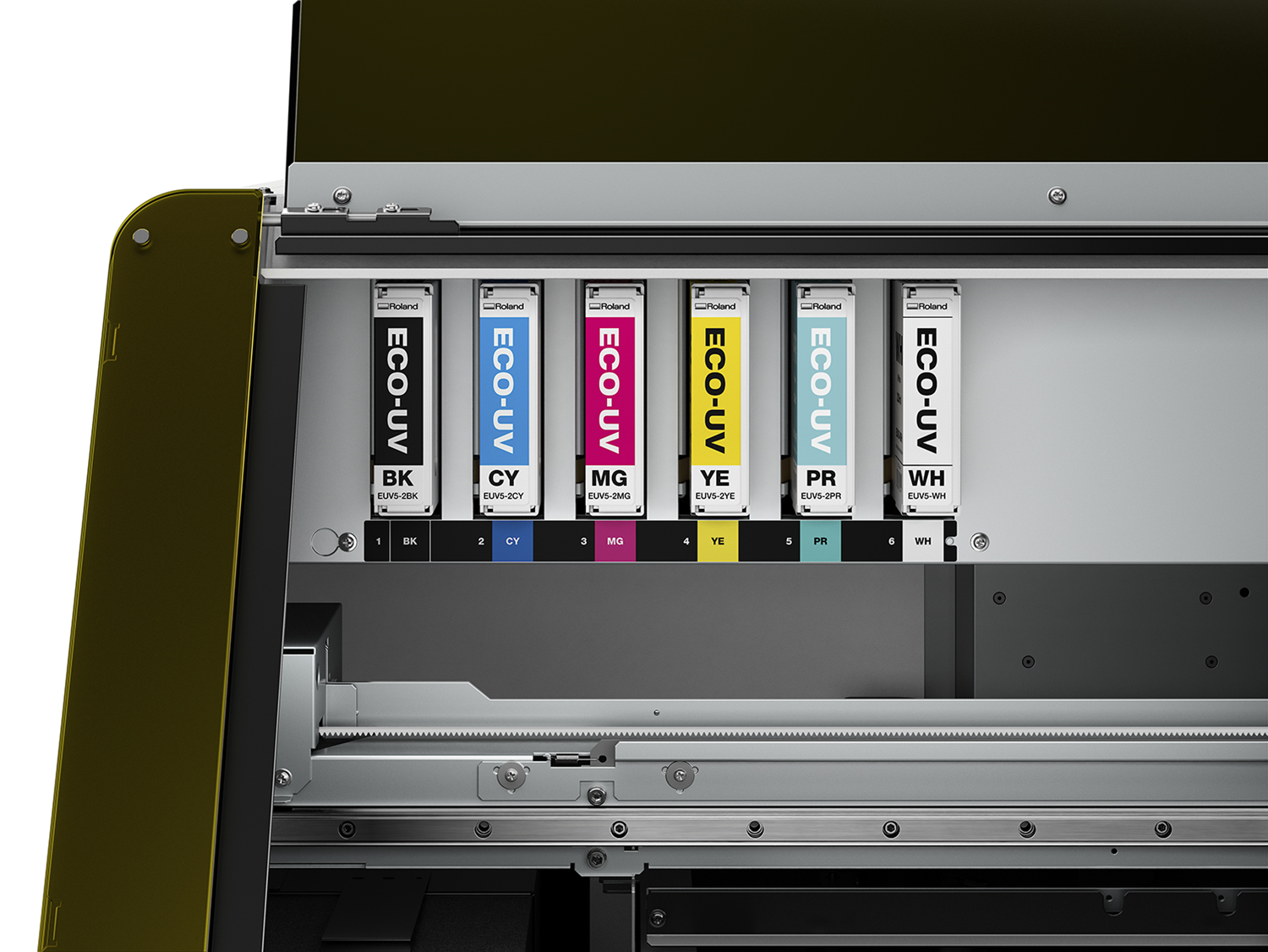

The ECO-UV 5 inks produce vibrant graphics and unique effects while also being GREENGUARD Gold certified.

Affordable, Safe and Reliable
The printer is priced to suit the budgets of start-ups, home businesses, and smaller retail operations. It's built-in fume extractor ensures optimum safety by filtering out fumes. Legendary Roland DG reliability, low maintenance, and customer support comes as standard.

Additional Features
  • Compact design fits easily on your desktop – ideal for schools, small home offices, retail shops, and maker spaces.
  • Included VersaWorks 6 professional output software and FlexiDesigner VersaSTUDIO Edition design software make design, operation, and production easier than ever.
  • Optional rotary accessory makes it possible to print fully around smaller cylindrical and curved objects, such as
    bottles, jars, and pens.
  • Access to the Roland DG Connect app provides you with a detailed understanding of your printer while helping to keep your devices running at optimum performance.

What Software Do I Need?
Images can be designed in virtually any graphics package, though we would, of course, recommend TechSoft Design V3. The image is then transferred to the RIP software provided with the printer, ie., VersaWorks 6. The texture patterns, white base primer, etc., can be added to the design before outputting to the machine.
Product Specifications
Specifications
Model:VersaSTUDIO BD-8
Max Print Area:240(W) x 178(D) x 102(H)mm
Weight:3kg
Printing Width and Length:A5 Size (210(W) x 148(D))
Laser Pointer:Supported
Motor (Scan/Feed):Servo Motor
Motor (Z Axis):Stepping Motor
Number of Ink Slots:6 Slots
Control Panel:1 Button for Power Only LED with Multiple Colour
Interface:Ethernet
Waste Liquid Type:Drain Ink Cartridge
Waste Capacity:1,800ml
Installation:No Initial Cleaning
Max Print Area:210(W) x 148(D)mm
A5 Print Speeds:CMYK: Approx. 5 mins
W->CMYK: Approx. 10mins
Resolution:Max 1440dpi
Ink Configuration:CMYKWhPr, 6 Ink Slots
Dimensions:768(W) x 586(D) x 580(H)mm
Weight:61kg
Included Items:Power Cord, Cleaning Liquid, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.
Optional Extras
Rotary Devices
ProductsPriceBuy
Optional Rotary Axis for Roland BD-8
Order Code: RL-UV-BD8ROT
£1,265.00
Consumables
Inks
ProductsPriceBuy
220cc EcoUV5 Ink Cartridge. Available in Cyan, Magenta, Yellow, Black and White. Please state colour required when ordering.
Order Code: RLP-EUV5-2COL
£86.00
