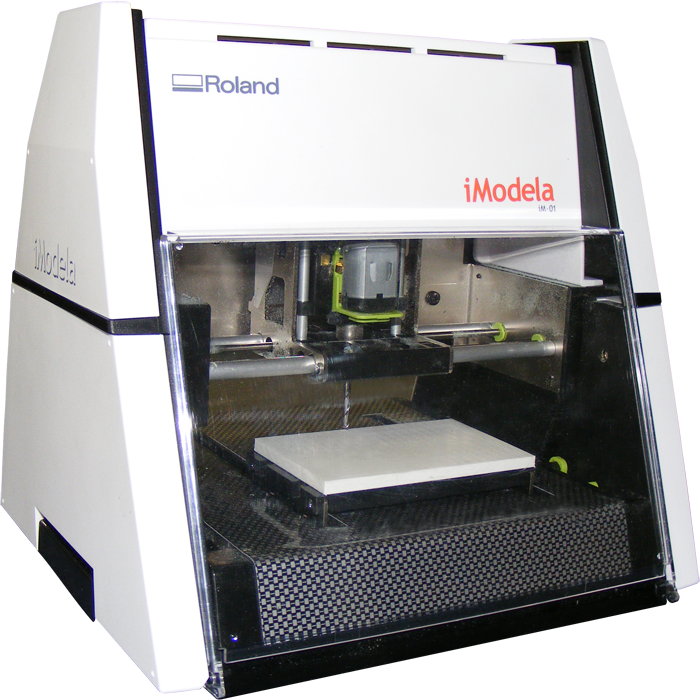

Tools and Accessories for iModela iM-01

Milling/Routing/Engraving Tools and Accessories

Tools and Accessories for iModela iM-01

Tools and Accessories for iModela iM-01

Machine Tools and Accessories
See our range of tools and accessories below.
Accessories, Sacrificial Beds and Consumables
TechSoft exclusively supplied the iModela with a 3mm diameter spindle and offer a range of suitable 3mm shank tooling. Once fitted and datumed, a locating ring can be fitted to a tool, to allow it to be easily removed and replaced without the need for re-datuming. As well as providing a level work surface (once skimmed flat), 5mm sacrificial beds can be used where necessary to ‘build up’ the bed, thus reducing the need for excessive tool overhang (stickout).
ProductsPriceBuy
Pack of 3 Locating Rings to fit 3mm
Order Code: TA-M3-LOCRING
£34.00

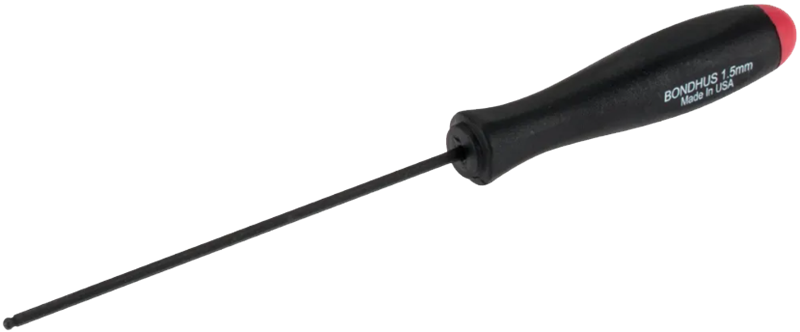

1.5mm Hex Tool for spindle grub screws
Order Code: TA-HEXTOOL15
£3.40
Replacment 3mm Spindle for iModela
Order Code: RLP-IMOD-025
£50.00
3.175mm Spindle for iModela
Order Code: RLP-IMOD-027
£62.00
White Styrene Sacrificial Bed, 86 x 55 x 5mm
Order Code: TA-IMOD1-BED
£1.30
Tool Packs
ProductsPriceBuy
Mixed Tool Pack (General set of tools) (Save £5)
(TA-ECTIL-40, TA-SDEA-2,TA-BNE-3)
Order Code: TP-MIX-IMOD1
£93.00
PCB Tool Pack (Specialist PCB tools) (Save £5)
(TA-ECTIL-40, TA-SDEA-2, TA-PD31-0.8, TA-PD31-1)
Order Code: TP-PCB-IMOD1
£92.00
Engraving Tools
Engraving Tools
General purpose carbide tipped vee point engraving tools, ground to an included angle of 40 deg or 90 deg. The 40 deg tool is suitable for engraving most materials, and recommended as a standard tool for all users. The 90 deg tool is designed for making vee grooves in materials such as 2mm styrene.
ProductsPriceBuy
40 deg, 3mm (shank diameter),50mm (overall length)
Order Code: TA-ECTIL-40
£34.00
90 deg, 3mm (shank diameter),50mm (overall length)
Order Code: TA-ECTIL-90
£33.00
Replacement re-sharpened engraving tool
(N.B. Engraving Tool must be returned to TechSoft)
Order Code: TA-ECT-REPLACE
£10.60
Slot Drills
Slot Drills
General purpose milling/drilling slot drills in solid carbide. These tools (particularly in sizes 2mm and above) are specially designed to produce a good surface finish on plastic materials.
ProductsPriceBuy
1mm (tip diameter), 2mm (flute length), 3mm (shank diameter), 38mm (overall length)
Order Code: TA-SDEA-1
£28.00
1.5mm (tip diameter), 2mm (flute length), 3mm (shank diameter), 38mm (overall length)
Order Code: TA-SDEA-1.5
£29.00
2mm (tip diameter), 6mm (flute length), 3mm (shank diameter), 38mm (overall length)
Order Code: TA-SDEA-2
£29.00
3mm (tip diameter), 12mm (flute length), 3mm (shank diameter), 38mm (overall length)
Order Code: TA-SDEA-3
£30.00
Long Reach Modelling Slot Drills
Long Reach Modelling Slot Drills
A range of long reach carbide slot drills. Ideal for deep 3D machining.
ProductsPriceBuy
3mm (tip diameter), 20mm (flute length), 3mm (shank diameter), 55mm (overall length)
Order Code: TA-SDE-3
£34.00
Ball Nosed Cutters
Ball Nosed Cutters
General purpose round ended cutters in carbide. They are ideal for 3D modelling, particularly in modelling wax or foam.
ProductsPriceBuy
2mm (tip diameter), 6mm (flute length), 3mm (shank diameter), 38mm (overall length)
Order Code: TA-BNEA-2
£17.30
Long Reach Ball Nosed Modelling Cutters
Long Reach Ball Nosed Modelling Cutters
A range of long reach carbide ball nosed cutters, ideal for deep 3D machining.
ProductsPriceBuy
3mm (tip diameter), 20mm (flute length), 3mm (shank diameter), 55mm (overall length)
Order Code: TA-BNE-3
£36.00
Printed Circuit Board Drills
Printed Circuit Board Drills
A range of solid carbide PCB drills in solid tungsten carbide.
ProductsPriceBuy
0.8mm (tip diameter), 3mm (shank diameter), 40mm (overall length)
Order Code: TA-PD3I-0.8
£17.30
1mm (tip diameter), 3mm (shank diameter), 40mm (overall length)
Order Code: TA-PD3I-1
£17.30
1.2mm (tip diameter), 3mm (shank diameter), 40mm (overall length)
Order Code: TA-PD3I-1.2
£17.30
1.5mm (tip diameter), 3mm (shank diameter), 40mm (overall length)
Order Code: TA-PD3I-1.5
£17.30
