Double Ended Grinders

View PDF Version of Page

RJH Finishing Gryphon Grinder

Gryphon Grinder Bench Mounted
Gryphon Grinder Bench Mounted
Click to Enlarge - Gryphon Grinder Bench Mounted
Click to Enlarge - Gryphon Grinder Pedestal Mounted
Click to Enlarge - Gryphon Grinder with Integrated Stand/Extraction

RJH Finishing Gryphon Grinder

Prices
(excluding VAT)
Bench Mounted Grinder
Pedestal Mounted Grinder
Grinder with Integrated Stand/Extraction
Accessories
Product Video
Product Description
Gryphon grinders have a long-established and well-deserved reputation for quality, reliability and longevity. This latest machine features high quality components and precision-balanced wheels for minimal noise and vibration. Adjustable tool rests with positive locking action are standard, and safety is assured with full wheel guarding and heavy duty polycarbonate eye shields.

An off-hand grinder is essential to maintain drills and lathe tools in good condition, and at least one can be regarded as ‘standard equipment’ to support one or more workshops. However, the machine is not suitable for sharpening woodworking tools due to its high speed and potential to ‘burn’ fine edges, so an RJH Bear 1 or Sheppach Tiger 2500 will also be needed to cover all tool maintenance needs.

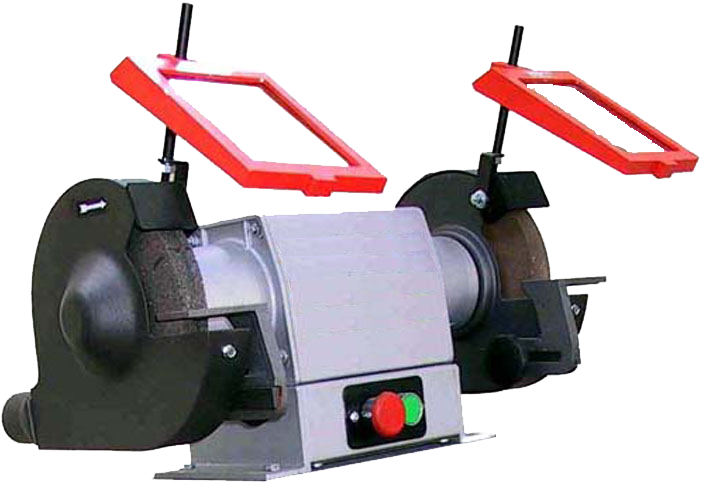

Gryphon Grinder Bench Mounted
Gryphon Grinder Bench Mounted
The machine-only version is for customers who wish to install onto side benching. A foot-stop is provided for mounting as appropriate. LEV is not a requirement if the machine is sited where PPE measures can protect the operator from dust inhalation. (The grinder is likely to be sited in a preparation area for, mainly, technician’s use.) In a classroom, machines with LEV are essential.
Standard - Without Braking System
ProductsPriceBuy
RJH Finishing Gryphon Grinder for Bench Mounting (3 phase) + Emergency Foot Stop
Order Code: MM-GRINDER1BFT
POA
RJH Finishing Gryphon Grinder for Bench Mounting (1 phase) + Emergency Foot Stop
Order Code: MM-GRINDER1BFS
POA
* A fitted Integral DC Braking system is available at an additional cost (see below). Although not a mandatory requirement, there is an increased demand from various H&S consultants who deem this necessary. This braking system is also available as a retrofit kit for existing machines in the field.
With Braking System
ProductsPriceBuy
RJH Finishing Gryphon Grinder with Integral Braking for Bench Mounting (3 phase) + Emergency Foot Stop
Order Code: MM-GRINDER1RBFT
POA
RJH Finishing Gryphon Grinder with Integral Braking for Bench Mounting (1 phase) + Emergency Foot Stop
Order Code: MM-GRINDER1RBFS
POA
Gryphon Grinder Pedestal Mounted
Gryphon Grinder Pedestal Mounted
The robust steel pedestal includes the required foot-stop and provides a compact solution where dust control and containment can be dealt with by normal ‘housekeeping’ and PPE measures.
Standard - Without Braking System
ProductsPriceBuy
RJH Finishing Gryphon Grinder with Pedestal (3 phase)
Order Code: MM-GRINDER1PT
POA
RJH Finishing Gryphon Grinder with Pedestal (1 phase)
Order Code: MM-GRINDER1PS
POA
* A fitted Integral DC Braking system is available at an additional cost (see below). Although not a mandatory requirement, there is an increased demand from various H&S consultants who deem this necessary. This braking system is also available as a retrofit kit for existing machines in the field.
With Braking System
ProductsPriceBuy
RJH Finishing Gryphon Grinder with Integral Braking System and Pedestal (3 phase)
Order Code: MM-GRINDER1RPT
POA
RJH Finishing Gryphon Grinder with Integral Braking System and Pedestal (1 phase)
Order Code: MM-GRINDER1RPS
POA

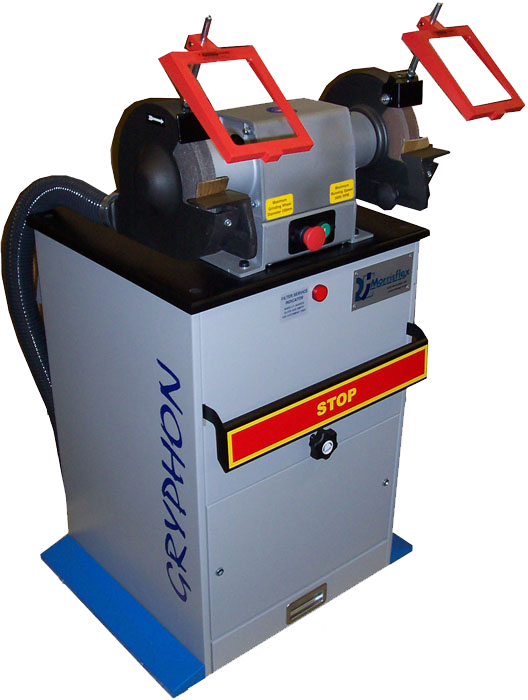

Gryphon Grinder with Integrated Stand/Extraction
Gryphon Grinder with Integrated Stand/Extraction
This fully-integrated solution provides a high quality Gryphon grinder with everything needed to allow it to be sited almost anywhere given appropriate safety working area (SWA) requirements. The LEV system auto-runs with the grinder and waste is collected in a pull out tray. The steel cabinet includes a positive knee-stop and a shaker handle which is used to shake excess dust off the filter.
Standard - Without Braking System
ProductsPriceBuy
RJH Finishing Gryphon Grinder with Extraction (3 phase)
Order Code: MM-GRINDER1T
POA
RJH Finishing Gryphon Grinder with Extraction (1 phase)
Order Code: MM-GRINDER1S
POA
* A fitted Integral DC Braking system is available at an additional cost (see below). Although not a mandatory requirement, there is an increased demand from various H&S consultants who deem this necessary. This braking system is also available as a retrofit kit for existing machines in the field.
With Braking System
ProductsPriceBuy
RJH Finishing Gryphon Grinder with Integral Braking System and Extraction (3 phase)
Order Code: MM-GRINDER1RT
POA
RJH Finishing Gryphon Grinder with Integral Braking System and Extraction (1 phase)
Order Code: MM-GRINDER1RS
POA
Accessories
All Accessories
ProductsPriceBuy
Optional fitted LED light for RJH Bandfacer, Polisher or Grinder machines. Must be fitted at time of purchase. Please specify if for 1 phase or 3 phase machine.
Order Code: MT-RJ-LGT1
£465.00
Grinding Wheel for Gryphon Grinder, 200 x 25 x 20-36 Grit
Order Code: MMP-GR-WH1
£64.00
Grinding Wheel for Gryphon Grinder, 200 x 25 x 20-80 Grit
Order Code: MMP-GR-WH2
£64.00
Wheel Dresser for Gryphon Grinder
Order Code: MT-DRESSER1
£49.00
Replacement Dust Extraction Filter Bag for integrated extractor of RJH Gryphon Grinder, Antelope Bandfacer and Chamois Polisher
Order Code: MT-BF-FILTER1
£89.00
Product Specifications
Specifications
Model:Bench MountedPedestal MountedWith Integrated Stand/Extraction
Wheel Size:200 x 25mm200 x 25mm200 x 25mm
Wheel Speed:1 Phase: 2880rpm; 3 Phase: 3450rpm1 Phase: 2880rpm; 3 Phase: 3450rpm1 Phase: 2880rpm; 3 Phase: 3450rpm
Centre of Grinding Wheel:150mm(H)915mm(H)950mm(H)
Extraction Drawer Capacity:-8 litres
Extraction Motor:-0.55kW (0.74hp)
Motor:1 Phase: 0.70kW (0.94hp)
3 Phase: 0.85kW (1.14hp)		1 Phase: 0.70kW (0.94hp)
3 Phase: 0.85kW (1.14hp)		1 Phase: 0.70kW (0.94hp)
3 Phase: 0.85kW (1.14hp)
Weight:26kg50kg79kg
Dimensions:557(W) x 333(D) x 360(H)mm560(W) x 435(D) x 1150(H)mm560(W) x 645(D) x 1115(H)mm
Power Requirements:415V 0.85kW or 240V 0.70kW
Lockable rotary isolator		415V 0.85kW or 240V 0.70kW
Lockable rotary isolator		415V 1.4kW or 240V 1.3kW
Lockable rotary isolator
Warranty:UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect		UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect		UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
