RJH Finishing BEAR 1 & BEAR 2

Tool Sharpener

View PDF Version of Page

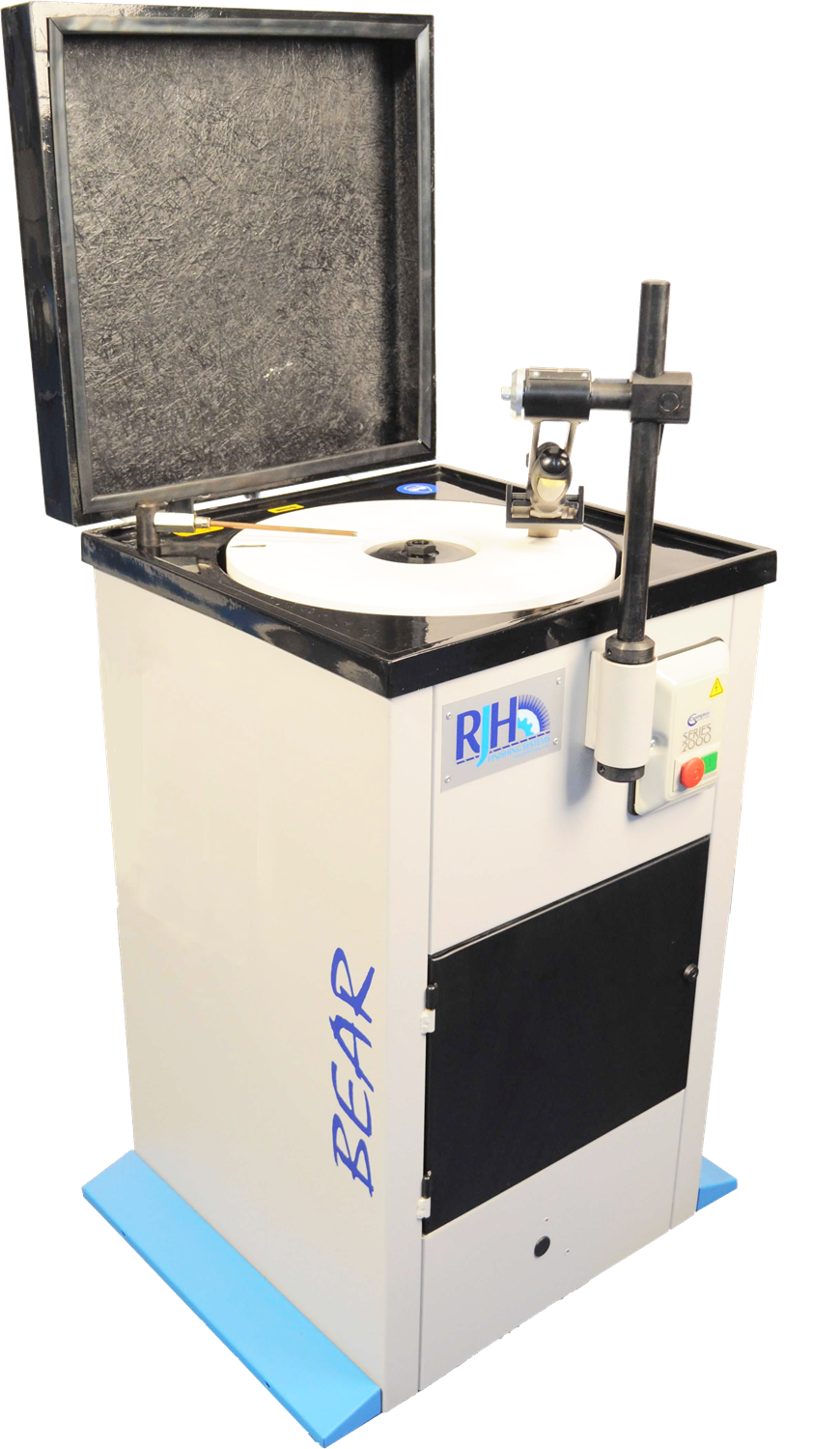

RJH Finishing BEAR 1 & BEAR 2

RJH Finishing BEAR 1 & BEAR 2

Prices
ProductsPriceBuy
RJH Finishing Bear 1 Toolgrinder (1 phase)
Order Code: MM-TOOLGRINDERS
£4,670.00
RJH Finishing Bear 1 Toolgrinder (3 phase)
Order Code: MM-TOOLGRINDERT
£4,450.00
RJH Finishing Bear 2 Toolgrinder (1 phase). Includes cone attachment and radius gouge tool holder.
Order Code: MM-TOOLGRIND2S
£5,480.00
RJH Finishing Bear 2 Toolgrinder (3 phase). Includes cone attachment and radius gouge tool holder.
Order Code: MM-TOOLGRIND2T
£5,290.00
Product Description
Essential for maintaining edge tools, these machines feature a controlled 110rpm wheel speed, force-fed recirculatory coolant system and integral oil reservoir with filter. The tool holder accepts up to 60mm wide blades so is ideal for all chisels and most plane irons. The centre swivel arm has fine adjustment control to ensure that tool edge and grinding wheels remain in perfectly flat contact.

The Bear 2 adds a radius gouge toolholder and a 1500rpm cone wheel with work rest and splash guard.
Product Specifications
Specifications
Model:Bear 1Bear 2
Grinding Wheel Size:406(dia) x 32(W)mm406(dia) x 32(W)mm
Wheel Speed:140rpm140rpm
Cone Wheel Size:N/A75(dia) x 100(D)mm
Motor:1 Phase: 0.25kW (0.34hp)
3 Phase: 0.18kW (0.24hp)
1 Phase: 0.25kW (0.34hp)
3 Phase: 0.18kW (0.24hp)
Weight:105kg115kg
Dimensions:615(W) x 615(D) x 1120(H)mm700(W) x 615(D) x 1120(H)mm
Power Requirements:415V 0.18kW or 240V 0.25kW, Lockable rotary isolator415V 0.18kW or 240V 0.25kW, Lockable rotary isolator
Warranty:UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
CAD Drawing (with Safe Working Area)
Close
RJH Finishing BEAR 1 CAD Drawing
Available on request in DXF, DWG & DTD (2D Design) formats.
