DML320 Wood Lathe

DML320 Wood Lathe

DML320 Wood Lathe

Prices
(excluding VAT)
Machine Package with Footstop
ProductsPriceBuy
DML320 510mm 0.55kW Bench Mouted Wood Lathe Package (1 phase)
inc. Emergency Footstop, Floor Stand, 4 Jaw Lathe Chuck including Dovetail Jaws, Internal & External Safety Jaws, Faceplate dia. 150mm with holes, Screw Chuck
Order Code: MM-WOODLATHE34PF
£1,540.00
Basic Machine with Footstop
The machine supplied with a footstop, but without any chucks / jaws / etc.
ProductsPriceBuy
DML320 510mm 0.55kW Bench Mouted Wood Lathe (1 phase)
inc. Emergency Footstop
Order Code: MM-WOODLATHE34F
£955.00
Optional Extras
ProductsPriceBuy
302mm Bed Extension for DML320 Lathe
Order Code: MM-WOODLATHE34A
£180.00
Essential Extraction
Extraction is essential when using a wood lathe. We offer a range of extractors to suit all budgets/requirements. Please contact us for more details.
Product Description

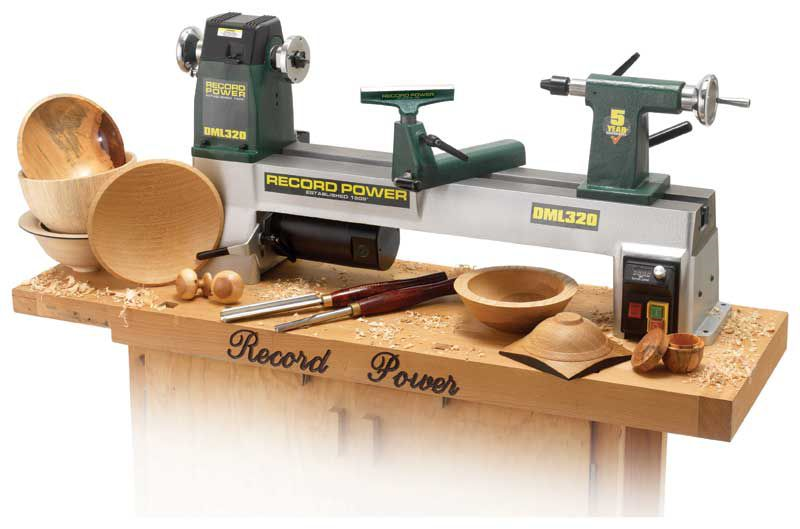

The new DML320 lathe offers fantastic value for money, being compact and powerful yet with very generous capacities for a medium sized lathe, giving woodturners the chance to own a high quality variable speed machine at an unbeatable price. The solid cast iron bed, tailstock and headstock offer superb stability, even when turning items at the limits of the lathe’s considerable capacities. At the heart of this machine is the high quality electronic variable speed function, giving smooth and responsive speed change at the turn of a dial, with a highly accurate digital speed readout. The 3 pulley system ensures excellent torque across the full range of speeds and is powered by a high quality and vibration-free motor. The DML320 is also capable of reverse turning, ideal for achieving a perfect finish when sanding.

  • Indexing: The accurate 24 point indexing system allows for a wide range of decorative work to be carried out.
  • High Quality Electronic Variable Speed: Giving smooth and responsive speed change at the turn of a dial, with a highly accurate digital speed readout.
  • Tool Caddy: The DML320 features a useful tool caddy at the rear of the headstock.
  • Faceplate Included: The 3” faceplate supplied is ideal for bowl turning.
  • 3 Pulley System: Excellent torque can be achieved at any speed across the range of belt positions.
Product Specifications
Specifications
Model:DML320
Distance Between Centres:510mm
Swing Over Bed:320mm
Spindle Speeds:250 - 3850rpm (var)
Motor:0.55kW (3/4hp)
Thread:M33 x 3.5
Taper:2MT
Weight:52kg
Dimensions:914(W)mm x 320(D)mm x 435(H)mm
Power Requirements:240V 0.55kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
