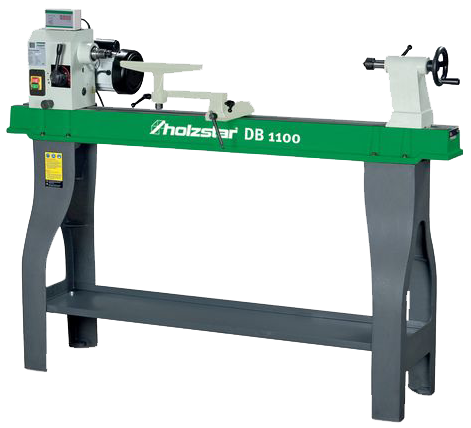

DB 1100 Wood Lathe

High Quality, Ideal for Educational Use

DB 1100 Wood Lathe

DB 1100 Wood Lathe CAD Drawing

DB 1100 Wood Lathe

Prices

(excluding VAT)

Machines

Products	Price	Buy
DB1100 Wood Lathe (includes Emergency Foot Stop) Order Code: MM-WOODLATHE24F	£1,665.00
Auto Switch Box - Single Order Code: MM-SWITCH4	£305.00

Essential Extras

Extraction is essential when using a wood lathe. We offer a range of extractors to suit all budgets/requirements.

See Extraction Options

Product Description

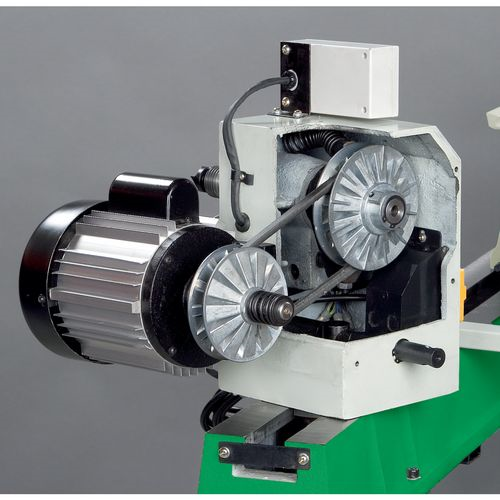

A large capacity, versatile, but low cost wood turning lathe. The long between-centres distance means that spindle work over 1m in length can easily be achieved. The ingenious swivelling head allows large bowls to be turned with ease. Powered by a quiet running 750W (1hp) motor, the variable speed drive gives a speed range from 500 to 2000rpm. The machine features a heavy cast iron bed bolted to cast iron legs for vibration free running. The DB 1100 provides an economical solution for everyday woodturning needs.

Standard Accessories

300mm tee rest & 150mm face plate.
Emergency Foot Stop supplied as standard.

Product Specifications

Specifications

Model:	DB 1100 Wood Lathe
Distance Between Centres:	1100mm
Swing Over Bed:	358mm
Spindle Speeds:	570 - 2000rpm (variable, 10 stages)
Motor:	0.75kW (1hp)
Weight:	92kg
Dimensions:	1620(W) x 480(D) x 1160(H)mm
Power Requirements:	240V 0.75kW, Lockable rotary isolator
Warranty:	UK Mainland: 1 Year On-Site Elsewhere: 1 Year Return and Collect

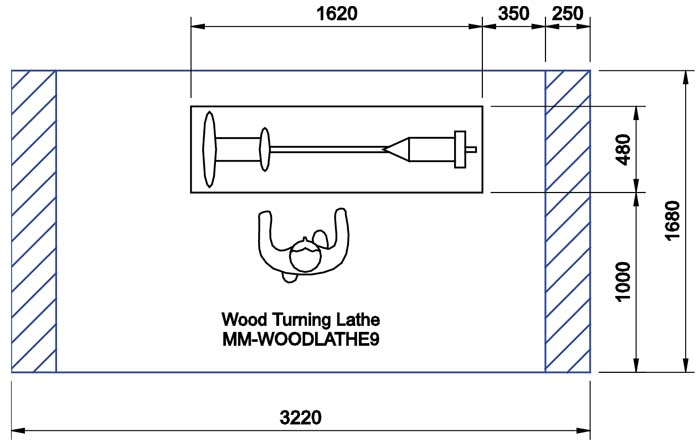

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & 3VS/DTD (TechSoft Design V3) formats.

Need Assistance?

If you would like to talk to us, please:

Call us: +44(0) 1745 535007
Email us: sales@techsoft.co.uk
