Vacuum Forming

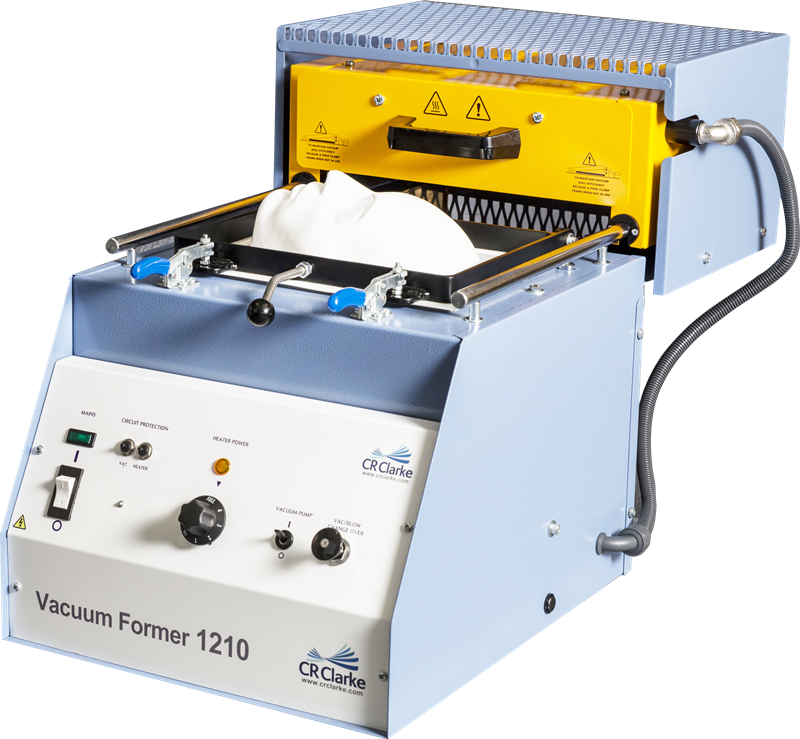

For sheet size 305 x 229mm. Hood and platen systems have chromed slide bars and nylon bushings for smooth operation, and a safety interlock to prevent moulds being raised into the heaters. Single zone ceramic elements for even heat distribution. Blow release to assist material removal and no-volt release automatically isolates the machine in the event of power failure. A stand is available.

Ideal as an individual resource for a systems and control/electronics teaching area, for example, where small packaging and housing projects are a regular need.

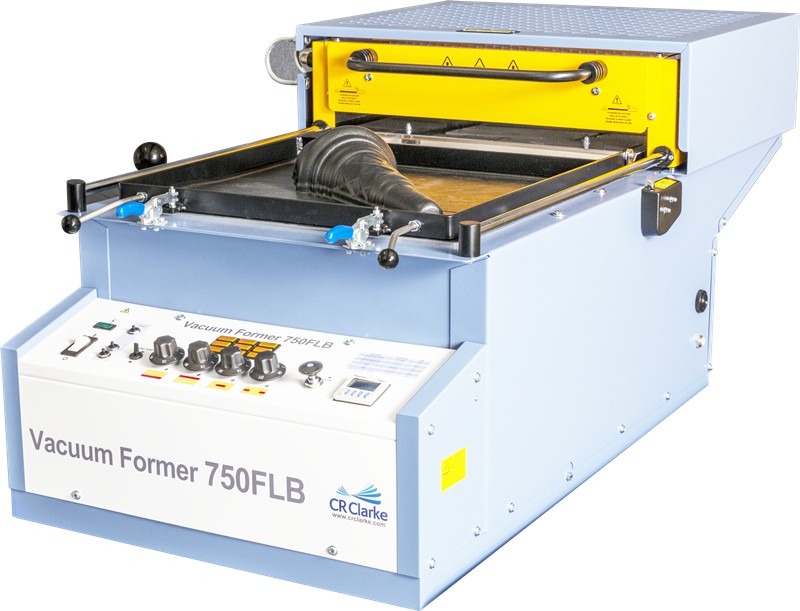

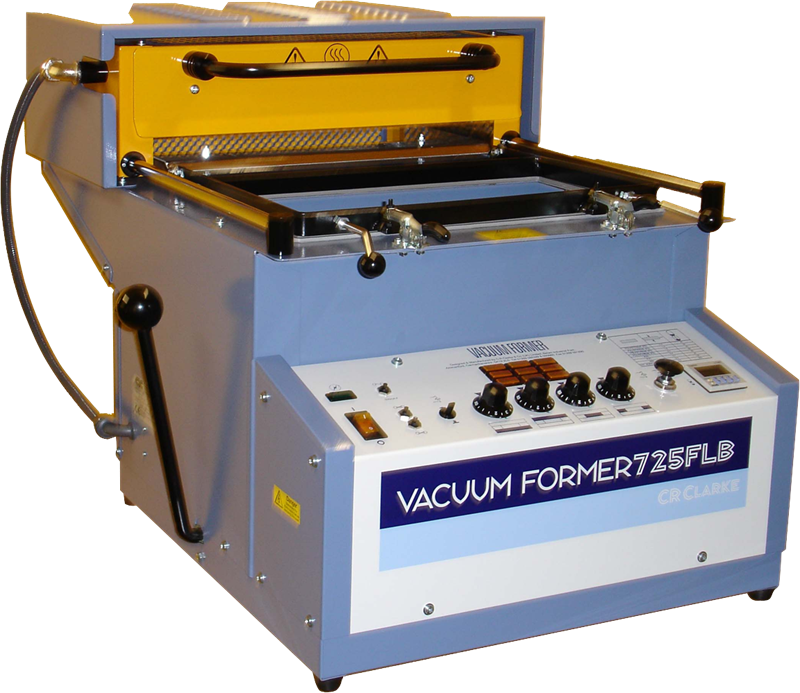

For sheet sizes up to 458 x 254mm (725 FLB) or 508 x 458mm (750 FLB). Hood and platen systems have chromed slide bars and nylon bushings for smooth operation, and a safety interlock to prevent moulds being raised into the heaters. 4 -zone ceramic elements have digital control, timing and display for even heat distribution. Blow release to assist material removal and no-volt release automatically isolates the machine in the event of power failure. Reducing plates are available for both machines.

Most workshops and Product Design areas will find this scale of machine answers all their day to day needs.

The brand new 300DT is Formech's smallest desktop machine to date. Keeping the functionality of its predecessor, the Compac Mini, the 300DT is smaller in volume and lighter than ever. Compared with other compact machines on the market, the 300DT comes with a quiet built in vacuum pump and moulding release.

Easy to transport, move, and use, this 300DT is the perfect solution for creative hobbyists, artisans, and students. It is ideal as an individual resource where small packaging and housing projects are a regular need.

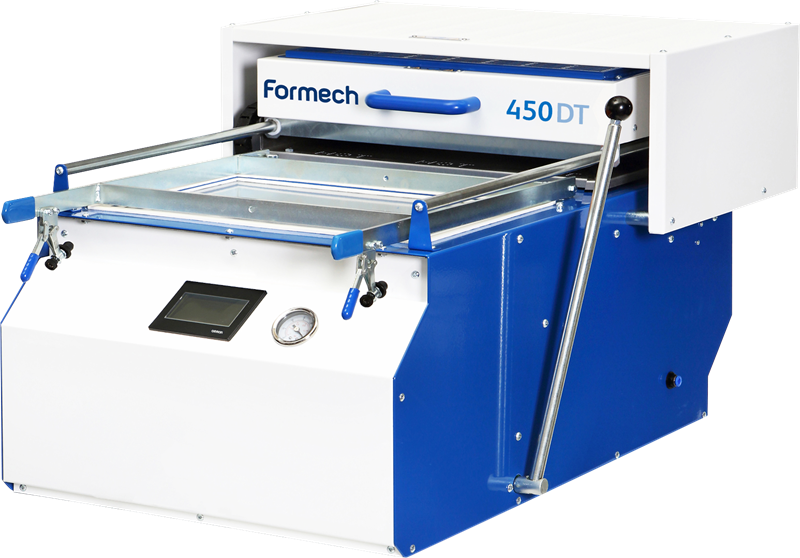

The 450DT has powerful quartz heaters which are ready to use in seconds providing rapid heat response times. Variable standby reduces power to the heater when it is in the rear position. The forming area is 430 x 280mm, and the 4” touch screen control allows the four independent heating zones to be controlled with ease. Up to 20 programs can be saved to the memory.

A high specification, large work area, and energy saving control systems make this an ideal whole-department resource and a highly capable individual workshop machine.
