Vacuum Form Trimming

Thermoforming Equipment

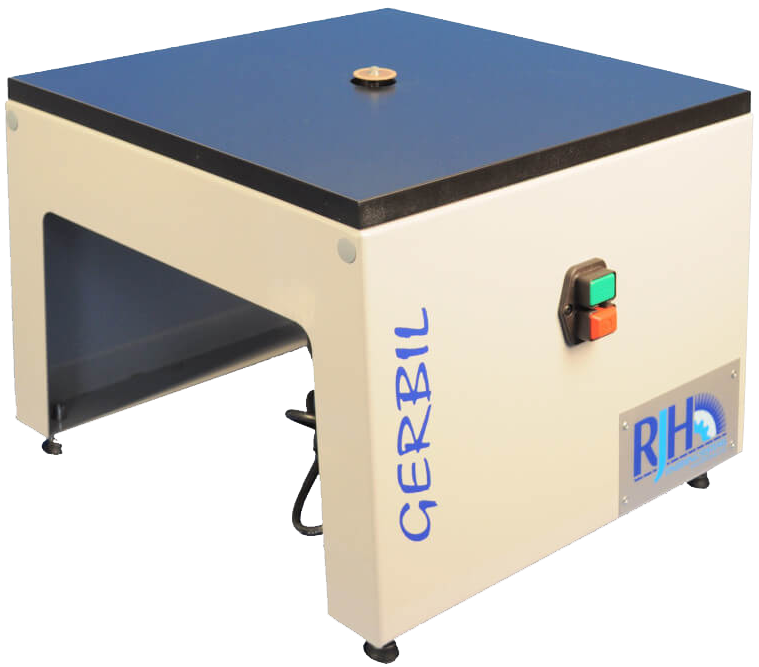

RJH Finishing Gerbil 2010/2020/2030
RJH Finishing Gerbil 2010/2020/2030
These multi-purpose vacuum form trimming and finishing machines are designed for safe and accurate trimming of waste from vacuum-formed shells. They are supplied as standard with a Tungsten Carbide disc and holder for vacuum-form trimming. A no-volt release switch is fitted as standard. The 2020 differs from the 2010 in that it has a tilting table, an adjustable guide fence, a large diameter hand wheel, a dust extraction fence incorporating a tool guard and a full toolkit. The 2030 model adds a customised Gerbil Trolley and a small drum sander.
ProductsPriceBuy
RJH Finishing Gerbil 2010
Order Code: MM-VACTRIM1
£1,070.00
RJH Finishing Gerbil 2020
(Includes MT-VT-TKIT1, ie., tungsten carbide disc (disc holder included with machine), tungsten carbide flange cutter, two flap wheels for general de-burring, finishing mop and compound bar, polishing mop and compound bar, allen keys for tool changing)
Order Code: MM-VACTRIM2
£1,520.00
RJH Finishing Gerbil 2030
(Includes Gerbil Trolley, Drum Sander and Full Toolkit MT-VT-TKIT1 including disc holder)
Order Code: MM-VACTRIM5
£1,960.00
Tool Kit for MM-VACTRIM1
Includes tungsten carbide disc (disc holder not included), tungsten carbide flange cutter, two flap wheels for general de-burring, finishing map and compound bar, polishing map and compound bar, allen keys for tool changing
Order Code: MT-VT-TKIT1
£157.00
Replacement Tungsten Carbide Disc Holder for MM-VACTRIM1/2/3
Order Code: MT-VT-DSCH1
£45.00
Trolley for Gerbil
Order Code: SF-TROLLEY25
£475.00

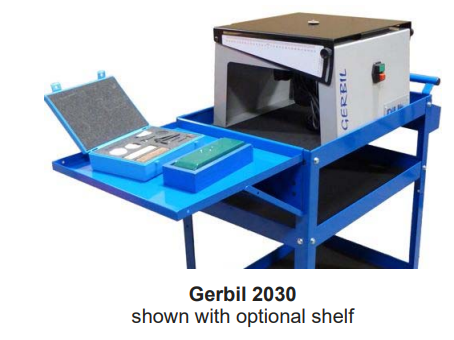

Optional Side Shelf for Gerbil Trolley
Fold down when not in use
Order Code: SF-TROLLEY25S
£85.00
Specifications
Model:RJH Finishing Gerbil 2010/2020/2030
Tool Height Adjustment:20mm
Table Size:400 x 455mm
Weight:19kg (2010); 21kg (2020); 44kg (2030)
Dimensions:400(W) x 455(D) x 315(H)mm (2010)
555(W) x 455(D) x 315(H)mm (2020)
Power Requirements:240V 5A, 13A Socket
Warranty:UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect

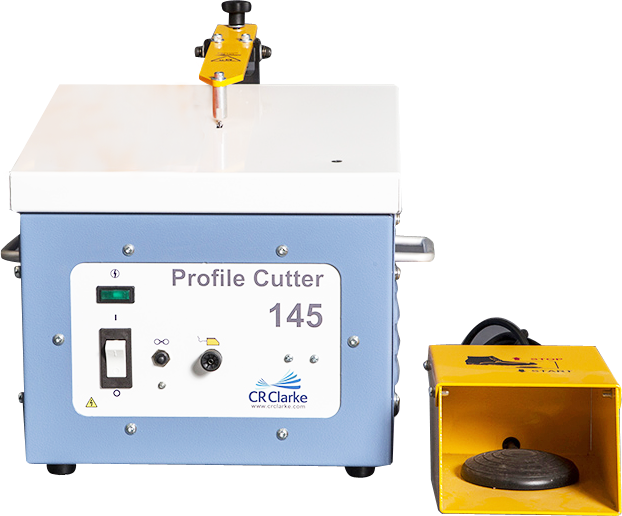

Clarke Profile Router 145
Clarke Profile Router 145
Trimming vacuum-formed shells is a key process which can be difficult to do accurately using conventional saws or snips. This Profile Router makes the job safe, and virtually fool-proof, by using a small carbide router cutter to cut excess material at a precise and consistent distance from the raised moulding. The distance can be adjusted to trim flush, or to leave a flange up to 6mm wide. This is achieved by using an ingenious guard that completely covers the rotating cutter but acts also as a guide to off-set the cut, and as a clamp to hold down the moulding. Spindle control is by footswitch thus leaving both hands free to control the work piece. The main cabinet has a port for connecting to LEV. LEV is not essential since the plastic waste will not become airborne, but is useful to maintain a tidy workspace.

This quiet, low maintenance machine will transform the ability to produce cleanly-trimmed vacuum formed shells in a busy classroom.
ProductsPriceBuy
Clarkes 145 Vacuum Form Cutter/profile router
Order Code: MM-VACTRIM3
£1,230.00
Specifications
Model:Clarke Profile Router 145
Maximum Thickness Capability:3mm
Trimming Distance:Flush to 6mm Flange
Cutter Speed:2850rpm
Cutter:3.18mm Carbide Slot Drill
Motor:180W (Industrial quality, balanced, fan cooled)
Weight:14kg
Dimensions:305(W) x 400(D) x 330(H)mm
Power Requirements:240V 2A, 13A Socket
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
