Thermoforming Centre

Thermoforming Equipment

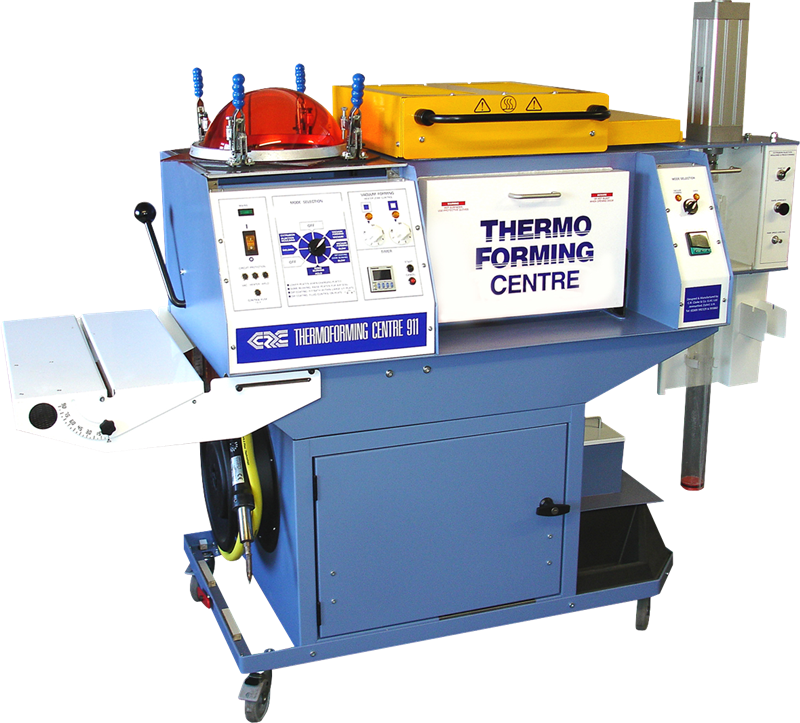

Clarke Thermoforming Centre 911

Clarke Thermoforming Centre 911
This Thermoforming Centre combines six processes into a single, mobile unit: Vacuum Forming, with two sheet sizes of 305 x 305mm and 305 x 152mm. Fan Circulated Oven with digital temperature control up to 400°C. This can be used for heating materials prior to dome blowing, injection moulding, extrusion and dip coating. Dome Blowing: three diameters, 305, 225 and 152mm. Plastic Dip Coating, with a fluidised bath 150 x 150 x 250mm deep. Injection Moulding, pneumatically actuated, complete with two moulds. Extrusion, complete with I section extrusion nozzle. Plastic Welding, with an industrial hot air welding torch, work table and adjustable angle stop.

N.B. If space is at a premium and resources need to be shared between rooms, this gives all the plastic-forming tools a department is ever likely to need in a neat format. Individual capacity is limited so, for most schools and colleges, stand-alone machines will be a more economical solution in addition to, or instead of, this machine.
Model:Clarke Thermoforming Centre 911
Vacuum Forming Sheet Size:305 x 305mm & 305 x 152mm
Oven Temp Range:0° to 400°C
Dome Blowing Diameters:152mm, 225mm & 305mm
Plastic Dip Coating Bath Size:150(W) x 150(D) x 250(H)mm
Dimensions:1320(W) x 870(D) x 1420(H)mm
Power Requirements:240V 12A, 13A Sockets
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
