Strip Heating

Thermoforming Equipment

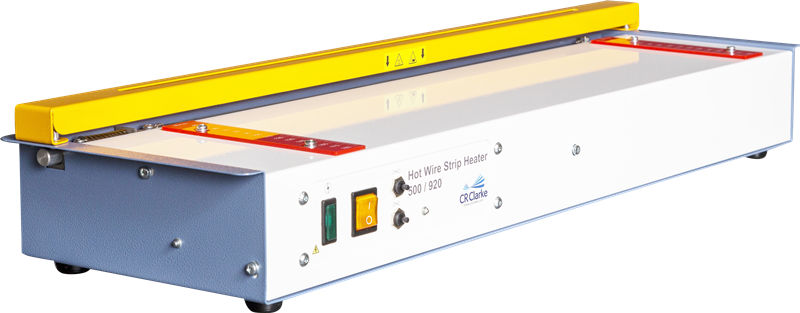

Clarke Hot Wire Strip Heater 500
Clarke Hot Wire Stip Heater 500
A simple ‘no-frills’ strip heater offering an economical solution for bending thermoplastics up to 4mm in thickness. A single wire is used which allows for tight radius folds. The wire has a single heat setting, is guarded and operates at low voltage for safety. Graduated scales on the work table assist accuracy which can be further enhanced by using the optional Folding Jig.
ProductsPriceBuy
Clarke Hot Wire Strip Heater 500mm
Order Code: MM-STRIPHEATER3
£615.00
Specifications
Model:500
Wires Below:1
Wires Above:0
Maximum Sheet Width:500mm
Material Thickness:4mm
Weight:10kg
Dimensions:800(W) x 280(D) x 70(H)mm
Power Requirements:240V 0.4A, 13A Socket
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

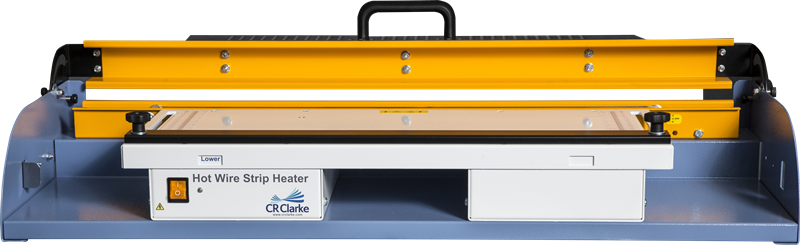

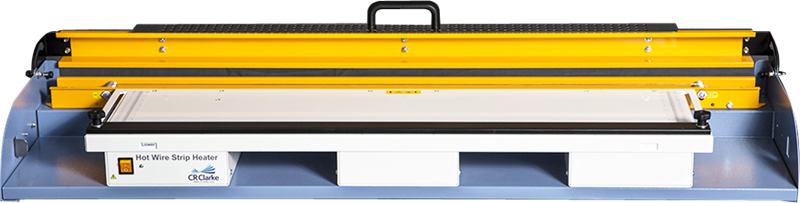

Clarke Hot Wire Strip Heaters 600S/D & 1000S/D
Clarke Hot Wire Stip Heaters 600S/D & 1000S/D
These latest hot wire strip heaters from CR Clarke feature calibrated, adjustable work stops for accuracy, adjustable wire height to suit a range of different materials, and the option of twin heating wires for bending larger radii when needed. Optional contact blades are available for bending thin material and all machines have a clamp beam to prevent bowing. In addition, ‘D’ models have an upper heater beam. This allows thicker and less thermally conductive plastics to be worked with confidence.

N.B. A key resource for plastics working – these capable machines will suit any workshop or design studio and have features to keep fingers away from hot plastic and elements.
ProductsPriceBuy
Clarke Single Sided Hot Wire Strip Heater 600S
Order Code: MM-STRIPHEATER1
£875.00
Clarke Double Sided Hot Wire Strip Heater 600D
Order Code: MM-STRIPHEATER1D
£1,430.00
Clarke Single Sided Hot Wire Strip Heater 1000S
Order Code: MM-STRIPHEATER2
£1,380.00
Clarke Double Sided Hot Wire Strip Heater 1000D
Order Code: MM-STRIPHEATER2D
£1,930.00
Clarkes Calibrated Folding Jig 600mm Capacity
Order Code: MMP-SH-JIG2
£245.00
Clarkes Calibrated Folding Jig 1000mm Capacity
Order Code: MMP-SH-JIG3
£290.00
Specifications
Model:600S600D
Wires Below:22
Wires Above:02
Max Sheet Width:600mm600mm
Material Thickness:8mm10mm
Weight:16kg20kg
Dimensions:790(W) x 410(D) x 240(H)mm790(W) x 410(D) x 240(H)mm
Power Requirements:240V 1A 13A Socket240V 2A 13A Socket
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
Specifications
Model:1000S1000D
Wires Below:22
Wires Above:02
Max Sheet Width:1000mm1000mm
Material Thickness:8mm10mm
Weight:24kg28kg
Dimensions:1360(W) x 410(D) x 240(H)mm1360(W) x 410(D) x 240(H)mm
Power Requirements:240V 2A 13A Socket240V 4A 13A Socket
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
Formech Hot Wire Strip Heaters FLB500/1000
Formech Hot Wire Strip Heaters FLB500/1000
These robust and simple to operate machines from Formech feature temperature regulation and a material clamp to prevent bowing and to aid bend accuracy. Both machines have an adjustable heating gap to control the bend radius and (in addition) the FLB 1000 model has a timer and alarm for reliably bending batches of the same material. The optional cooling jig enables material to be set to any given angle.

A key resource for plastics working – these robust, simple machines will suit most workshop or design studio needs.
ProductsPriceBuy
Formech FLB500 Strip Heater with Cooling Jig
Order Code: MM-STRIPHEATER5
£865.00
Formech FLB1000 Strip Heater with Cooling Jig
Order Code: MM-STRIPHEATER8
£2,200.00
Specifications
Model:FLB500FLB1000
Max Sheet Width:500mm1000mm
Material Thickness:6mm6mm
Heater Type:8mm Incoloy, 500W8mm Quartz, 750W
Weight:8kg8kg
Dimensions:680(W) x 330(D) x 175(H)mm1280(W) x 330(D) x 175(H)mm
Power Requirements:240V 3A, 13A Socket240V 4A, 13A Socket
Warranty:UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
Folding Jig
Folding Jig
The folding jigs have fully adjustable angle and position stops, and are an ideal accessory for strip heaters. The folding jigs are available in 600, 1000 and 1500mm working lengths.

ProductsPriceBuy
Clarkes Calibrated Folding Jig 600mm Capacity
Order Code: MMP-SH-JIG2
£245.00
Clarkes Calibrated Folding Jig 1000mm Capacity
Order Code: MMP-SH-JIG3
£290.00
Clarkes Calibrated Folding Jig 1500mm Capacity
Order Code: MMP-SH-JIG4
£335.00
