Injection Moulding

Thermoforming Equipment

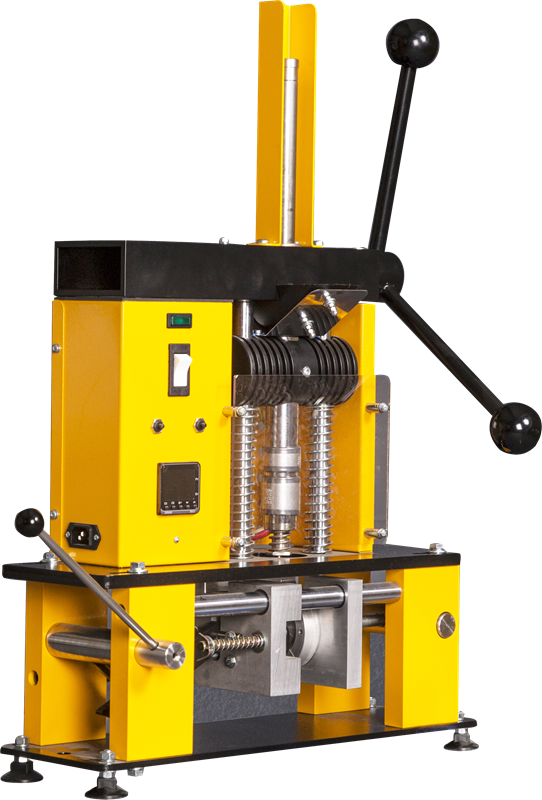

Clarke Injection Moulder 25

Clarke Injection Moulder 25
This well-engineered machine is ideal to demonstrate this important production process, and more than capable of producing dense, functional parts for projects. Up to 25g of suitable thermo-plastic is melted in the temperature controlled heating barrel and injection is by a rack and pinion driven ram. Two part moulds are locked into an over-centre clamping system which incorporates an automatic product release mechanism. Injection moulding is an ideal compliment to CNC milling for mould production.
Model:Clarke Injection Moulder 25
Mould Capacity:Up to 25kg
Ram Type:Calibrated rack and pinion - hand operated lever
Dimensions:630(W) x 500(D) x 730(H)mm
Power Requirements:240V 2A, 13A Socket
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

Clarke Injection Moulder 25

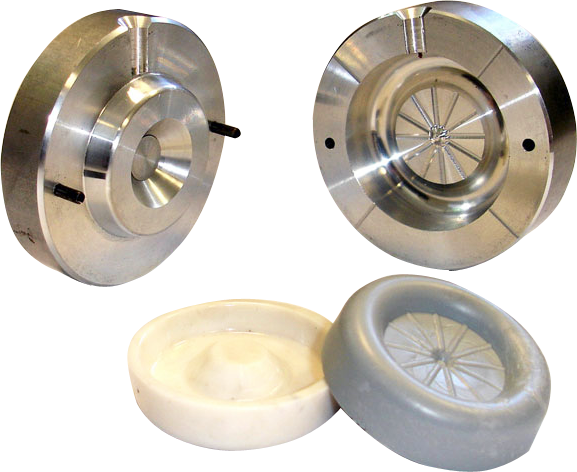

Clarke Injection Moulder (c/w wheel mould and 2kg of granules)
Order Code: MM-INJMOULD1
