RJH Chamois Polisher with Integrated Extractor

Double Ended High Quality Polishers

View PDF Version of Page

RJH Chamois Polisher with Integrated Extractor

RJH Chamois Polisher with Integrated Extractor

Prices
Machines
Accessories
Machines
Standard - Without Braking System
* A fitted Integral DC Braking system is available at an additional cost (see section below). Although not a mandatory requirement, there is an increased demand from various H&S consultants who deem this necessary. This braking system is also available as a retrofit kit for existing machines in the field.
ProductsPriceBuy
RJH Finishing CH2001TE Chamois Polisher with Extractor (3 phase) 1.25kW, 1500rpm
Order Code: MM-POLISHER3T
£4,740.00*
RJH Finishing CH2001SE Chamois Polisher with Extractor (1 phase) 0.7kW, 1500rpm
Order Code: MM-POLISHER3S
£5,050.00*
With Braking System
ProductsPriceBuy
RJH Finishing CH2001TE-02 Chamois Polisher with Integral Braking System with Extractor (3 phase) 1.25kW, 1500rpm
Order Code: MM-POLISHER3RT
£6,050.00
RJH Finishing CH2001SE-02 Chamois Polisher with Integral Braking System with Extractor (1 phase) 0.7kW, 1500rpm
Order Code: MM-POLISHER3RS
£6,365.00
Accessories
ProductsPriceBuy
Optional fitted LED light for RJH Bandfacer, Polisher or Grinder machines. Must be fitted at time of purchase. Please specify if for 1 phase or 3 phase machine.
Order Code: MT-RJ-LGT1
£495.00
Mop, 200 x 25, Stiched for Chamois Polisher
Order Code: MMP-PO-MP1
£38.00
Mop, 200 x 25, Loose for Chamois Polisher
Order Code: MMP-PO-MP2
£37.00
Replacement Dust Extraction Filter Bag for integrated extractor of RJH Gryphon Grinder, Antelope Bandfacer and Chamois Polisher
Order Code: MT-BF-FILTER1
£93.00
Product Description

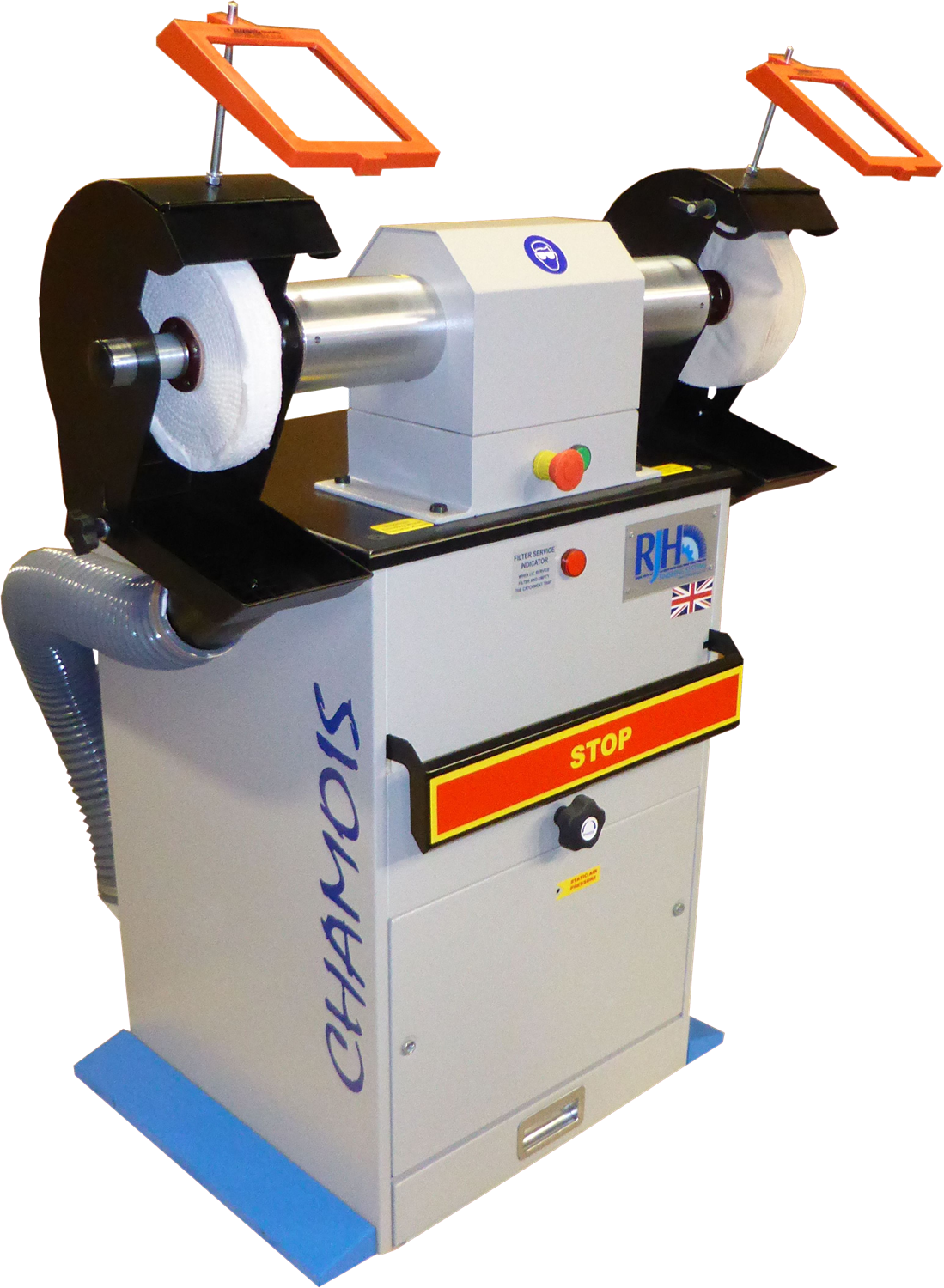

The Chamois double-ended polisher is a quiet, smooth running machine with a long-standing reputation for reliability and longevity in educational establishments. The spindle is guarded by adjustable steel sleeves and safety is further ensured by steel guards and robust adjustable eye shields. These guards double as dust-capture hoods and have provision for duct connection.

This fully-integrated solution provides the high-quality Chamois polisher on a robust steel base unit. The machine is assembled and wired to make siting and connection as easy as possible. The LEV system auto-runs with the polisher and waste is collected in a pull out tray. The steel cabinet includes a positive knee-stop and a shaker handle which is used to shake excess dust off the filter.
Product Specifications
Specifications
Model:RJH Finishing Chamois Polisher
Spindle Speed:1 Phase: 1,415rpm
3 Phase: 1,440rpm
Max Mop Size:200 x 25mm
Mop Drive Motor:1 Phase: 0.70kW (0.94hp)
3 Phase: 1.25kW (1.7hp)
Extraction Motor:0.55kW (0.74hp)
Extraction Drawer Capacity:8 litres
Centre of Mop:925mm(H)
Weight:95kg
Dimensions:1035(W) x 650(D) x 1180(H)mm
Power Requirements:415V 1.8kW or 240V 1.3kW
Lockable rotary isolator
Warranty:UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
CAD Drawing (with Safe Working Area)
Available on request in DXF, DWG & DTD (2D Design) formats.
