Gabro 2M2/3M2 Guillotines

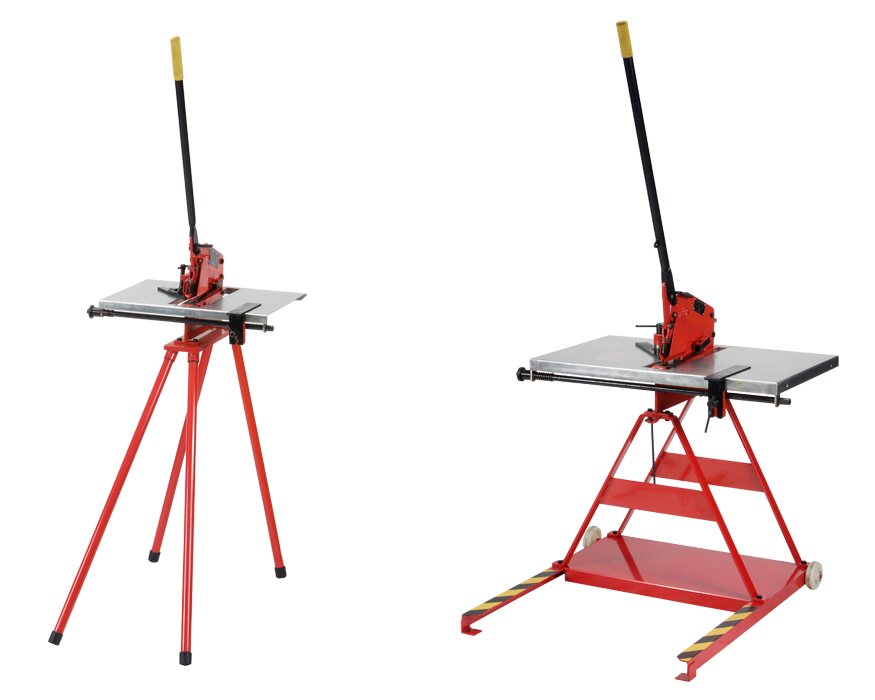

2M2 (left), 3M2 (right)
Conventional guillotines have a scissor action which distorts at least one of the cut edges, but the Gabro designed guillotines cut out a thin strip of metal leaving both edges undistorted and free from sharp burrs. The Gabro guillotines also work much better than a conventional guillotine for a range of other materials such as plastic sheet, hardboard and thin MDF, laminates, etc. They come complete with cutting guides, angle guide and backstop for easy setup and for repetition work. Available as either bench mounted or with floor stands, there are two model sizes available, the 2M2 and the 3M2. The Gabro guillotines are ideal for educational use.
N.B. For safety a locking kit must be fitted when not in use (available below).
Specifications
Model: | 2M2 | 3M2 |
Max Capacity Mild Steel: | 1.6mm | 3.2mm |
Max Capacity Non Ferrous: | 3.2mm | 4.0mm |
Blade Thickness: | 3.3mm | 4.5mm |
Max. Cut per Stroke: | 70mm | 108mm |
Table Size: | 480 x 370mm | 860 x 560mm |
Weight (Machine Only): | 12kg | 46kg |
Weight (On Stand): | 21kg | 67kg |
Dimensions (Machine Only): | 480(W) x 370(D) x 202-809(H)mm | 860(W) x 560(D) x 230-1140(H)mm |
Dimensions (On Stand): | 460(W) x 810(D) x 1012-1619(H)mm | 890(W) x 970(D) x 1040-1950(H)mm |
Warranty: | UK Mainland: 1 Year Return to Base Elsewhere: 1 Year Return and Collect |
Prices
(excluding VAT)
Gabro 2M2/3M2 Guillotine
Products | Price | Buy |

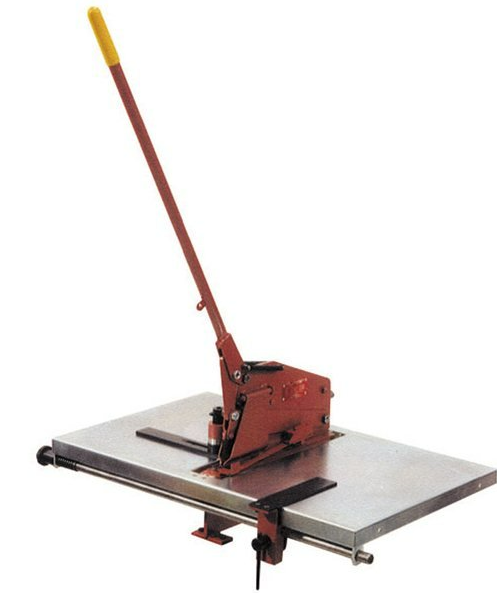

Gabro Model 2M2 Guillotine Order Code: MM-GUILLOTINE3 | £870.00 | |
Stand for Gabro 2M2 Guillotine Order Code: MM-GUILLOTINE3A | £181.00 | |

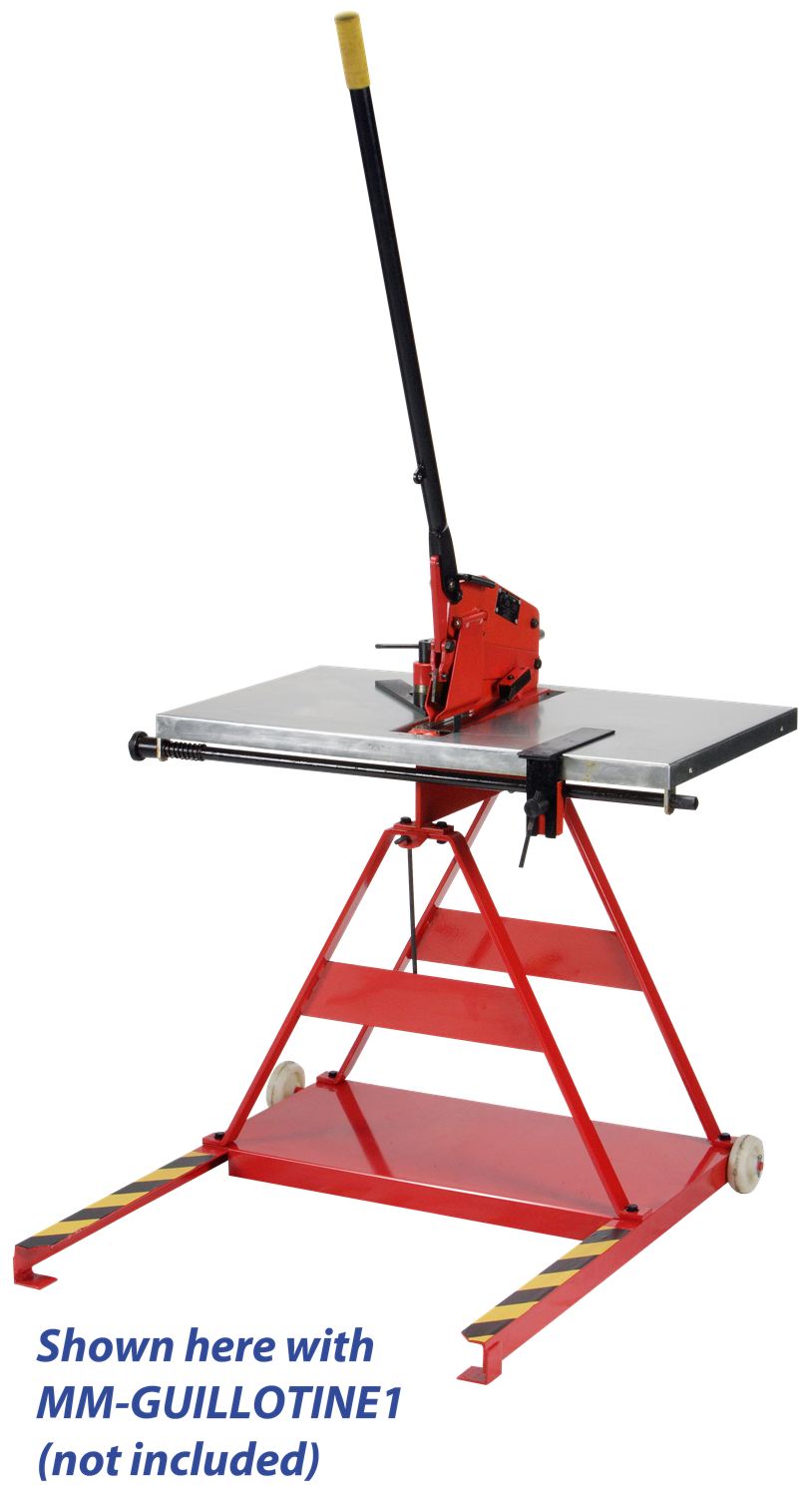

Gabro Model 3M2 Guillotine Order Code: MM-GUILLOTINE1 | £1,540.00 | |
Stand for Gabro 3M2 Guillotine Order Code: MM-GUILLOTINE1A | £290.00 | |

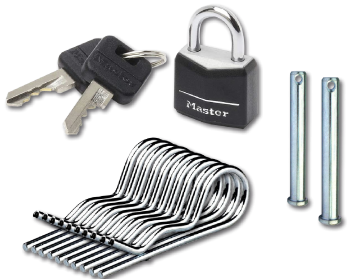

Safety Locking Kit for Guillotine Order Code: MT-MS-SAF2 | £26.00 | |
CAD Drawing (with Safe Working Area)
Available on request in DXF, DWG & DTD (2D Design) formats.
