Box Folders

Metal Working Machines

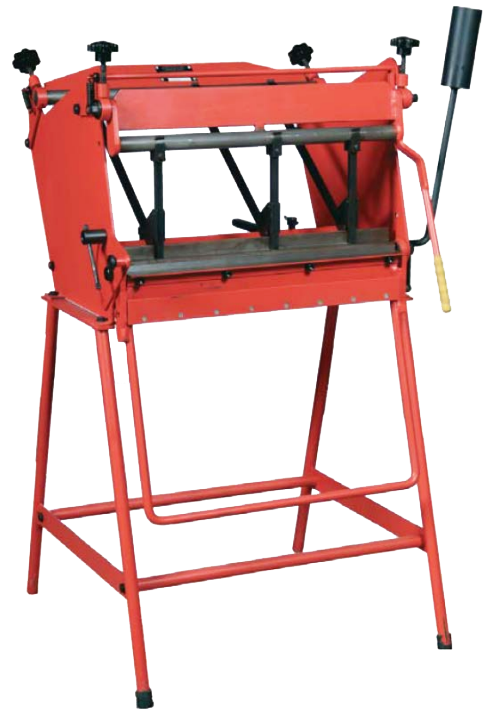

Gabro BF620-2/BF1000 Box Folders

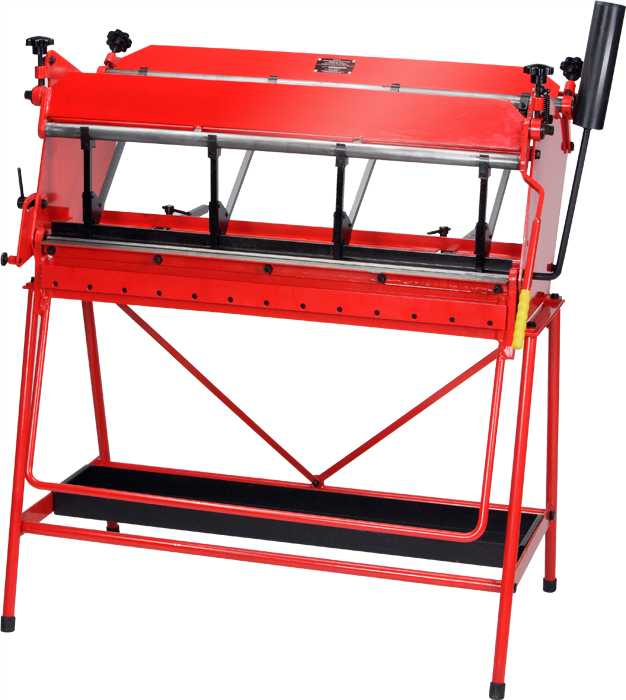

Gabro BF1000
Gabro BF1000
Gabro folders are extremely versatile machines - not only do they tackle straight forward bends with ease, but they can also fold up trays, boxes, pans, lids, etc. It is even possible to fold up boxes and pans with sloped sides. The machines use a clamp bar system and brackets, and channel sections can be bent right around the bar to form tubes. These are well thought out machines, ideal for all sheet metalwork, and ideal for educational use. The BF620-2 can be bench or stand mounted, the BF 1000 comes complete with stand.
Specifications
Model:BF620-2BF1000
Max Length of Bend:
- 1.6mm Steel:620mm1000mm
- 2.0mm Steel:300mm500mm
- 3.2mm Steel:100mm100mm
Max. Box Size:250 x 250 x 180mm1000 x 570 x 215mm
Weight (Machine Only):95kgN/A
Weight (With Stand):109kg143kg
Dimensions (Machine Only):750(W) x 579(D) x 546(H)mmN/A
Dimensions (With Stand):750(W) x 579(D) x 1283(H)mm1340(W) x 700(D) x 1400(H)mm
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

Gabro BF620-2/BF1000 Box Folders
ProductsPriceBuy
Gabro BF620-2 Box and Pan Folder
Order Code: MM-FOLDER1
£1,890.00
Floor Stand & Tray for Gabro BF620-2
Order Code: MM-FOLDER1A
£245.00
Gabro BF1000 Box and Pan Folder (includes stand)
Order Code: MM-FOLDER3
£2,400.00

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
Gabro BF620-2/BF1000 CAD Drawing
