ETM-2/3VS Turret

Manual Mills

ETM-2/3VS Turret

ETM-2/3VS Turret

Prices
(excluding VAT)
Machines
ProductsPriceBuy
ETM-2VS Variable Speed Turret Mill (3 phase) + Emergency Footstop
Order Code: MM-METALMILL12F
£14,465.00
ETM-3VS Variable Speed Turret Mill (3 phase) + Emergency Footstop
Order Code: MM-METALMILL25F
£15,265.00
Recommended Tooling Pack
This Tooling Pack provides a useful selection of tools and accessories to "get you going"
ProductsPriceBuy
Tooling Pack for MM-METALMILL12/25 (ETM-2VS/3VS).
Includes Swivel Base 150mm machine vice; collet set ER-32 R8 with 6 collets, set of 10 end mills and 10 slot drills, keyed drill chuck and arbor.
Order Code: MT-MM-PK77
£515.00
Product Description

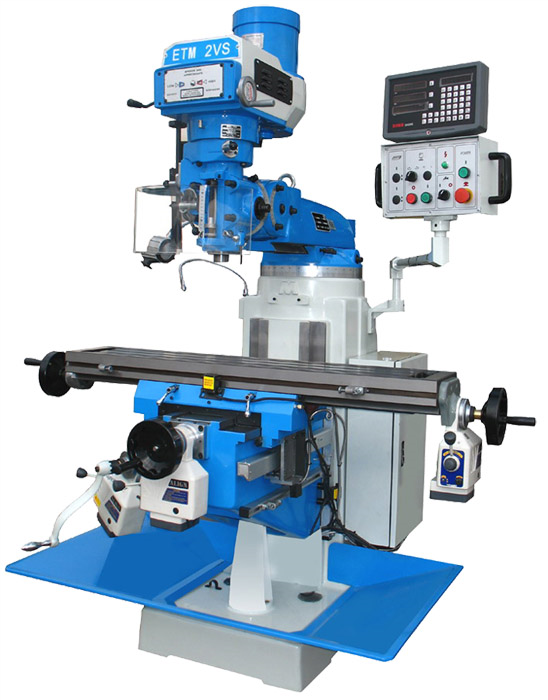

This industry standard style of full size turret mill comes complete with all the bells and whistles. A huge table size, 3 axis digital readout, power feed to ALL three axes, 3hp variable speed head, power feed to the quill, built-in coolant, etc. With all this capability, there is no compromise on quality as the machine is precision manufactured using meehanite castings and has hardened bed ways for much longer service life. This outstanding vertical milling machine will undoubtedly provide everything that a school or college could reasonably ask for at a very competitive price.

The education versions of these machines, supplied by TechSoft, include all necessary guards, stops and interlocks to make them suitable for educational use.

Standard Accessories:
3 Axis Digital Readout, In-built Coolant System, X, Y Axis Power Feed, Z Axis Power Feed (ETM-2VS), Electric Rise and Fall on Z Axis (ETM-3VS), Interlocked Cutter Guard, One Shot Central Lubrication System, Machine Light

Emergency Foot Stop supplied as standard.
Product Specifications
Specifications
Model:ETM-2VSETM-3VS
Axis Travel:840 x 305 x 350mm950 x 400 x 400mm
Table Size:1246 x 230mm1370 x 254mm
Spindle Speeds:60-4200rpm (variable)70-4200rpm (variable)
Spindle Taper:R8R8
Digital Readout:3 Axis3 Axis
Coolant System:InbuiltInbuilt
Motor:2.2kW (3hp)2.2kW (3hp)
Weight:1060kg1400kg
Dimensions:1400(W) x 1470(D) x 2030(H)mm1800(W) x 2010(D) x 2170(H)mm
Power Requirements:415V 2.2kW Lockable rotary isolator415V 2.2kW Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
