You are here: Home > Products > Workshop Equipment > Metal Lathes > TU2406V

TU2406V

Variable Speed Metal Lathe

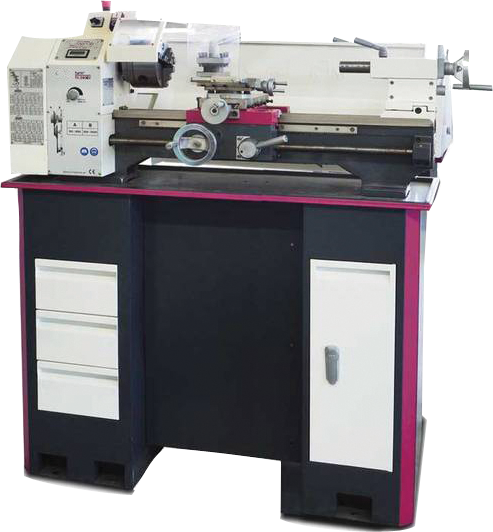

TU2406V Variable Speed Metal Lathe

TU2406V Variable Speed Metal Lathe
These light duty lathes will be ideal in a multi-materials workshop where metal-turning needs to be among the many facilities available for students. Several of these would provide a cost-effective, space-saving solution in a training environment where demand is high but space is limited. Compact and generously equipped, they provide all the key capabilities needed for surfacing, facing and screw-cutting in steel and non-ferrous alloys. Both machines include all necessary guards, stops and interlocks to make them suitable for educational use.

Standard Accessories:
Interlocked Chuck Guard, Leadscrew Guard, Machine Tray, Rear Splash Guard, Change Gear Kit, 3-Jaw Chuck - 100mm, MT2 Steady Centre, MT3 Steady Centre.
Specifications
Model:TU2406V
Distance Between Centres:550mm
Swing Over Bed:250mm
Spindle Speeds:150-2200rpm
Tailstock Taper:2MT
Motor:1.1kW
Weight:125kg
Dimensions:1310(W) x 520(D) x 560(H)mm
Power Requirements:240V 1.1kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

ProductsPriceBuy
TU2406V Variable Speed Metal Lathe (1 phase) 250 x 550mm c/w Emergency Footstop and fitted leadscrew cover
Order Code: MM-METALLATHE43F
£2,790.00
Recommended Tooling Pack
This Tooling Pack provides a useful selection of tools and accessories to "get you going"
ProductsPriceBuy
Tooling Pack for MM-METALLATHE43/44 (TU2304V/TU2406V)
(Includes Quick Change Toolpost; Live Centre; Keyed Drill Chuck and Arbor; Indexable tools 12mm - 60deg RH, 60deg LH, vee, boring + blade-type parting tool)
Order Code: MT-LM-PK78
£535.00
External Threading Tool 12mm
Order Code: MT-LM-TTS50
£38.00
Recommended Extras
ProductsPriceBuy
2 Axes Digital Read Out fitted to MM-METALLATHE43/44
Order Code: MM-METALLATHE43C
£1,845.00*
Stand for MM-METALLATHE43/44
Order Code: MM-METALLATHE43A
£510.00
*Must be fitted at time of purchase
