Metal Cut-Off Saws

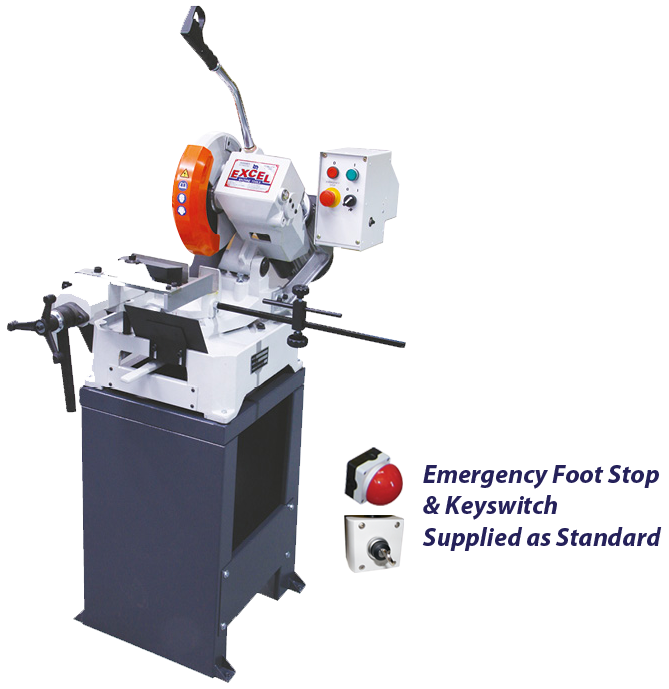

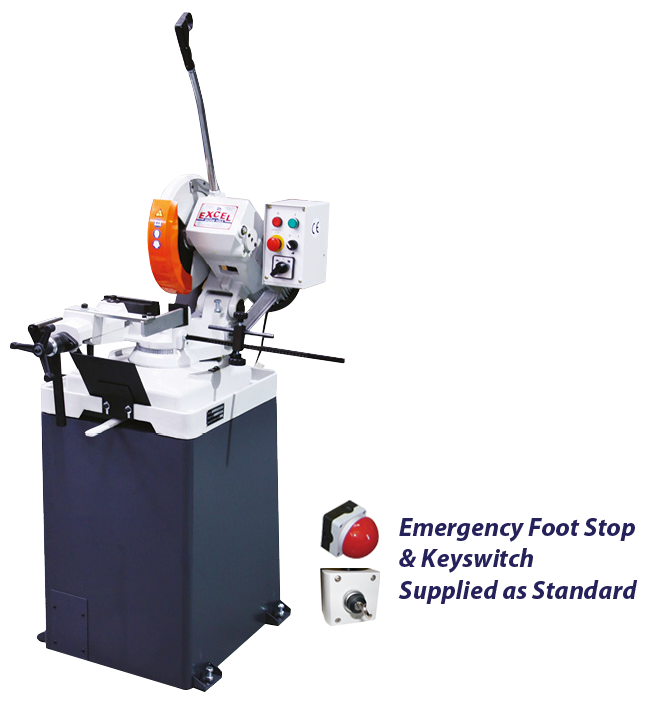

ECS 250/315 - Metal Cut-Off Saws

ECS 250/315 - Metal Cut-Off Saws
An ideal solution where preparation of steel and non-ferrous stock is regularly required but space is limited. The ECS 250/315 produce clean, accurate cuts in heavier bar stock or tube, and have surprising capacity for machines of this type. A coolant supply system is built-in and the 3ph models have two speeds for greater versatility. The machines are easy to use and feature a quick action vice mechanism - ideal for repeat work. Angles and mitred cuts are quickly set up using the swivelling headstock with pre-set detents for 45 and 90 degrees. These are heavy, precision-built machines for long life and smooth vibration-free running.

N.B. Work supports (see SF-ROLLERSTAND5 in prices below) must be used for long pieces to stop tipping.

Standard Accessories:
Machine Stand, Coolant System, High Speed Blade, Quick Action Vice.
Specifications
Model:ECS 250ECS 315
Blade Diameter:250mm315mm
Cut Capacity Solid Rod:30mm Diameter50mm Diameter
Cut Capacity Round Tube:75mm Diameter100mm Diameter
Cut Capacity Square Tube:65 x 65mm82 x 82mm
Cut Capacity Rectangular Tube:90 x 50mm110 x 70mm
Power Requirements:90 x 50mm110 x 70mm
Motor:0.75kW (1hp)1.50kW (2hp)
Motor Speed:1 Phase: 45rpm
3 Phase: 45/90rpm (2 speed)
44/88rpm (2 speed)
Coolant Pump:90W90W
Coolant Tank:2 Litres5 Litres
Weight:131kg175kg
Dimensions:960(W) x 940(D) x 1570(H)mm1020(W) x 990(D) x 1830(H)mm
Power Requirements:240V 0.75kW, Lockable rotary isolator240V 1.50kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return to Base

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.

Prices (excluding VAT)

ProductsPriceBuy
ECS 250 Metal Cutting Circular Saw (3 phase) (Keyswitch + Emergency Foot Stop)
Order Code: MM-CIRCSAWM1KFT
£2,170.00
ECS 250 Metal Cutting Circular Saw (1 phase) (includes Keyswitch + Emergency Foot Stop)
Order Code: MM-CIRCSAWM1KFS
£2,170.00
ECS 315 Metal Cutting Circular Saw (3 phase) (includes Keyswitch + Emergency Foot Stop)
Order Code: MM-CIRCSAWM2KF
£2,365.00
Spare Blades

(one blade included with machine)

ProductsPriceBuy
250mm Dia. Spare Blade for MM-CIRCSAWM1
Order Code: MT-BM-BL6
£98.00
315mm Dia. Spare Blade for MM-CIRCSAWM2
Order Code: MT-BM-BL7
£152.00
Height Adjustable Roller Stand. (1000 x 400 x 650-950mm)
Order Code: SF-ROLLERSTAND5
£280.00
