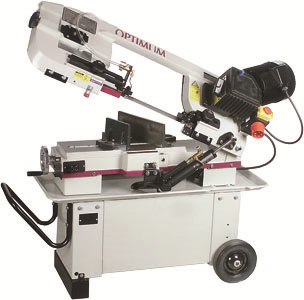

Optimum S181G Bandsaw

Metal Bandsaw

Optimum S181G Bandsaw

A large capacity bandsaw with a powerful 0.75kW motor. This sturdy machine is capable of heavy cuts for prolonged periods. Three speeds allow the most appropriate blade speed to be set according to the material and the coarseness of the blade used. The head has adjustable hydraulic downfeed to allow the rate of cut to be set to avoid undue strain on the blade. An inbuilt coolant system allows very heavy cuts to be taken without overheating the blade. Angle cuts are easy to achieve by swivelling the vice. Worm transmission with ground and hardened gears ensure quiet running and a very long service life. This machine will be at home in any school or college where heavy use of a bandsaw is envisaged.

N.B. Work supports (see SF-ROLLERSTAND4 in prices below) must be used for long pieces to stop tipping.
Cutting Capacity:180mm round
180 x 240mm rectangular
Speed:39, 66 & 82m/min
Motor:0.75kW (1hp)
Dimensions:1275(W) x 450(D) x 1100(H)mm
Power Requirements:415V 0.75kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

Optimum S181G Metal Bandsaw (3 phase)
Height Adjustable Roller Stand (1000 x 470 x 530-800mm)
Spare Blades
(one blade included with machine)
5-8 Vari Tooth Blade Bimetal
Order Code: MT-BM-BL1
6-10 Vari Tooth Blade Bimetal
Order Code: MT-BM-BL2

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
Optimum S181G Bandsaw CAD Drawing
