Optimum S131GH Bandsaw

Metal Bandsaw

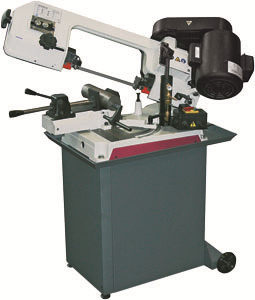

Optimum S131GH Bandsaw

A well thought out and well engineered bandsaw with a 1.1kW motor that is more than adequate for cutting through steel sections. Three speeds allow the most appropriate blade speed to be set according to the material and the coarseness of the blade used. The head has adjustable hydraulic downfeed to allow the rate of cut to be set to avoid undue strain on the blade. A really useful feature of this machine is that the whole cutting head swivels round for mitre/angle cutting. A large scale with clear graduations ensures that it only takes seconds to set up an accurate mitre cut and to then return the machine to normal operation. This saw is ideal for general school preparation work.

N.B. Work supports (see SF-ROLLERSTAND4 in prices below) must be used for long pieces to stop tipping.
Cutting Capacity:128mm round
100 x 145mm rectangular
Speed:22, 31 & 55m/min
Motor:1.1kW (1.47hp)
Dimensions:980(W) x 274(D) x 1060(H)mm
Power Requirements:240V 1.1kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

Optimum S131GH Metal Bandsaw (1 Phase)
Height Adjustable Roller Stand (1000 x 470 x 530-800mm)
Spare Blades
(one blade included with machine)
10-14 Vari Tooth Blade Bimetal
Order Code: MT-BM-BL10

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
Optimum S131GH Bandsaw CAD Drawing
