Woodpecker Floor Drills

Woodpecker Floor Drills

Woodpecker Floor Drills

Prices
(excluding VAT)
Drills
ProductsPriceBuy
Woodpecker Pedestal Mounted Drill 8201P (1 phase) + Emergency Foot Stop
Order Code: MM-DRILL34S
£2,320.00
Woodpecker Pedestal Mounted Drill 8203P (3 phase) + Emergency Foot Stop
Order Code: MM-DRILL34T
£2,320.00
Woodpecker Pedestal Mounted Drill 8323P (3 phase) + Emergency Foot Stop
Order Code: MM-DRILL35T
£2,705.00
Optional Extras
ProductsPriceBuy
Switched downlight for MM-DRILL30/31/32/33/34 (fitted at time of purchase)
Order Code: MT-DR-LGT61
£54.00
Keyed Drill Chuck & Arbor for MM-DRILL31/33/34/35
Order Code: MT-DR-CHK61
£199.00
Heavy Duty Drill Vice
Order Code: MT-DR-VICE61
£140.00
Product Description

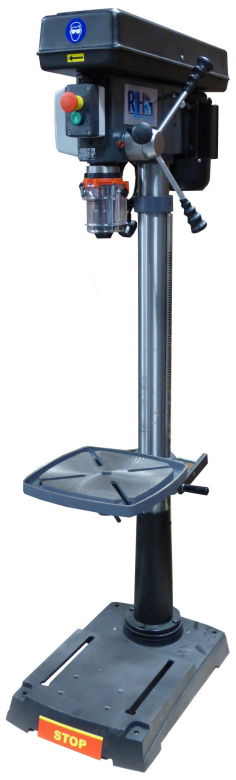

All Woodpecker drills feature cast iron construction for rigidity and smooth operation, adjustable work tables, keyless chucks and calibrated depth stops. These floor (or pedestal) versions offer maximum versatility for working height and two power/capacity options.
Product Specifications
Specifications
Model:8201P/8203P8323P
Drilling Capacity (steel):16mm20mm
Spindle:2 MT3 MT
Spindle Speed:160-3000rpm (16 speed)190-2000rpm (12 speed)
Spindle Travel:80mm120mm
Throat Depth:215mm260mm
Column Diameter:80mm92mm
Table Size:335 x 335mm475 x 425mm
Table Tilt:Non-tiltingNon-tilting
Motor:0.75kW (1hp)0.75kW (1hp)
Weight:120kg120kg
Dimensions:450(W) x 700(D) x 1700(H)mm450(W) x 700(D) x 1700(H)mm
Power Requirements:415V 0.75kW or 240V 0.75kW, Lockable rotary isolator415V 0.75W or 240V 0.75kW, Lockable rotary isolator
Warranty:UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
CAD Drawing (with Safe Working Area)
Available on request in DXF, DWG & DTD (2D Design) formats.
