Optimum B26 / D26 / D33 Pro Drills

Optimum B26 / D26 / D33 Pro Drills

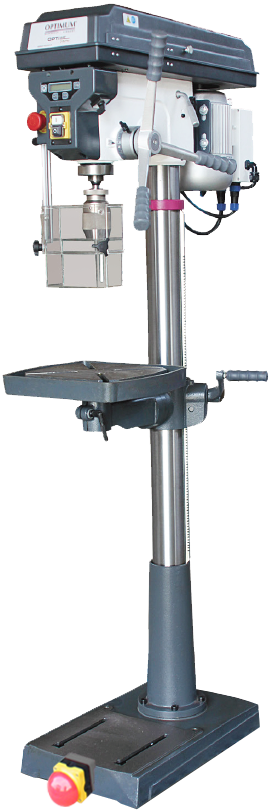

Optimum D33 Pro Drill
Pedestal floor-mounted, these versatile and easy to operate pillar drills can be used for the precision drilling of metal, wood and plastics. Available in 3 or single phase options.
Specifications
Model:B26/D26 ProD33 Pro
Drilling Capacity (steel):25mm30mm
Spindle:3 MT4 MT
Spindle Speed:200-2440rpm (12 speed)120-1810rpm (9 speed)
Spindle Travel:85mm120mm
Throat Depth:210mm254mm
Column Diameter:80mm92mm
Table Size:330 x 290mm475 x 425mm
Table Tilt:-45° to +45°
Motor:0.75kW (1hp)1.1kW (1.5hp)
Weight:85kg132kg
Dimensions:360(W) x 670(D) x 1640(H)mm440(W) x 760(D) x 1710(H)mm
Power Requirements:415V 0.75 kW or 240V 0.75kW
Lockable rotary isolator
415V 1.1kW or 240v 1.1kW
Lockable rotary isolator
Warranty:UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect

Prices (excluding VAT)

ProductsPriceBuy
Optimum Drill D26 Pro 1ph + Emergency Foot Stop
Order Code: MM-DRILL44FS
£1,185.00
Optimum Drill B26 Pro 3ph + Emergency Foot Stop
Order Code: MM-DRILL23FT
£1,005.00

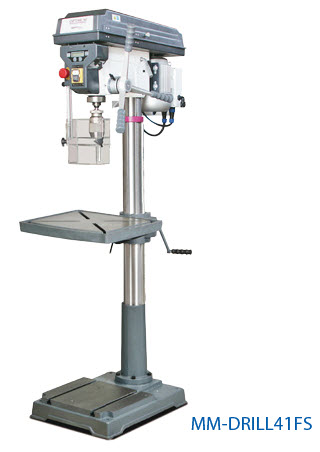

Optimum Drill D33 Pro 1ph + Emergency Foot Stop
Order Code: MM-DRILL41FS
£1,620.00
Optimum Drill D33 Pro 3ph + Emergency Foot Stop
Order Code: MM-DRILL41FT
£1,620.00

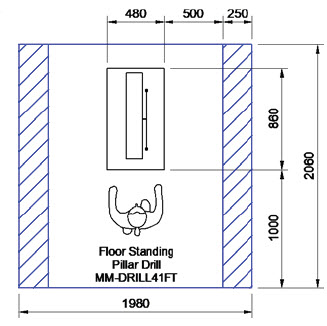

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
MM-DRILL41FT CAD Drawing
