Optimum D17 / B23 / D23 Pro Bench Drills

View PDF Version of Page

Optimum D17 / B23 / D23 Pro Bench Drills

Optimum D17 / B23 / D23 Pro Bench Drills

Prices
(excluding VAT)
Drills
ProductsPriceBuy
Optimum Bench Drill D17 Pro 1ph + Emergency Foot Stop (Bench height required is 750-900mm)
Order Code: MM-DRILL42FS
£1,195.00
Optimum Bench Drill B23 Pro 1ph + Emergency Foot Stop (Bench height required is 750mm max)
Order Code: MM-DRILL21FS
£915.00
Optimum Bench Drill D23 Pro 3ph + Emergency Foot Stop (Bench height required is 750mm max)
Order Code: MM-DRILL43FT
£1,600.00
Stands
ProductsPriceBuy

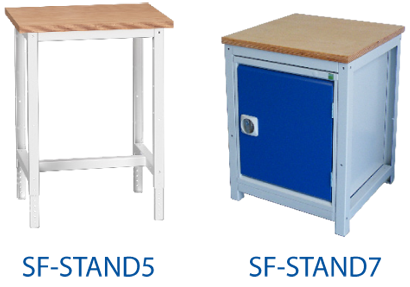

Machine Bench, 700 x 600 x 780mm, adjustable height, MPX Top
Order Code: SF-STAND5
£295.00*
Machine Bench, 700 x 600 x 780mm, adjustable height, MPX Top with underbench cupboard containing shelf
Order Code: SF-STAND7
£595.00*
* Only suitable for Optimum D17
Product Description
Bench top mounted, these versatile and easy to operate pillar drills can be used for the precision drilling of metal, wood and plastics.

N.B. The D17 is suitable for mounting on benches 750-900mm high whereas the B23/D23 are suitable for mounting on standard height tables (max 750mm).
Product Specifications
Specifications
Model:D17 ProB23/D23 Pro
Drilling Capacity (steel):16mm25mm
Spindle:2 MT2 MT
Spindle Speed:500-2520rpm (5 speed)200-2440rpm (12 speed)
Spindle Travel:65mm80mm
Throat Depth:152mm180mm
Column Diameter:60mm73mm
Table Size:235 x 220mm280 x 245mm
Table Tilt:-45° to +45°-45° to +45°
Bench Height:750-900mm600-750mm
Motor:0.5kW (0.67hp)0.75kW (1hp)
Weight:41.5kg58kg
Dimensions:280(W) x 570(D) x 860(H)mm330(W) x 620(D) x 1020(H)mm
Power Requirements:240V 0.5kW
Lockable rotary isolator
415V 0.75kW or 240V 75kW
Lockable rotary isolator
Warranty:UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
CAD Drawing (with Safe Working Area)
MM-DRILL43 CAD Drawing
Available on request in DXF, DWG & 3VS/DTD (TechSoft Design V3) formats.
