Meddings LB1/V & LF1/V Drills

Meddings LB1/V & LF1/V Drills

Meddings LB1/V & LF1/V Drills

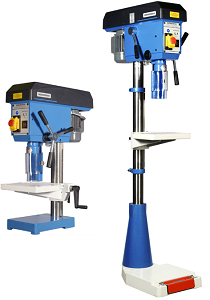

This floor or bench mounted drill incorporates a built-in low voltage worklight and table adjustment by rack/pinion mechanism. An integrated kick-stop switch is fitted to the front of the floor-mounted machine which is wired into a no-volt/overload release starter. A separate ‘mushroom’ style stop switch is supplied with the bench-mounted model ready for fitting on installation.

N.B. The Bench height required for the bench drill is 850-900mm
Specifications
Model:LB1 (Bench)LF1 (Floor)
Drilling Capacity (steel):18mm
Spindle:2 MT
Spindle Speed:400-3600rpm (5 speed)
Spindle Travel:75mm
Throat Depth:185mm
Column Diameter:70mm
Table Size:300 x 390mm
Table Tilt:Non-tilting
Bench Height:850-900mmN/A
Motor:0.45kW (0.6hp)
Weight:77kg133kg
Dimensions:280(W) x 600(D) x 865(H)mm280(W) x 600(D) x 1710(H)mm
Power Requirements:240V 0.25kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site; 8 Years Parts Only
Elsewhere: 8 Years Parts Only

Prices (excluding VAT)

ProductsPriceBuy
Meddings LF1 Floor Drill (1 phase) inc. 1-13mm Chuck & 2MT Arbor + Emergency Foot Stop
Order Code: MM-DRILL4S
£4,020.00
Meddings LF1 Floor Drill (3 phase) inc. 1-13mm Chuck & 2MT Arbor + Emergency Foot Stop
Order Code: MM-DRILL4T
£4,020.00
Meddings LB1 Bench Drill (1 phase) inc. 1-13mm Chuck & Arbor + Emergency Foot Stop (Bench height required is 850-900mm)
Order Code: MM-DRILL4AFS
£3,890.00
Meddings LB1 Bench Drill (3 phase) inc. 1-13mm Chuck & Arbor + Emergency Foot Stop (Bench height required is 850-900mm)
Order Code: MM-DRILL4AFT
£3,890.00

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
MM-DRILL4A CAD Drawing
