Meddings Compact Bench & Floor Drills

Meddings Compact Bench & Floor Drills

Meddings Compact Bench & Floor Drills

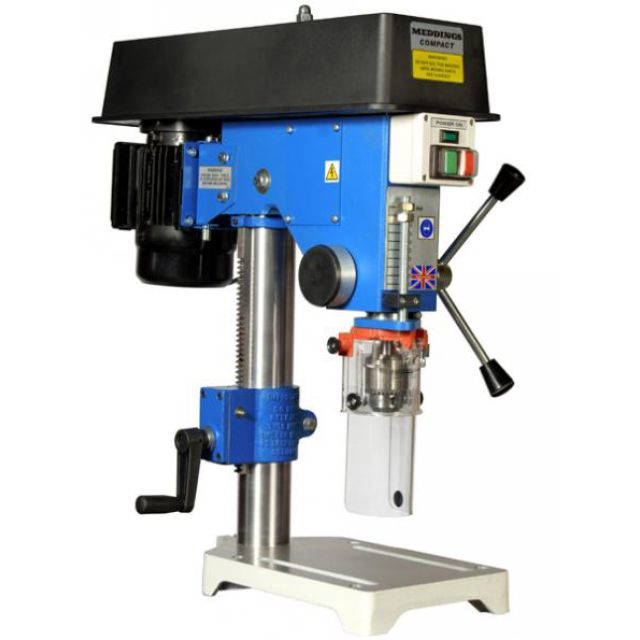

Ideal for lighter duty drilling work, the floor machine has table adjustment and the bench machine has a raise/lower head, using the base as the table. Adjustment by rack/pinion mechanism is standard. Both machines are supplied with a ‘mushroom’ style stop switch for fitting on installation via the standard no-volt/overload release starter. Available in single-phase electrical supply only.

N.B. The Bench height required for the bench drill is 850-900mm.
Drilling Capacity (steel):13mm
Spindle:Fitted chuck
Spindle Speed:500 - 4000rpm (5 speed)
Spindle Travel:100mm
Throat Depth:194mm
Column Diameter:70mm
Table Size:235 x 409mm (Base)235 x 409mm
Table Tilt:Non-tilting
Bench Height:850-900mmN/A
Motor:0.25kW (0.34hp)
Dimensions:372(W) x 627(D) x 815(H)mm372(W) x 627(D) x 1577(H)mm
Power Requirements:240V 0.25kW, Lockable rotary isolator
Warranty:UK Mainland: 1 Year On-Site; 8 Years Parts Only
Elsewhere: 8 Years Parts Only

Prices (excluding VAT)

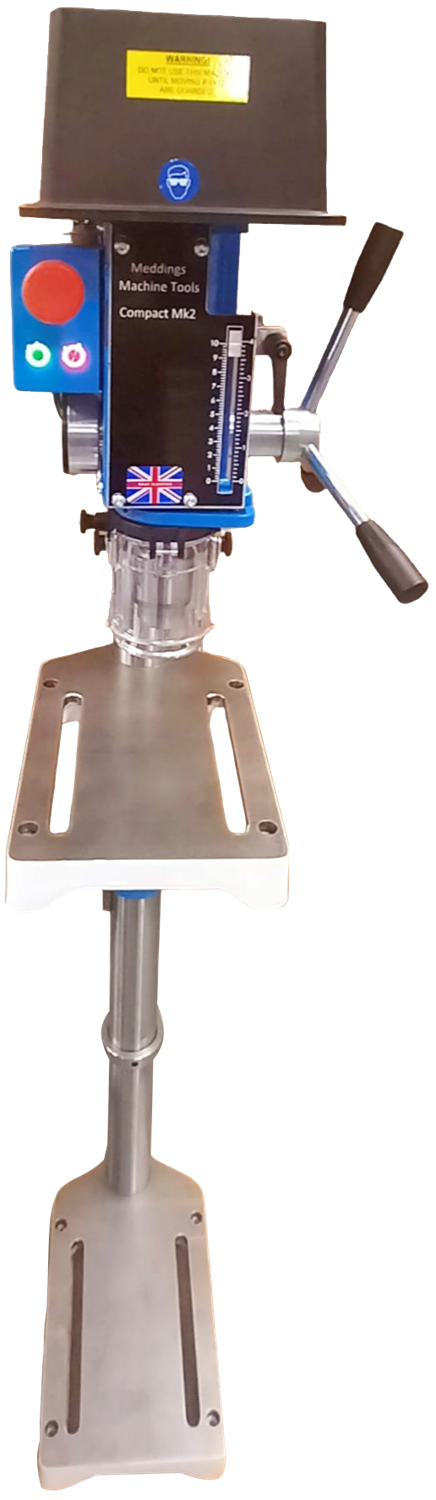

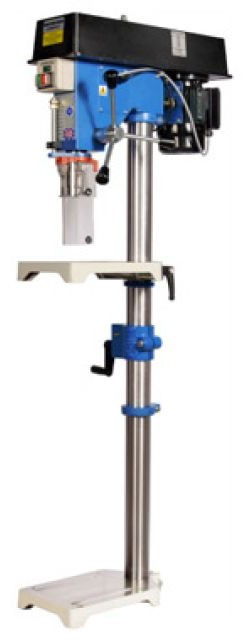

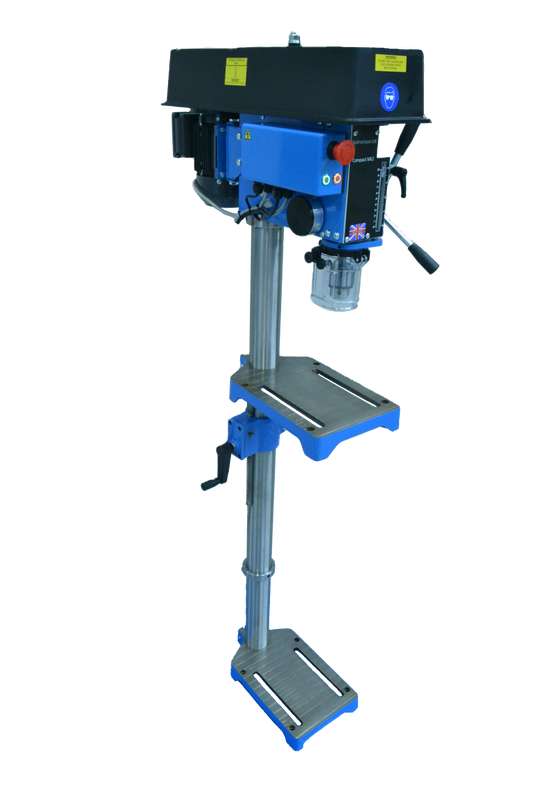

Meddings LF1 Floor Drill (1 phase) inc. 1-13mm Chuck + Emergency Foot Stop
Order Code: MM-DRILL3F

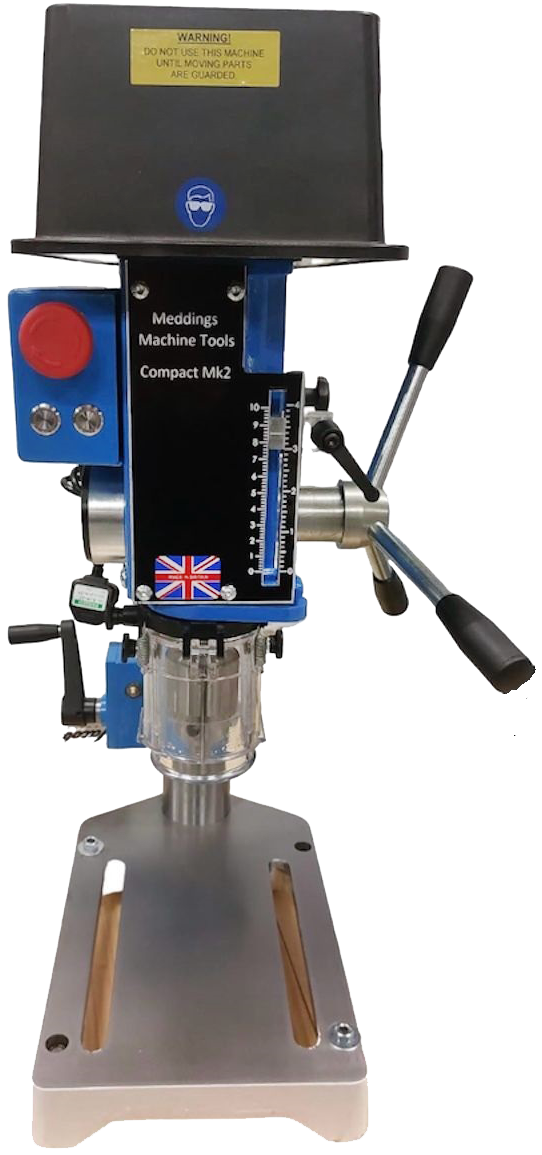

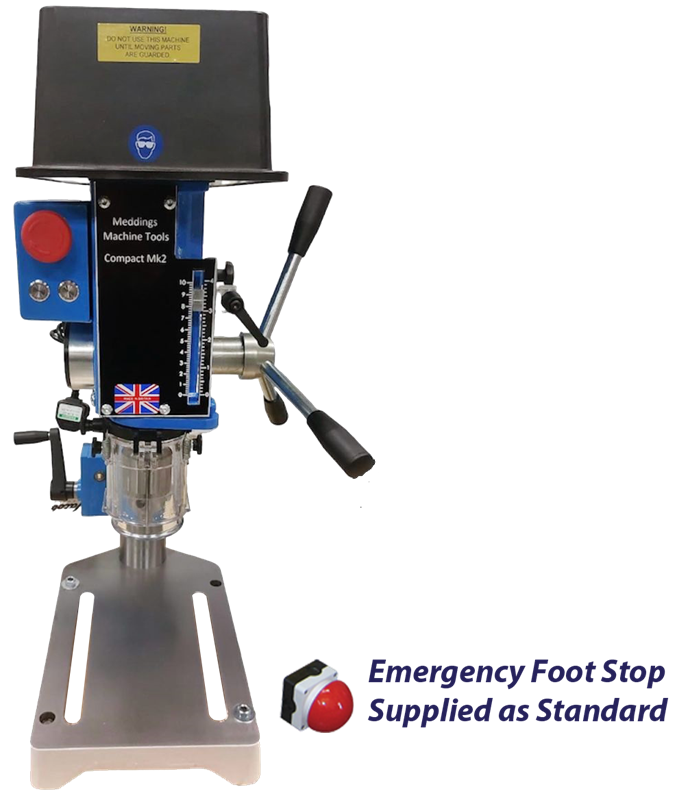

Meddings Compact Bench Drill inc. 1-13mm Chuck + Emergency Foot Stop (Bench height required is 850-900mm)
Order Code: MM-DRILL3AF

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
MM-DRILL3 CAD Drawings
