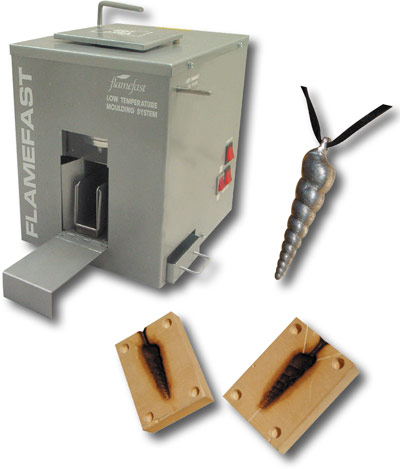

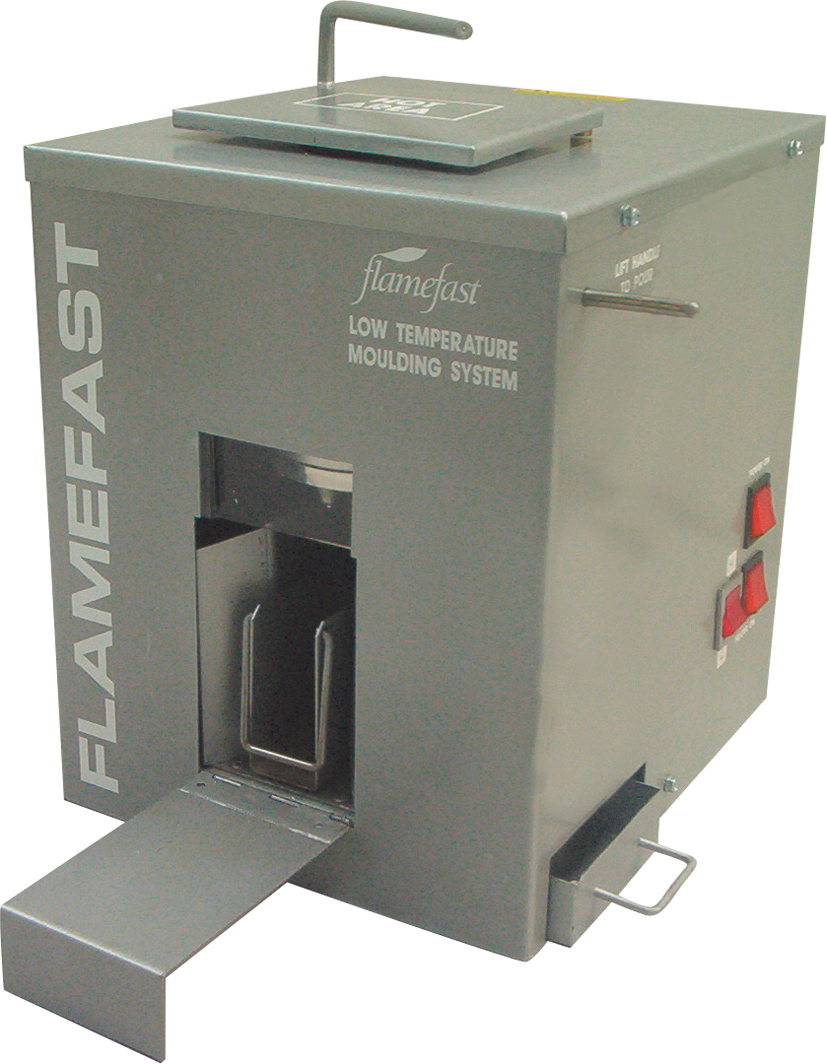

LT1 - Low Temperature Casting System

User Friendly, Low Cost, Low Temperature Casting

View PDF Version of Page

LT1 - Low Temperature Casting System

LT1 - Low Temperature Casting System

(excluding VAT)
Low Temperature Casting System
Order Code: TM-LT1
Recommended Accessories and Materials
What's Included
Supplied with 1kg (approx.) of lead free pewter.
Product Description
What is the LT1?
The LT1 Low Temperature Casting System is a cost effective and safe method to cast Lead Free Metal and MCF Low Melting Point Alloy in a standard classroom environment.

Why Casting?
Creating a product from a molten material is a magical process. However, due to a lack of hot metal facilities, a lack of expertise, and or concerns over Health and Safety, many teachers are put off incorporating it into their lessons. Flamefast have always been at the forefront of hot metal equipment and so it should be no surprise that they have created a product that answers this issue.

How does it work?
The LT1 is simple, easy and safe to use. It only requires a standard 13amp 230VAC socket and does not need any extraction. The Lead Free Metal (usually Pewter) is added to the internal melting pot through a swivel lid, on top of the unit. Once the LT1 has been switched on it only takes about 15 minutes to get up to temperature, whilst the unique cooling system keeps the entire case cold to touch. Place the mould into the special pouring trough and insert it into the unit so that the approach hole of the mould is under the pouring spout. Gently depress the pouring lever until the approach hole is full of metal and then carefully remove the pouring trough. When the metal in the approach hole has visibly set, the mould can be removed from the pouring trough, and after a couple of minutes the two halves of the mould can be separated.

How do I create a mould?
With CAD/CAM, students have the ability to design and manufacture accurate and detailed products. Whether the mould is designed with 2D Design, 3D Engrave, SolidWorks, or even Pro/DESKTOP your pupils can produce either simple or complex designs. Once designed the mould can be machined on any of TechSoft’s miller/routers. Moulds can be machined in a variety of materials, but we have found that Jelutong and MDF offer a good finish at a reasonable price. Jelutong does however have one great advantage over MDF in that it machines in a fraction of the time. When CAD/CAM and casting are put together a whole new world of designing and making is opened.
Outputting Workflow
Product Specifications
Weight:10kg (approx.)
Dimensions:242(W) x 280(D) x 300(H)mm
Crucible capacity:2.3kg
Max Mould Size
(using mould holding device*):
100 x 100 x 30mm
*Larger sizes can be achieved without the use of the mould holding device
Warranty:UK Mainland & Ireland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
Accessories and Materials
Mould Carrier
Order Code: TMP-LT1-MC
Mould Clip Spring
Order Code: TMP-LT1-MCC
Casting Materials
1Kg Lead Free Pewter
(245°C approx.)
Order Code: TA-PEWTER
1Kg Low Melting Point Alloy
(135°C approx.)
Order Code: TA-ALLOY
Pack of 50 blocks (100 x 70 x 15mm each)
Order Code: TA-JELU-50
