RJH Deer Vertical Bandfacers - Bench Mounted

Solid and Reliable Bandfacers, Designed for Ease of Use

View PDF Version of Page

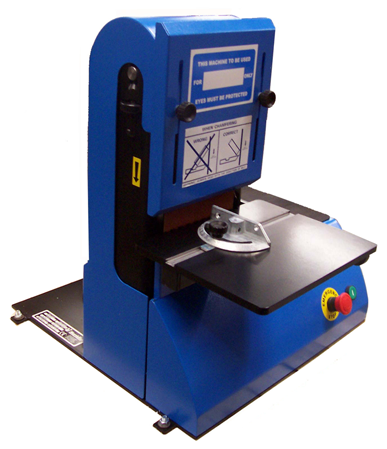

RJH Deer Vertical Bandfacers - Bench Mounted

RJH Deer Vertical Bandfacers - Bench Mounted

Prices
(excluding VAT)
Machines
ProductsPriceBuy
Deer AN150 V3B Bandfacer for Bench Mounting (3 phase) (includes Emergency Foot Stop)
Order Code: MM-BANDFACER1BFT
£2,990.00
Deer AN150 V1B Bandfacer for Bench Mounting (1 phase) (includes Emergency Foot Stop)
Order Code: MM-BANDFACER1BFS
£3,305.00
Essential Extras
Extraction is essential when using a bandfacer. We offer a range of extractors to suit all budgets/requirements.

Positioning
This machine must be securely fixed to the floor using the mounting lugs provided and appropriate heavy-duty fixings.
Product Description
Solid and Reliable Bandfacers
RJH Bandfacers are suitable for wood, acrylic and metal, and have been carefully developed to provide a safe and reliable resource for schools. The machine features a quick-action adjustable table with protractor guide for accuracy. Particular attention has been given to noise reduction, ergonomic design and user-friendly features.

The Deer Bandfacer shares all the technical, operational and ergonomic features of its Antelope cousin but provides a machine-only version for customers to install onto side benching. Extraction will be required via free-standing LEV or connection to a central system. A footstop switch is provided for mounting as appropriate.
Product Specifications
Specifications
Model:AN150
Work Table Size:278(W) x 226(D) x 300(H)mm
Belt Speed:6.5m/sec
Belt Width:150mm
Belt Drive Motor:1 Phase: 0.75kW (1ph)
3 Phase: 1.5kW (2hp)
Weight:77kg
Dimensions:565(W) x 615(D) x 580(H)mm
Power Requirements:415V 1.5kW or 240V 0.75kW
Lockable rotary isolator
Warranty:UK Mainland: 2 Years On-Site
Elsewhere: 2 Years Return and Collect
Extraction Systems and Accessories
Either a Centralised Wood Vacuum System (with appropriate capture hoods) or Local Exhaust Ventilation must be installed with this machine. We recommend:
Centralised Vac Extraction System (see details)
Fixed Local Extraction System (see details)
ProductsPriceBuy
TS101 Underbench Extractor with fittings and attachments for RJH Bandfacer (manual switch)
Order Code: MM-EXTRACT101P4
£1,800.00
Auto Switch Box with integral overload - one socket only for extractor, connection block to connect to mains
Order Code: MM-SWITCH9
£230.00
Accessories
ProductsPriceBuy
Optional fitted LED light for RJH Bandfacer, Polisher or Grinder machines. Must be fitted at time of purchase. Please specify if for 1 phase or 3 phase machine.
Order Code: MT-RJ-LGT1
£515.00
1090x150 - 60 Grit Belt. For Antelope/Deer Bandfacer
Order Code: MT-BF-BLT60
£30.00
1090x150 - 80 Grit Belt. For Antelope/Deer Bandfacer
Order Code: MT-BF-BLT80
£30.00
1090x150 - 100 Grit Belt. For Antelope/Deer Bandfacer
Order Code: MT-BF-BLT100
£30.00
1090 x 150 - 60 Grit Belt (Pack of 10). For Antelope/Deer Bandfacer
Order Code: MT-BF-BLT60-10
£152.00
1090 x 150 - 80 Grit Belt (Pack of 10). For Antelope/Deer Bandfacer
Order Code: MT-BF-BLT80-10
£148.00
1090 x 150 - 100 Grit Belt (Pack of 10). For Antelope/Deer Bandfacer
Order Code: MT-BF-BLT100-10
£142.00
Replacement Dust Extraction Filter Bag for integrated extractor of RJH Gryphon Grinder, Antelope Bandfacer and Chamois Polisher
Order Code: MT-BF-FILTER1
£97.00

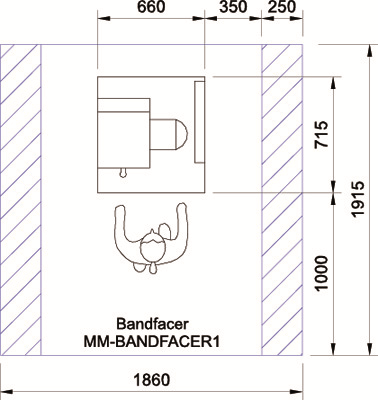

CAD Drawing (with Safe Working Area)
Available on request in DXF, DWG & 3VS/DTD (TechSoft Design V3) formats.
CAD Drawing
