Brother Sewing and Embroidery Machines

Low Cost User Friendly, Versatile Computersied Sewing & Embroidery Systems

Brother Innov-is F480

Brother Innov-is F480
The Innov-is F480 is perfect for beginners and experienced embroiderers and sewers alike, making it ideal for any well-equipped textiles department. 138 built-in embroidery designs are built in, along with 10 frame shapes and 14 stitch types for an overall total of 140 different patterns at your fingertips. The easy-to-read colour, touchscreen LCD display make programming settings, and editing designs simple and straightforward process. Students own designs can be imported using the USB port with an embroidery area of up to 180 x 130mm. The sewing mode has 182 built-in stitches, including 10 buttonhole styles and11 built-in fonts available in 3 sizes. A wide range of feet and accessories are supplied in the box, making this a highly versatile machine.
Embroidery Area:180 x 130mm
Embroidery Designs:138 built-in (+ 11 fonts)
Sewing Stitches:182 built-in (+ 10 one step button hole)
Speed:650 Stitches per min
Arm Length:190mm
Needle Threading & Cutting:Automatic
Bobbin Winding:Automatic
Dimensions:440(W) x 370(D) x 400(H)mm

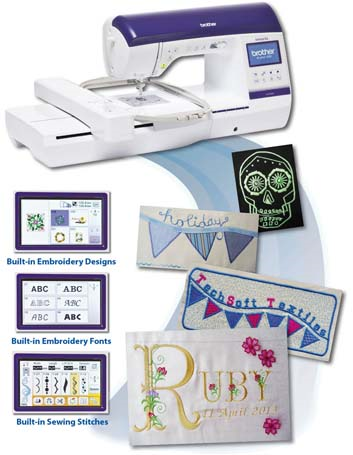

Brother Innov-is NV2600

Brother Innov-is NV2600
The embroidery capabilities of the Innov-is NV2600 includes 138 built in embroidery designs, with 10 frame shapes and 14 border styles together with 11 fonts – all of which can easily be combined and edited on the full colour touch screen display and touch sensor keypad. Students own designs can be imported using the USB port with an embroidery area of up to 160 x 260 mm. The sewing mode has 133 decorative stitches, plus 89 utility stitches, 5 sewing fonts and 10 automatic buttonhole styles. The fabric sensor system automatically adjusts the pressure when stitching over varying fabric thicknesses. Auto tension, top and bottom thread sensors, speed control, automatic needle threader and LED lighting all provide the opportunity for independent student working.
Embroidery Area:260 x 160mm
Embroidery Designs:138 built-in (+ 11 fonts)
Sewing Stitches:232 (+ 19 one step button hole)
Speed:850 Stitches per min
Arm Length:210mm
Needle Threading & Cutting:Automatic
Bobbin Winding:Automatic
Dimensions:693(W) x 451(D) x 300(H)mm

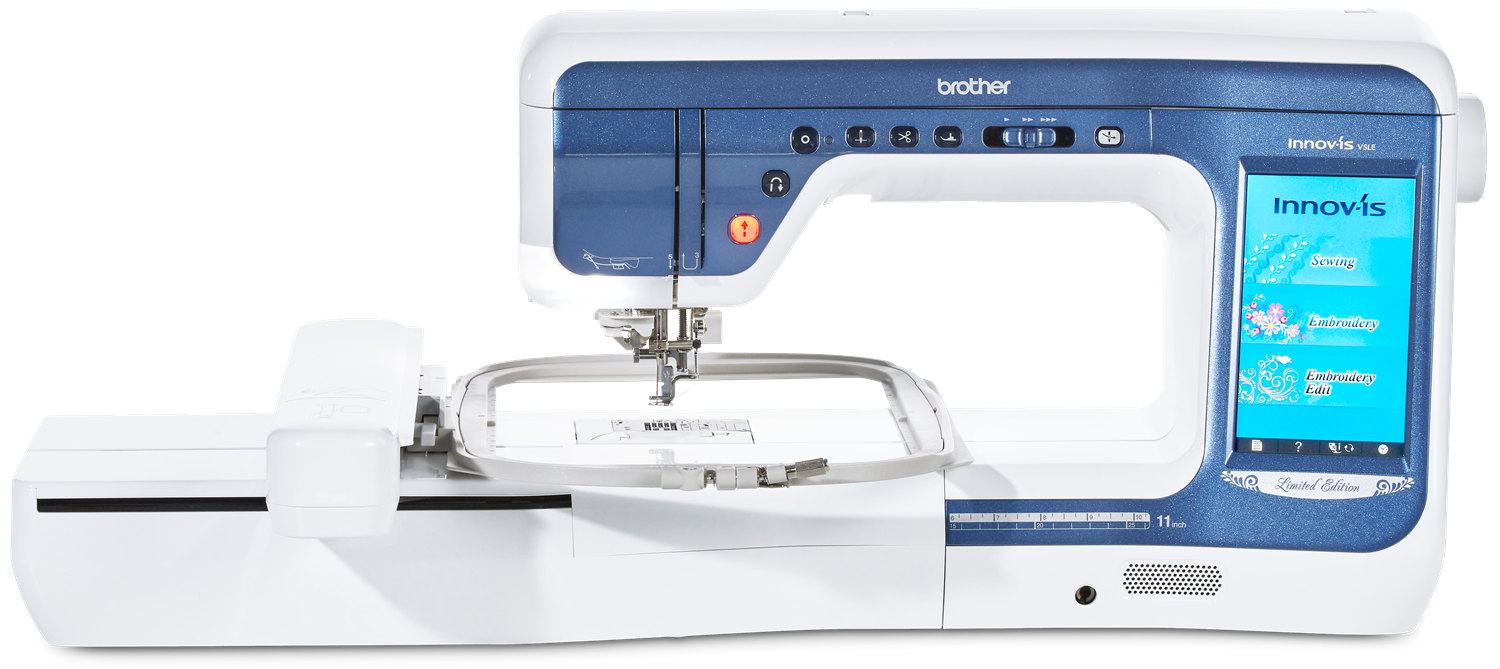

Brother Innov-is V5

Brother Innov-is V5
This is an ideal machine for larger and more advanced projects. With an embroidery area of 300 x 180mm, 227 built in embroidery designs and 17 fonts, work is quickly executed with its high speed sewing and bright extra -large LCD colour touch screen. Designs can be previewed and edited easily and pupils own work can be imported via USB. Equally, designs can be exported and used on other Brother machines. The sewing mode has a wide range of extra-large decorative stitches up to 40mm wide and plenty of creative scope from the crazy quilting designs to the vintage patterns. Multi directional feed also gives pupils more freedom to explore this machine’s potential. Larger projects can be accommodated with the longer arm length to give extra-large sewing space with a range of thicknesses dealt with by the automatic fabric sensor system.
Embroidery Area:300 x 180mm
Embroidery Designs:227 built-in (+ 17 fonts)
Sewing Stitches:473 built-in (+ 14 one step button hole)
Speed:1050 Stitches per min
Arm Length:285mm
Needle Threading & Cutting:Automatic
Bobbin Winding:Automatic
Dimensions:825(W) x 465(D) x 470(H)mm

Description More...

Computerised Sewing and Embroidery Machines
These combination sewing and embroidery machines offer the latest in electronic control systems, a high specification and significant space saving advantage. You also, of course, get two machines for a lot less than it would cost to buy them separately. As sewing machines, they are set up and used in much the same way as their sewing-only counterparts so students will have no trouble moving between machines if one or more of these are used as part of a classroom set. All the machines have an on-board library of embroidery motifs, borders and fonts and it is possible to combine and edit these using the machine’s display and control panel.

There are three machines in the range each featuring automatic needle threading and a colour LCD display for ease of use. Auto tension and thread sensors all contribute to the quality output you can expect from any of these machines.
Click for More...

Prices (excluding VAT)

Single Needle Sewing and Embroidery Machines
Brother Innov-is F480
Order Code: TM-EMB-INNOVF480
Brother Innov-is NV2600
Order Code: TM-EMB-INNOV2600
Brother Innov-is V5
Order Code: TM-EMB-INNOVV5
*These products are subsidised for education and can only be supplied to UK bona-fide educational establishments.
Recommended Extras
For our full range of materials click here
Starter Set of Threads for Innov-is Sewing & Embroidery Only Machines (Contains 62 satin 300m mixed colour threads, 15 white 1,100m 60wt lower thread + 19 A4 sheets stabiliser and interfacing)
Order Code: TA-EMB-SST9
Essential Software
PE Design 11 / Plus 2More Info
Recommended Software
TechSoft Design V3More Info

What's Included

F480 NV2600 V5
Cover: Hard Case Hard Case Hard Case
Handy Wallet of Tools: Yes Yes Yes
Embroidery Hoops: 2 (300 x 130mm & 180 x 130mm) 2 (260 x 160mm & 180 x 130mm) 2 (300 x 180mm & 100 x 100mm)
UK Mainland & Ireland: 3 Year Return to Base
Elsewhere: 3 Year Return and Collect
