Brother Single Needle Embroidery Machines

Low Cost User Friendly, Computersied Embroidery Systems

Brother Innov-is F440E

Brother Innov-is F440E
This entry-level machine is by no means lacking in features and capability, with 138 impressive built-in embroidery designs to experiment with and combine using the on-screen editing tools. The Innov-is F440E has wide range of intuitive functions allowing you to add colour and design to almost any project or upload your own images and patterns from PE Design via the built-in USB port. If you’re unfamiliar with Brother machines you’ll be amazed by the user friendly standard features, including full colour touch screen display, advanced needle threader, quick-set bobbin and winder and automatic thread cutter.
Embroidery Area:180 x 130mm
Embroidery Speed:650 Stitches per minute
Embroidery Designs:138 built-in (+ 11 fonts)
Arm Length:190mm
Needle Threading & Cutting:Automatic
Bobbin Winding:Automatic

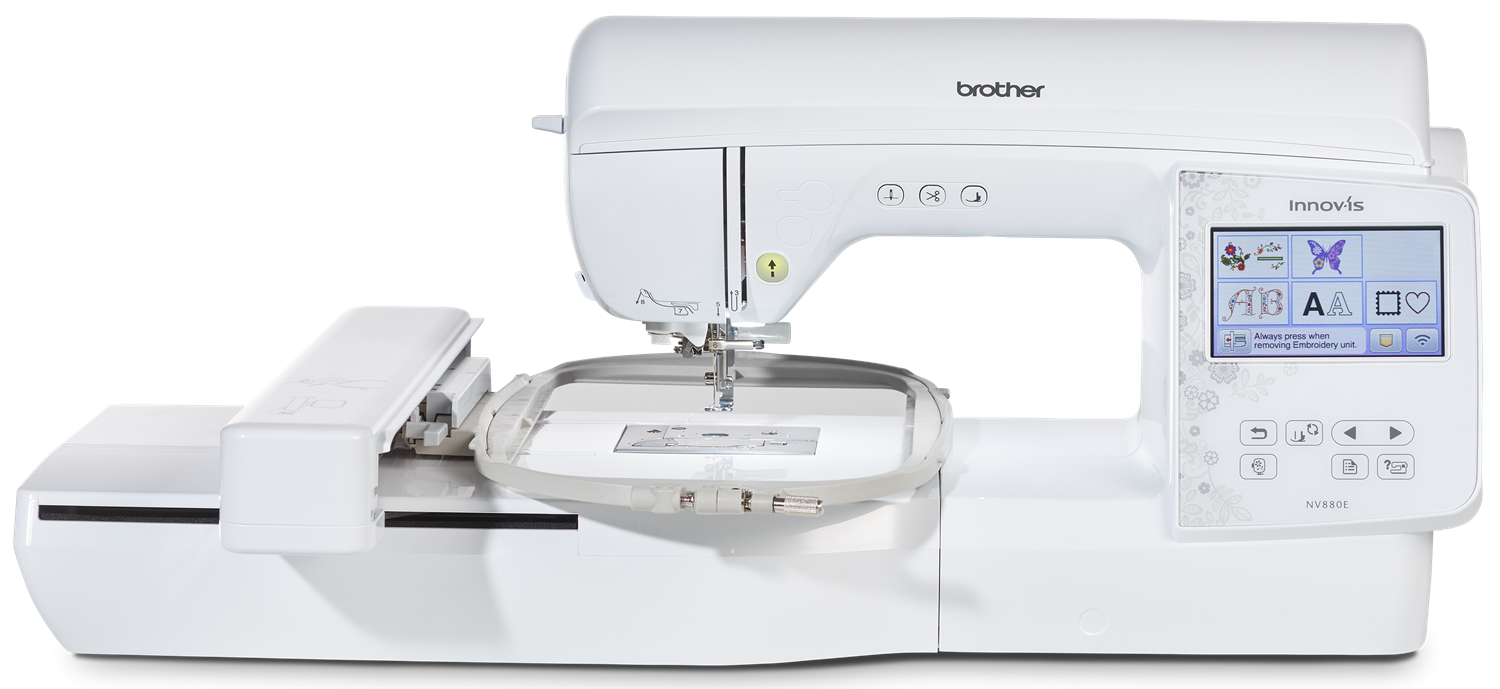

Brother Innov-is NV800E

Brother Innov-is NV800E
Featuring a generous work area and a number of advanced features in a smart but low-price package, the NV800E is an easy to operate machine for all pupils. Automatic needle threading and a ‘drop-in’ bobbin make it easier for independent working. Full colour touch screen editing allows for easy pattern combination, layout / size changes, pattern rotation, mirror imaging and more. Experiment with the 138 built-in embroidery designs and 11 fonts. Other patterns can be imported via USB. Auto tension and thread sensors contribute to a quality output.
Embroidery Area:260 x 160mm
Embroidery Speed:850 Stitches per min
Embroidery Designs:138 built-in (+ 11 fonts)
Arm Length:190mm
Needle Threading & Cutting:Automatic
Bobbin Winding:Automatic
Dimensions:693(W) x 451(D) x 300(H)mm

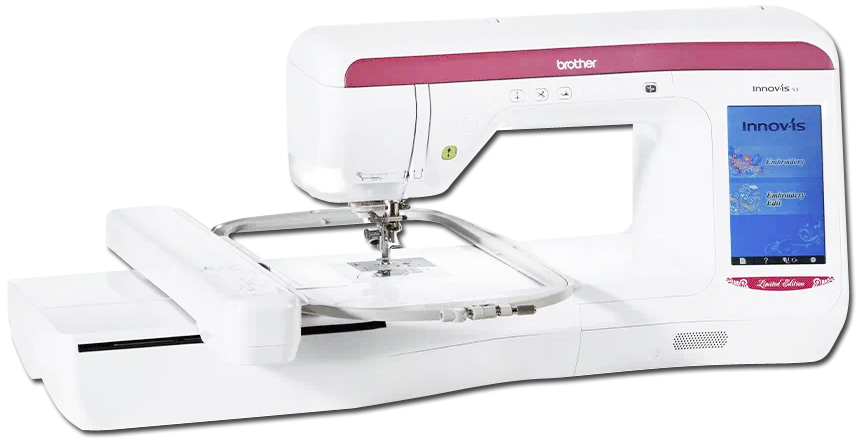

Brother Innov-is V3

Brother Innov-is V3
With a longer arm and a large embroidery area of 300x180mm, the V3 allows for large complex designs to be stitched, or for a number of smaller ones to be grouped together and stitched at up to 1050 stitches per minute. Touch button automatic needle threading and auto thread tension makes setting up the machine easy, as does the slide in frame mechanism. The large LCD touch screen allows for previewing designs in full colour along with a powerful on-screen editing system – so pupils can experiment with the 17 in built fonts and over 147 library designs, which include those for dissolvable fabric, quilting and bobbin work.
Embroidery Area:300 x 180mm
Embroidery Speed:1050 Stitches per min
Embroidery Designs:227 built-in (+ 17 fonts)
Arm Length:285mm
Needle Threading & Cutting:Automatic
Bobbin Winding:Automatic
Dimensions:825(W) x 465(D) x 470(H)mm

Description More...

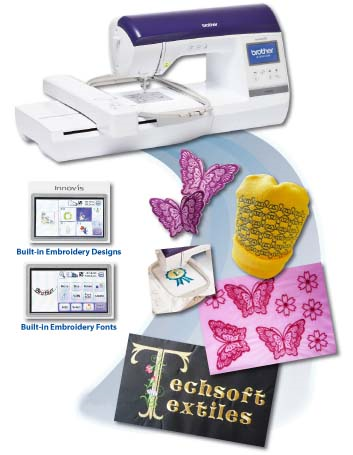

Low Cost, Computerised Embroidery Systems
Embroidery only machines allow teachers to set up a dedicated CAD/CAM embroidery area in their classroom, making the process easier to manage without the chopping and changing of machine parts necessary for dual purpose machines. All the machines have an on-board library of embroidery motifs, borders and fonts and it is possible to combine and edit these using the machine’s display and control panel. The work area varies between the different models but all have an LCD touch screen which gives you the essential tools for positioning and editing your design, alongside further tools to adjust machine settings. Automatic needle threading and a ‘drop-in’ bobbin makes these operations simple for beginners, but pupils can produce highly professional results. They can develop their own ideas using 2D Design and export them into the PE Design software for stitch conversion and further editing. These can be saved to a USB memory stick so that their work can be transferred easily to any Brother embroidery machine. Embroidered designs can be added to a variety of fabrics including those with a pile such as fleece or towelling, plus lace effects can look stunning when stitched out on dissolvable stabiliser fabric.
Click for More...

Prices (excluding VAT)

Single Needle Embroidery Machines
Brother Innov-is F440E
Order Code: TM-EMB-INNOVF440E
Brother Innov-is 800E
Order Code: TM-EMB-INNOV800E
Brother Innov-is V3
Order Code: TM-EMB-INNOVV3
*These products are subsidised for education and can only be supplied to UK bona-fide educational establishments.
Recommended Extras
For our full range of materials click here
Starter Set of Threads for Innov-is Embroidery Only Machines (Contains 62 satin 300m mixed colour threads, 15 white 1,100m 90wt lower thread + 19 A4 sheets stabiliser and interfacing)
Order Code: TA-EMB-SST8
Essential Software
PE Design 11 / Plus 2More Info
Recommended Software
TechSoft Design V3More Info

What's Included

F440E NV800E V3
Soft Dust Cover: Yes Yes Yes
Handy Wallet of Tools: Yes Yes Yes
Embroidery Hoops: 1 (180 x 130mm) 1 (260 x 160mm) 2 (300 x 180mm & 100 x100mm)
UK Mainland & Ireland: 3 Year Return to Base
Elsewhere: 3 Year Return and Collect
