Brother Multi-Needle Embroidery Machines

Compact, User Friendly, Computerised Embroidery System

Multi-Needle Embroidery Machines

Multi-Needle Embroidery Machines

Prices
(excluding VAT)
Multi-Needle Embroidery Machines

Recommended Extras
Essential Software
PE Design 11 / Plus 2More Info
Recommended Software
TechSoft Design V3More Info
Product Description
Computerised Embroidery System
There are plenty of ways that CAD/CAM can be included in textiles work. Laser cutting and engraving, Sublimation and applied vinyls are just a few, but embroidery has to be an obvious one.

Brother’s embroidery machines are built on a rigid metal chassis and feature computerised control systems so they are easy to use and have an up to the minute feel and look. Brother has a long-standing reputation for making high-quality sewing and embroidery machines for commercial and domestic markets, so you can be sure of reliability, long life and excellent back-up.

Multi-Needle Systems
The Brother PR-680W and PR-1055X machines are compact multi-needle machines that offer rapid output and large-scale embroidery onto almost any material. Because there is no need to change threads, it is possible to set-up the bobbins and achieve commercial scale production almost immediately. This could well provide a streamlined solution for outputting whole-class sets of work, or clearly give a huge advantage for enterprise projects.

Why choose a multi needle embroidery machine?
The Brother range of multi needle embroidery machines provide a reliable and easy to use solution for embroidery needs both in education and small businesses. It is ideal for bringing industrial practice into the classroom and linking into Business Enterprise activities and whole school promotions.

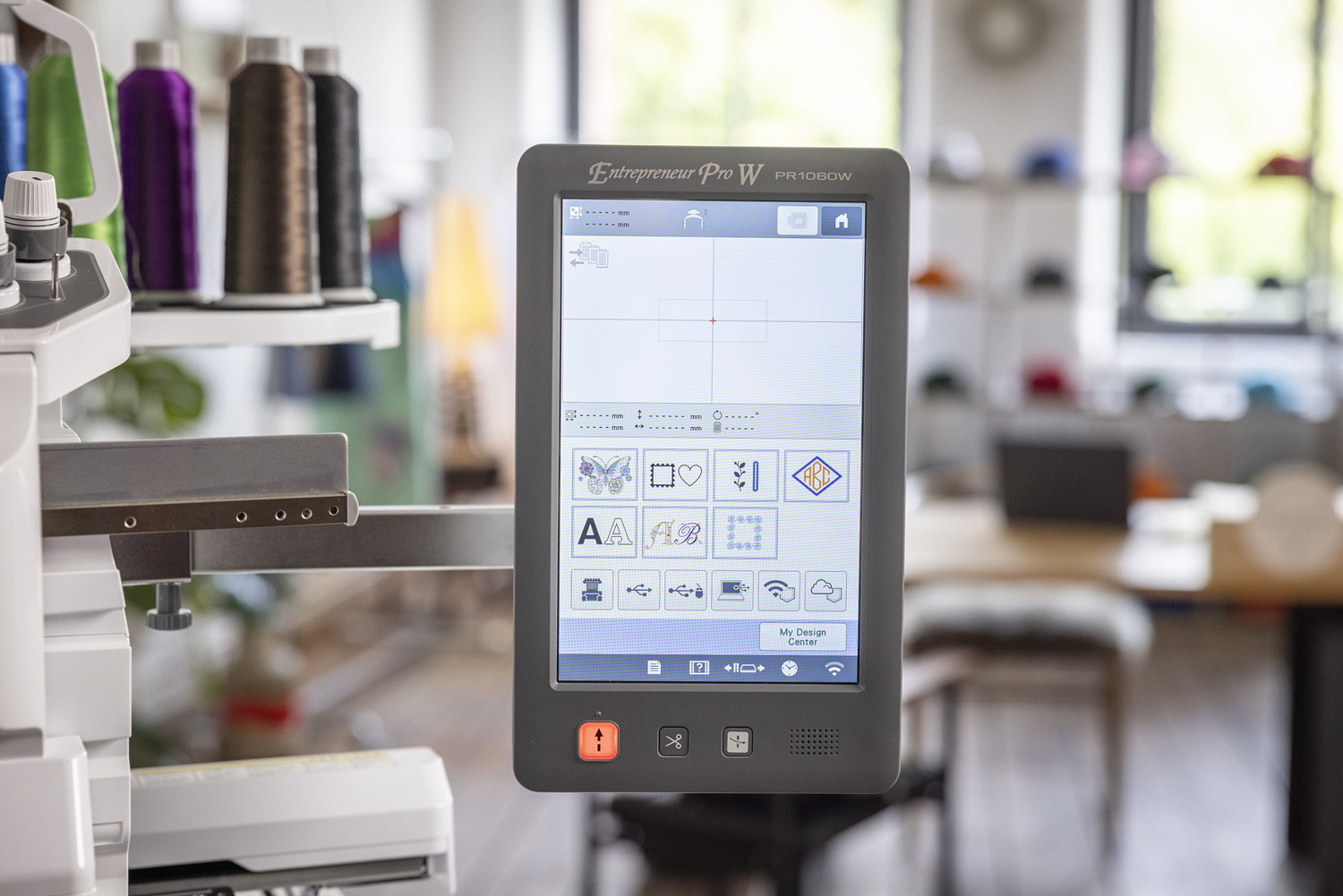

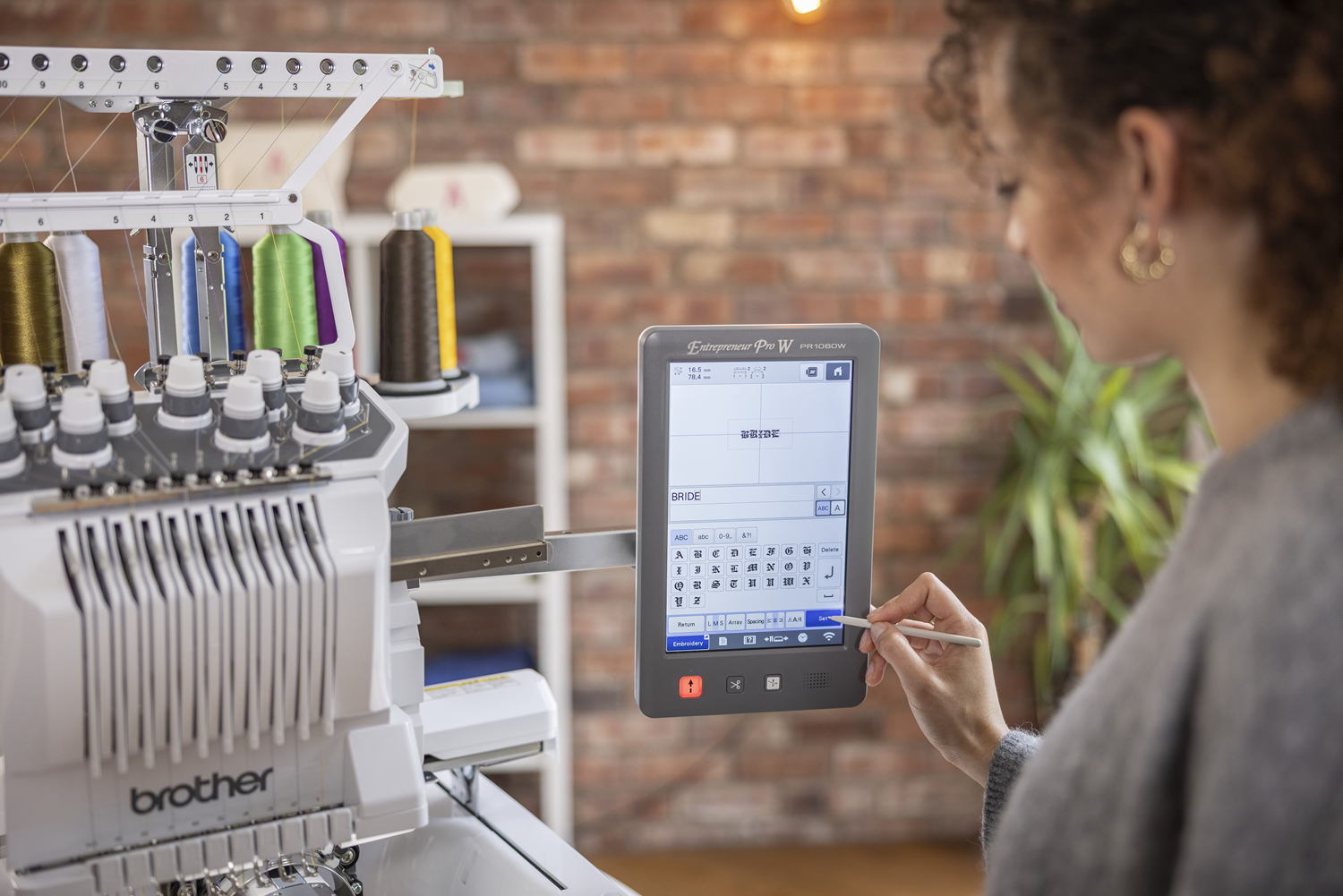

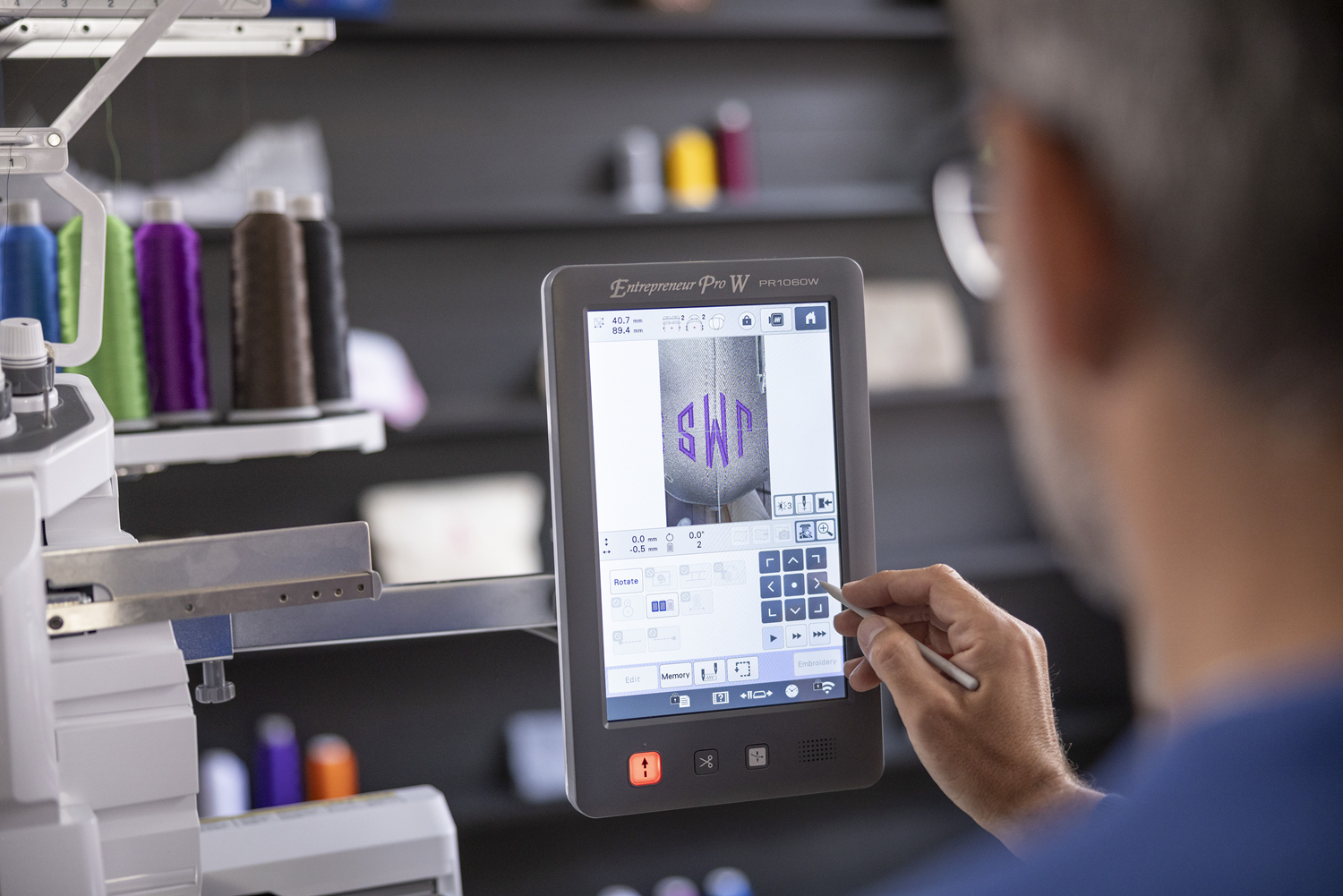

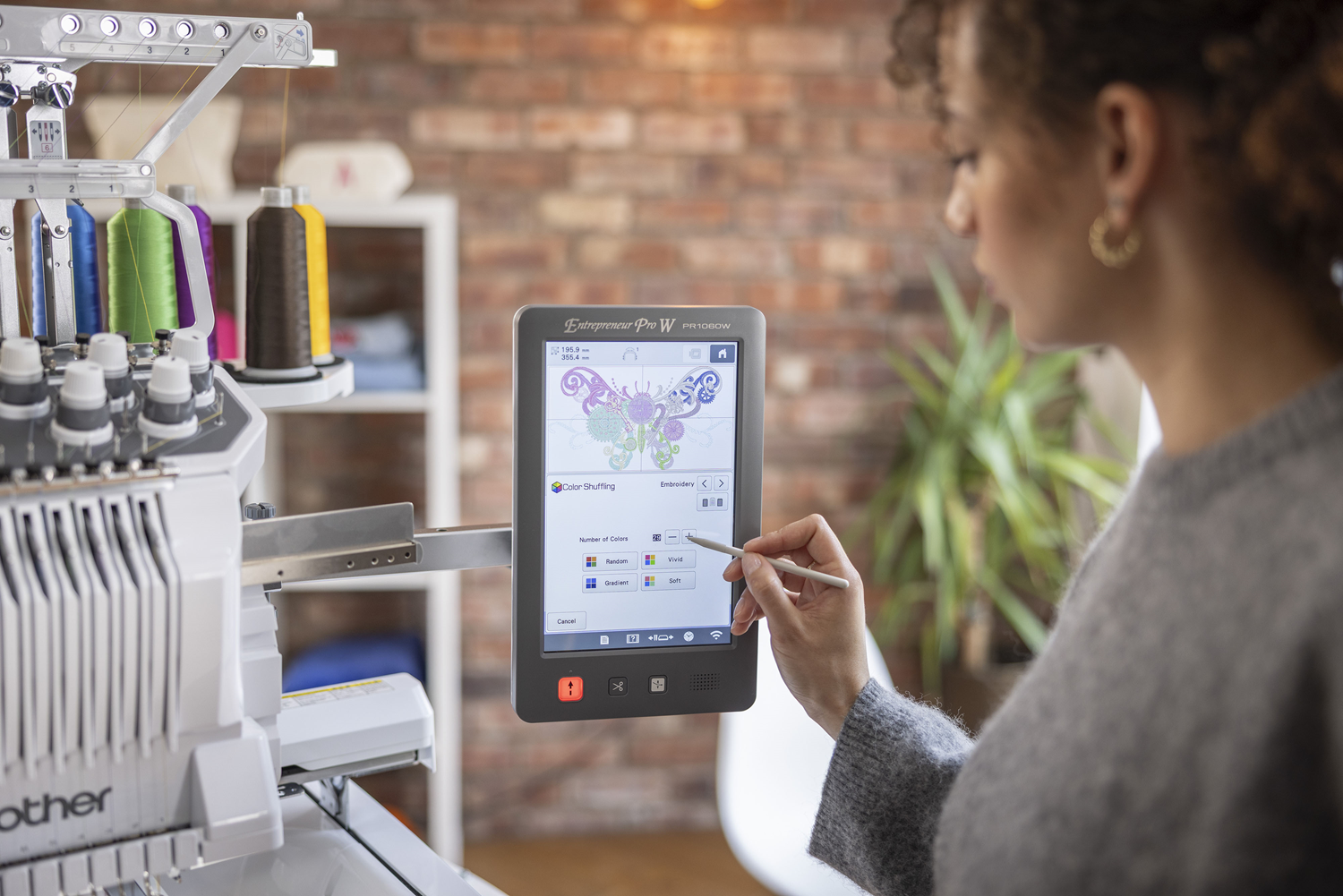

The capacity for up to 1000 stitches per minute allows faster throughput of work and a number of designs could be grouped together in the larger hoops so that a number of pupils’ work can be stitched in one go. Thicker materials can be worked on easily and the ever increasing range of hoops allows awkward shapes and spaces to be accessed. The large colour LCD touch screen makes it easy to navigate through the intuitive menu and designs can be customised at this stage, eg., colour changes, addition of text, pattern rotation. Should a thread break or run out, the machine will stop and tell you and it is easy to go back up to 100 stitches at a time, so mistakes can be easily rectified if they occur. Run out of time and design is still incomplete? Simply switch off the embroidery machine and leave the fabric hooped in place. Next time the machine is switched on it will remember where it stopped and continue, giving you peace of mind for those larger stitched projects.

Designing for CNC Embroidery
PE Design 11 provides the ideal platform for students to create designs for the larger hoop sizes available for Brother PR-series multi-needle machines. Designs can be derived from memory cards or extensive on-board font and motif libraries - PE Design 11 allows these to be combined, edited and configured to give almost unlimited creative options. Stitch pattern, density and direction can all be configured in PE Design 11 and these details are often as important as the original design in achieving a desired effect.

Designing in PE Design 11 with direct output also allows the finest possible resolution of embroidered image to the original design. The speed and operational simplicity of Brother PR-series machines makes it simple and efficient to take advantage of these enhanced design capabilities. PE Design 11 can also be used to simply ‘process’ a design created in TechSoft Design V3, scanned from a sketch or downloaded as an image. This may prove a useful facility for younger students taking their first steps with digital embroidery design and output.
Brother PR-680W & Accessories
Ideal for Education

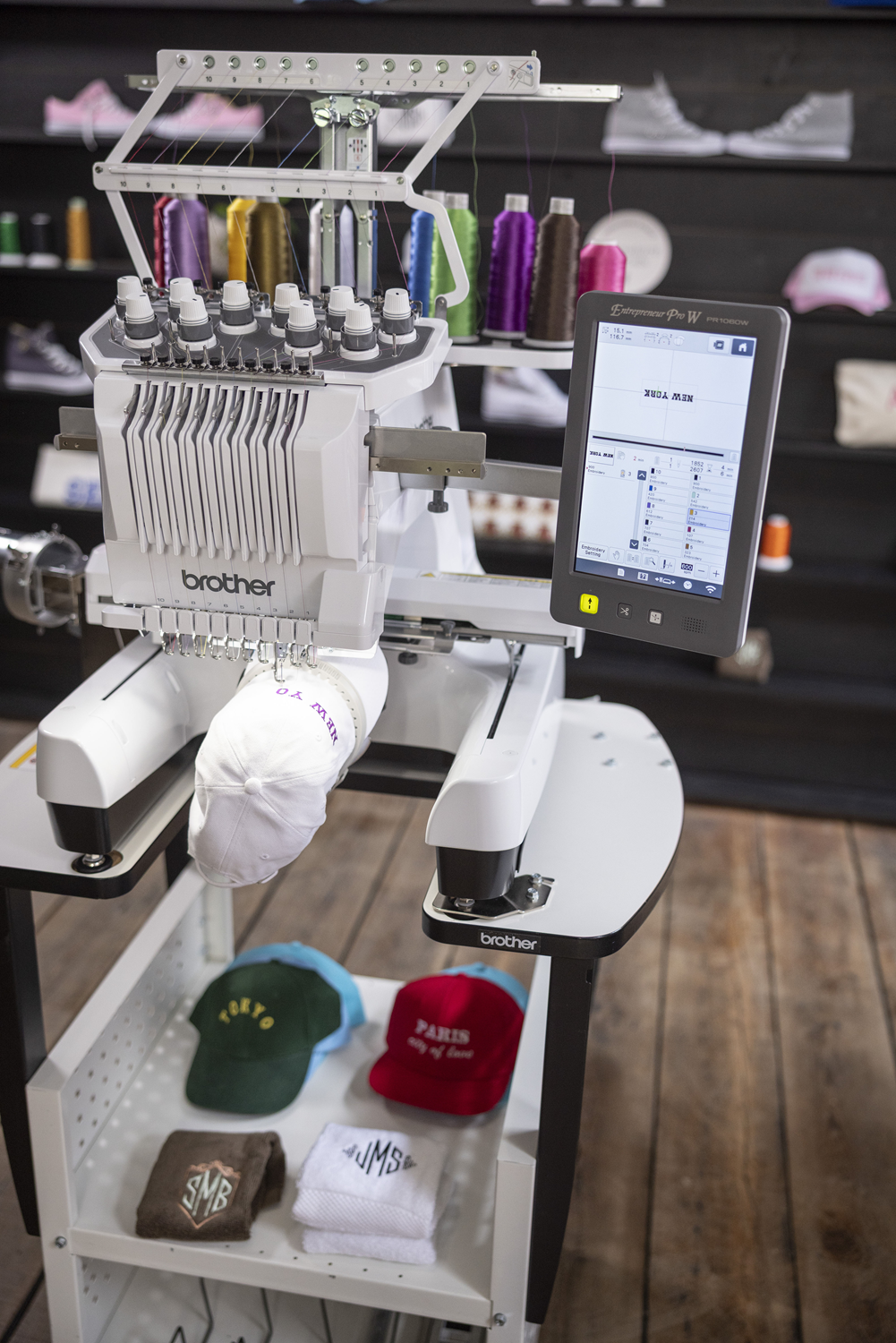

Brother PR-680W
The PR-680W is a professional six needle embroidery machine designed for fast commercial production. It achieves real time savings by minimising down time for set-up and thread changing. In education, a PR-680W is the ideal machine for students to experience a production environment and, because job turn-around is so fast, is a huge advantage if an entire class-set of projects needed to be worked.
PR-680W
ProductsPriceBuy
Brother PR-680W 6 Needle Embroidery Machine
Order Code: TM-EMB-PR680W
£5,665.00*

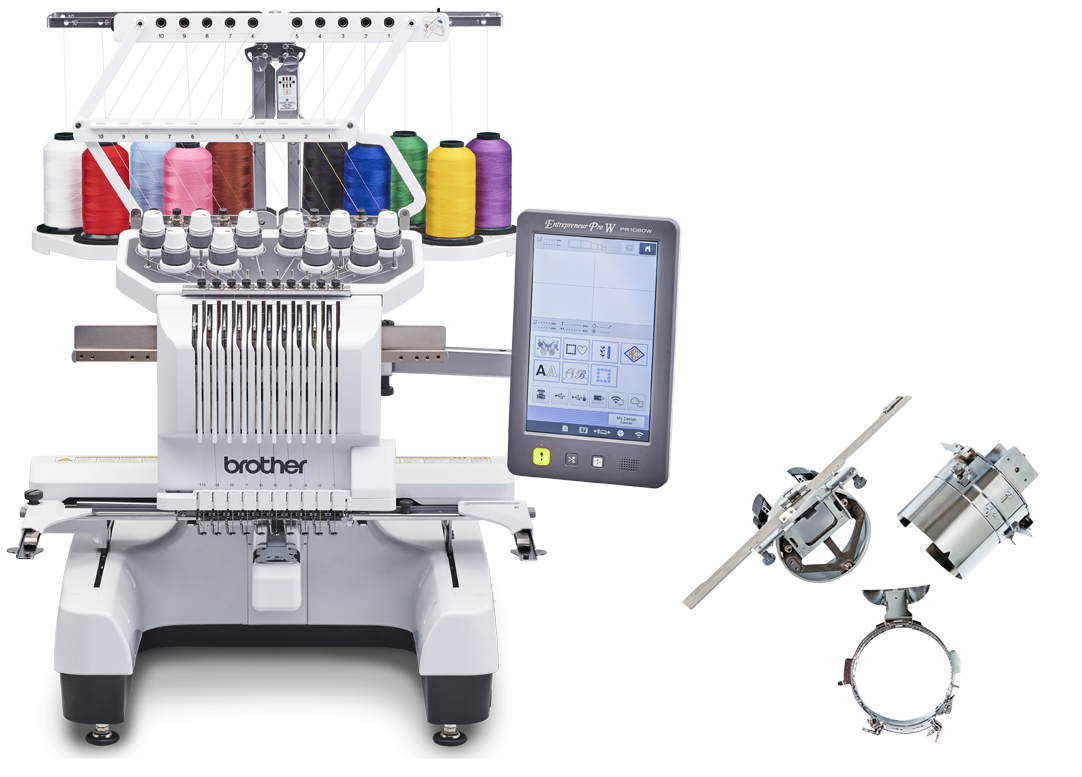

PR-680W and Accessories Deals
ProductsPriceBuy
Brother PR-680W with Cylinder Frame
Order Code: TM-EMB-PR680WWCYL
£6,580.00*

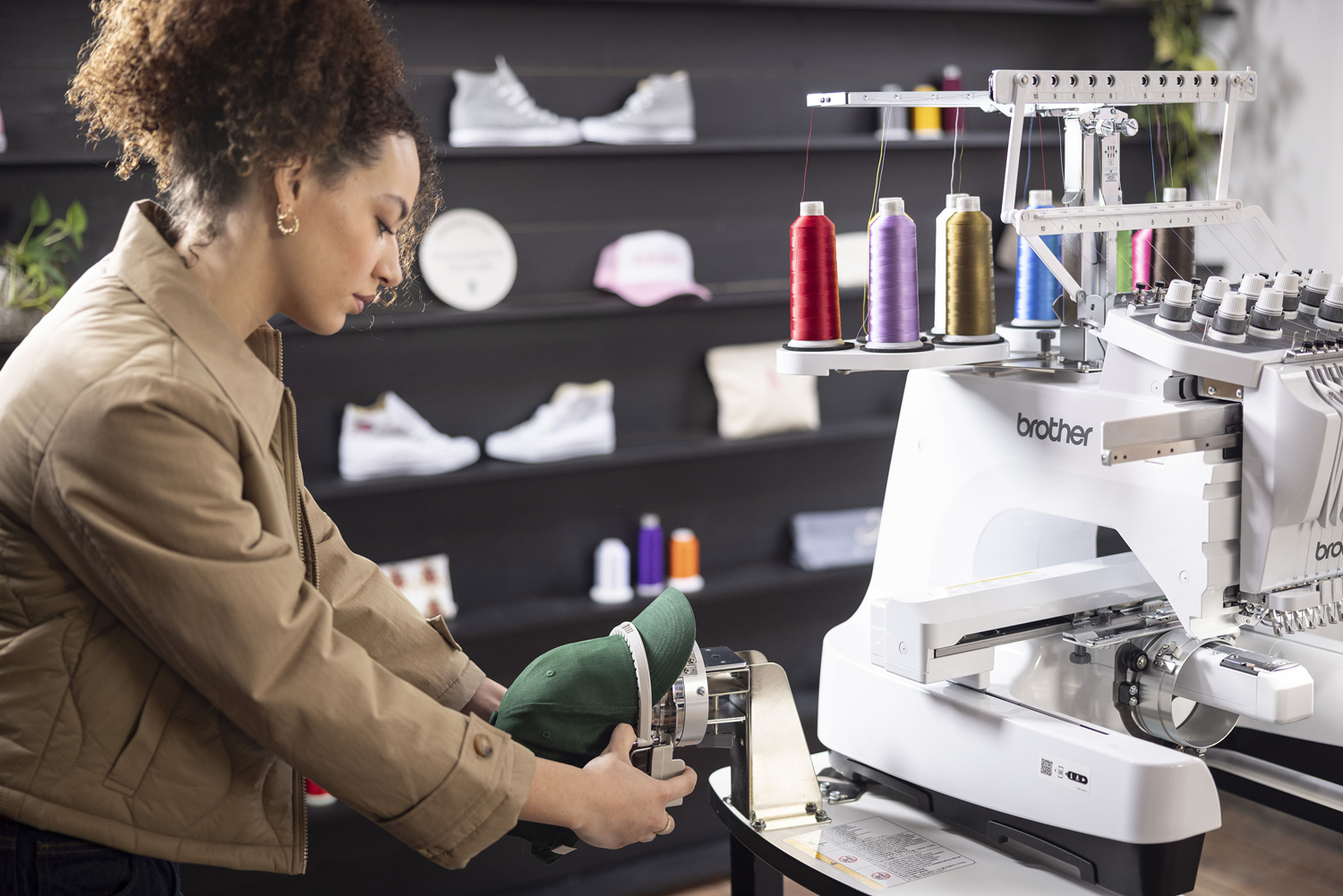

Brother PR-680W with Cap Frame PRCF3
Order Code: TM-EMB-PR680WWCAP1
£6,305.00*
Brother PR-680W with Cap Frame PRCF5
Order Code: TM-EMB-PR680WWCAP2
£6,540.00*
Brother PR-680W with Cap Frame PRCF3 and Cylinder Frame
Order Code: TM-EMB-PR680WWCAP1CYL
£6,985.00*
Brother PR-680W with Cap Frame PRCF5 and Cylinder Frame
Order Code: TM-EMB-PR680WWCAP2CYL
£7,225.00*

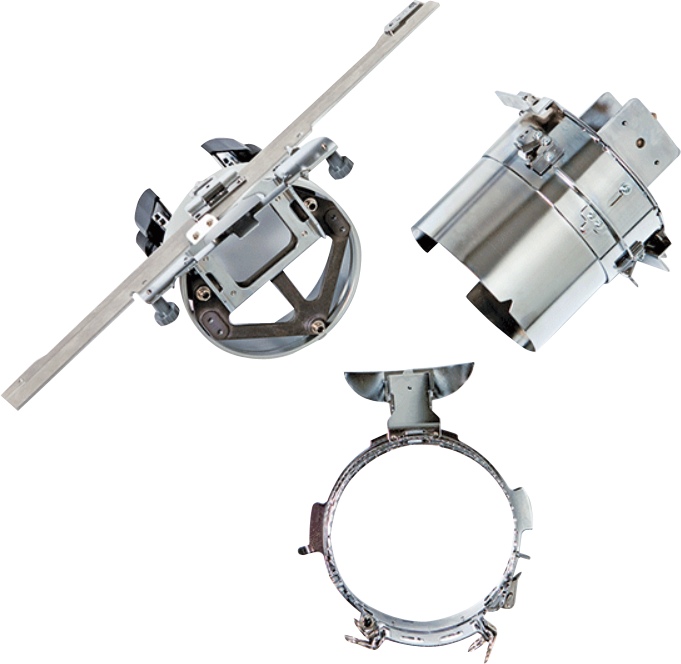

Accessories
ProductsPriceBuy

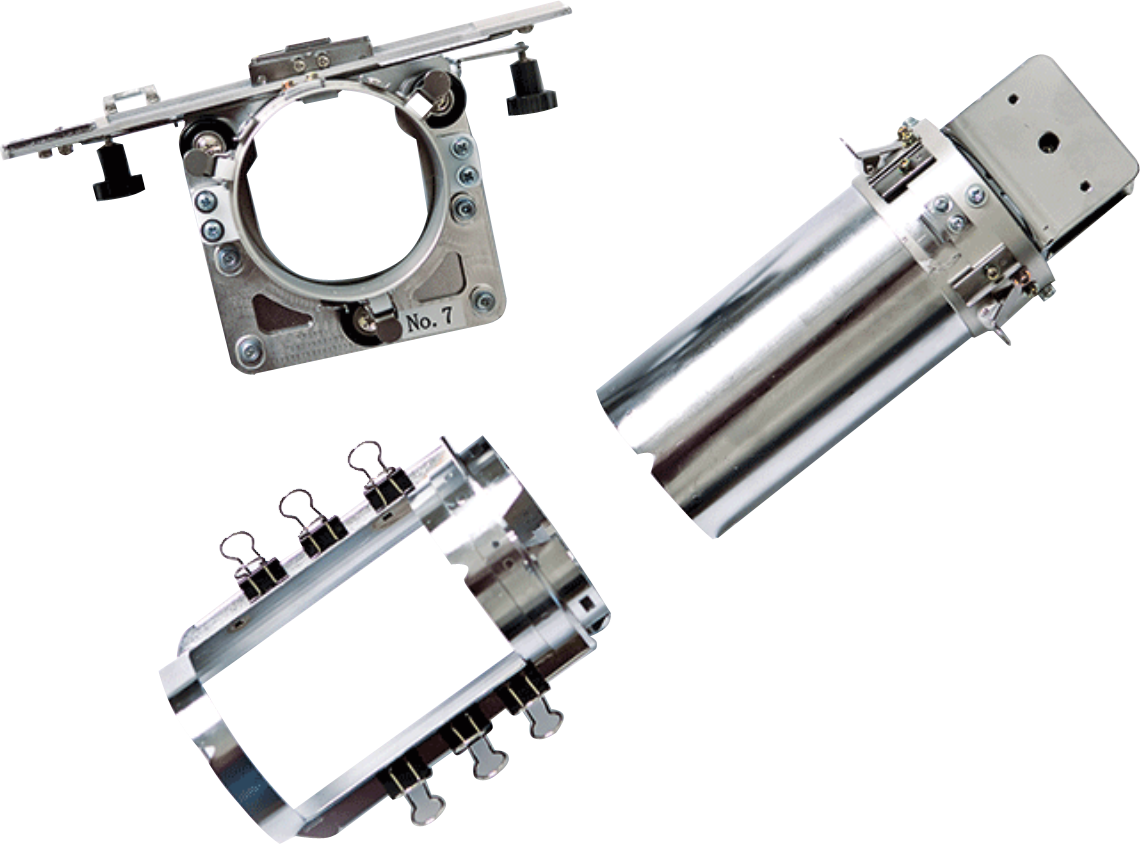

Cylinder Frame and Driver Set PRCL1 for VR/PR-650e or newer/PR-1000 or newer
(Embroider onto trouser legs and sleeves)
Order Code: TM-EMB-PR650CYL
£930.00*
Cap Frame and Driver Set PRCF3 for VR/PR-650E or newer/PR1000e or newer
Order Code: TM-EMB-PR650CAP
£665.00*
Flat Brim Cap Frame Set PRCF5 for all PR models except PR600 and PR600II
Order Code: TM-EMB-PR1055XCAP
£1,165.00*
* These products are subsidised for education and can only be supplied to UK bona-fide educational establishments.

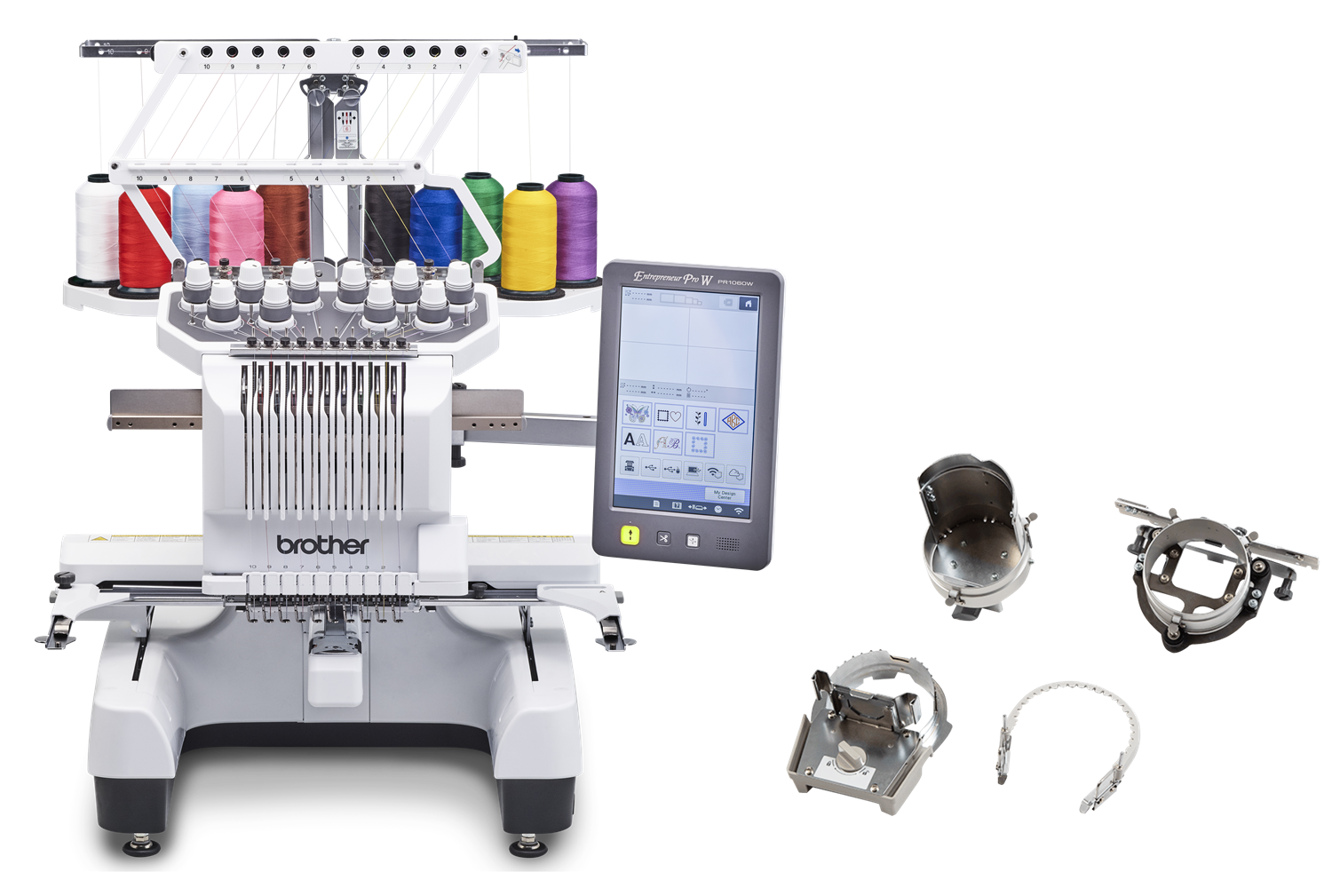

Brother PR-1055X & Accessories
Brother PR-1050X

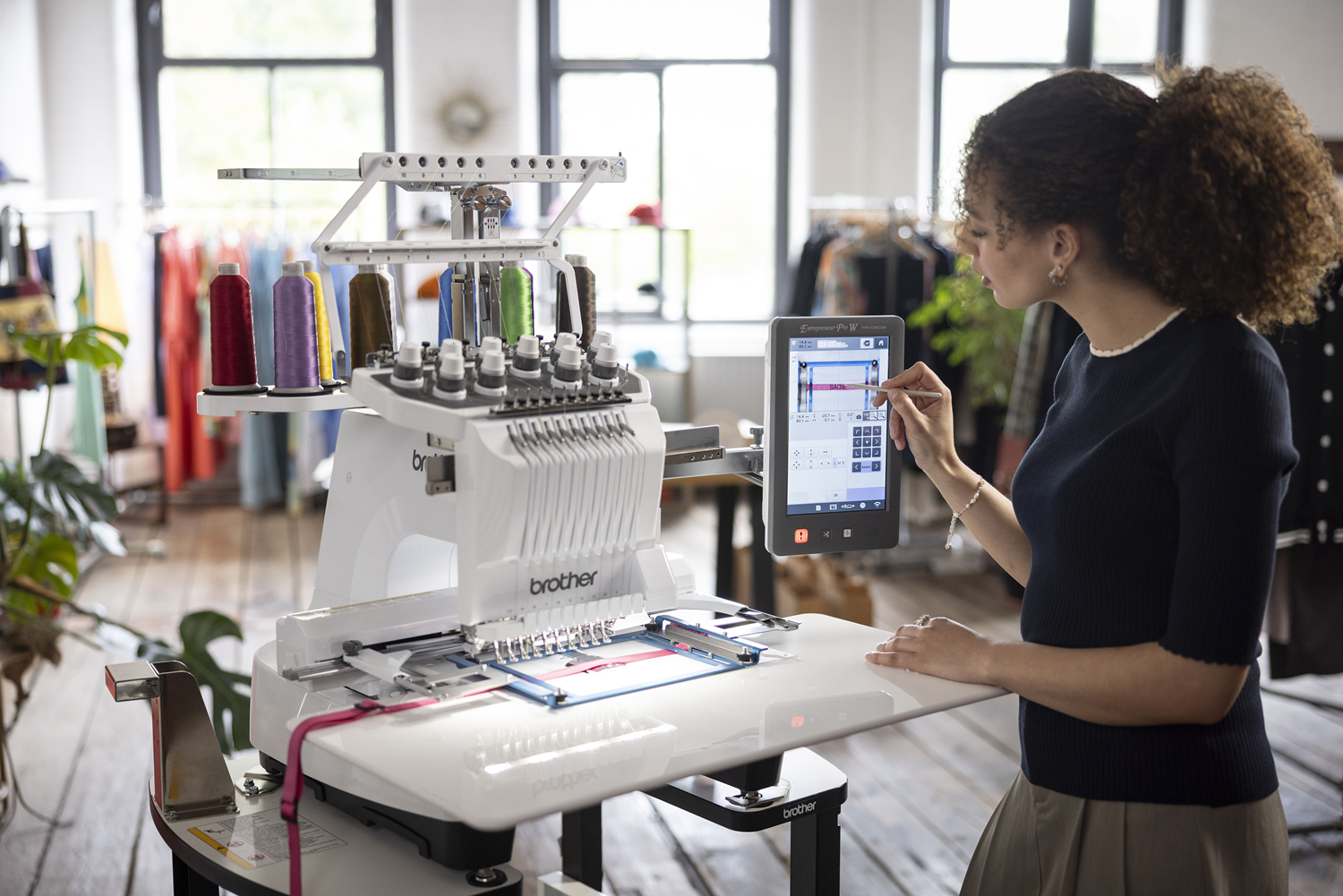

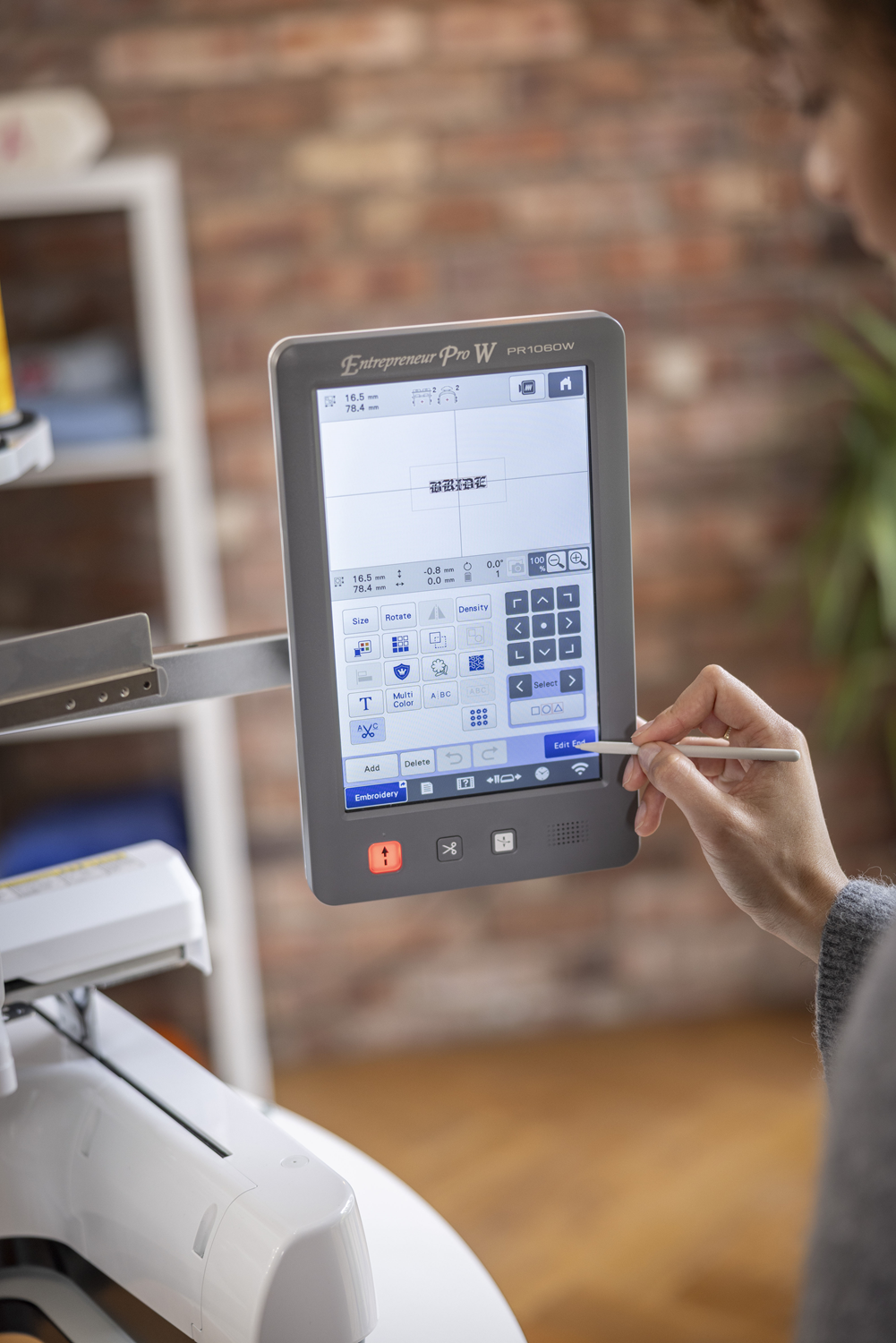

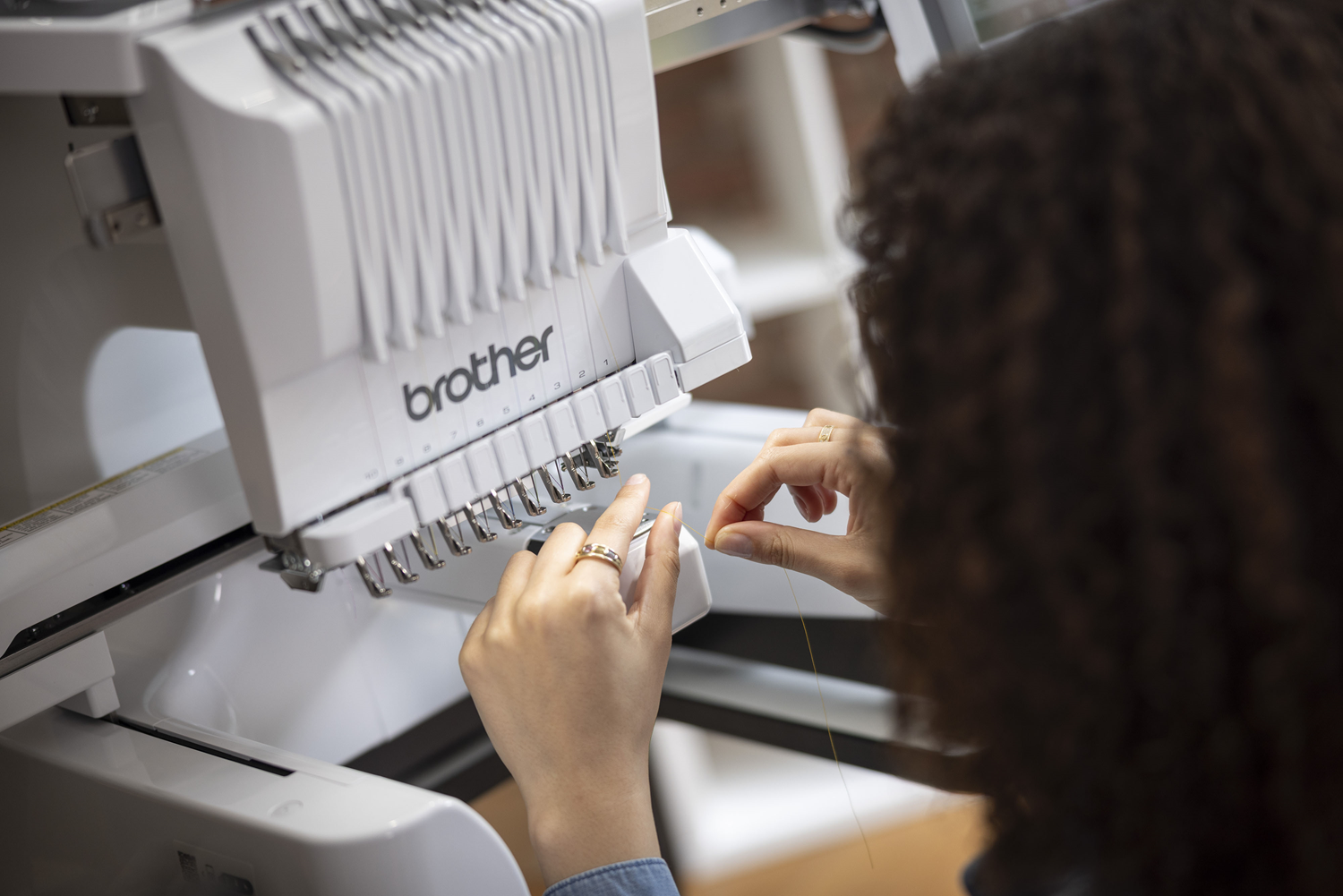

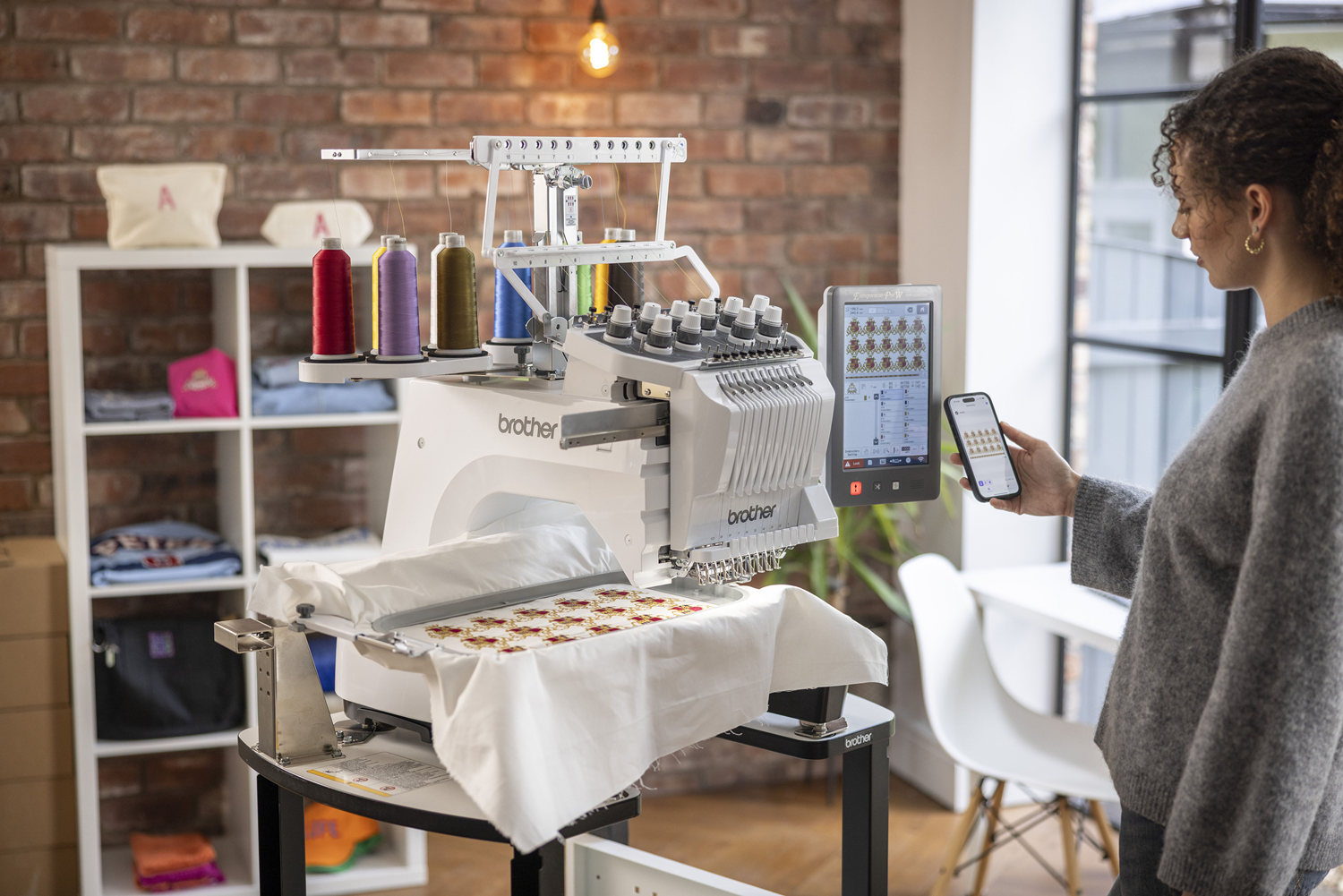

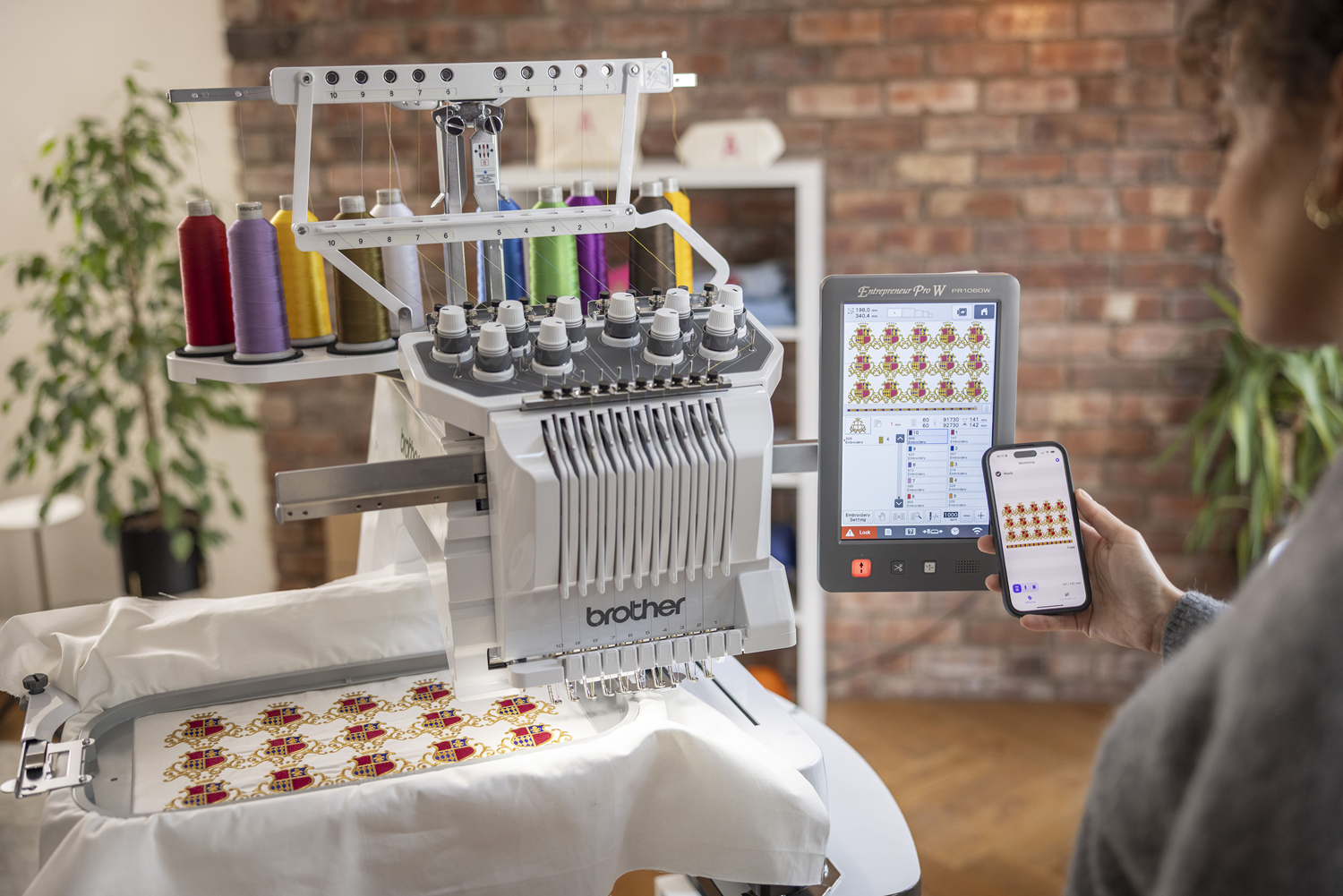

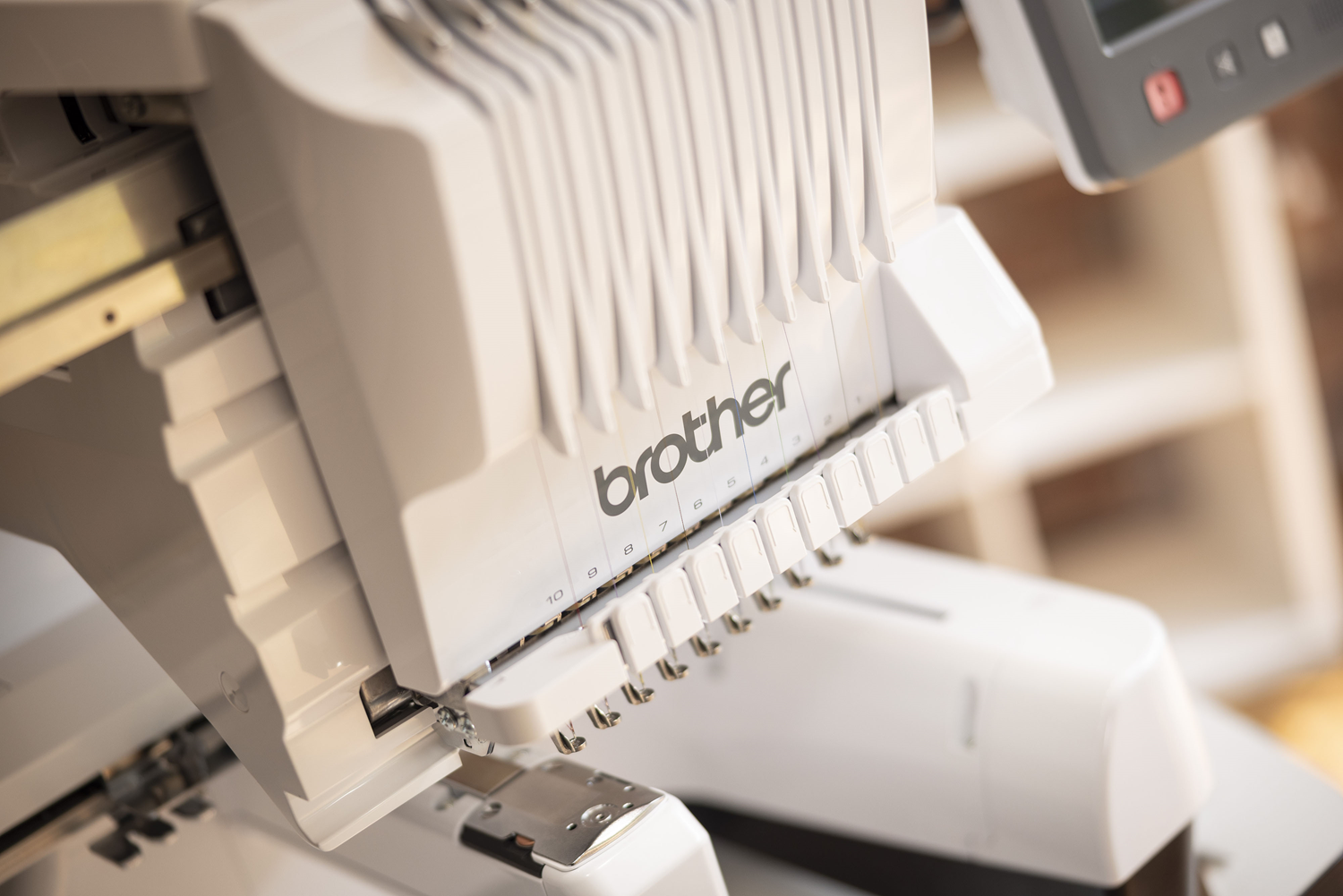

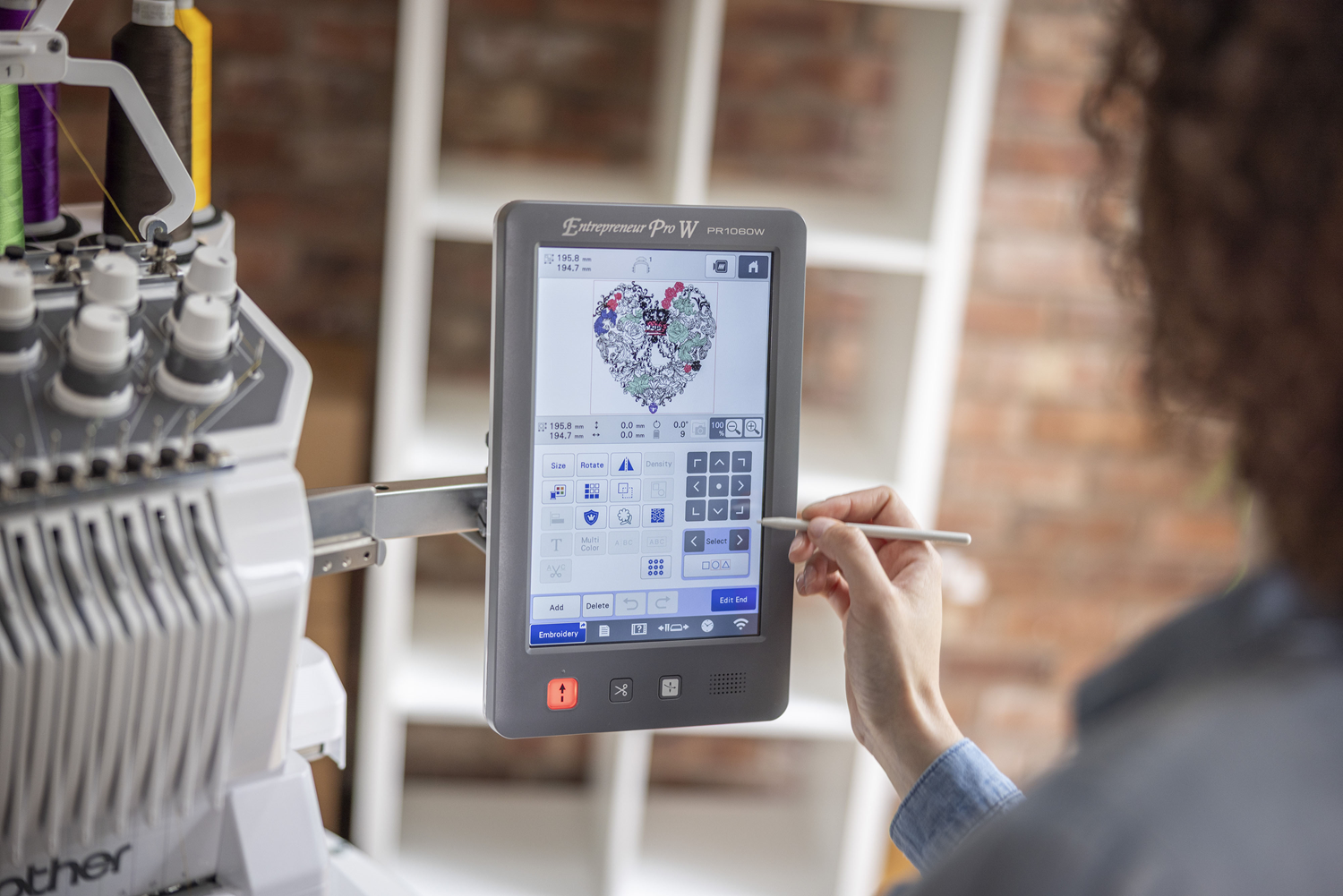

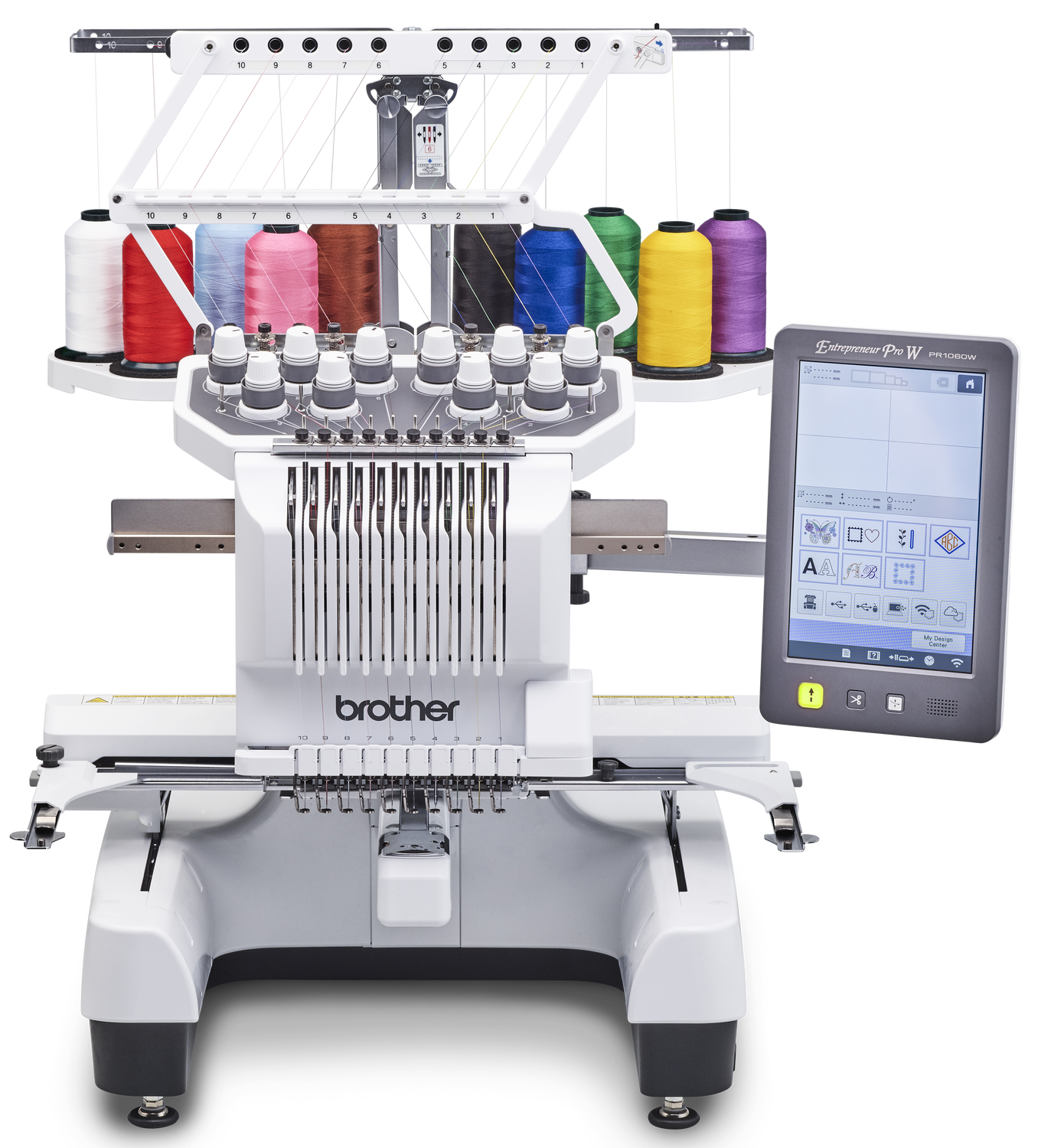

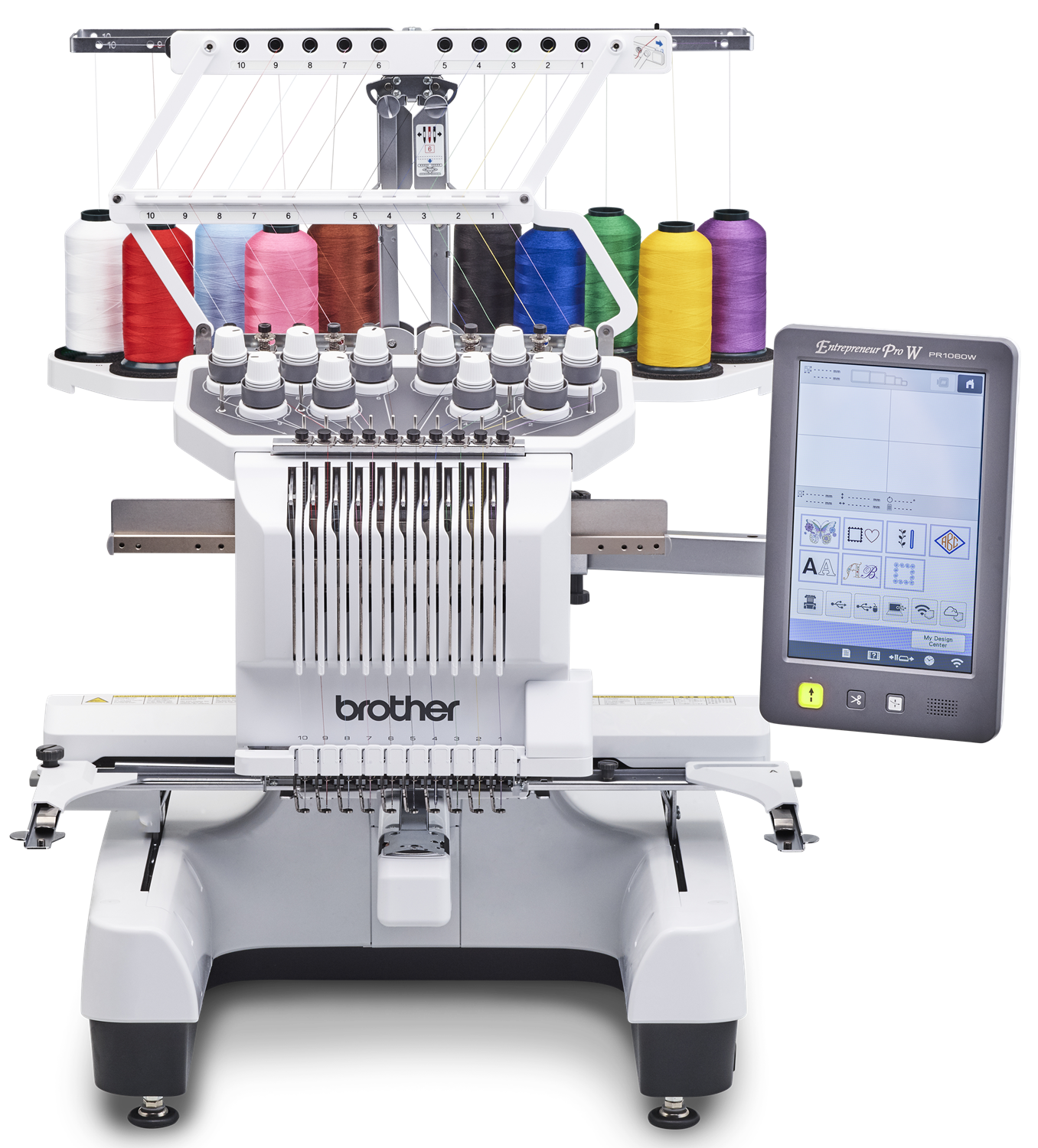

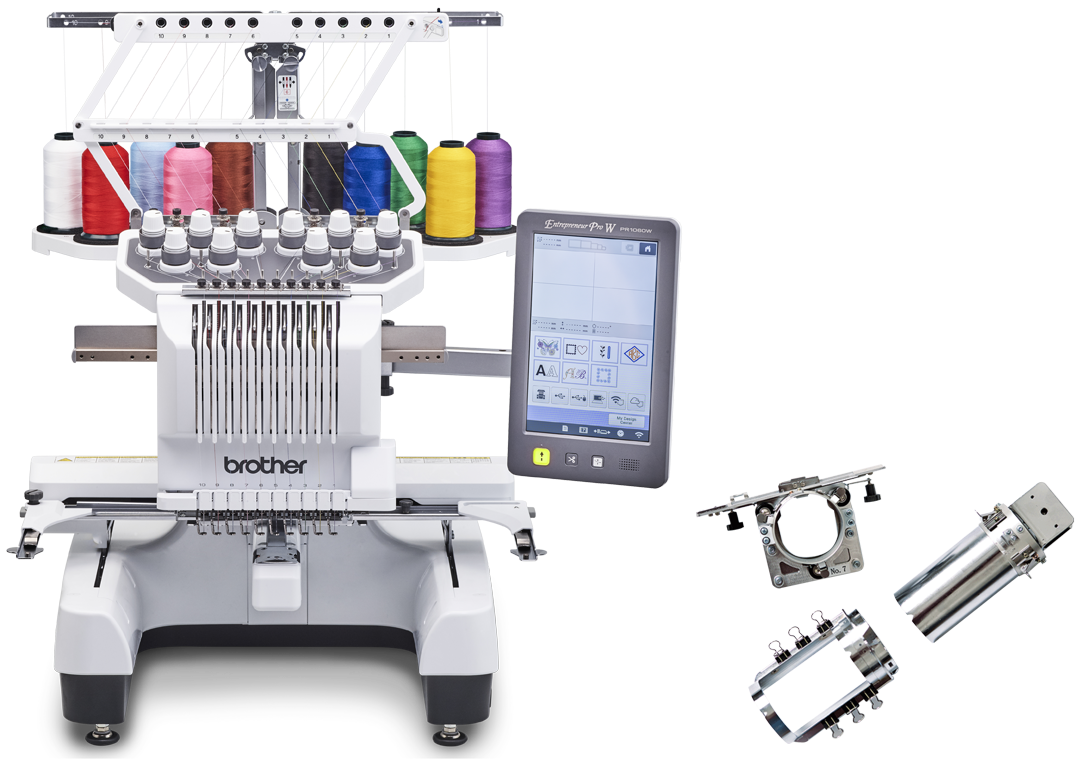

The 10-needle PR-1055X sets new standards for accuracy, scale and speed, and features class-leading technology. Auto needle-threading, simple eyelet threading and LED technology for spool management, makes set-up rapid and stress free. The LCD display gives an ‘eye onto the needle area’ via a built-in camera and this, makes it easy (or even automatic) to position work for precise needle-drop.
PR-1055X
ProductsPriceBuy
Brother PR-1055X 10 Needle Embroidery Machine
Order Code: TM-EMB-PR1055X
£8,500.00*

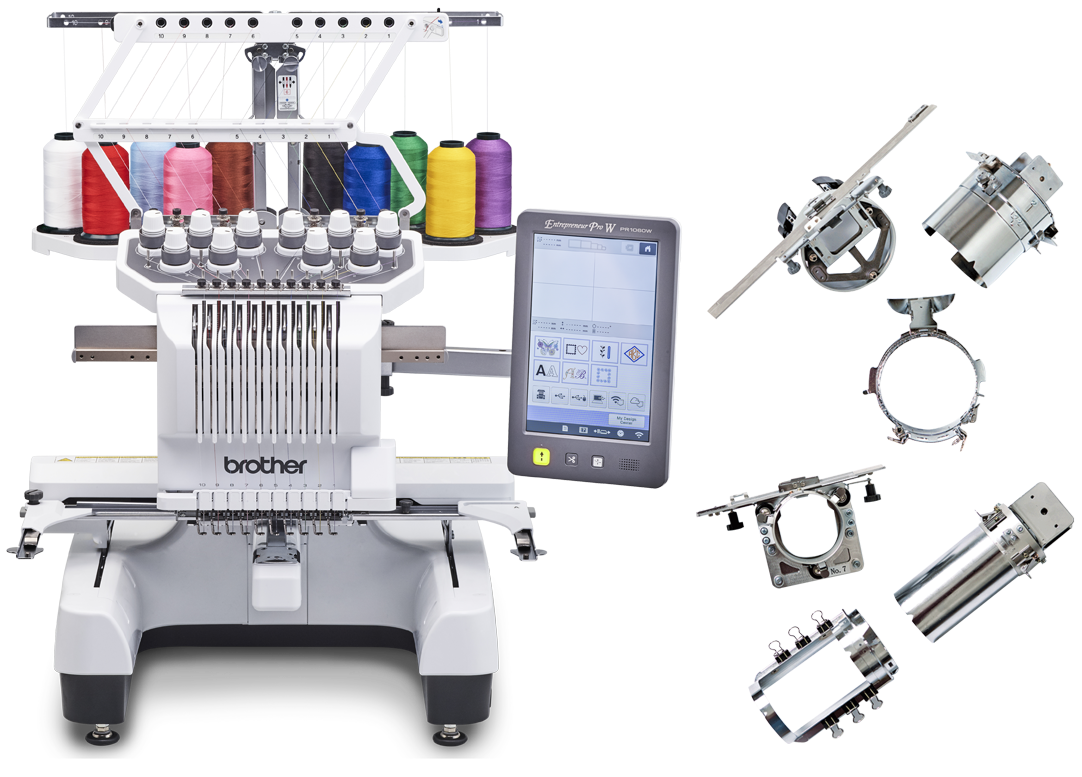

PR-1055X and Accessories Deals
ProductsPriceBuy
Brother PR-1055X with Cylinder Frame
Order Code: TM-EMB-PR1055XWCYL
£9,345.00*
Brother PR-1055X with Cap Frame PRPCF1
Order Code: TM-EMB-PR1055XWCAP1
£9,345.00*
Brother PR-1055X with Cap Frame PRCF5
Order Code: TM-EMB-PR1055XWCAP2
£9,585.00*
Brother PR-1055X with Cap Frame PRPCF1 and Cylinder Frame
Order Code: TM-EMB-PR1055XWCAP1CYL
£10,010.00*
Brother PR-1055X with Cap Frame PRCF5 and Cylinder Frame
Order Code: TM-EMB-PR1055XWCAP2CYL
£10,245.00*

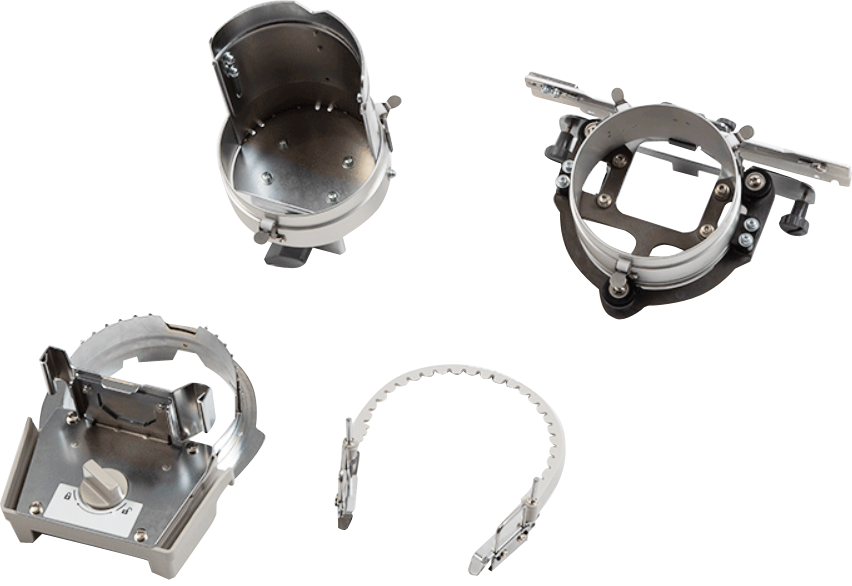

Accessories
ProductsPriceBuy
Cylinder Frame and Driver Set PRCL1 for VR/PR-650e or newer/PR-1000 or newer
(Embroider onto trouser legs and sleeves)
Order Code: TM-EMB-PR650CYL
£930.00*
Wide Cap Frame and Driver Set PRPCF1 for PR-1000 or newer
Order Code: TM-EMB-PR1050XCAP
£930.00*
Flat Brim Cap Frame Set PRCF5 for all PR models except PR600 and PR600II
Order Code: TM-EMB-PR1055XCAP
£1,165.00*
* These products are subsidised for education and can only be supplied to UK bona-fide educational establishments.

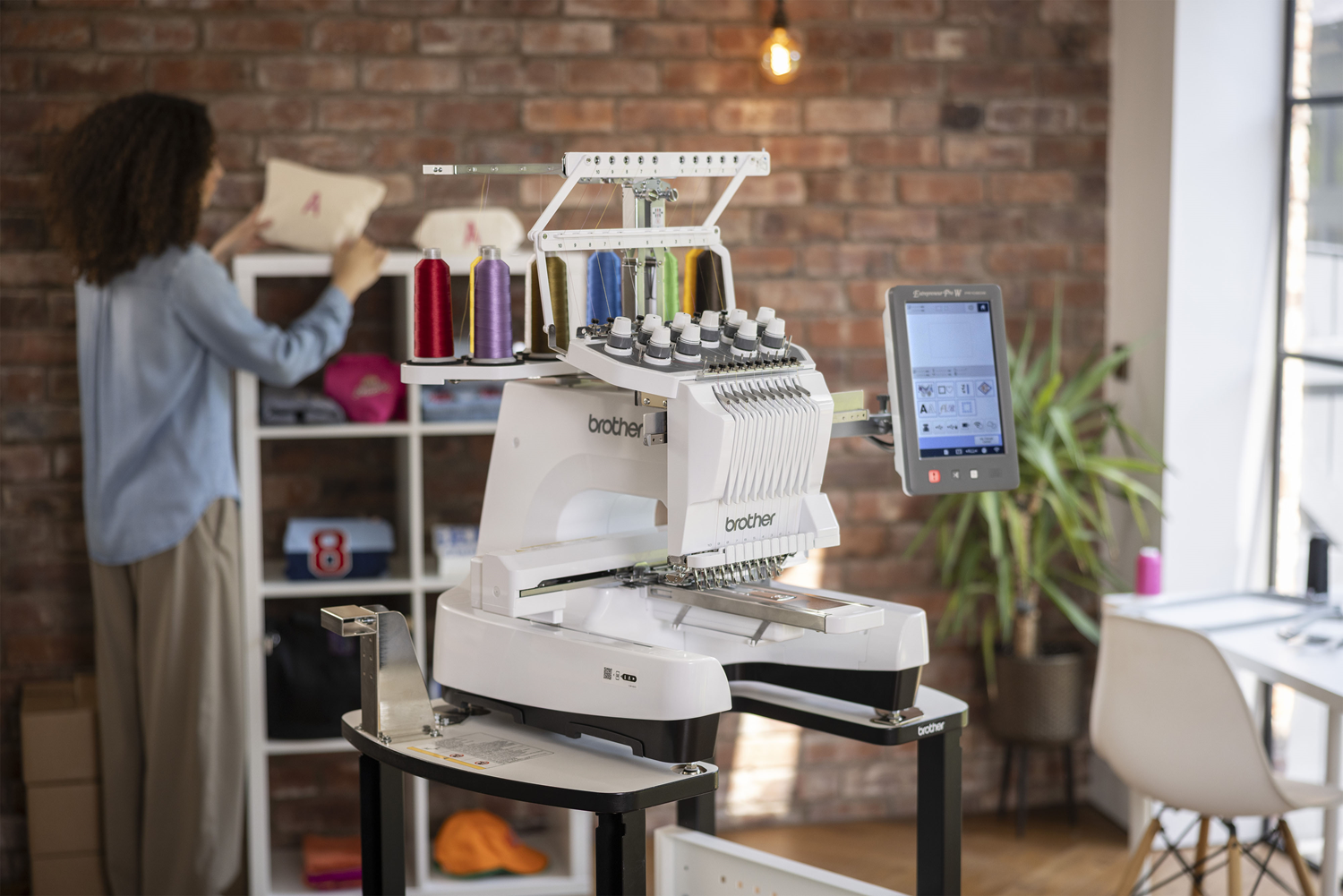

Stands for PR Range
Stands for PR Range

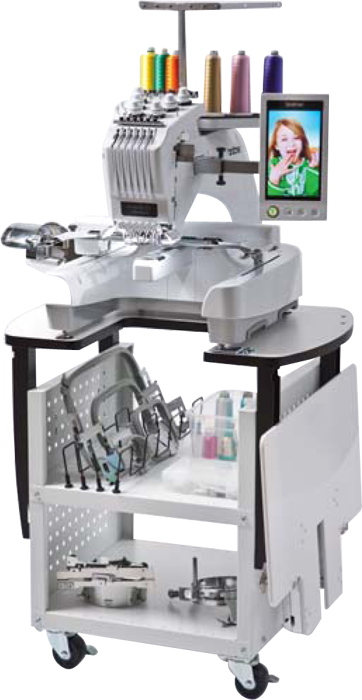

TMP-EMB-STAND shown above with machine and accessories.
Dedicated Stand
ProductsPriceBuy
Brother Stand for PR and VR Range
Order Code: TMP-EMB-PRSTAND
£440.00
Mobile Workstation
ProductsPriceBuy

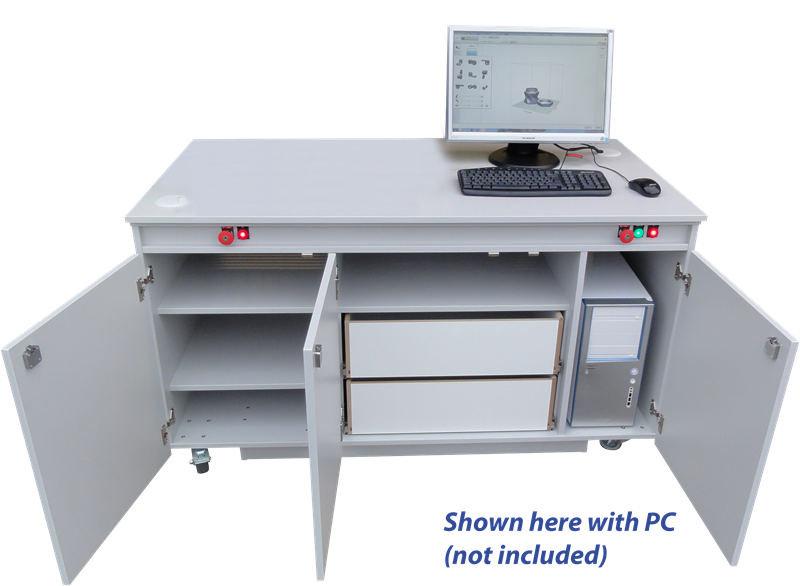

TechSoft Mobile Workstation for Knife Cutting / Embroidery / LIT / Mojo 1400x800x850mm
(c/w underbench cupboards containing in-built sockets, drawers, shelves and storage space for computer)
Order Code: TF-WS3-C2
£2,260.00
Accessories
ProductsPriceBuy

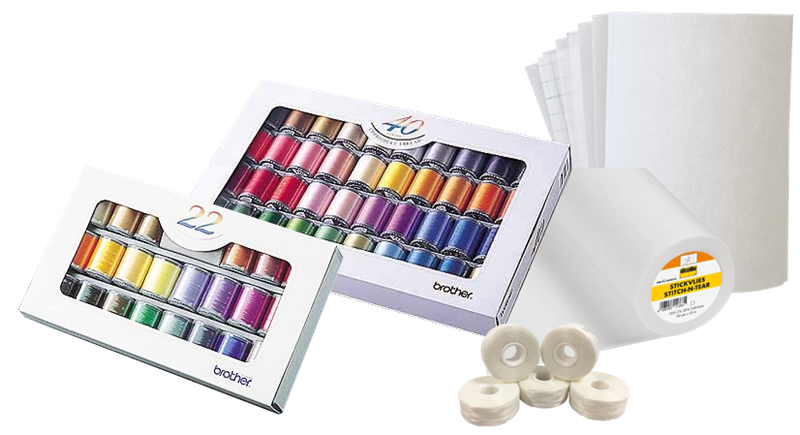

Starter Set (62 Satin 300m, 144 pre-wound 120m lower bobbins + 19 sheets A4 Mixed Stabiliser & Interfacing)
Order Code: TA-EMB-SST10
£220.00

View Full Range of Materials
Product Specifications
Specifications
Model:PR-680WPR-1055X
Max Embroidery Area:300 x 200mm360 x 200mm
Embroidery Speed:400 - 1000 Stitches per min400 - 1000 Stitches per min
Embroidery Designs:763 Built-in & 50 Fonts944 Built-in & 37 Fonts
Positioning:LED CrosshairsEasy with camera sensor
Needle Thread & Cut:AutomaticAutomatic
Touch Screen:Large, high resolution (with on-screen editing & video instructions and tutorials)Large, high resolution (with on-screen editing & video instructions and tutorials)
Additional Functions:AppliqueApplique
Detection Systems:Thread break & hoop sizeThread break & hoop size
Hoops:A wide range of embroidery hoops includedA wide range of embroidery hoops included
Tools:Comprehensive set of tools includedA comprehensive set of tools included
Interface:USB ports and Wireless LANUSB ports and Wireless LAN
Weight:38kg42.5kg
Dimensions:512(W) x 587(D) x 589(H)mm561(W) x 587(D) x 782(H)mm
Warranty:UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
UK Mainland: 1 Year Return to Base
Elsewhere: 1 Year Return and Collect
