Boxford 300VMCi CNC Milling Machine

View PDF Version of Page

300VMCi CNC Milling Machine

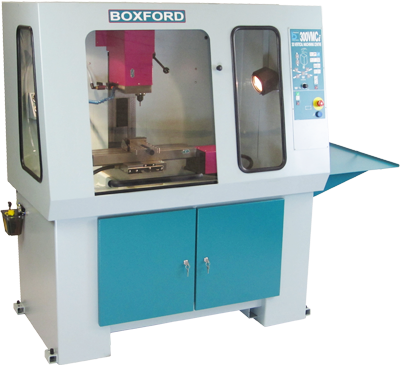

Boxford 300VMCi CNC Milling Machine
Boxford 300VMCi CNC Milling Machine
Click to Enlarge - Boxford 300VMCi CNC Milling Machine

300VMCi CNC Milling Machine

Prices
(excluding VAT)
ProductsPriceBuy
Boxford 300VMCi CNC Milling Machine Supplied with Boxford software, vice, set of 6 toolholders, comprehensive set of tooling and additional 3D tooling
Order Code: MM-CNCMILL3
£31,445.00*
* Each machine is supplied with a single copy of the Boxford CAD/CAM software which contains Mill Design (a cut-down version of TechSoft Design). TechSoft Design files will load directly into this. Alternatively, a Boxford Extension for TechSoft Design V3 can be purchased at a cost of £199.00+VAT to allow seamless integration via File > CNC Output.
Recommended Accessories
Recommended Design Software
TechSoft Design V3More Info
SOLIDWORKSMore Info
Product Description
Floor standing machining centre with all the features of the 190VMCXi but with a larger machining capacity, plus one shot integrated lubrication system and flood coolant fitted as standard. Also includes integrated lockable storage cupboards and removable laptop shelf. Includes onsite training for UK mainland customers.
Product Specifications
Specifications
Model:300VMCi
Axis Travel:304 x 157 x 213mm
Table Size:505 x 135mm
Max Feedrate:83mm/sec (5000mm/min)
Spindle Speed:200-4000rpm
Motor:1260W
Interface:USB
Weight:500kg
Dimensions (mm):1955(W) x 820(D) x 1550(H)
2040(H) with guard open
Power Requirments:240V 1.3kW, 13A Socket
Other Requirements:Computer with USB
Warranty:1 Year On-Site (UK Mainland)
1 Year Return and Collect (Elsewhere)
Accessories
Optional Extras
ProductsPriceBuy
Automatic 8-position toolchanger (needs compressed air and automation machine controller upgrade)
Order Code: MM-CNCMILL3G
£3,900.00
Bambi BB24V Compressor (0.5hp, 50 litres/min, receiver 24 litres, oil lubricated)
Order Code: MM-COMPRESSOR3A
£605.00
Automation machine controller upgrade for MM-CNCMILL3
Order Code: MM-CNCMILL3H
£835.00
Set of 2 toolholders (in addition to the supplied 6) to fully populate 8-position ATC
Order Code: MM-CNCMILL3J
£390.00
