Boxford 190VMCxi CNC Milling Machine

Loading Image

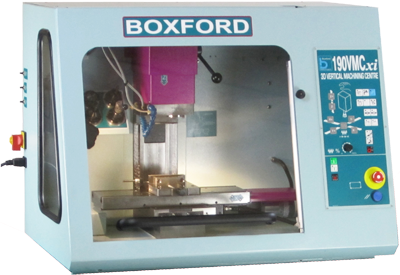

190VMCxi CNC Milling Machine

(excluding VAT)
Boxford 190VMCxi CNC Milling Machine Supplied with Boxford software, vice, set of 6 toolholders, comprehensive set of tooling and additional 3D tooling
Order Code: MM-CNCMILL2
* Each machine is supplied with a single copy of the Boxford CAD/CAM software which contains Mill Design (a cut-down version of TechSoft Design). TechSoft Design files will load directly into this. Alternatively, a Boxford Extension for TechSoft Design V3 can be purchased at a cost of £199.00+VAT to allow seamless integration via File > CNC Output.
Additional Pricing
Recommended Extras

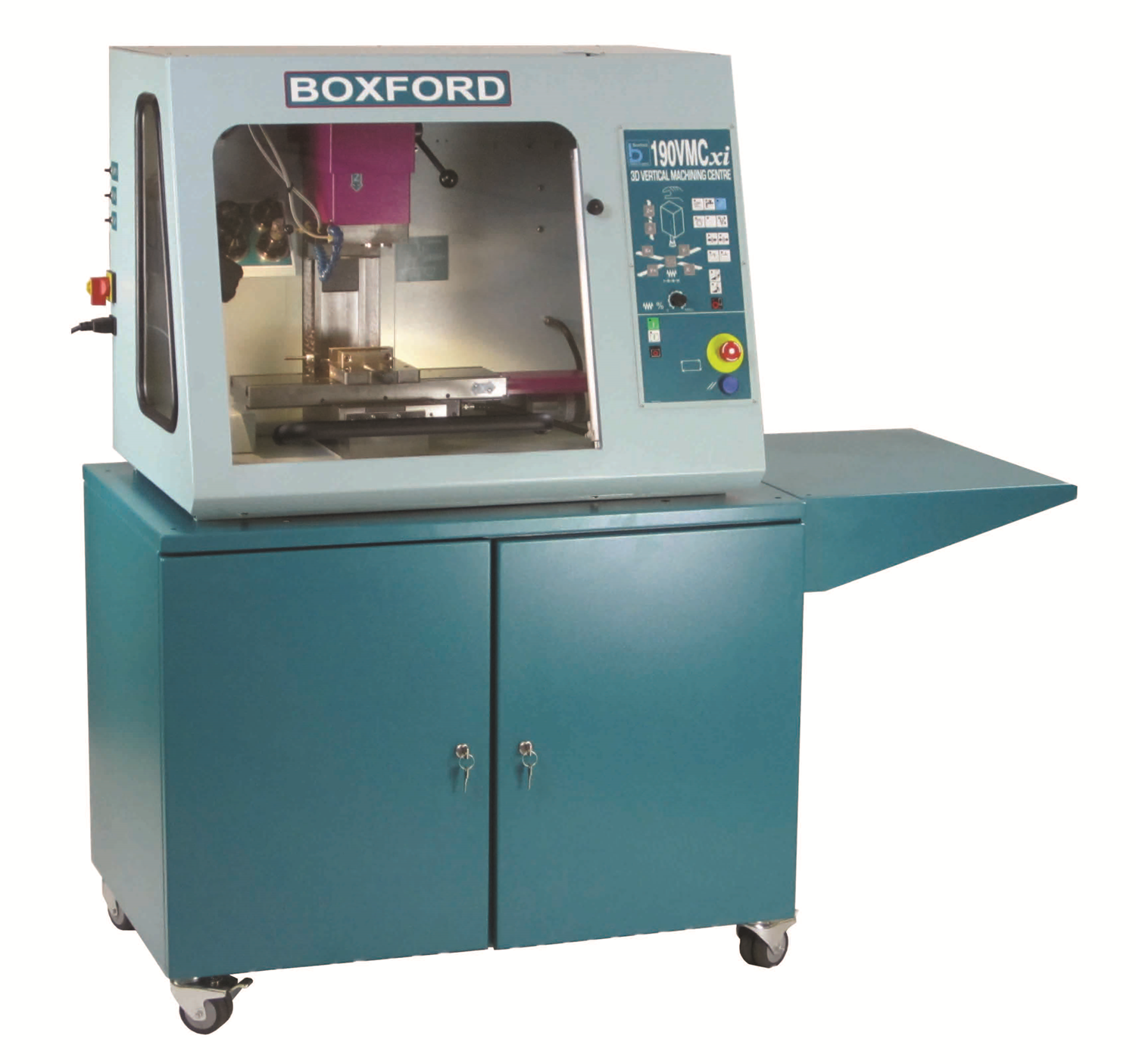

Cabinet base for MM-CNCMILL2 with braked castors, shelf & locking doors
Order Code: MM-CNCMILL2G
Laptop shelf for cabinet base
Order Code: MM-CNCMILL2H
Optional Extras
Air-mist coolant for MM-CNCMILL2 (compressed air required)
Order Code: MM-CNCMILL2F
Bambi BB24V Compressor (0.5hp, 50 litres/min, receiver 24 litres, oil lubricated)
Automatic 6-position toolchanger (needs compressed air and automation machine controller upgrade)
Order Code: MM-CNCMILL2J
Automation machine controller upgrade for MM-CNCMILL2
Order Code: MM-CNCMILL2K
Recommended Design Software
TechSoft Design V3More Info
Product Description
A versatile bench top machining centre, housed in a single enclosed cabinet, it is ideal for schools and training college and can easily be moved between rooms. With full 2D and 3D Capacity, it is capable of machining mild steel, alloys and synthetic materials to close tolerances. Includes pre-loaded anti-backlash ball screws on all axes, closed loop spindle control, and available with automated accessories and robot interface port for FMS/CIM system integration. Includes on-site training for UK mainland customers.
Product Specifications
Model: 190VMCxi
Axis Travel: 225 x 150 x 140mm
Table Size: 410 x 130mm
Max Feedrate: 33mm/sec (2000mm/min)
Spindle Speed: 350-3500rpm
Motor: 450W
Interface: USB
Weight: 150kg
Dimensions (mm): 890(W) X 610(D) x 600(H)
1280(H) with guard open
Power Requirments: 240V 0.5kW, 13A Socket
Other Requirements: Computer with USB
Warranty: 1 Year On-Site (UK Mainland)
1 Year Return and Collect (Elsewhere)
