Boxford Laser Cutting Range

Boxford Laser Cutting Range

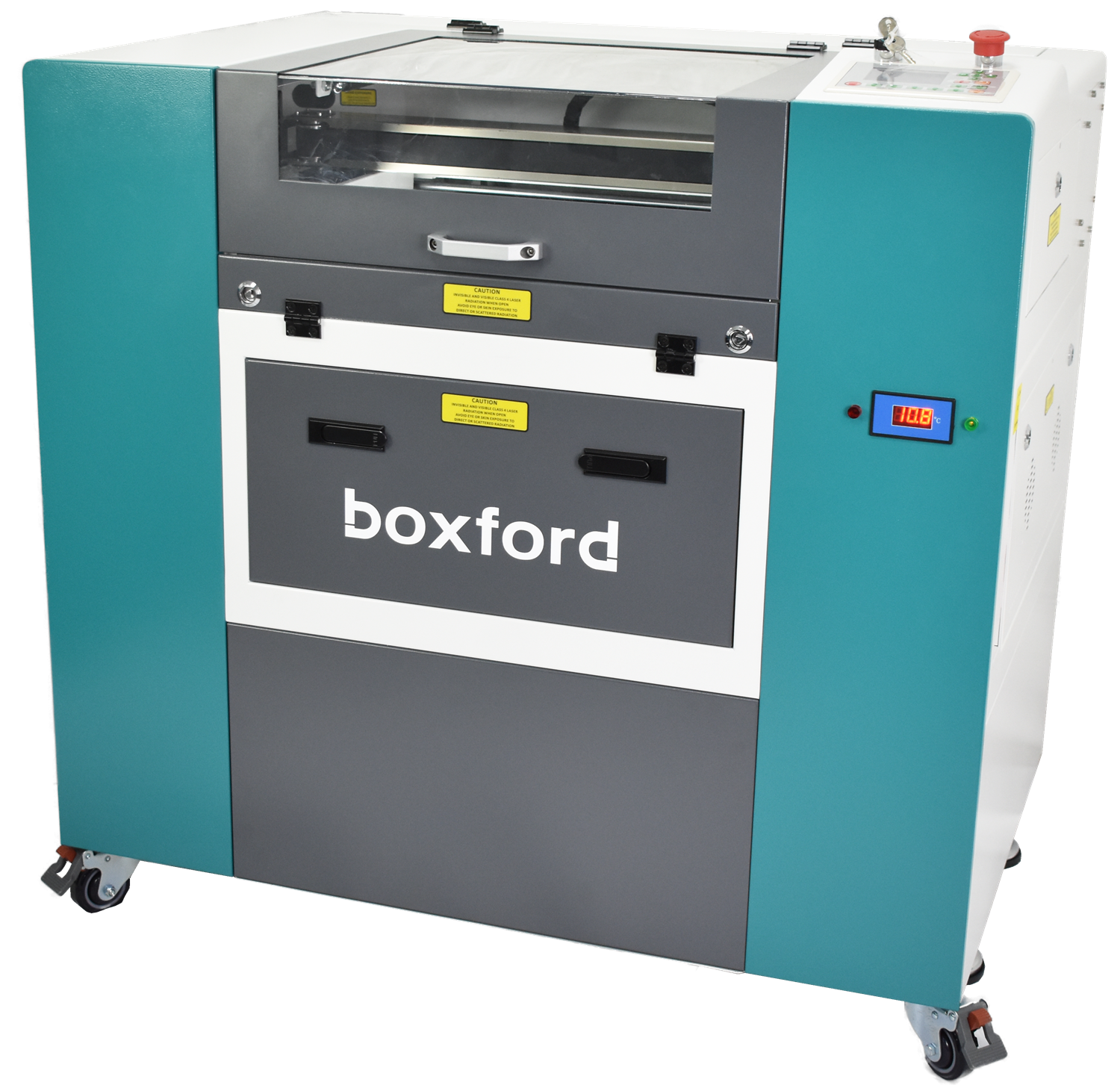

BGL350 Water Cooled Laser Cutter
BGL350 Water Cooled Laser Cutter
Click to Enlarge - BGL350 Water Cooled Laser Cutter
Click to Enlarge - BGL460 Water Cooled Laser Cutter
Click to Enlarge - BGL690 Water Cooled Laser Cutter
Click to Enlarge - BGL1390 Water Cooled Laser Cutter
Click to Enlarge - BML1390 Mixed Metal/Non Metal Laser Cutter

Boxford Laser Cutting Range

About the Range
TechSoft are well known in education for the LaserCAM Star range of air-cooled metal tube laser cutters which link directly to TechSoft Design V3 / 2D Design V2.

However, to help those on a lower budget, we are also now supplying the Boxford range of water-cooled glass tube laser cutters which come complete with a water cooler. Output from TechSoft Design V3 is via an intermediary file which must be loaded into the laser software to drive the machine.

All machines in the range come with the following accessories: Integrated Laser Source Water Cooling System, Honeycomb Bed, Air Assist including Integrated Compressor, Basic Extraction Fan, Windows Software

The TechSoft Advantage
We have put together full packages including extraction, commissioning and training so that machines are supplied and installed with everything you need to get started straight away. TechSoft have been supplying laser cutters to education for over twelve years and remain committed to providing the highest level of service needed to secure your investment for the long term.
BGL350 Water Cooled Laser Cutter
BGL350 Water Cooled Laser Cutter
Full Package
ProductsPriceBuy
Boxford BGL350 (500 x 300mm) 50W CO2 Water Cooled Laser Cutter c/w honeycomb table, extraction unit, commissioning and training on same day (UK Mainland) N.B. Please inform us when you place your order if your door access is less than 760mm. Min door access is 640mm
Order Code: MP-BL-BGL350
£7,585.00
Machines Only
ProductsPriceBuy
Boxford BGL350 50W CO2 Water Cooled Laser Cutter. Cut area 500 x 300mm
Order Code: TM-BL-BGL350
£4,990.00
Filtered Extraction Unit with Replaceable Filters for BGL350
Order Code: TM-BL-BGL350E
£1,825.00
Optional Extra
ProductsPriceBuy
Rotary Attachment for BGL350
Order Code: TM-BL-BGL350R
£660.00
Consumables
ProductsPriceBuy
Pack of 2 Replacement Pre-Filters for BG350 extractor
Order Code: TMP-BL-EPFG350
£192.00
Replacement Main Filter (HEPA Twin Chemical) for BG350 extractor
Order Code: TMP-BL-EMFG350
£240.00
Replacement Honeycomb Cutting Table (500 x 300mm) for BG350 Laser Cutter
Order Code: TMP-BL-HTG350
£122.00
Replacement 50W Glass Tube for BGL350 Laser Cutter. N.B. This product cannot be sent via a courier. Customer collection or delivery by our own transport only.
Order Code: TMP-BL-TG350
£390.00

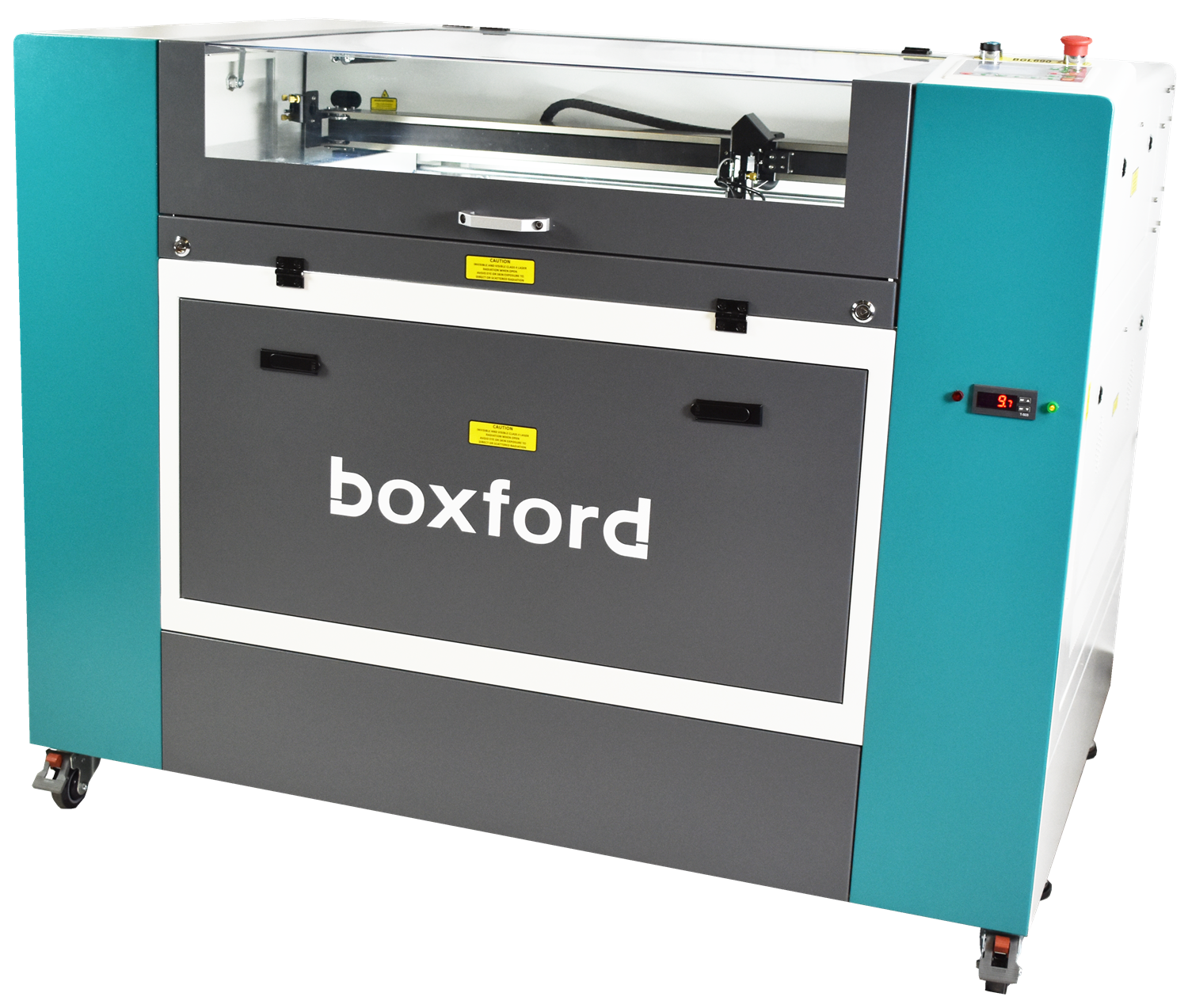

BGL460 Water Cooled Laser Cutter
BGL460 Water Cooled Laser Cutter
Full Package
ProductsPriceBuy
Boxford BGL460 (600 x 400mm) 80W CO2 Water Cooled Laser Cutter c/w honeycomb table, extraction unit, commissioning and training on same day (UK Mainland) N.B. Please inform us when you place your order if your door access is less than 860mm. Min door access is 640mm.
Order Code: MP-BL-BGL460
£8,690.00
Machines Only
ProductsPriceBuy
Boxford BGL460 80W CO2 Water Cooled Laser Cutter. Cut area 600 x 400mm
Order Code: TM-BL-BGL460
£5,860.00
Filtered Extraction Unit with Replaceable Filters for BGL460
Order Code: TM-BL-BGL460E
£2,065.00
Optional Extra
ProductsPriceBuy
Rotary Attachment for BGL460
Order Code: TM-BL-BGL460R
£660.00
Additional Charge to disassemble and reassemble when sufficient door access from vehicle drop-off point to final resting place is not available.
Order Code: CALLOUT_BLD
£1,325.00
Consumables
ProductsPriceBuy
Pack of 2 Replacement Pre-Filters for BG460 extractor
Order Code: TMP-BL-EPFG460
£285.00
Replacement Main Filter (HEPA Twin Chemical) for BG460 extractor
Order Code: TMP-BL-EMFG460
£240.00
Replacement Honeycomb Cutting Table (600 x 400mm) for BG460 Laser Cutter
Order Code: TMP-BL-HTG460
£156.00
Replacement 80W Glass Tube for BGL460 Laser Cutter. N.B. This product cannot be sent via a courier. Customer collection or delivery by our own transport only.
Order Code: TMP-BL-TG460
£520.00
BGL690 Water Cooled Laser Cutter
BGL690 Water Cooled Laser Cutter
Full Package
ProductsPriceBuy
Boxford BGL690 (900 x 600mm) 80W CO2 Water Cooled Laser Cutter c/w honeycomb table, extraction unit, commissioning and training on same day (UK Mainland)
Please inform us when you place your order if your door access is less than 1020mm. Min door access is 790mm. Door access of 790 to 860mm requires an additional charge for disassembly/reassembly on site. See Optional Extras below.
Order Code: MP-BL-BGL690
£10,625.00
Machines Only
ProductsPriceBuy
Boxford BGL690 80W CO2 Water Cooled Laser Cutter. Cut area 900 x 600mm.
(Min door access is 790mm. Door access of 790 to 860mm requires an additional charge for disassembly/reassembly. See Optional Extras below.)
Order Code: TM-BL-BGL690
£7,790.00
Filtered Extraction Unit with Replaceable Filters for BGL690
Order Code: TM-BL-BGL690E
£2,065.00
Optional Extra
ProductsPriceBuy
Rotary Attachment for BGL690
Order Code: TM-BL-BGL690R
£660.00
Additional Charge to disassemble and reassemble when sufficient door access from vehicle drop-off point to final resting place is not available.
Order Code: CALLOUT_BLD
£1,325.00
Consumables
ProductsPriceBuy
Pack of 2 Replacement Pre-Filters for BG690 extractor
Order Code: TMP-BL-EPFG690
£285.00
Replacement Main Filter (HEPA Twin Chemical) for BG690 extractor
Order Code: TMP-BL-EMFG690
£240.00
Replacement Honeycomb Cutting Table (900 x 600mm) for BG690 Laser Cutter
Order Code: TMP-BL-HTG690
£189.00
Replacement 80W Glass Tube for BGL690 Laser Cutter. N.B. This product cannot be sent via a courier. Customer collection or delivery by our own transport only.
Order Code: TMP-BL-TG690
£765.00

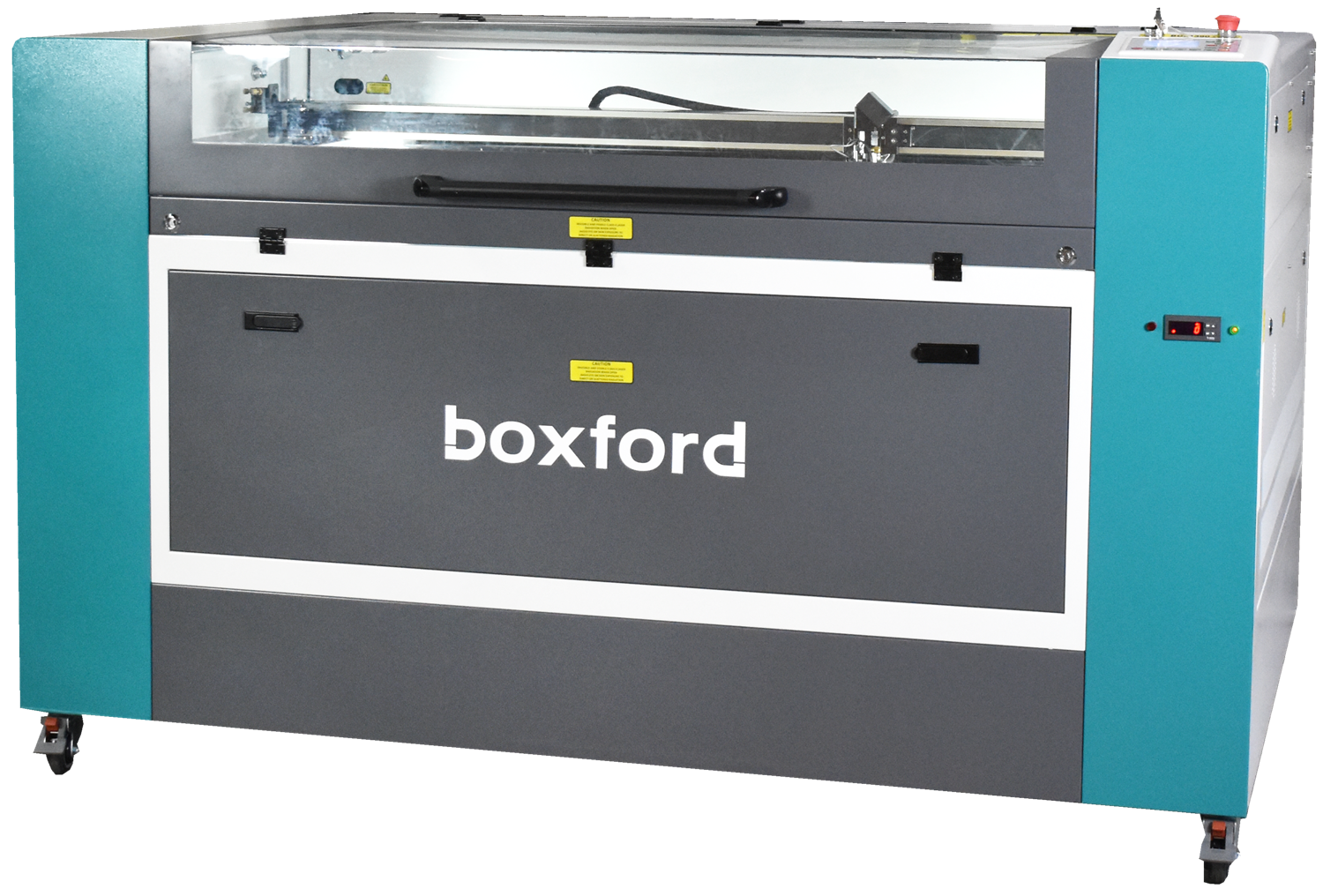

BGL1390 Water Cooled Laser Cutter
BGL1390 Water Cooled Laser Cutter
Full Package
ProductsPriceBuy
Boxford BGL1390 (1300 x 900mm) 100W CO2 Water Cooled Laser Cutter c/w honeycomb table, extraction unit, commissioning and training on same day (UK Mainland) Please inform us when you place your order if your door access is less than 1340mm. Min door access is 790mm. Door access of 790 to 860mm requires an additional charge for disassembly/reassembly on site)
Order Code: MP-BL-BGL1390
£15,725.00
Machines Only
ProductsPriceBuy
Boxford BGL1390 100W CO2 Water Cooled Laser Cutter. Cut area 1300 x 900mm
Order Code: TM-BL-BGL1390
£9,260.00
Filtered Extraction Unit with Replaceable Filters for BGL1390
Order Code: TM-BL-BGL1390E
£4,465.00
Optional Extra
ProductsPriceBuy
Rotary Attachment for BGL1390
Order Code: TM-BL-BGL1390R
£660.00
Additional Charge to disassemble and reassemble when sufficient door access from vehicle drop-off point to final resting place is not available.
Order Code: CALLOUT_BLD
£1,325.00
Consumables
ProductsPriceBuy
Pack of 2 Replacement Pre-Filters for BG1390 extractor
Order Code: TMP-BL-EPFG1390
£285.00
Replacement Main Filter 1 (HEPA) for BG1390 extractor
Order Code: TMP-BL-EMF1G1390
£490.00
Replacement Main Filter 2 (Chemical) for BG1390 extractor
Order Code: TMP-BL-EMF2G1390
£650.00
Replacement Honeycomb Cutting Table (1200 x 900mm) for BG1390 Laser Cutter
Order Code: TMP-BL-HTG1390
£255.00
Replacement 100W Glass Tube for BGL1390 Laser Cutter. N.B. This product cannot be sent via a courier. Customer collection or delivery by our own transport only.
Order Code: TMP-BL-TG1390
£1,325.00

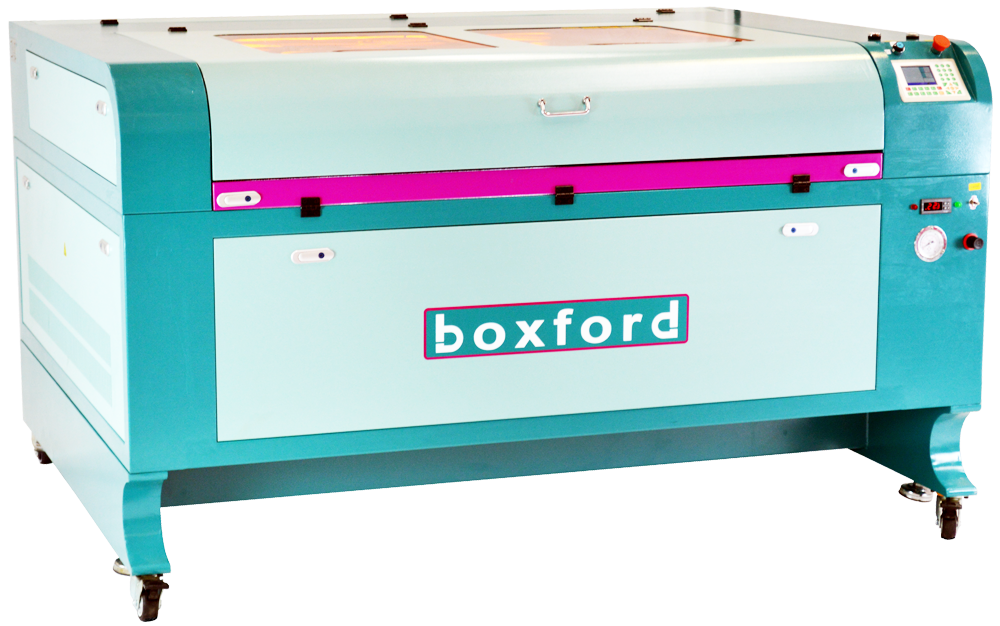

BML1390 Mixed Metal/Non Metal Laser Cutter
BML1390 Mixed Metal/Non Metal Laser Cutter
Full Package
ProductsPriceBuy
Boxford BML1390 (1300 x 900mm) 150W Mixed Metal/Non Metal Laser Cutter, honeycomb table, extraction unit, commissioning and training on same day (UK Mainland) Please inform us when you place your order if your door access is less than 1560mm. Min door access is 860mm.
Order Code: MP-BL-BML1390
£24,165.00
Machines Only
ProductsPriceBuy
Boxford BML1390 150W Mixed Metal/Non Metal Laser Cutter. Cut area 1300 x 900mm
Order Code: TM-BL-BML1390
£15,990.00
MaxFil 3 stage extraction unit. Power requirement - 380/400V 3ph@10A
Order Code: TM-BL-BML1390E
£6,170.00
Optional Extra
ProductsPriceBuy
Rotary Attachment for BML1390
Order Code: TM-BL-BML1390R
£660.00
Additional Charge to disassemble and reassemble when sufficient door access from vehicle drop-off point to final resting place is not available.
Order Code: CALLOUT_BLD
£1,325.00
Consumables
ProductsPriceBuy
Replacement Main Filter for BML1390 extractor
Order Code: TMP-BL-EMF1M1390
£1,030.00
Replacement Activated Charcoal Filter for BML1390 extractor
Order Code: TMP-BL-EMF2M1390
£880.00
Replacement 150W Mixed Use Glass Tube for BML1390 Laser Cutter. N.B. This product cannot be sent via a courier. Customer collection or delivery by our own transport only.
Order Code: TMP-BL-TM1390
£3,060.00
Product Specifications
Specifications
Model:BGL350BGL460BGL690
XY Axis Travel:500 x 300mm600 x 400mm900 x 600mm
Z Axis Travel:250mm250mm250mm
Laser Source Power:50 Watts80 Watts80 Watts
Laser Type:Glass CO₂Glass CO₂Glass CO₂
Integrated Laser Cooling System:Water ChillerWater ChillerWater Chiller
Cutting Thickness:0-15mm (non-metal)0-15mm (non-metal)0-20mm (non-metal)
Max. Cutting Speed:600mm/sec600mm/sec600mm/sec
Max. Engraving Speed:1000mm/sec1000mm/sec1000mm/sec
Standard Focus Length:50.8mm63.5mm63.5mm
Location Precision:<0.01mm<0.01mm<0.01mm
Weight:150kg175kg300kg
Dimensions:1060(W) x 750(D) x 1020(H)mm1050(W) x 850(D) x 1020(H)mm1480(W) x 1010(D) x 1150(H)mm
Power Requirements:220V 1ph @ 6A220V 1ph @ 6A220V 1ph @ 8A
Warranty:UK Mainland:
1 Year Machine
4 Month Tube

Elsewhere:
Return and Collect
1 Year Machine
4 Month Tube		UK Mainland:
1 Year Machine
6 Month Tube

Elsewhere:
Return and Collect
1 Year Machine
6 Month Tube		UK Mainland:
1 Year Machine
10 Month Tube

Elsewhere:
Return and Collect
1 Year Machine
10 Month Tube
Product Specifications
Specifications
Model:BGL1390BML1390
XY Axis Travel:1300 x 900mm1300 x 900mm
Z Axis Travel:250mm250mm
Laser Source Power:100 Watts150 Watts
Laser Type:Glass CO₂Glass CO₂
Integrated Laser Cooling System:Water ChillerWater Chiller
Cutting Thickness:0-20mm (non-metal)0-30mm (non-metal)
1.5mm steel (with oxygen gas)
1.2mm stainless steel (with oxygen gas)
Max. Cutting Speed:600mm/sec400mm/sec
Max. Engraving Speed:1000mm/sec200mm/sec
Standard Focus Length:63.5mm63.5mm
Location Precision:<0.01mm<0.01mm
Weight:410kg450kg
Dimensions:1860(W) x 1330(D) x 1150(H)mm2010(W) x 1550(D) x 1150(H)mm
Power Requirements:220V 1ph @ 10A220V 1ph @ 13A
Warranty:UK Mainland:
1 Year Machine
10 Month Tube

Elsewhere:
Return and Collect
1 Year Machine
10 Month Tube		UK Mainland:
1 Year Machine
10 Month Tube

Elsewhere:
Return and Collect
1 Year Machine
10 Month Tube
