Flat Bed Heat Presses

About our Range
About our Range
What Can I Use a Heat Press For?
Both LIT and Sublimation processes require a heat press to transfer images from the transfer media to the item to be printed. Heat presses can also be used for applying heat applied media. Close control of temperature, pressure and time is needed for high quality, predictable results. All our heat presses feature built-in timers, temperature control and pressure adjustment.

Which Heat Press Should I Choose?
For those on a budget, or those with limited space available, the clam presses will press most flat items for use in LIT, Sublimation and heat applied media (excluding metallic foil fusing on fabric).

The multi-functional press is for those who have no need for LIT, but wish to use sublimation or heat applied media and might also want to purchase the cap attachment for pressing caps.

The heavily engineered A3+ swing presses are for the more demanding user, or simply those requiring to print onto thicker items and/or to transfer metallic foil to fabrics. There are two versions of these swing presses – the standard one and the ‘deep’ one. The ‘deep’ one will press flat items up to 25mm thick and so is particularly useful for applying images to thick pieces of wood.
Clam Heat Press
Clam Heat Press
Suitable for Sublimation and Laser Image Transfer
The 380 x 280mm clam heat press offers superb value and reliability. It has an accurate temperature range from as low as 80°C to 220°C making it ideal for LIT, Sublimation and all of TechSoft’s heat applied media (excluding metallic foil fusing on fabric). The LCD digital display and easy to adjust pressure knob make it simple to use.
Specifications
Model: Clam Heat Press
Max Platen Size: 380 x 280mm
Weight: 32kg
Dimensions: 410(W) x 630(D) x 860(H)mm)
Power Requirements: 230V, 13A Socket
Warranty: 1 Year Return to Base (UK Mainland & Ireland)
1 Year Return and Collect (Elsewhere)
ProductsPriceBuy
Clam Heat Press (380 x 280mm)
Order Code: SLM-HPR3
£465.00
Clam/Draw Press
Clam/Draw Press
Suitable for Sublimation and Laser Image Transfer
This space saving clam/draw heat press with its slide-out lower platen incorporates both a printable area of 380 x 380mm with an accurate temperature range from as low as 80°C to 220°C. Together with the LCD digital controller and easy to adjust pressure knob the press offers superb value for money. Suitable for LIT, Sublimation and all of TechSoft’s heat applied media excluding metallic foil fusing on fabric.
Specifications
Model: Clam/Draw Heat Press
Max Platen Size: 380 x 380mm
Weight: 36kg
Dimensions: 630(W) x 410(D) x 860(H)mm)
Power Requirements: 240V, 13A Socket
Warranty: 1 Year Return to Base (UK Mainland & Ireland)
1 Year Return and Collect (Elsewhere)
ProductsPriceBuy
Clam/Draw Heat Press - Platten Size 380 x 380mm. Slide-out lower platen
Order Code: SLM-HPR2
£795.00

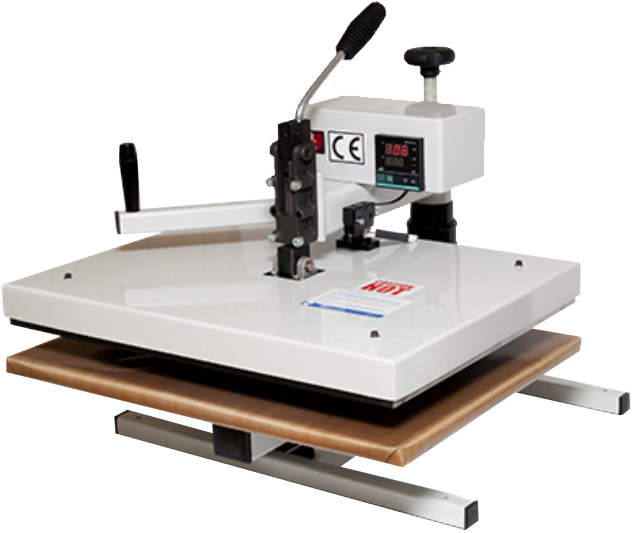

A3+ Heat Press
A3+ Heat Press
Suitable for Sublimation and Laser Image Transfer
These professional A3+ size (380 x 500mm) swing presses have heavily engineered components to ensure high, even pressure across the platen. Precise time and temperature control is easy to set and monitor using the LCD display and simple interface. The deep version presses items up to 25mm thick. Suitable for LIT, Sublimation and all of TechSoft’s heat applied media including metallic foil fusing on fabric.
Specifications
Model: A3+ Heat Press
Max Platen Size: 380 x 500mm
Weight: 45kg
Dimensions: 620(W) x 910(D) x 420(H)mm)
Power Requirements: 230-240V, 2.5kW, 13A Socket
Warranty: 1 Year Return to Base (UK Mainland & Ireland)
1 Year Return and Collect (Elsewhere)
ProductsPriceBuy
A3+ Swing Press (380 x 500mm). Includes 2 PTFE sheets each 380 x 500mm
Order Code: SLM-SWINGPRESS
£1,525.00
Deep A3+ Swing Press (380 x 500mm). Press items up to 25mm thick. Includes 2 PTFE sheets each 380 x 500mm
Order Code: SLM-SWINGPR2
£1,660.00
150 x 150mm Interchangeable Press Platen Base for Swing Press SLM-SWINGPRESS/SWINGPR2
Order Code: SLM-SPBASE4
£106.00
200 x 200mm Interchangeable Press Platen Base for Swing Press SLM-SWINGPRESS/SWINGPR2
Order Code: SLM-SPBASE2
£140.00
250 x 250mm Interchangeable Press Platen Base for Swing Press SLM-SWINGPRESS/SWINGPR2
Order Code: SLM-SPBASE1
£180.00
300 x 300mm Interchangeable Press Platen Base for Swing Press SLM-SWINGPRESS/SWINGPR2
Order Code: SLM-SPBASE3
£210.00
Multi-Functional Heat Press for Sublimation Only
Multi-Functional Heat Press
Suitable for Sublimation Only
This multi-functional swing press is ideal for Sublimation and all of TechSoft’s heat applied media excluding metallic foil fusing on fabric. It is not, however, recommended for LIT. The 380 x 300mm platen provides generous accommodation for flat work including ‘T’ shirts. Add the cap and plate press attachments and you have an economical, versatile machine for a wide variety of Sublimations projects. Easy to use digital controls allow accurate temperature and dwell settings.
Specifications
Model: Multi-Functional Heat Press
Display Timer Range: 0 - 9999 sec
Working Temp: 360‎°C
Weight: 29kg
Dimensions: 500(W) x 500(D) x 470(H)mm
Required Working Area: 1000(W) x 500(D) x 470(H)mm
Power Requirements: 230V, 13A Socket
Warranty: 1 Year Return to Base (UK Mainland & Ireland)
1 Year Return and Collect (Elsewhere)
ProductsPriceBuy
Multi-Functional Swing Press (380 x 300mm, suitable for sublimation only)
Order Code: SLM-SWINGPR3830
£925.00
150 x 80mm cap element kit for SLM-SWINGPR3830
Order Code: SLM-SPCAP1
£80.00
115mm diameter plate element kit for SLM-SWINGPR3830
Order Code: SLM-SPPLATE1
£80.00
