Cap/Pocket Heat Presses

Product Description
What Can I Use a Heat Press For?
Both LIT and Sublimation processes require a heat press to transfer images from the transfer media to the item to be printed. Heat presses can also be used for applying heat applied media. Close control of temperature, pressure and time is needed for high quality, predictable results. All our heat presses feature built-in timers, temperature control and pressure adjustment.

If you want to press images onto caps, a cap press will be needed. The cap press which we supply can also be used for pockets.

The multi-functional press is for those who have no need for LIT, but wish to use sublimation or heat applied media and might also want to purchase the cap attachment for pressing caps.

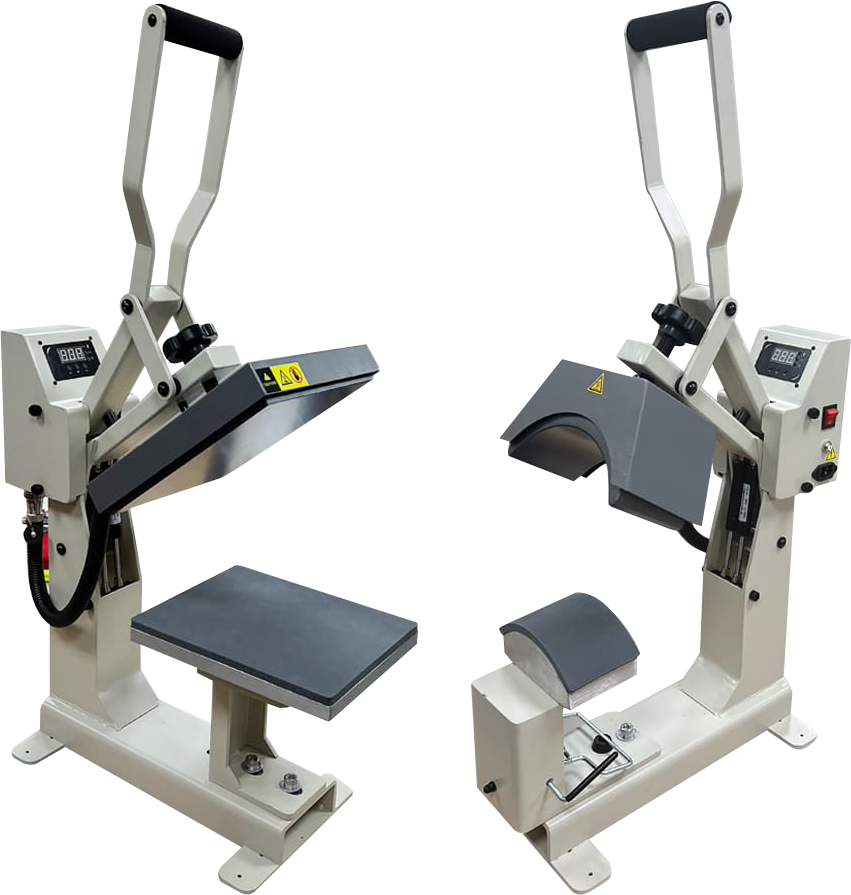

Cap/Pocket Press
Cap/Pocket Press
Suitable for Sublimation and Laser Image Transfer
Designed for the application of transfers to all types of headwear and small garments, the Studio Cap/Pocket Combo Press features a Digital Controller for the accurate pre-selection of both time and temperature.

Combines a separate cap and two different sized pocket heads that can be interchanged in a matter of seconds, via two thumb screws, with electrical connections on a plug-in lead. This design innovation offers great versatility.
Model: Cap/Pocket Press
Display Timer Range: 0 - 9.59mins
Max Working Temp: 260‎°C
Weight: 13.62kg
Dimensions: 320(W) x 460(D) x 435(H)mm (630mm open)
Fuse: 3A
Power Requirements: 230-240V, 13A Socket
Warranty: 1 Year Return to Base (UK Mainland & Ireland)
1 Year Return and Collect (Elsewhere)
Cap/Pocket Combi Press
Multi-Functional Heat Press for Sublimation Only
Multi-Functional Heat Press
Suitable for Sublimation Only
This multi-functional swing press is ideal for Sublimation and all of TechSoft’s heat applied media excluding metallic foil fusing on fabric. It is not, however, recommended for LIT. The 380 x 300mm platen provides generous accommodation for flat work including ‘T’ shirts. Add the cap and plate press attachments and you have an economical, versatile machine for a wide variety of Sublimations projects. Easy to use digital controls allow accurate temperature and dwell settings.
Model: Multi-Functional Heat Press
Display Timer Range: 0 - 9999 sec
Working Temp: 360‎°C
Weight: 29kg
Dimensions: 500(W) x 500(D) x 470(H)mm
Required Working Area: 1000(W) x 500(D) x 470(H)mm
Power Requirements: 230V, 13A Socket
Warranty: 1 Year Return to Base (UK Mainland & Ireland)
1 Year Return and Collect (Elsewhere)
Multi-Functional Swing Press (380 x 300mm, suitable for sublimation only)
Order Code: SLM-SWINGPR3830
150 x 80mm cap element kit for SLM-SWINGPR3830
Order Code: SLM-SPCAP1
115mm diameter plate element kit for SLM-SWINGPR3830
Order Code: SLM-SPPLATE1
