UV Exposure Light Boxes

PCB Manufacturing

UV Exposure Light Boxes

UV Exposure Light Boxes

Prices
(excluding VAT)
ProductsPriceBuy

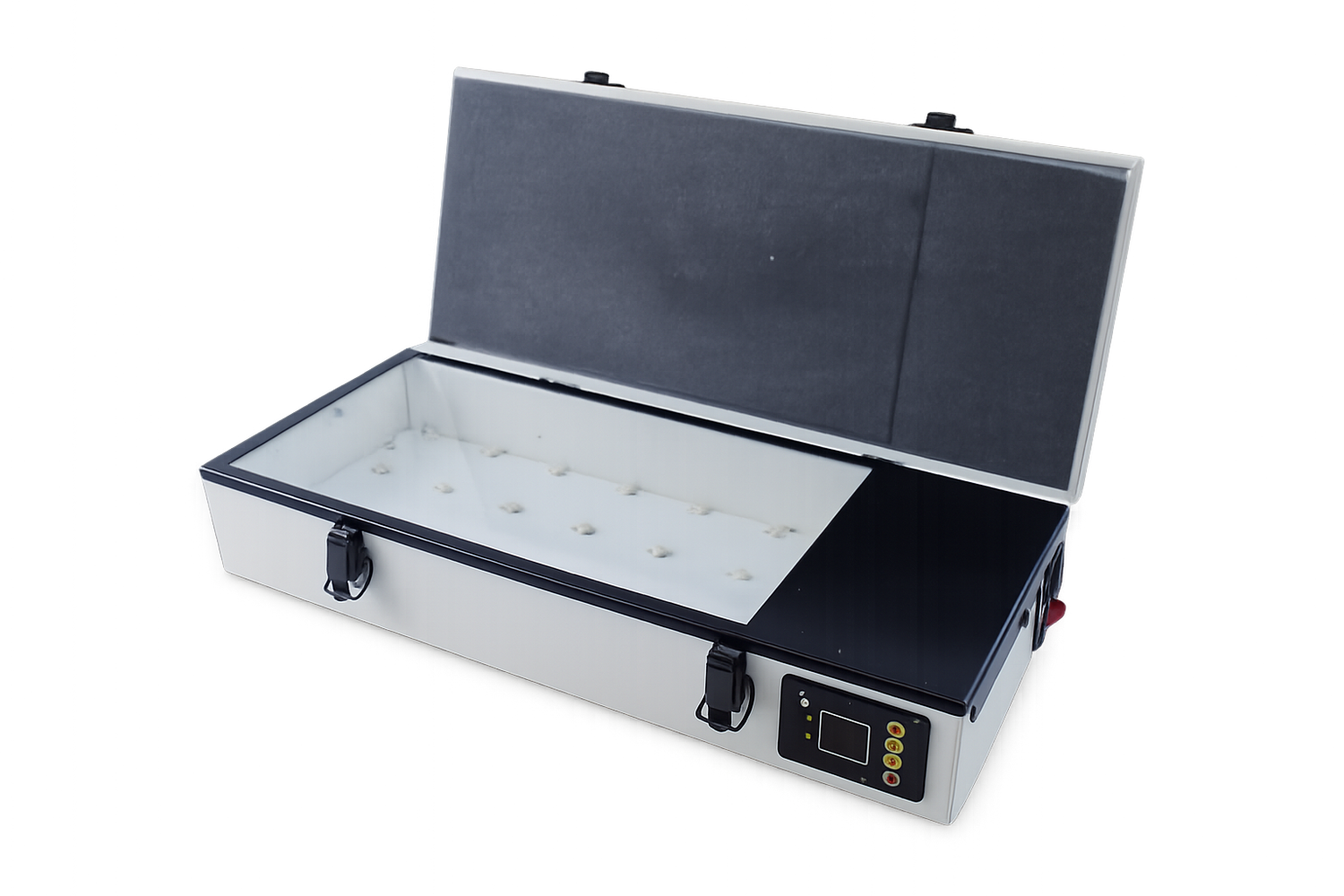

UV Exposure Unit Single Sided. Working Area 250 x 160mm
Order Code: EL-UVBOX1
£355.00

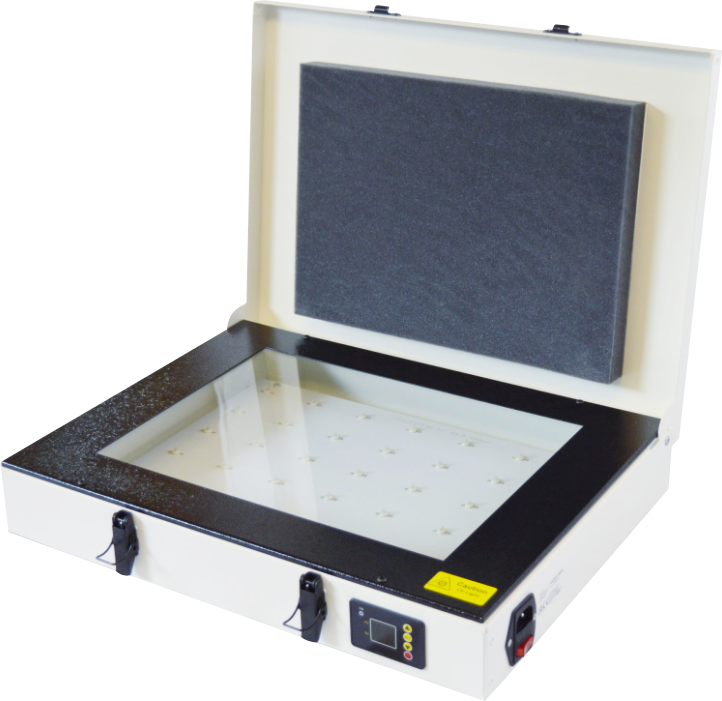

UV Exposure Unit Single Sided. Working Area 365 x 240mm
Order Code: EL-UVBOX2
£435.00
Product Description
These cost-effective units enable controlled UV exposure of PCB artwork onto pre-sensitised copper-clad board. Both feature a pressure pad in the lid which, when clipped shut keeps the artwork in close contact with the board for faithful reproduction of intricate designs. Operation could not be simpler. Once the laminate and artwork are in place, exposure time is set on the electronic timer.
Product Specifications
Specifications
Model:EL-UVBOX1EL-UVBOX2
Maximum Board Size: 250 x 160mm365 x 240mm
UV Source:4 x 8W4 x 15W
Timer:0-600 secs, 0-100 mins0-600 secs, 0-100 mins
Weight:10kg14kg
Dimensions:317(W) x 225(D) x 90(H)mm473(W) x 310(D) x 93(H)mm
Power Requirements:240V, 13A Socket240V, 13A Socket
Warranty:1 Year Return to Base (UK Mainland)
1 Year Return and Collect (Elsewhere)
1 Year Return to Base (UK Mainland)
1 Year Return and Collect (Elsewhere)
