PCB Drilling Stations

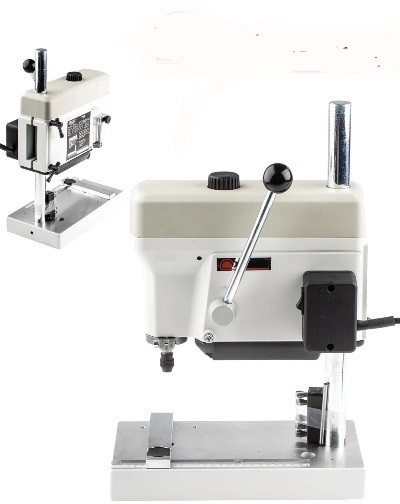

A complete low cost high speed drilling station consisting of a FX1 variable speed drill and a PCB Drill Stands. The FX1 drilling machine assembly can be raised and lowered to set the desired drilling height and there is an adjustable depth stop to facilitate rapid repetitive drilling operations. The sturdy base plate is 120mm wide with a throat depth of 120mm and the drill lever gives a vertical travel of 21mm.

This high speed PCB drill machine is designed for continuous use in the accurate drilling of PCBs. The PCB drill press head is balanced on two internal springs so that very little force is needed to lower or raise the drill head. Two adjustable stops can be set to limit the drill movement. There is an integral lamp mounted under the throat casting to give good illumination. A drill guard is fitted to protect the operator from swarf and carbide drill bit breakages.

This high speed PCB router features a variable high speed spindle allowing complex rub-outs and contours to be mechanically etched to the surfaces of copper circuit board laminate PCB materials as well as conventional high speed PCB hole drilling. The unit includes a work illuminating lamp, a large base plate, key type chuck, fence and depth stop.
