Sieg CNC Lathe

CNC Turning for Steel and Non-Ferrous Metals

View PDF Version of Page

Sieg CNC Lathe

Direct Control
Direct TechSoft Design Control
The Sieg CNC Lathe is DIRECTLY CONTROLLED by TechSoft Design V3 (formerly 2D Design V2) with CNC Lathe Extension

Sieg CNC Lathe

(excluding VAT)
Sieg CNC Lathe KC6S Package
Includes machine with integral stand, software extension for 2D Design V2, coolant system and comprehensive tooling pack
Order Code: MP-CL-52TS
Recommended Extras
Hand Control Wheel
Order Code: MT-CM-HC51

Full Range of Tools and Accessories
Recommended Design Software
TechSoft Design V3More Info
Product Description
Robust and Precise for Engineering Training

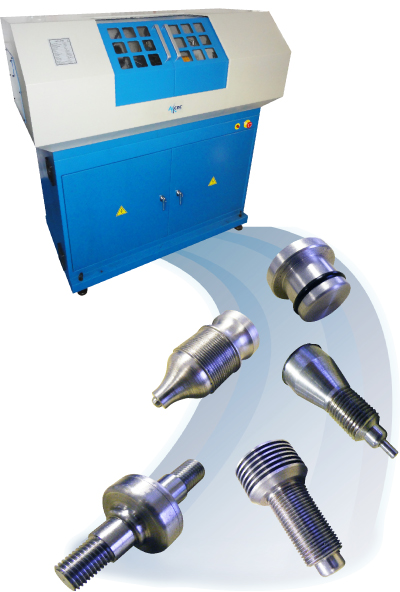

The Sieg KC6S is a high quality machine built around precision-ground iron castings. In use, the machine is virtually vibration free. The machine has sufficient power for sensible machining times in an educational setting. A robust, interlocked, case means coolant and swarf are contained and moving parts are guarded.

Simple Part Design - Comprehensive Output Control

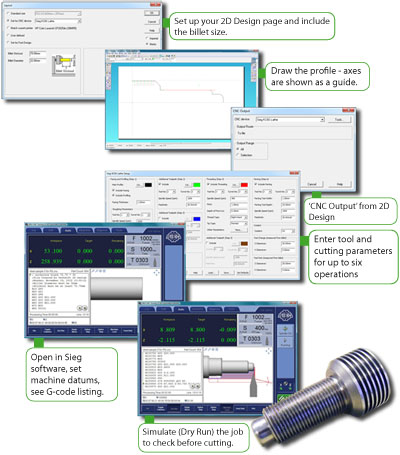

Our Sieg CNC Lathe package provides a software extension for 2D Design V2 that makes designing suitable components very straightforward. Profile lines in the drawing are colour coded according to the operation required. Up to six operations can be selected including roughing, parting-off, threading, etc., each operation being assigned one of the tools in the automatic 4-position toolpost. On ‘CNC Output’ a file is created that contains all the necessary G&M code data for geometry, tool type, feeds and speeds, etc. The file is then opened in the Sieg CNC Turning software and a full G-code listing is displayed. This can be edited if required or specialist users could even programme from scratch here. As a minimum, the Sieg software is used to manually control the machine and to set up tools, apply off-sets and to establish machine datums.

Clearly the Best Option
Designing parts and outputting to a CNC lathe can be tricky. TechSoft 2D Design V2 and the Sieg KC6S make the job crystal clear at all stages.

TechSoft UK Ltd
Product Specifications
Model:Sieg CNC Lathe
Distance Between Centres:450mm
Swing Over Bed:250mm
Spindle Speed:100-3,000rpm (variable)
Motor:1kW (1.3hp)
Interface:Ethernet - Direct Connection Advised
Dimensions:1460(W) x 760(D) x 1450(H)mm
Power Requirements:240V 1.5kW, 13A Socket
Any Other Requirements:Computer with an Ethernet Connection
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
What's Included
Sieg CNC Turning software
CNC Lathe Extension for 2D Design V2.
N.B. 2D Design V2 is not included but is required to run this Extension

Free Education Training Pack
Containing a Machine Guide/Tutorial booklet, a CD with project samples and four aluminium billets to carry out the tutorial exercises.

Coolant System
Tooling Pack (Includes Live Centre; Keyless Drill Chuck and Arbor; Indexable tools 10mm - 60deg RH, LH, vee, external threading + blade-type parting tool)
