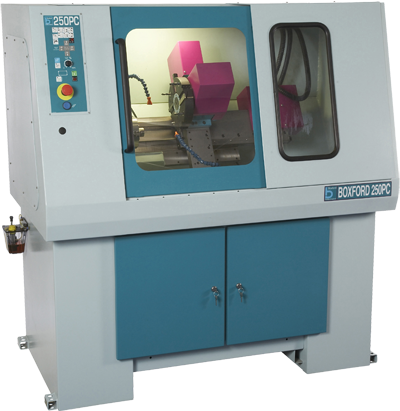

Boxford 250PCi CNC Lathe Machine

250PCi CNC Lathe Machine

250PCi CNC Lathe Machine

Prices
(excluding VAT)
ProductsPriceBuy
Boxford 250PCi CNC Lathe
Supplied with Boxford software, 125mm 3-jaw self-centering chuck, 8-station indexing turret and comprehensive set of tooling
Order Code: MM-CNCLATHE3
£30,145.00
Recommended Accessories
Recommended Design Software
TechSoft Design V3More Info
Product Description
This floor standing lathe includes a 250mm swing over bed, spindle bored to pass 35mm and 125mm diameter precision three jaw self-centering chuck. Also has precision dovetail slide construction, preloaded antibacklash ball screws, integrated lockable storage cupboards and removable laptop shelf. One shot integrated lubrication system and flood coolant are fitted as standard. Includes onsite training for UK mainland customers.
Product Specifications
Specifications
Model:250PCi
Distance Between Centres:350mm
Swing Over Bed:250mm
Swing Over X Axes Slide:105mm
X Axis Travel:200mm
Z Axis Travel:265mm
Max Feedrate:33mm/sec (2000mm/min)
Spindle Speed:200-3200rpm (variable)
Motor:2.2kW
Interface:USB
Weight:560kg
Dimensions (mm):2000(W) x 870(D) x 1520(H)
Power Requirments:240V 2.2kW, 13A Socket
Other Requirements:Computer with USB
Warranty:1 Year On-Site (UK Mainland)
1 Year Return and Collect (Elsewhere)
Accessories
Optional Extras
ProductsPriceBuy
Tailstock for MM-CNCLATHE3
Order Code: MM-CNCLATHE3E
£1,790.00
