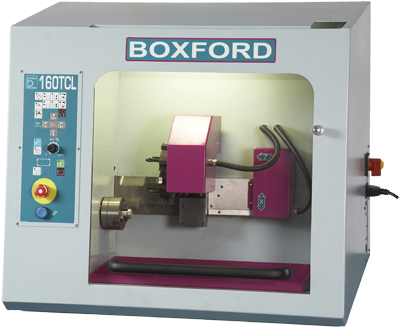

Boxford 160TCLi CNC Lathe Machine

160TCLi CNC Lathe Machine

160TCLi CNC Lathe Machine

Prices
(excluding VAT)
ProductsPriceBuy
Boxford 160TCLi CNC Lathe
Supplied with Boxford software, 80mm 3-jaw self centering chuck, 8-station indexing turret & comprehensive set of tooling
Order Code: MM-CNCLATHE1
£17,225.00
Recommended Extras
Recommended Design Software
TechSoft Design V3More Info
Product Description
A versatile lathe, housed in a single enclosed cabinet, it is ideal for schools and training colleges and can easily be moved between rooms. Includes 160mm swing over bed, precision dovetail slide construction, preloaded antibacklash ball screws and spindle bored to pass 20mm diameter. Also includes 80mm diameter precision three jaw self-centering chuck. Includes onsite training for UK mainland customers.
Product Specifications
Specifications
Model:160TCLi
Distance Between Centres:140mm
Swing Over Bed:160mm
Swing Over X Axes Slide:70mm
X Axis Travel:125mm
Z Axis Travel:125mm
Max Feedrate:25mm/sec (1500mm/min)
Spindle Speed:200-3200rpm (variable)
Motor:490W
Interface:USB
Weight:130kg
Dimensions (mm):800(W) x 600(D) x 675(H)
1025(H) with guard open
Power Requirments:240V 0.5kW, 13A Socket
Other Requirements:Computer with USB
Warranty:1 Year On-Site (UK Mainland)
1 Year Return and Collect (Elsewhere)
Accessories
Recommended Extras
ProductsPriceBuy
Cabinet base for MM-CNCLATHE1 with braked castors, shelf & locking doors
Order Code: MM-CNCLATHE1G
£935.00
Laptop shelf for cabinet base
Order Code: MM-CNCLATHE1H
£82.00
Optional Extras
ProductsPriceBuy
Tailstock for MM-CNCLATHE1
Order Code: MM-CNCLATHE1E
£820.00
Air-mist coolant for MM-CNCLATHE1 (compressed air required)
Order Code: MM-CNCLATHE1F
£560.00
Bambi BB24V Compressor (0.5hp, 50 litres/min, receiver 24 litres, oil lubricated)
Order Code: MM-COMPRESSOR3A
£605.00
