Screen Printing

View PDF Version of Page

Screen Printing

Screen Printing

Prices
(excluding VAT)
A2 / A1 Screen Printing Systems
ProductsPriceBuy
Screen Printing Bed A2 with stand
Order Code: AR-SPBED-A2S
£2,630.00
Screen Printing Bed A1 with stand
Order Code: AR-SPBED-A1S
£3,285.00
Product Description

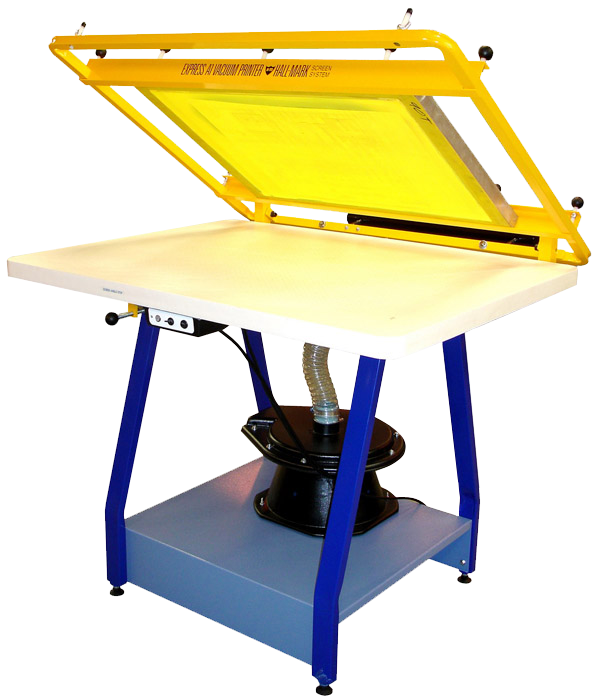

These superb screen printing systems are supplied complete with a stand and whisper-quiet vacuum system. Both models will accommodate material up to 50mm thick and have frame-left angle stops which are adjustable to zero. Vacuum operation is automatic as the screen is lowered for printing. The melamine printing bed and work surfaces are ink and solvent resistant. These machines are robustly constructed for continuous use.
Product Specifications
Specifications
Model:A2A1
Vacuum Bed Size:508 x 380mm594 x 840mm
Max Outside Screen Size:785 x 635mm1040 x 725mm
Weight:43kg60kg
Dimensions:880(W) x 850(D) x 900(H)mm1092(W) x 1200(D) x 900(H)mm
Power Requirements:240V 1A, 13A Socket240V 1A, 13A Socket
Warranty:UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
UK Mainland: 1 Year On-Site
Elsewhere: 1 Year Return and Collect
