You are here: Products > Pottery > Spraybooth

Spraybooth

Ideal for Educational Use

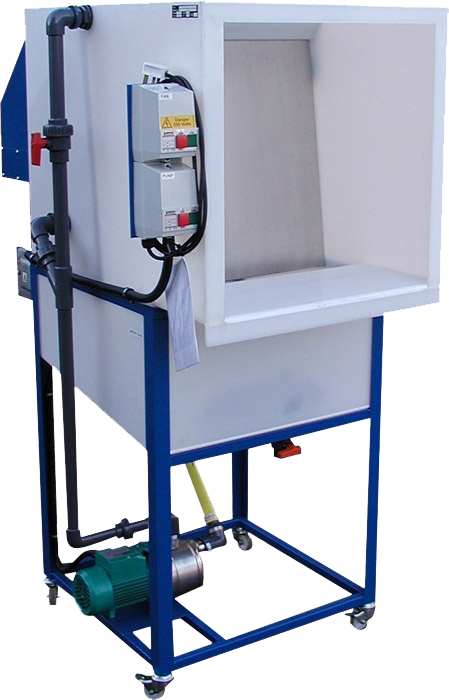

Wetback Spraybooth with Stand

Wetback Spraybooth with Stand
Designed to enable glazes to be applied by spray in safety, but also offers the chance to re-cycle ‘overspray’ material. The unit uses a continuous water curtain of recycling water and a powerful fan to trap overspray. Most of the solid particles are trapped by the water. The particles that escape then get trapped by a series of two filters, a washable stainless steel filter, followed by a washable filter bag. The material trapped by the water can be reclaimed by allowing it first to settle, and then siphoning off the water. It is not possible to separate different colours or types of glazes from the sediment but, with careful management, this ingenious spray booth offers not only a safe working environment but an economical means to apply valuable glaze material by spray gun.
Specifications
Model: Wetback Spraybooth with Stand
Fan: 2000CFM
Air Extraction: 250 cu. ft/min
Working Depth: 350mm
Weight: 118kg approx
Hood Internal Dimensions: 625(W) x 420(D) x 638(H)mm
Dimensions External: 720(W) x 1290(D) x 1655(H)mm
Power Requirements: 240V 6.8A or 13A Socket
Warranty: 1 Year Return to Base (UK Mainland)
1 Year Return and Collect (Elsewhere)

Prices (excluding VAT)

Wetback Spraybooth with Stand
Products Price Buy
Wetback Spraybooth with Stand
Must be plumbed in.
Order Code: AR-SPRAYBOOTH3
£5,200.00

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & DTD (2D Design) formats.
Safe Working Areas
