Kilns

Ideal for Educational Use

Fireworker Kilns

Fireworker Kilns
Fireworker kilns are supplied complete with a controller and thermo-couple, and benefit from an additional protection relay for extra security. The controller connects to the kiln via a Harting socket which offers flexibility for installation. The kilns feature sturdy brick construction with brick to brick door seals within a powder-coated steel chassis. An adjustable-clasp door lock provides security and efficient sealing during firing. The kilns use high grade Kanthal A1 spiral wound elements for long life and energy efficiency. Elements are located in traditional grooves on both the side walls and the floor of the kiln. This allows uniform heat distribution throughout the chamber. In addition the elements are graded from top to bottom, further aiding even temperature distribution.

Fireworker kilns can be bench-mounted provided that the bench has been fireproofed. Alternatively, a sturdy and convenient stand has been developed especially for the fireworker kilns (as shown above). The stand has a built in shelf and the dimensions are 660(W) x 670(D) x 720(H)mm.
Specifications
Model: P5910 P5911
Firing Capacity: 50 litres (1.77cu/ft) 68 litres (2.40cu/ft)
Max Temp: 1300°C
Power: 4.5kW 5.5kW
Weight: 85kg 97kg
Chamber Dimensions: 400(W) x 380(D) x 350(H)mm 400(W) x 380(D) x 460(H)mm
External Dimensions: 640(W) x 680(D) x 700(H)mm 640(W) x 680(D) x 820(H)mm
Power Requirements: 240V 20A Fused switch-disconnector 240V 30A Fused switch disconnector
Warranty: 3 Years On-Site (UK Mainland)
3 Years Return and Collect (Elsewhere)

Heatworker Kilns

Heatworker Kilns
Heatworker kilns have similar features and equipment to the smaller Fireworker models and will probably meet the capacity requirements of most schools and colleges with a busy pottery section.

Heatworker kilns achieve excellent energy efficiency by using durable low thermal-mass insulation brick and high grade backup insulation board to form the chamber. Durability and protection is ensured with a robust pressed-steel powder-coated frame and stainless steel surrounds. Heavy duty spiral wound elements are used to heat the kiln. These elements are tube-mounted for optimum efficiency on both the side walls and floor of the kiln, to allow uniform heat distribution throughout the chamber. In addition, elements are graded from top to bottom to further aid even temperature distribution within the kiln.
Specifications
Model: P5941 P5942 P5943
Firing Capacity: 86 litres (3.04cu/ft) 128 litres (4.52cu/ft) 171 litres (6.04cu/ft)
Max Temp: 1300°C
Power: 6kW 7.5kW 9kW
Weight: 240kg 270kg 315kg
Chamber Dimensions: 410(W) x 380(D) x 560(H)mm 410(W) x 450(D) x 680(H)mm 410(W) x 550(D) x 730(H)mm
External Dimensions: 760(W) x 860(D) x 1450(H)mm 760(W) x 1000(D) x 1560(H)mm 760(W) x 1000(D) x 1650(H)mm
Power Requirements: 415V 15A or 240V 30A, Fs-d 415V 15A or 240V 40A Fused switch disconnector
Warranty: 3 Years On-Site (UK Mainland)
3 Years Return and Collect (Elsewhere)

Lightmaster Kilns

Lightmaster Kilns
Lightmaster kilns share the same features and build-quality of the Heatworker and Firemaster models and will be ideal for schools and colleges requiring a traditional front loading kiln with significantly enhanced capacity.

The kilns are constructed of durable low thermal mass insulation brick with two high grade backup insulation boards. Durability and protection is ensured with a robust pressed-steel powder-coated frame and stainless steel surrounds. Heavy duty Kanthal A1 spiral wound elements are used to heat the kiln. These elements are mounted in grooves on both the side walls and floor of the kiln, to allow uniform heat distribution throughout the chamber. In addition, elements are graded from top to bottom to further aid even temperature distribution within the kiln. The kilns have adjustable clasp door locks fitted and stainless steel surrounds. They also have brick to brick door seals and type ‘R’ thermocouples as standard fittings. The kilns are energy efficient and have a roof and door vent for use during firing and to aid cooling.
Specifications
Model: P5120 P5121
Firing Capacity: 210 litres (7.42cu/ft) 250 litres (8.83cu/ft)
Max Temp: 1300°C
Power: 11kW 13kW
Weight: 310kg 330kg
Chamber Dimensions: 450(W) x 630(D) x 730(H)mm 450(W) x 630(D) x 860(H)mm
External Dimensions: 760(W) x 1030(D) x 1580(H)mm 760(W) x 1030(D) x 1580(H)mm
Power Requirements: 415V 20A or 240V 50A Fused Switch Disconnector 415V 20A or 240V 63A Fused Switch Disconnector
Warranty: 3 Years On-Site (UK Mainland)
3 Years Return and Collect (Elsewhere)

Ceramaster Kilns

Ceramaster Kilns
The Ceramaster is a semi-industrial kiln and ideal for schools and colleges needing a large capacity kiln for a busy full-time ceramics studio.

The kilns are constructed of a durable low thermal mass insulation brick with a high grade backup insulation board. The roof is of flat arch construction, again with two layers of backup insulation. This is all enclosed within a robust high quality pressed steel powder coated frame. Heavy duty spiral wound elements are tube mounted for optimum efficiency and sited on both side walls and floor of the kiln for even heat distribution. All kilns in the Ceramaster range are now fitted with a manual damper as standard.
Specifications
Model: P5229 P5231 P5233
Firing Capacity: 235 litres (8.3cu/ft) 325 litres (11.5cu/ft) 505 litres (17.8cu/ft)
Max Temp: 1300°C
Power: 13kW 18kW 26.5kW
Weight: 370kg 450kg 540kg
Chamber Dimensions: 610(W) x 610(D) x 630(H)mm 610(W) x 610(D) x 860(H)mm 610(W) x 840(D) x 980(H)mm
External Dimensions: 950(W) x 1050(D) x 1570(H)mm 950(W) x 1050(D) x 1600(H)mm 950(W) x 1280(D) x 1800(H)mm
Power Requirements: 514V 20A or 240V 63A, Fused Switch Disconnector 415V 30A, Fused Switch Disconnector 415V 45A, Fused Switch Disconnector
Warranty: 3 Years On-Site (UK Mainland)
3 Years Return and Collect (Elsewhere)

Top Loading Kilns

Top Loading Kilns
Topworker kilns are built to achieve professional standards of firing control and efficiency, but are of compact design to make them ideal for schools and colleges. They are constructed of a low thermal mass 76mm thick insulation brick with a 25mm backup insulation, which is then enclosed within a stainless steel outer jacket. The kilns are fitted with castors (two braked) for easy movement, and two or three bung holes to assist with venting of the kiln and cooling. All the kilns are fitted with a Harting socket for flexible controller connection. For extra security, lids are fitted with a quick-release lock and have padlock provision.
Specifications
Model: P5975 P5959
Firing Capacity: 79 litres (2.79cu/ft) 187 litres (6.61cu/ft)
Max Temp: 1300°C
Power: 6.5kW 12kW
Weight: 88kg 140kg
Chamber Dimensions: 468dia. x 457(H)mm 646dia. x 571(H)mm
External Dimensions: 660dia. x 877(H)mm 838dia. x 991(H)mm
Power Requirements: 415V 10A or 240V 32A Fused switch-disconnector 415V 20A or 240V 63A Fused switch disconnector
Warranty: 3 Years On-Site (UK Mainland)
3 Years Return and Collect (Elsewhere)

Test Kiln

Test Kiln
This is a small kiln designed for test firing clays and glazes without having to fire a large kiln. The kiln comes with a controller and full kiln furniture set. It can be bench mounted provided the work surface is fireproof.
Specifications
Model: Test Kiln
Firing Capacity: 9 litres (0.32cu/ft)
Max Temp: 1300°C
Power: 2.5kW
Weight: 50kg
Chamber Dimensions: 180(W) x 230(D) x 230(H)mm
External Dimensions: 350(W) x 490(D) x 450(H)mm
Power Requirements: 240V 13A or 13A Socket
Warranty: 3 Years On-Site (UK Mainland)
3 Years Return and Collect (Elsewhere)

Kiln Controllers

The CERA-10 controller is supplied as standard with each kiln. The CERA-10 controller has ten programs, each with ten segments - delay start, ten heating/cooling ramps, a target temperature, soak, cut-off and program pause. This advanced controller is ideal for firings where a range of programs are frequently used. The CERA-10 can be used for any firing requiring close control over multiple heating and cooling ramps such as macro crystal glazes and for glass slumping and fusing.

Prices (excluding VAT)

Fireworker Kilns
Products Price Buy
P5910 Fireworker 50 litre (inc controller & furniture set)
Order Code: AR-KILN26
£2,100.00
P5911 Fireworker 68 litre (inc controller & furniture set)
Order Code: AR-KILN27
£2,305.00
Stand suitable for Kilns AR-KILN26/27/32
Order Code: AR-KILN27B
£210.00
Heatworker Kilns
Products Price Buy
P5941 Heatworker 86 litre (inc controller & furniture set)
Order Code: AR-KILN14
£3,865.00
P5942 Heatworker 128 litre (inc controller & furniture set)
Order Code: AR-KILN15
£4,445.00
P5943 Heatworker 171 litre (inc controller & furniture set)
Order Code: AR-KILN16
£4,640.00

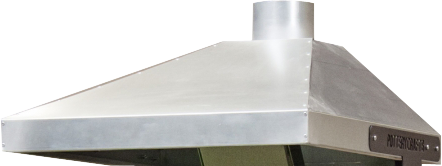

Zintec Hood & Mounting Brackets for AR-KILN14
Order Code: AR-KILN14C
£390.00
Zintec Hood & Mounting Brackets for AR-KILN15
Order Code: AR-KILN15C
£410.00
Zintec Hood & Mounting Brackets for AR-KILN16
Order Code: AR-KILN16C
£425.00
Lightmaster Kilns
Products Price Buy
P5120 Lightmaster 210 litre (inc controller & furniture set)
Order Code: AR-KILN17
£4,945.00
P5121 Lightmaster 250 litre (inc controller & furniture set)
Order Code: AR-KILN18
£5,100.00
Zintec Hood & Mounting Brackets for AR-KILN17/18
Order Code: AR-KILN17C
£460.00
Ceramaster Kilns
Products Price Buy
P5229 CeraMaster 235 litre (inc controller & furniture set)
Order Code: AR-KILN33
£6,150.00
P5231 CeraMaster 325 litre (inc controller & furniture set)
Order Code: AR-KILN35
£8,490.00
P5233 CeraMaster 505 litre (inc controller & furniture set)
Order Code: AR-KILN37
£11,485.00
Kiln Canopy for AR-KILN35
Order Code: AR-KILN35C
£460.00
Top Loading Kilns
Products Price Buy
P5975 Topworker 79 litre (inc controller & furniture set)
Order Code: AR-KILN19
£2,980.00
P5959 Topworker 176 litre (inc controller & furniture set)
Order Code: AR-KILN22
£4,005.00
Test Kiln
Products Price Buy
P5900 Test Kiln 9 litre (inc controller & furniture set)
Order Code: AR-KILN32
£1,605.00
Stand suitable for Kilns AR-KILN26/27/32
Order Code: AR-KILN27B
£210.00
