TechSoft CAD/CAM Workstations

High Quality Workstations, Ideal for Educational Use

View PDF Version of Page
  CAD CAM Workstation

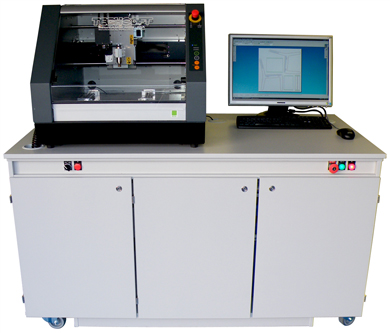

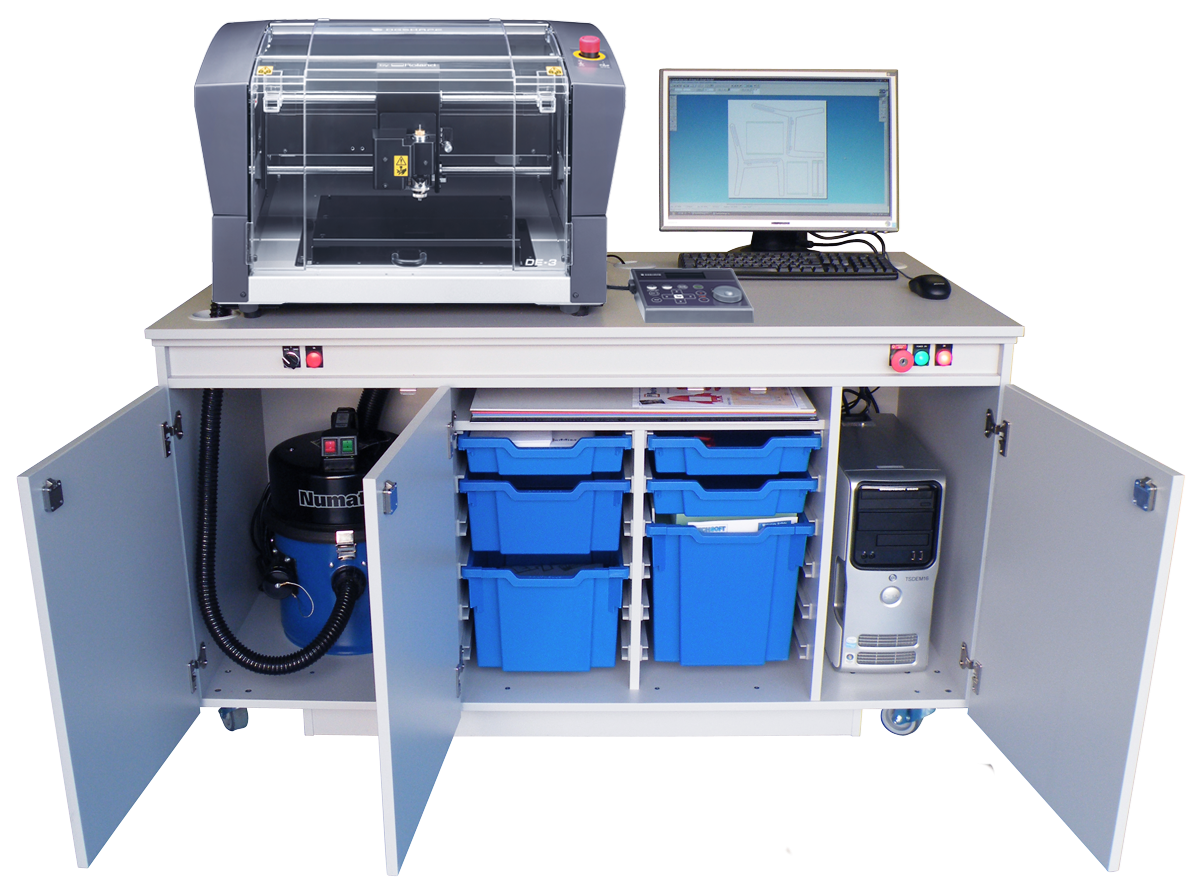

  TechSoft Miller/Router Workstation


S45NE Bandsaw

Simply add a PC and a TechSoft/Roland SRM-20E/MDX-40AE/EGX-350E, and you’re ready to go. The unit is fully-wired with key-switch control of the machine and the extraction unit. The extractor is included and will auto-run on MDX-40A & EGX-350E machines. Manual switching can be used with other models and for cleaning down. Status indicators monitor the built-in power sockets and these include power for the PC. The PC socket is not controlled by the stop button / key switch so work will not be lost. Central storage trays will accommodate a generous supply of materials and securely store all the necessary tooling.

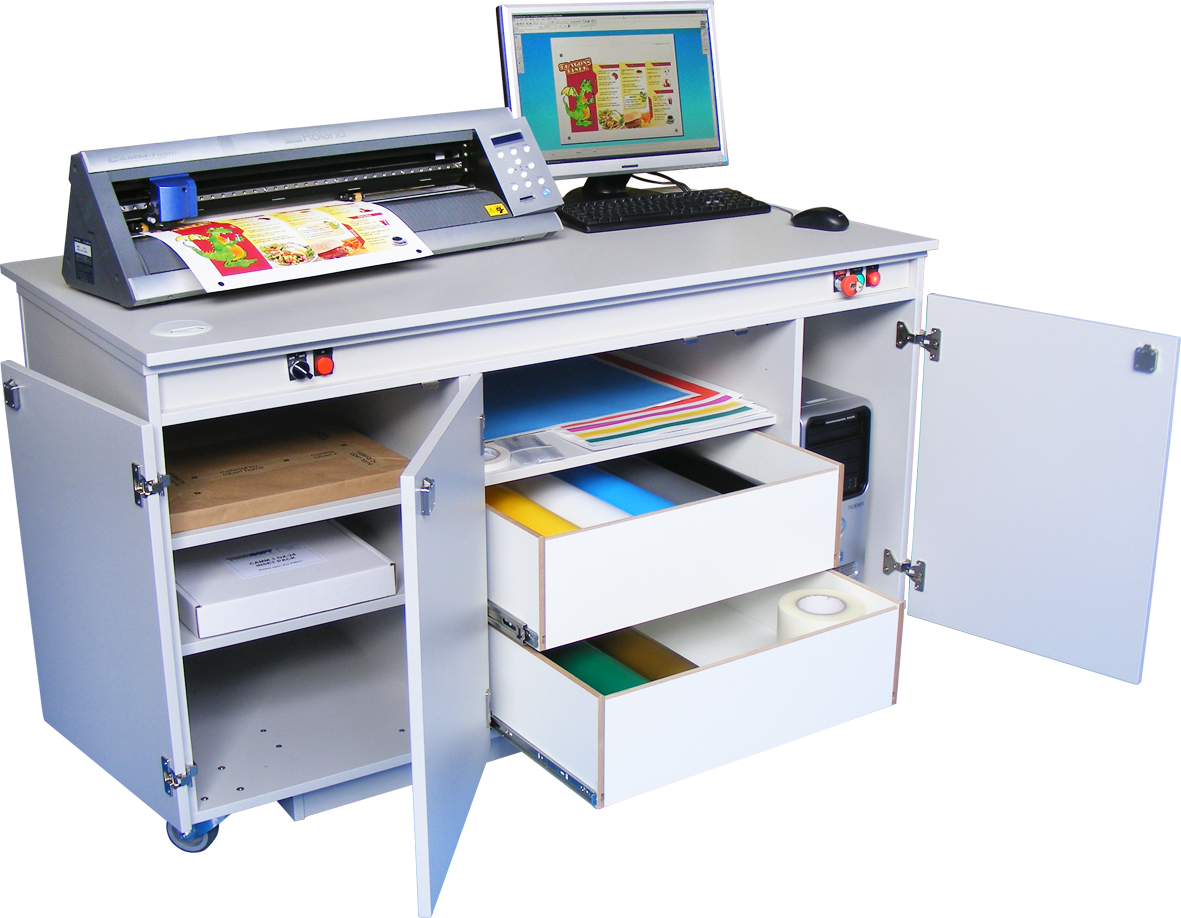

  TechSoft Knife Cutting Workstation


Knife Cutting Workstation

The spacious worktop provides room for handling sheet or roll material for any TechSoft knife cutter up to and including the Roland CAMM 1 GS-24E. Lockable storage space includes a PC bay, shelving for sheet material and drawers for several 500mm rolls of vinyl. The unit is fully-wired with key-switch control of machine power and one additional socket – possibly for use with a printer. Status indicators monitor the built-in power sockets and these include power for the PC. The PC socket is not controlled by the stop button / key switch so work will not be lost.

  TechSoft Embroidery Workstation


Embroidery Workstation

This workstation comfortably accommodates a multi-needle embroidery machine and computer. Priority has been given to storage for materials and the numerous small accessories needed for these machines. In this format, the workstation is effectively a multi-purpose unit that could be used for any number of applications. The unit is fully-wired with key-switch control of machine power and one additional socket. Status indicators monitor the built-in power sockets and these include power for the PC. The PC socket is not controlled by the stop button / key switch so work will not be lost.

  TechSoft Image Transfer Workstation


Image Transfer Workstation

Laser Image Transfer or Sublimation Printing requires a PC, printer, heat press and a selection of specialist materials. This workstation has been configured to provide separate key-switch operation of the heat press and printer. The key-switches do not cut power to the PC, so work will not be lost. Secure storage space is included for specialist materials that must not be allowed to become muddled with general print media.

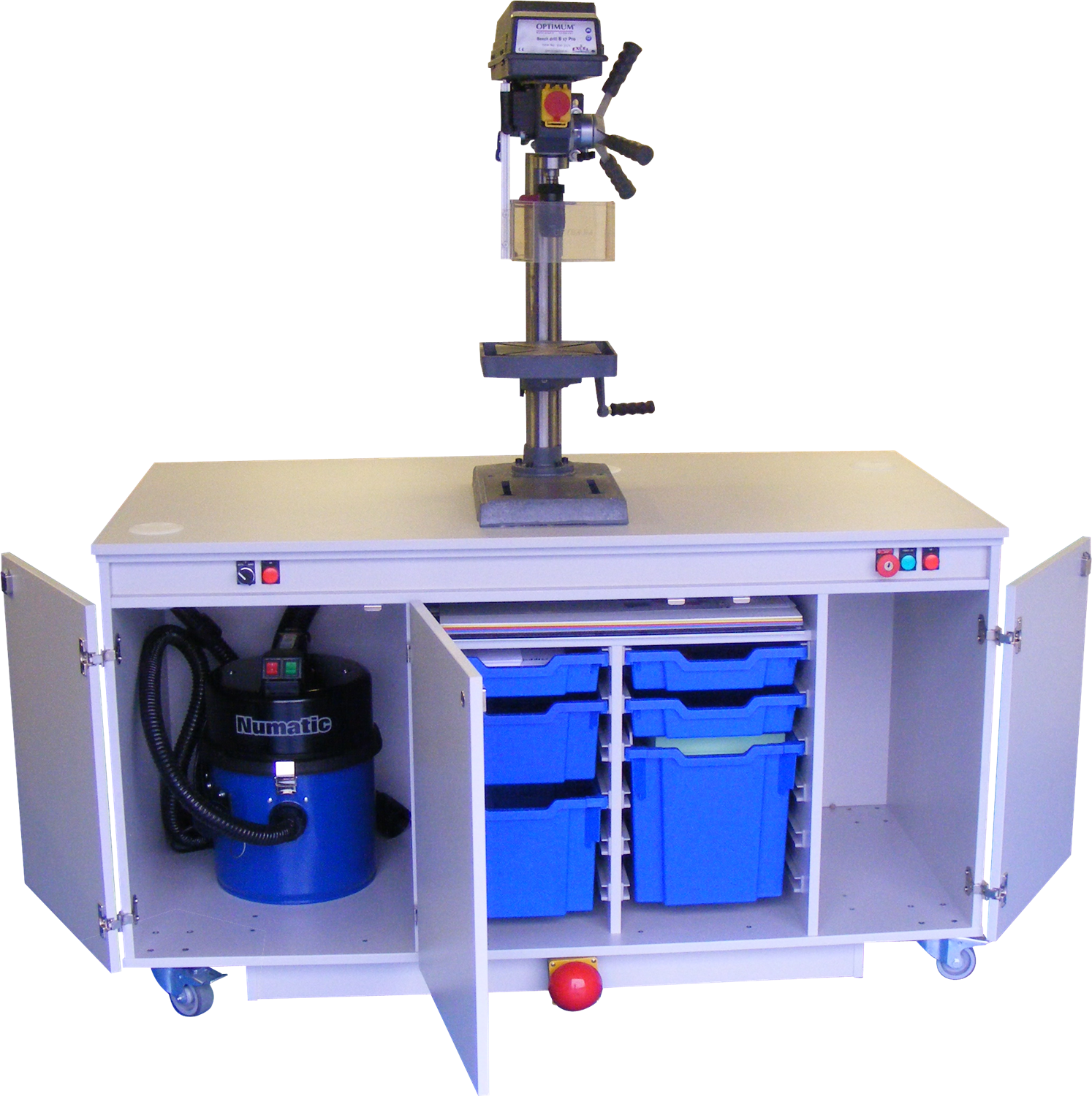

TechSoft Machine Workstations

Machine Workstation
Shown here with Optimum Drill supplied separately.
A TechSoft workstation provides an ideal base for additional small machine tools that will allow them to be shared between rooms as timetables and project work demands. Each workstation features industrial quality locking
castors for security once the unit is in place. Mushroom-headed push-stop buttons with key-switch release, control the operation of the machine and extraction power outlets. Power status indicators allow a quick visual check if the machine is operational. The Machine Workstation ensures that not only the machine, but all the necessary switches and wiring requirements, move with it.

Machines are not included with these units. If ordered complete with a machine from TechSoft, this will be fully installed before delivery for a true plug and play solution.

Machine Workstation with Foot-stop
This unit will accommodate a bench drill, small metal lathe or bench-top milling machine and includes a latching foot-stop to ensure full compliance with safety regulations. Storage space below includes Gratnell trays for tooling, accessories and general use.

Description More...

CAD/CAM Workstations
Creating appropriate workspaces with the right equipment levels is a familiar challenge for Design and Technology teachers, and particularly so when it comes to CAD/CAM equipment. Duplicating resources between rooms might be ideal, but most schools would struggle to find space or the budget to do this. Some schools have been able to develop a central CAD/CAM hub and others place key CAD/CAM resources in areas where all students will, at some point, be timetabled. Both strategies have their merits but a third is to move equipment to where it is needed, when it is needed. This flexible approach will, in addition, enable schools to quickly adapt teaching rooms in sympathy with curriculum developments.

To meet these needs, TechSoft have developed a range of workstations, each of which has been carefully designed to provide a complete, portable, ‘Plug and Play’ resource. The units are constructed for strength and smart appearance, and feature double-skin carcasses in key areas. Surfaces are selected for durability, and thick edge-lippings will help preserve appearances despite inevitable classroom knocks. The workstations move smoothly on lockable industrial grade castors.

All worktops are large enough for any TechSoft desktop-format CAM machine and a computer. Lockable cupboards contain a generous selection of trays for tooling, materials and space for a PC unit. Storage space is carefully configured to suit the designated application and, in the case of the milling/routing workstation, space for the included vacuum extractor. Mushroom-headed push-stop buttons with key-switch release, control the operation of the machine and extraction power outlets. Power status indicators allow a quick visual check if the machine is operational. The key-switch does not cut power to the PC, so work will not be lost. This gives the teacher flexible control over the use of the equipment. Where appropriate, an auto-switched outlet for the extraction system is provided, this also has a manual override for cleaning down. Cable management systems ensure safe, tidy and reliable performance. All extraction units provided, have external ventilation of the exhaust to prevent overheating.

Power Requirements: 240V, 13A Socket
Click for More...

Prices (excluding VAT)

TechSoft Workstations
Products Price Buy
TechSoft Mobile Workstation for Milling 1400x800x850mm (c/w underbench cupboards containing in-built sockets, auto-switched extractor with manual override, Gratnell trays and storage space for computer)
Order Code: TF-WS3-C1
£2,660.00
TechSoft Mobile Workstation for Knife Cutting / Embroidery / LIT / Mojo 1400x800x850mm
(c/w underbench cupboards containing in-built sockets, drawers, shelves and storage space for computer)
Order Code: TF-WS3-C2
£2,260.00
TechSoft Mobile Workstation for Workshop Machines 1400x800x850mm (c/w footstop, underbench cupboards containing in-built sockets, Gratnell trays and storage space)
Order Code: TF-WS3-C4
*£2,335.00
*N.B. Legacy or customer supplied equipment will require professional installation at additional cost. TechSoft supplied new machines will be fully installed before delivery.
