RJH Chamois Polisher for Bench Mounting

Prices

(excluding VAT)

Machines

Accessories

Positioning

This machine must be securely fixed to the bench using the mounting lugs provided and appropriate heavy-duty fixings.

Machines

Standard - Without Braking System

*A fitted Integral DC Braking system is available at an additional cost (see section below "With Braking System"). Although not a mandatory requirement, there is an increased demand from various H&S consultants who deem this necessary.

Products	Price	Buy
RJH Finishing CH2001T Chamois Polisher for Bench Mounting (3 phase) + Emergency Foot Stop Order Code: MM-POLISHER3BFT	£3,225.00*
RJH Finishing CH2001S Chamois Polisher for Bench Mounting (1 phase) + Emergency Foot Stop Order Code: MM-POLISHER3BFS	£3,445.00*

With Braking System

Products	Price	Buy
RJH Finishing CH2001T-02 Chamois Polisher with Integral Braking System, for Bench Mounting (3 phase) + Emergency Foot Stop Order Code: MM-POLISHER3RBFT	£4,505.00
RJH Finishing CH2001S-02 Chamois Polisher with Integral Braking System, for Bench Mounting (1 phase) + Emergency Foot Stop Order Code: MM-POLISHER3RBFS	£4,725.00

Accessories

Products	Price	Buy
Optional fitted LED light for RJH Bandfacer, Polisher or Grinder machines. Must be fitted at time of purchase. Please specify if for 1 phase or 3 phase machine. Order Code: MT-RJ-LGT1	£515.00
Mop, 200 x 25, Stiched for Chamois Polisher Order Code: MMP-PO-MP1	£45.00
Mop, 200 x 25, Loose for Chamois Polisher Order Code: MMP-PO-MP2	£44.00
Replacement Dust Extraction Filter Bag for integrated extractor of RJH Gryphon Grinder, Antelope Bandfacer and Chamois Polisher Order Code: MT-BF-FILTER1	£97.00

Product Description

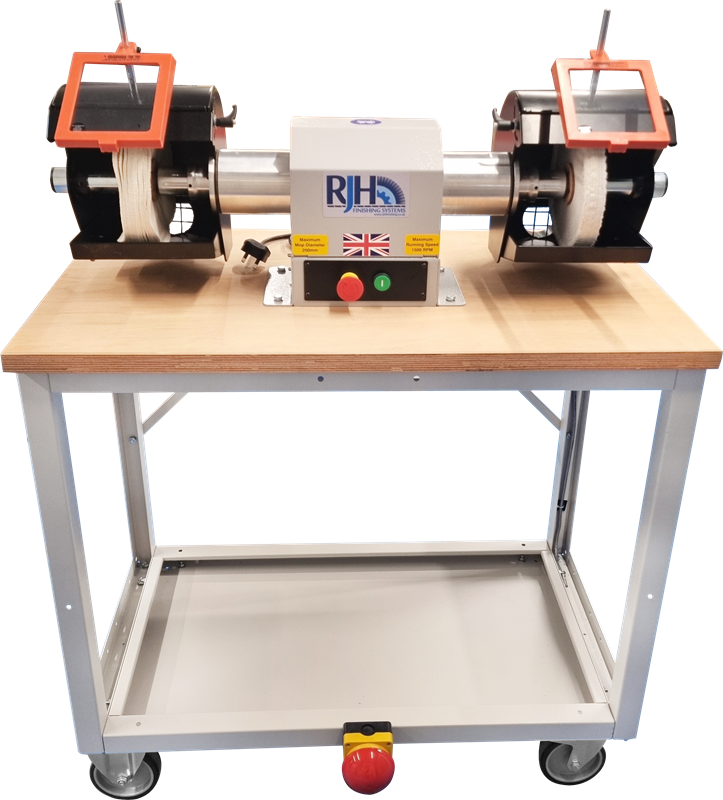

The Chamois double-ended polisher is a quiet, smooth running machine with a long-standing reputation for reliability and longevity in educational establishments. The spindle is guarded by adjustable steel sleeves and safety is further ensured by steel guards and robust adjustable eye shields. These guards double as dust-capture hoods and have provision for duct connection.

This machine-only version is for customers who wish to install onto side benching. Extraction will be required via free-standing LEV or connection to a central system. A footstop is provided for mounting as appropriate.

These machines produce waste in the form of dust. To preserve a healthy working environment and to comply with COSHH regulations within HSE guidance, airborne contaminates such as this must be controlled if in a classroom environment. (This is not a requirement if the machine is sited where PPE measures can protect the operator from dust inhalation, eg., in a preparation room.)

Product Specifications

Specifications

Model:	RJH Finishing Chamois Polisher
Spindle Speed:	1 Phase: 1,415rpm 3 Phase: 1,440rpm
Max Mop Size:	200 x 25mm
Mop Drive Motor:	1 Phase: 0.70kW (0.94hp) 3 Phase: 1.25kW (1.7hp)
Centre of Mop:	150mm(H)
Weight:	45kg
Dimensions:	1000(W) x 325(D) x 290(H)mm
Power Requirements:	415V 1.25kW or 240V 0.7kW Lockable rotary isolator
Warranty:	UK Mainland: 2 Years On-Site Elsewhere: 2 Years Return and Collect

CAD Drawing (with Safe Working Area)

Available on request in DXF, DWG & 3VS/DTD (TechSoft Design V3) formats.
