Startech CN K

Enclosed Large Format Router

Startech CN K

Startech CN K
Startech CN K
Click to Enlarge - Startech CN K
Click to Enlarge - Startech CN K
Click to Enlarge - Startech CN K
Click to Enlarge - Startech CN K
Click to Enlarge - Startech CN K

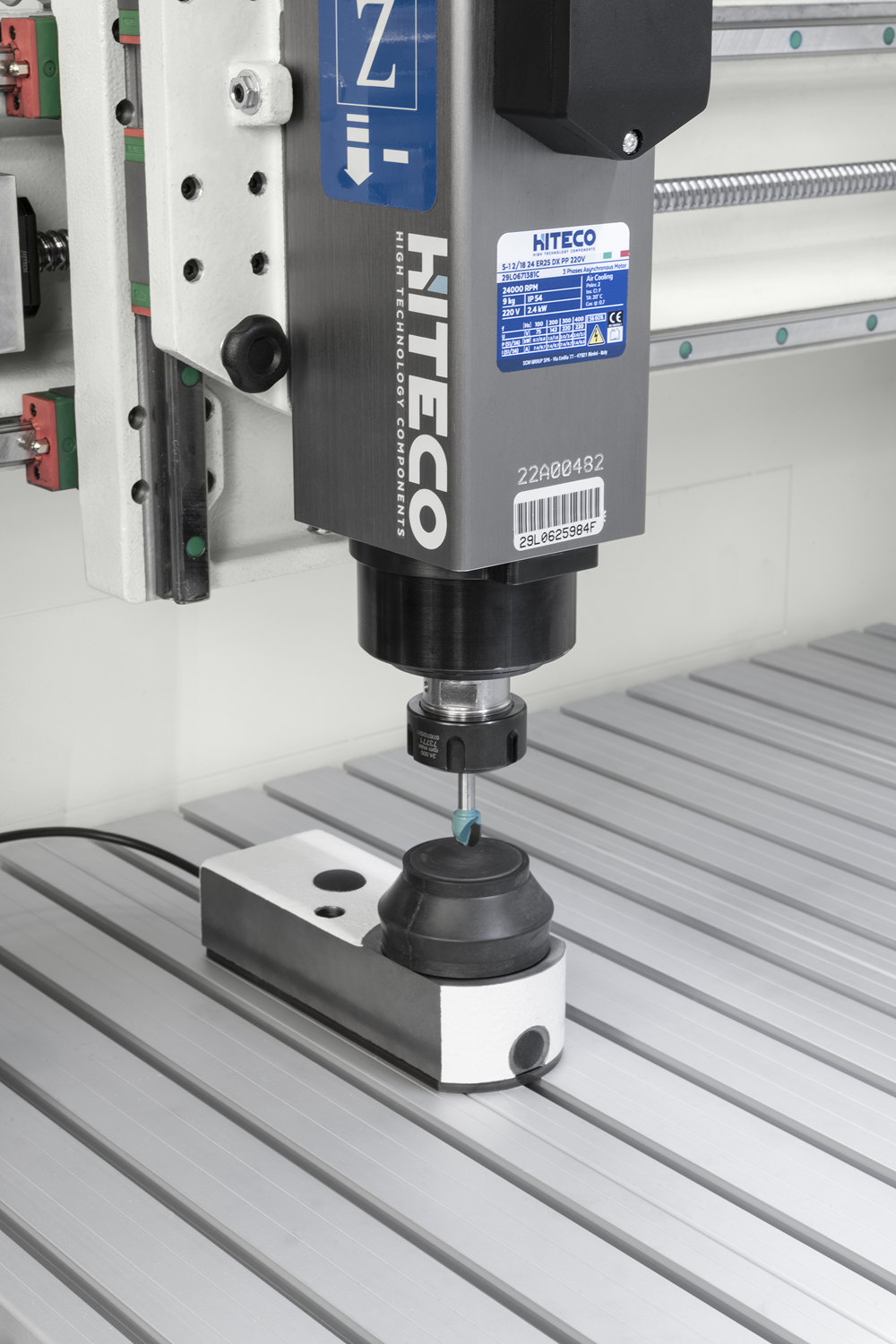

Click to Enlarge - Tool Height Detection Sensor

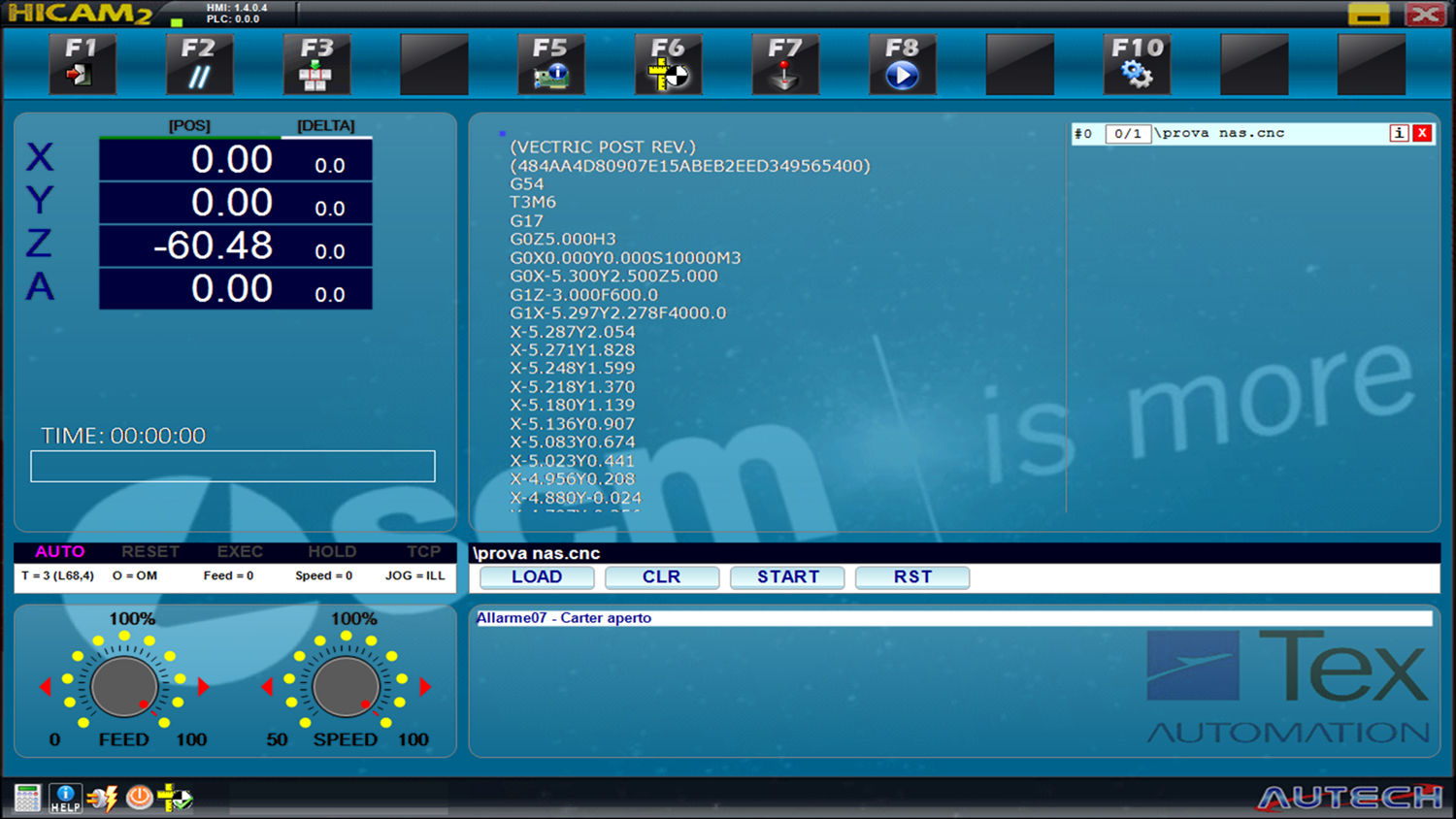

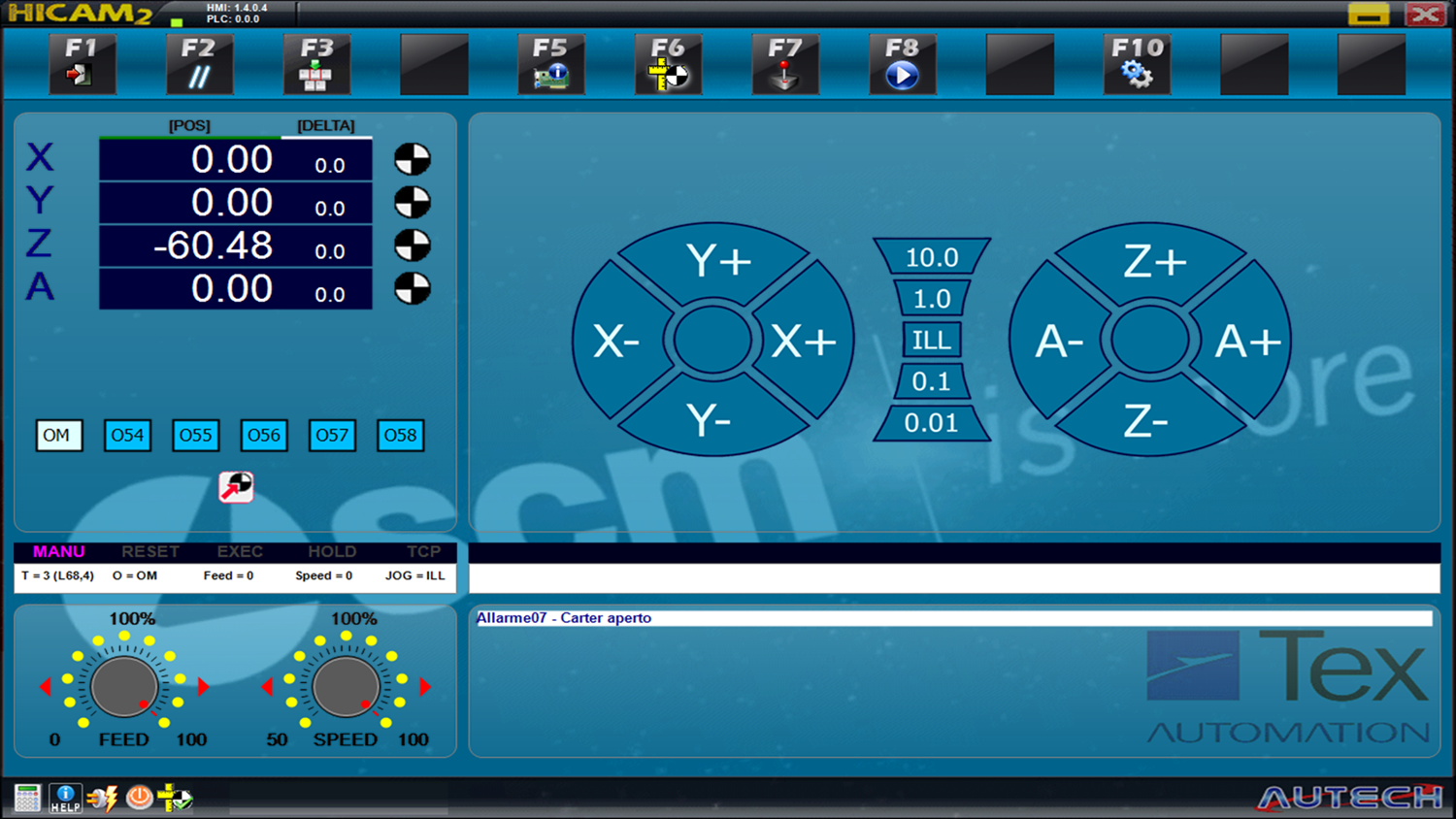

Click to Enlarge - Included Output Software
Click to Enlarge - Included Output Software
Click to Enlarge - Included Output Software
Click to Enlarge - Optional Extra - Pneumatic Suction Cups
Click to Enlarge - Optional Extra - Pneumatic Suction Cups
Click to Enlarge - Optional Extra - 4th Axis
Click to Enlarge - Optional Extra - 4th Axis

Startech CN K

Prices
(excluding VAT)
TechSoft Machine Package
ProductsPriceBuy
Startech CN K CNC Router Package with 915x610mm working area.
Includes:
  • Wheeled machine base with adjustable feet
  • Tool height detection sensor
  • TechSoft Training Pack (with collets, tools and materials for tutorials)
  • Visual Toolpath Software
  • Commissioning and Training (2 hours) on day of installation (UK Mainland only)
Order Code: MM-CNCROUT12
£12,470.00
Essential Accessories
Recommended Accessories
Optional Accessories
Product Videos
Product Description

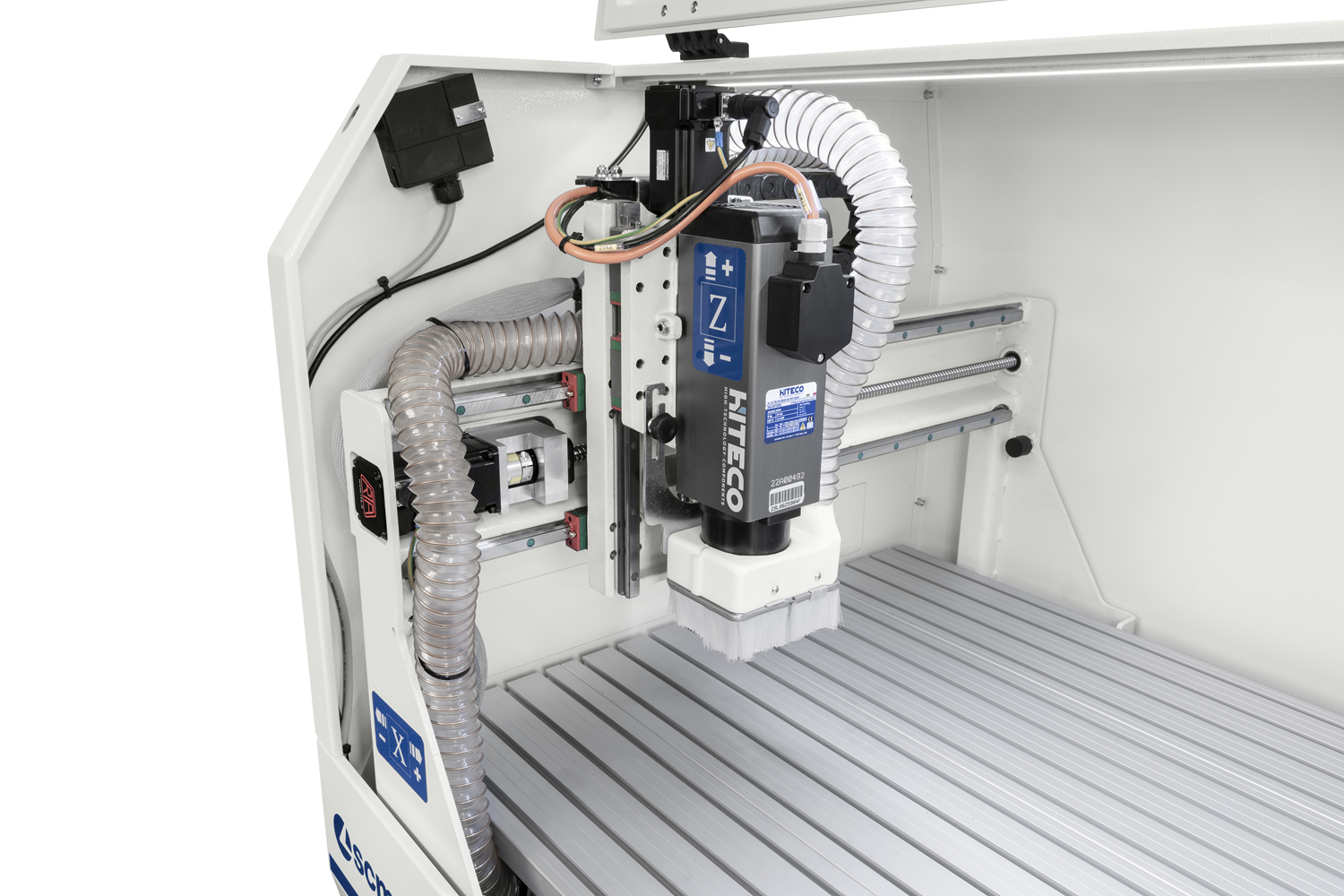

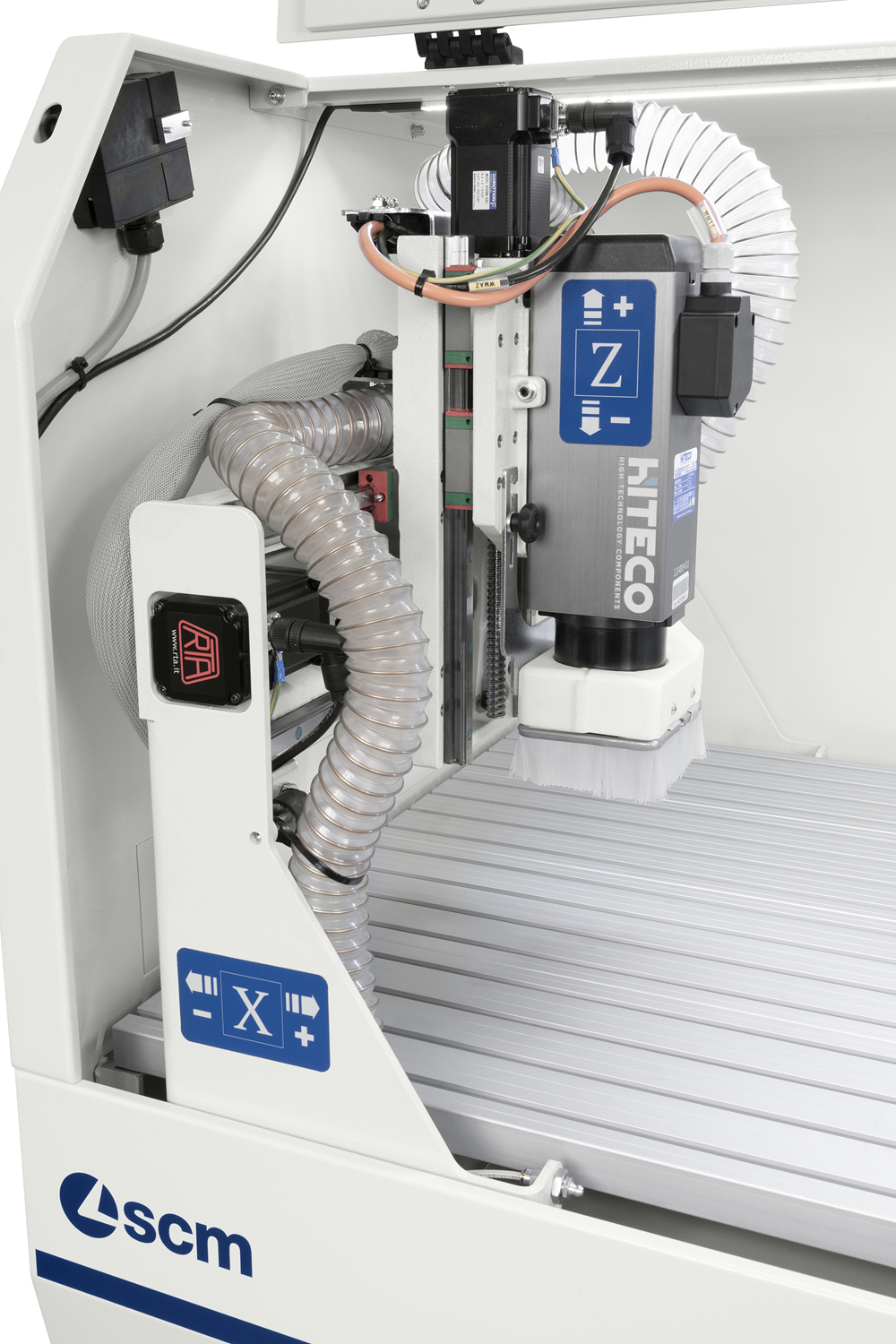

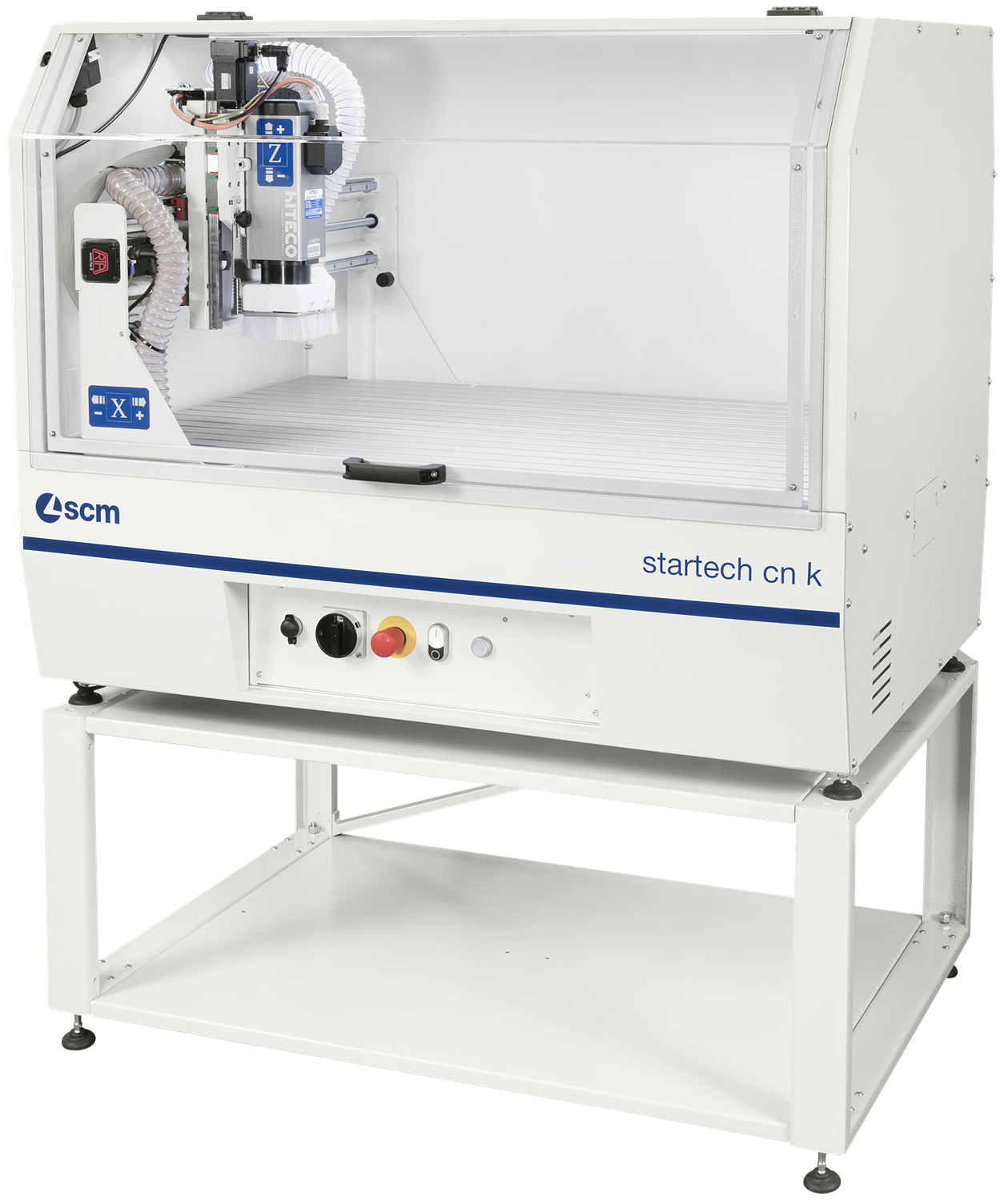

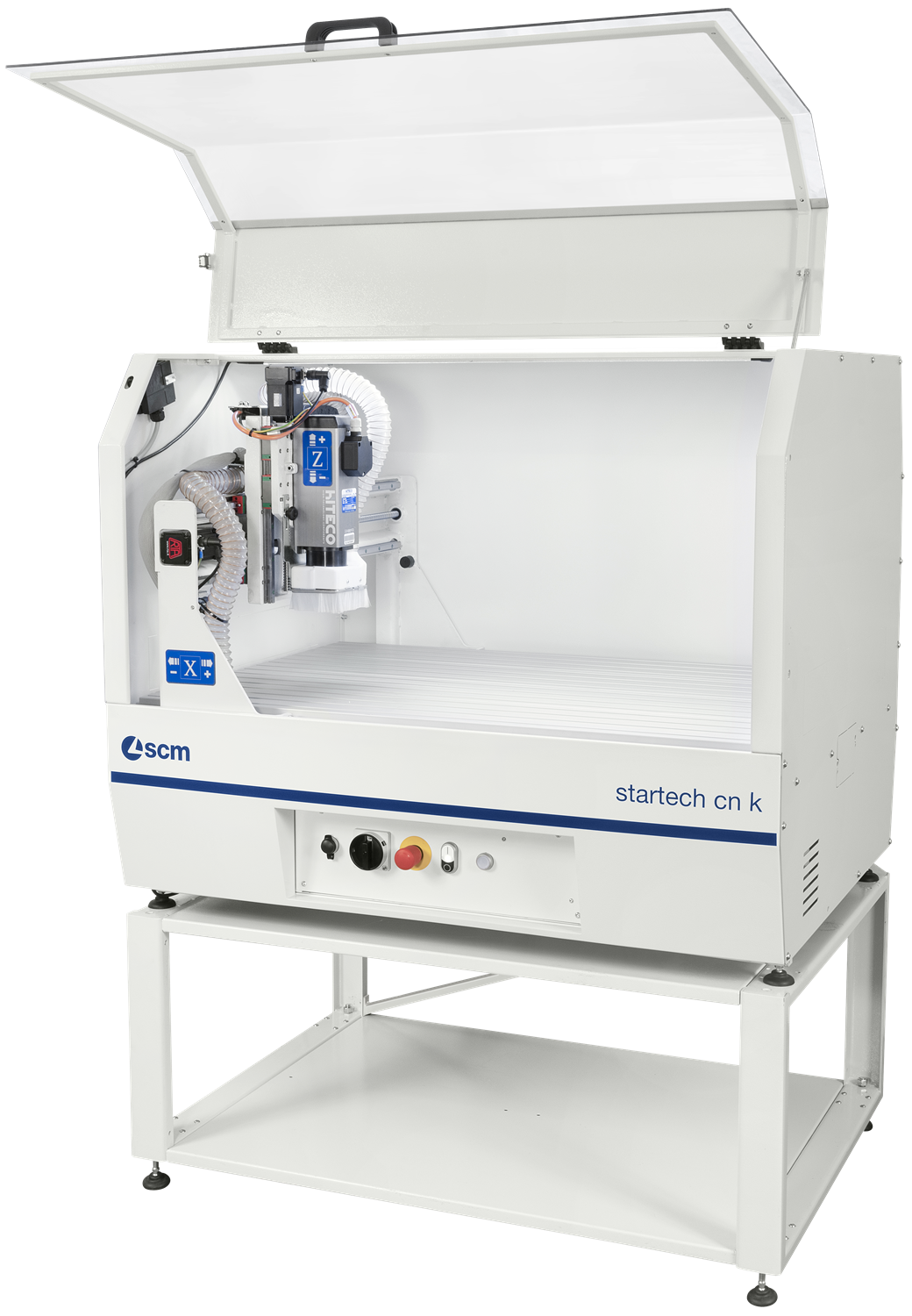

The Startech CN K can carry out all types of milling, engraving and 3D model prototyping.

It is the ideal solution for use in education, and for industrial prototyping, thanks to its ease of set up and use. Designed with the highest safety standards in mind, Startech cn k is the only machine in its price category equipped with an integral cabin with internal LED lighting, which ensures absolute protection for the operator and keeps the surrounding environment clean. The extremely rigid and robust structure guarantees professional precision and repeatability.


Key Points
  • Maximum Safety and Cleanliness. The integral cabin, with internal LED lighting, ensures protection for the operator and keeps the surrounding environment clean.

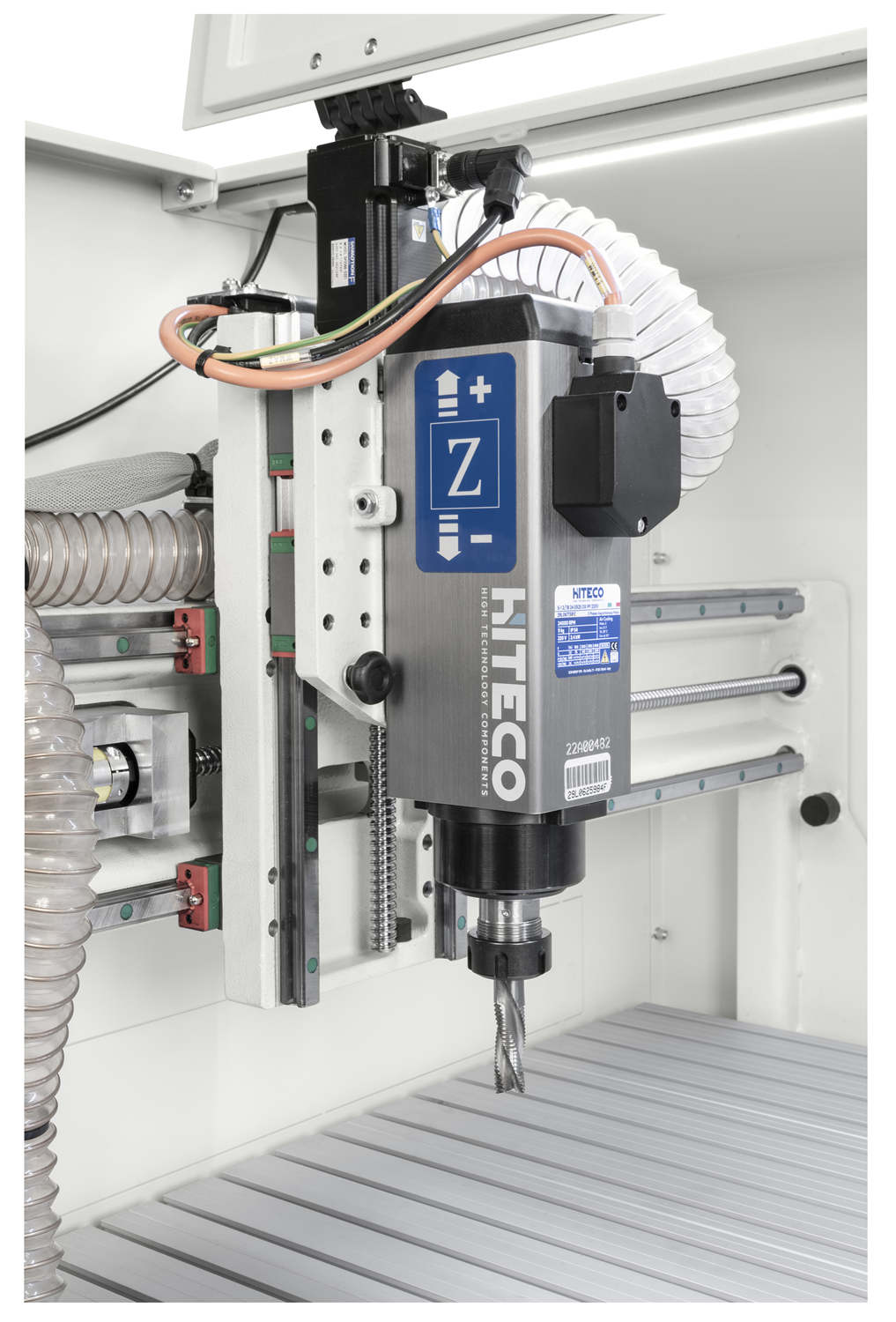

  • Unique in its Price Category: The routing unit has a powerful 2.4 kW electro spindle with ER25 tool-chuck used on higher-category machines!
  • Aluminium worktable including "T" grooves (dimensions: 13.5x7mm, opening 8.5 mm) for M8 screw or nut passage.
  • Easy Programming: "Open" virtual human machine interface capable of importing G-code from a variety of CAD/CAM software.


Essential Requirements
You will require the following to use the machine:
  • A Windows computer with an ethernet port to control the machine (output software included)
  • A 230V 1 Phase 16A rotary isolator is required.
  • Minimum door access 940mm.
CAD/CAM Software (Essential)
The basic machine package only includes software to output CNC files, and not CAD/CAM software to create the CNC files.

TechSoft recommend:
  • TechSoft Design V3 for designing and creating toolpaths for 2D/2.5D work.
  • SolidWorks for designing 3D work.
  • Visual Toolpath for creating toolpaths for 3D work (included with machine package above).
TechSoft Design V3More Info
SOLIDWORKSMore Info
Visual ToolpathMore Info

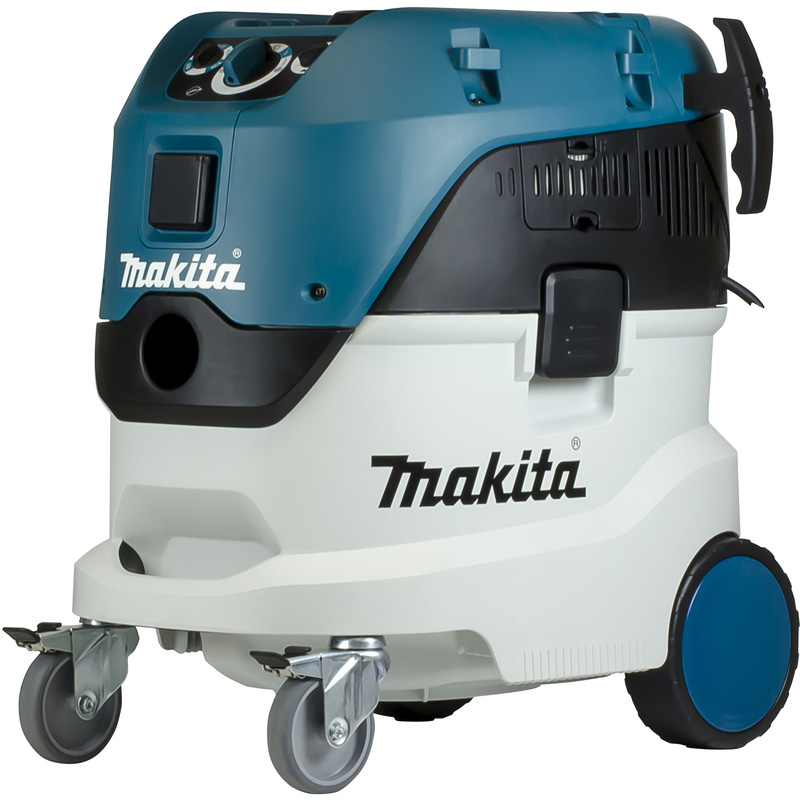

Extraction (Essential)
MM-EXTRACTION32
Local Exhaust Ventilation must be installed with this machine. These machines produce large quantities of waste in the form of dust and/or chips. To preserve a healthy working environment and to comply with COSHH regulations within HSE guidance, airborne contaminates such as this must be controlled.
ProductsPriceBuy
Order Code: MM-EXTRACTION32
£950.00
Tooling / Collets (Recommended)
Collet: Full Set of Collets
Recommended if you are planning to use the machine with a variety of different tools.
ProductsPriceBuy
15 piece ER25 Collet Set. To hold tools from 2mm to 16mm shank.
Order Code: TA-RCOLL-PK4
£125.00
Collets: Individual Collets
Recommended if you are planning to use the machine with a specific tool.
ProductsPriceBuy
ER25 collet. Sizes range from 1-2mm to 14-15mm.
Please choose size required.
Order Code: TA-RCOLL25-DXX
£12.60
General Purpose Starter Tool Pack
Collets not included - see above.
ProductsPriceBuy
RouterCAM/Startech Starter Tool Pack of General Purpose Tools (Save £6)
Contains:
4mm two flute spiral up cut (RC-SD2X4X4-1)
6mm two flute spiral up cut (TS-SDEA-6)
6mm two flute spiral up cut long reach (RC-SD2X6X6-1)
4mm two flute ball nose up cut (RC-BN2X4X4-2)
6mm two flute ball nose up cut (RC-BN2X6X6-2)
4mm single flute router (RC-SD1X4X4-1)
6mm single flute router (RC-SD1X6X6-1)
30 deg engraving V bit cutter (RC-EC6X30-1)
90 deg V groove cutter (RC-GC6X90-1)
N.B. The collet set appropriate to your machine should be ordered with these tools
Order Code: TP-RC-START1
£181.00
Router Starter Tool Pack
Collets not included - see above.
ProductsPriceBuy
RouterCAM/Startech Starter Tool Pack of Milling/Routing Tools (Save £6)
Contains:
4mm two flute spiral up cut (RC-SD2X4X4-1)
6mm two flute spiral up cut RC-SD2X6X6-1)
10mm two flute spiral up cut (RC-SD2X10X10-1)
N.B. Requires collets for 4mm, 6mm and 10mm tools
Order Code: TP-RC-ROUT1
£132.00
3D Starter Tool Pack
Collets not included - see above.
ProductsPriceBuy
RouterCAM/Startech Starter Tool Pack of 3D Modelling Tools (Save £6)
Contains:
4mm two flute ball nose up cut (RC-BN2X4X4-1)
6mm two flute ball nose up cut (RC-BN2X6X6-1)
10mm two flute ball nose up cut (RC-BN2X10X10-1)
N.B. Requires collets for 4mm, 6mm and 10mm tools
Order Code: TP-RC-3D1
£132.00
Clamping
The machine bed consists of "T" grooves that are 13.5x7mm, with a 8.5mm opening for M8 screw or nut passage. A basic starter clamping set is included with the TechSoft Training Pack.

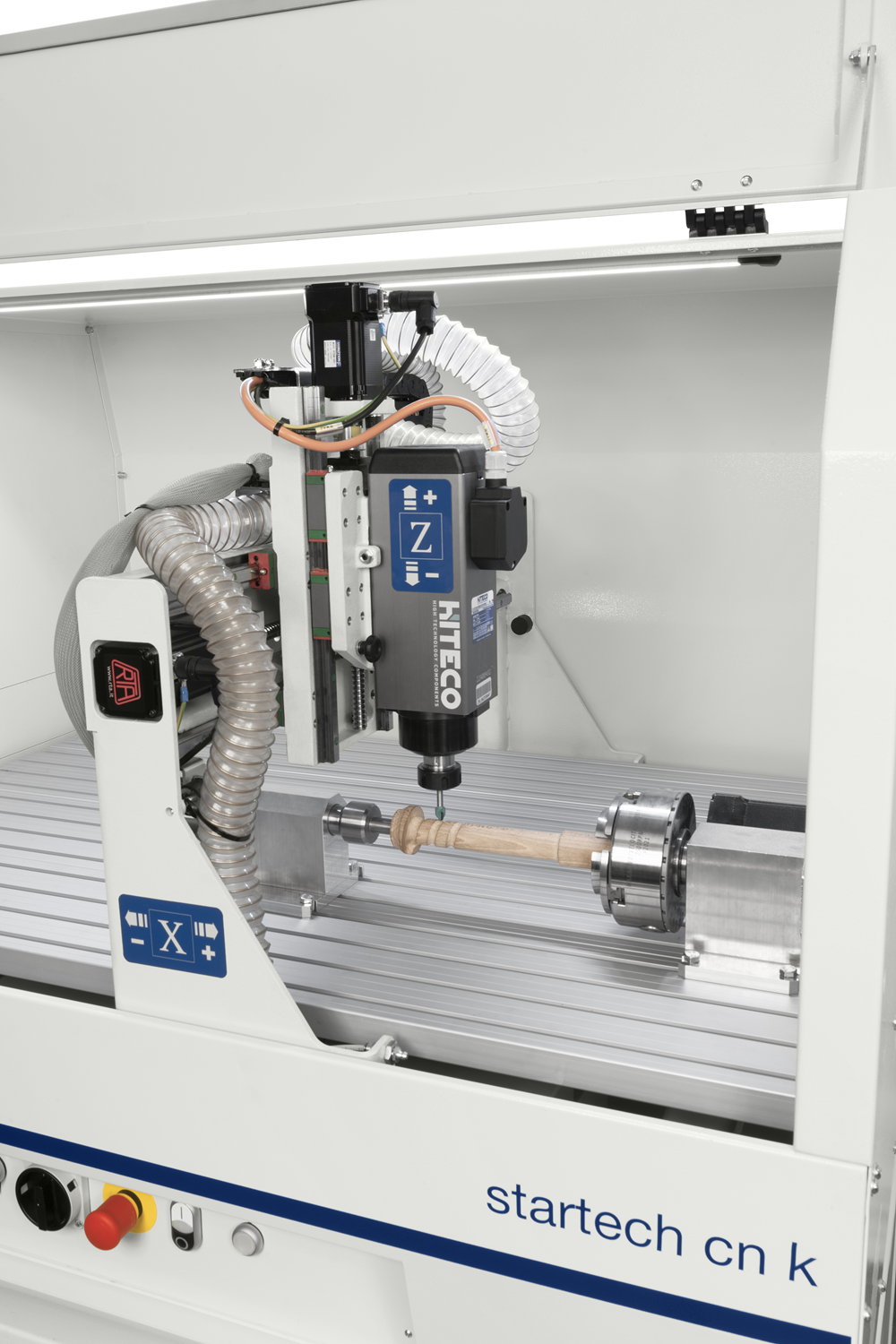

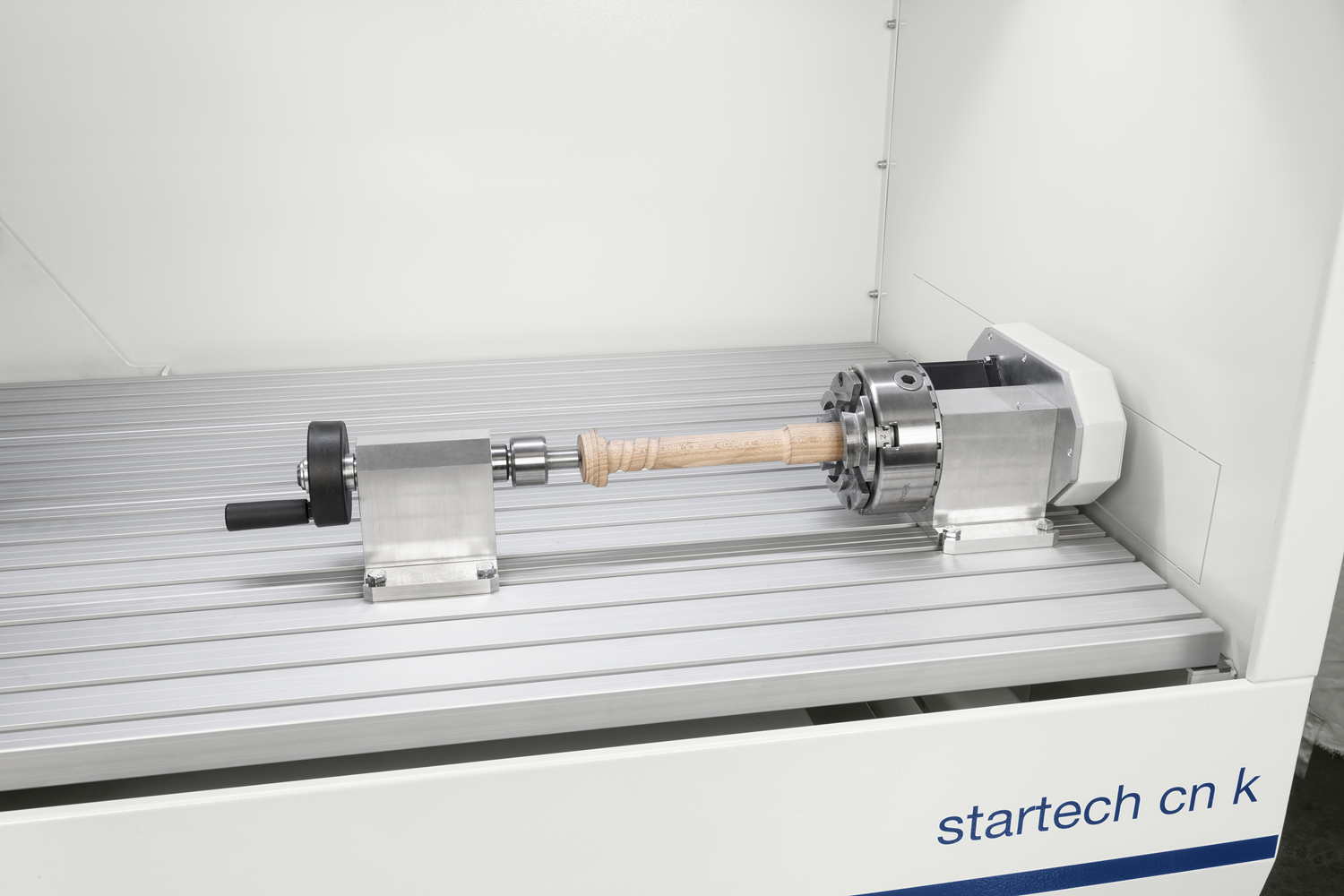

4th Axis (Optional)
Optional Extra - 4th Axis
Optional Extra - 4th Axis
Click to Enlarge - Optional Extra - 4th Axis
Click to Enlarge - Optional Extra - 4th Axis
Turn your router into a CNC lathe with this optional 4th Interpolating Axis add-on. No limit to creativity.
ProductsPriceBuy
4th interpolating axis (lathe processing) that can be positioned on the work table. (Startech CN K Optional Extra)
Order Code: MM-CNCROUT12J
£1,505.00

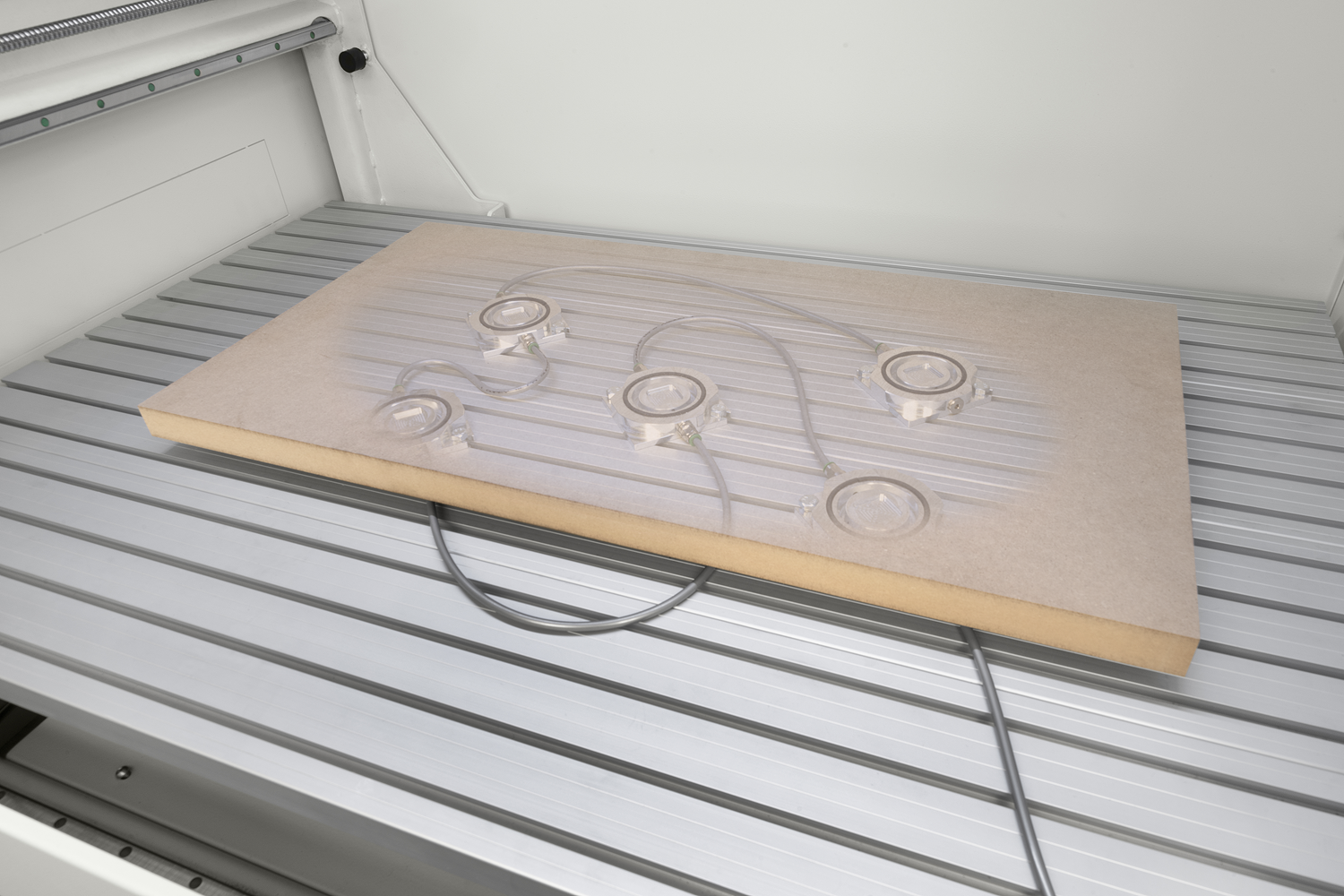

Pneumatic Suction Cups (Optional)
Optional Extra - Pneumatic Suction Cups
Optional Extra - Pneumatic Suction Cups
Click to Enlarge - Optional Extra - Pneumatic Suction Cups
Click to Enlarge - Optional Extra - Pneumatic Suction Cups

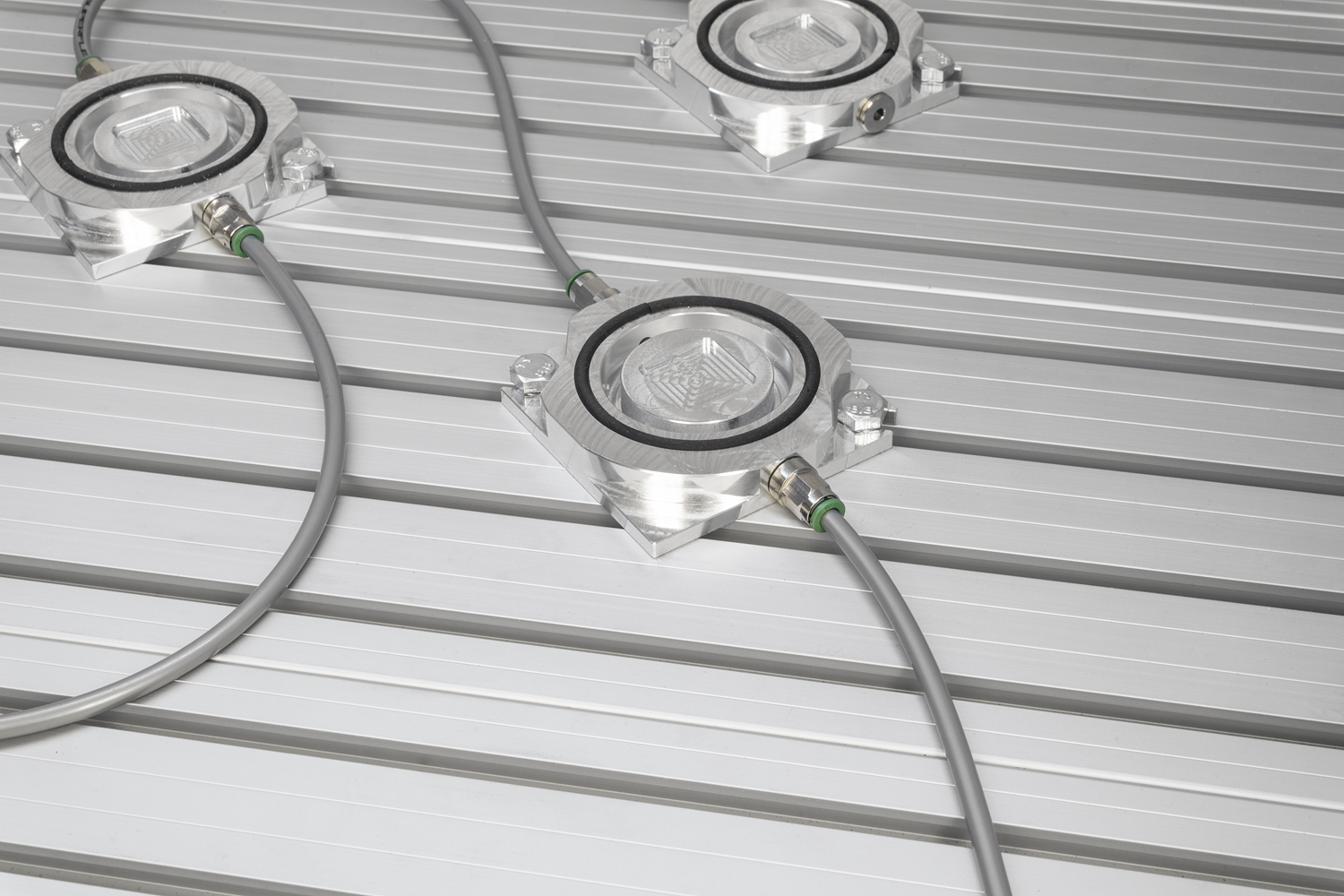

To hold your workpiece to the bed, a kit of 5 pneumatic suction cups is available which attach to the worktable. The kit helps improve ease-of-use and accuracy.

Important: The kit is for the suction cups only and does not include an air compressor which would be required. Air compressor specs required are 6.5bar and 120l/min.
ProductsPriceBuy
Kit of 5 pneumatic suction cups that can be positioned on the work table. (Startech CN K Optional Extra)
Order Code: MM-CNCROUT12G
£650.00
Product Specifications
Specifications
Model:Startech CN K
Working Area (X Y Z):915 x 610 x 176mm
Worktable Dimensions:1170 x 760mm
Data Transfer:Ethernet Port (Direct to PC)
Max Working Speed (XY):83mm/s (5m/min)
Max Working Speed (Z):42mm/s (2.5m/min)
Accuracy:±0.05mm
Spindle:2.4kW
Maximum Spindle Speed:24000rpm
Collet Size:ER25
Power Requirements:230V 1 phase, 3.7kW (16A)
Dimensions:Machine with lid closed without stand:
1219(W) x 937(D) x 1041(H)mm

Machine with lid open without stand:
1219(W) x 1296(D) x 1406(H)mm

Minimum door access 940mm.
Warranty:UK Mainland:
1 Year On-Site

Elsewhere:
1 Year Return and Collect
